Nissan Primera P11. Manual - part 531





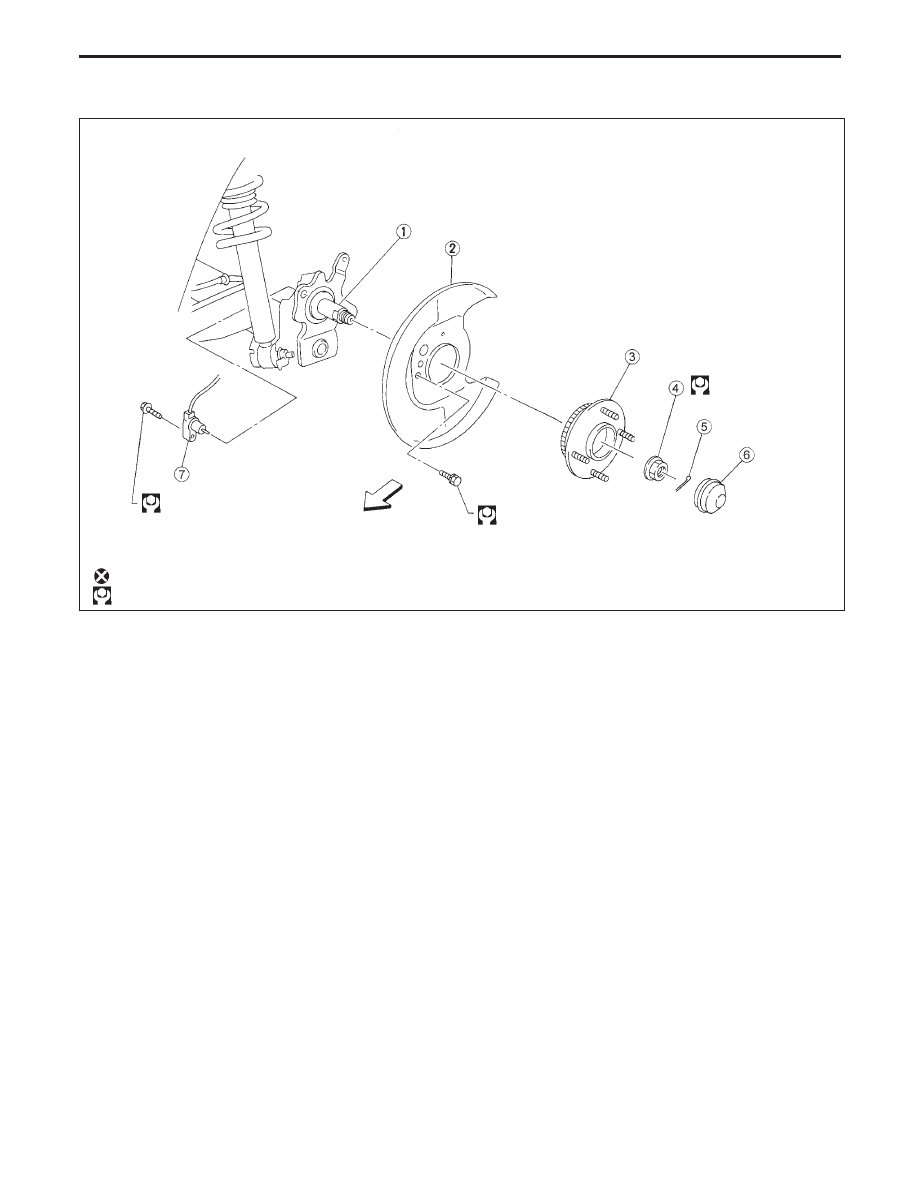

Wheel Hub

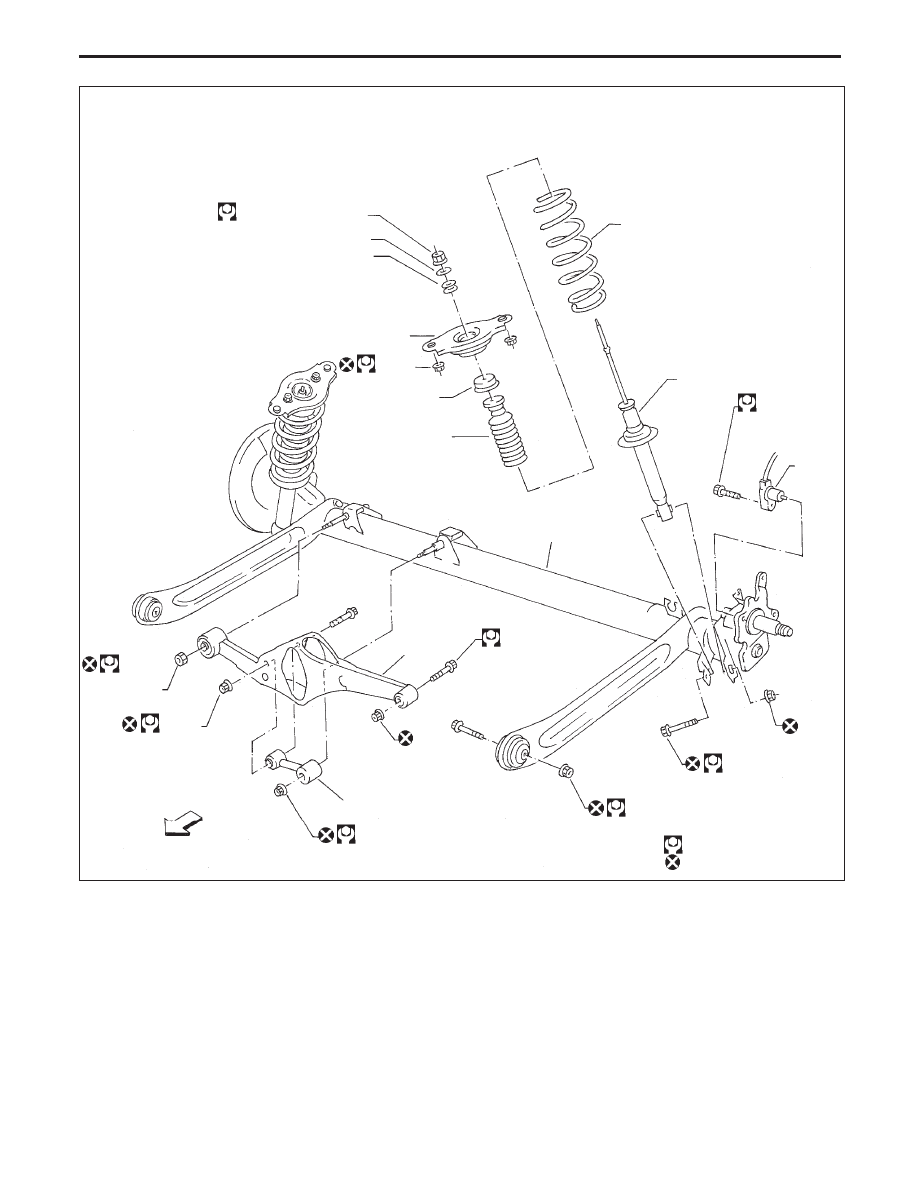

p

1

Spindle

p

2

Baffle plate

p

3

Wheel hub bearing

p

4

Wheel bearing lock nut

p

5

Cotter pin

p

6

Hub cap

p

7

ABS sensor

REMOVAL

CAUTION:

Before removing the rear wheel hub assembly, discon-
nect the ABS wheel sensor from the assembly. Then
move it away from the hub assembly. Failure to do so
may result in damage to the sensor wires and the sen-
sor becoming inoperative.

Wheel hub bearing does not require maintenance. If any
of the following symptoms are noted, replace wheel hub
bearing assembly.

Growling noise is emitted from wheel hub bearing during
operation.

Wheel hub bearing drags or turns roughly. This occurs when
turning hub by hand after bearing lock nut is tightened to
specified torque.

NRA015

SEC. 430

Front

187 - 255
(19 - 26, 138 - 188)

22 - 29
(2.3 - 2.9, 17 - 21)

25 - 33 (2.6 - 3.3, 19 - 24)

: Do not re-use

: N·m (kg-m, ft-lb)

REAR AXLE

RA-7

1. Remove brake caliper assembly.
2. Remove brake rotor.
3. Remove wheel bearing lock nut.
4. Remove wheel hub bearing from spindle.
Brake hose does not need to be disconnected from brake
caliper.
Suspend caliper assembly with wire so as not to stretch
brake hose.
Be careful not to depress brake pedal, or piston will pop out.
Make sure brake hose is not twisted.

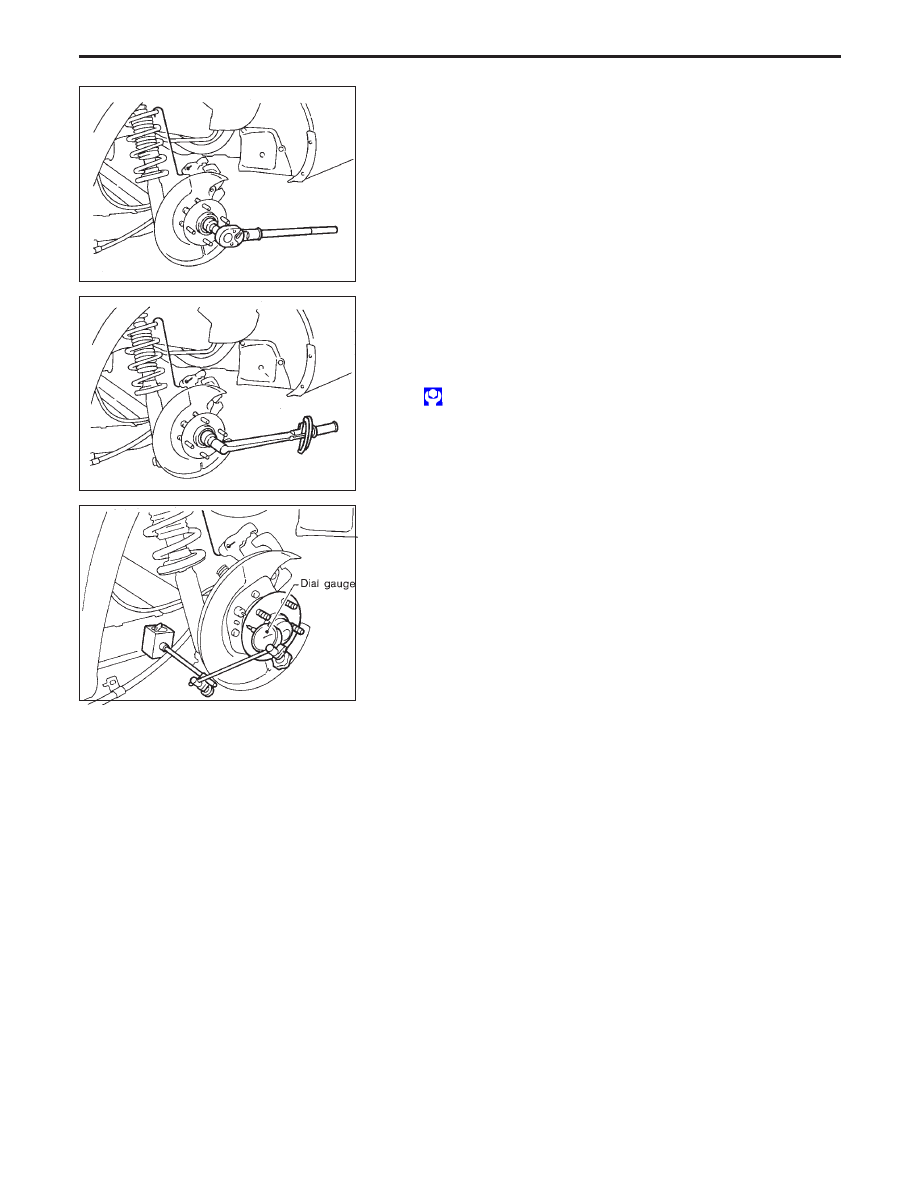

INSTALLATION

Install wheel hub bearing.

Tighten wheel bearing lock nut.
Before tightening, apply oil to threaded portion of rear spindle
and both sides of plain washer.

: 187 - 255 N·m (19 - 26 kg-m, 138 - 188 ft-lb)

Check that wheel bearings operate smoothly.

Check wheel hub bearing axial end play.

Axial end play:

0.00 mm (0.0000 in)

SRA711A

SRA712A

SRA690A

REAR AXLE

Wheel Hub (Cont’d)

RA-8

p

1

Washer

p

2

Bushing

p

3

Shock absorber mounting

bracket

p

4

Bound bumper cover

p

5

Bound bumper

p

6

Coil spring

p

7

Shock absorber

p

8

Torsion beam

p

9

Lateral link

p

10

Control rod

p

11

ABS sensor

NRA018

SEC. 431

When installing each rubber part, final tightening
must be carried out under unladen condition*
with tires on ground.
* Fuel, radiator coolant and engine oil full.

Spare tire, jack, hand tools and mats in
designated positions.

36 - 47 (3.7 - 4.7, 27 - 34)

p

1

p

2

p

3

42 - 57
(4.3 - 5.8,
31 - 42)

p

4

p

5

p

6

p

7

25 - 33
(2.6 - 3.3,
19 - 24)

p

8

98 - 118
(10 - 12, 73 - 87)

p

9

p

10

98 - 118
(10 - 12,
73 - 87)

59 - 78
(6.1 - 7.9,
44 - 57)

Front

98 - 118 (10 - 12, 73 - 87)

p

11

98 - 118
(10 - 12, 73 - 87)

: N·m (kg-m, ft-lb)

: Do not re-use

98 - 118 (10 - 12, 73 - 87)

REAR SUSPENSION

RA-9

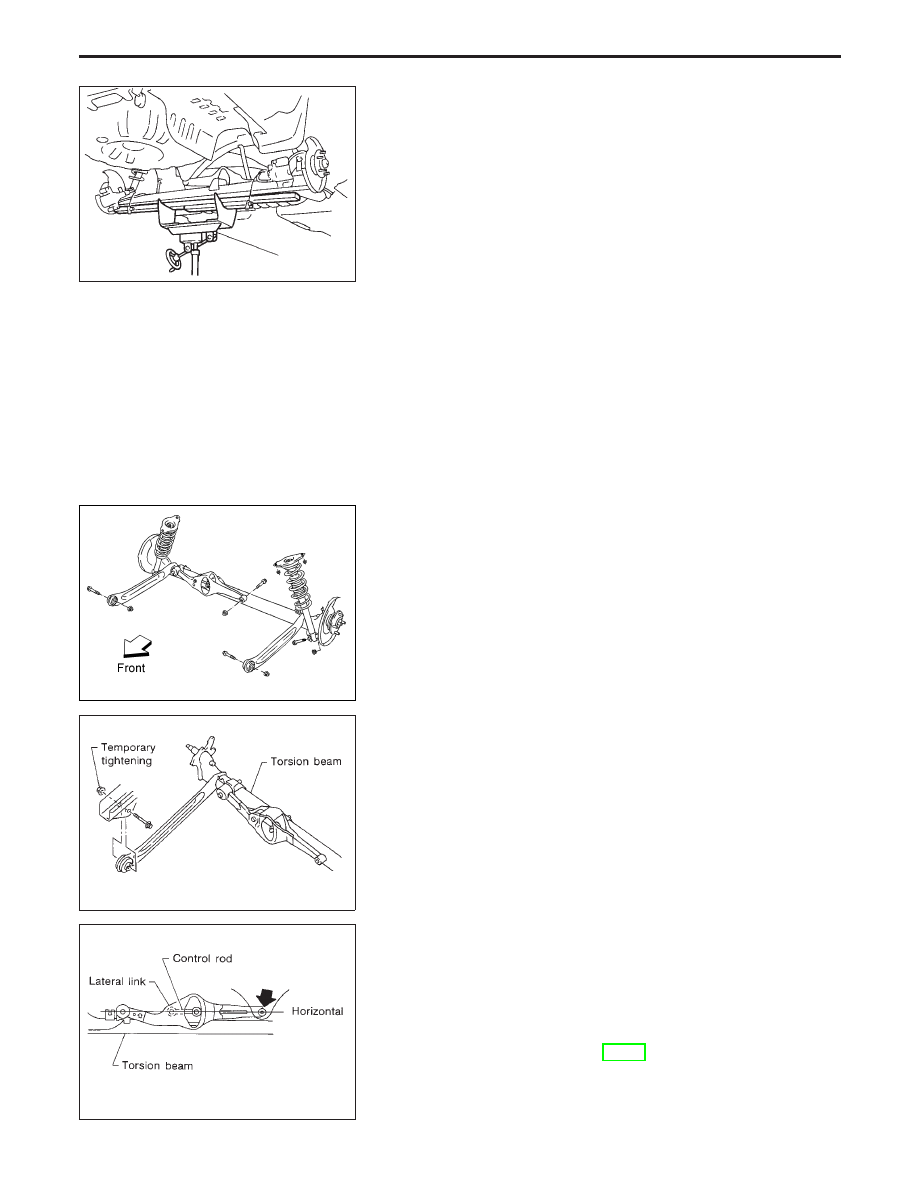

Removal and Installation

CAUTION:

Before removing the rear suspension assembly, discon-
nect the ABS wheel sensor and headlamp leveling sen-
sor from the assembly. Failure to do so may result in
damage to the sensor wires and the sensor becoming
inoperative.

Remove suspension assembly.

1. Disconnect parking brake cable from caliper and remove

brake caliper and rotor.

Suspend caliper assembly with wire so as not to stretch
brake hose.

Be careful not to depress brake pedal, or piston will pop out.
Make sure brake hose is not twisted.
2. Using a transmission jack, raise torsion beam a little, and

remove nuts and bolts from the trailing arm, shock absorber
assembly (lower side) and lateral link.

3. Lower transmission jack, and remove suspension.
4. Remove shock absorber assembly.

Install suspension assembly.

CAUTION:

Refill with new brake fluid “DOT 4”.
Never reuse drained brake fluid.

After installation of the suspension assembly the head-
lamp leveling sensor has to be recalibrated. Refer to EL
section (models equipped with xenon headlamps only).

1. Attach torsion beam, at trailing arm and lateral link, to

vehicle. Do not tighten bolts at this time.

2. Using a transmission jack, place lateral link and control rod

horizontally against torsion beam. Tighten lateral link on
vehicle.

3. Attach shock absorber assembly to vehicle. Then tighten the

lower side of shock absorber assembly.

4. Lower torsion beam to fully extended position. Remove

transmission jack and tighten torsion beam, at trailing arm, to
specified torque. Refer to RA-9.

5. Install ABS-wheel sensor.

SRA695A

NRA016

SRA697A

SRA698A

REAR SUSPENSION

RA-10
