WIPER OPERATION

Without variable intermittent
The wiper motor operates the wiper arms at an interval of approximately 7 seconds. This feature is controlled
by the combination switch wiper amplifier.
When the wiper switch is placed in the INT position, ground is supplied

to front wiper relay terminal

5

from wiper switch terminal

13

to wiper motor terminal

2

through the wiper switch terminal

14

to wiper switch terminal

13

through front wiper relay terminal

3

WASHER OPERATION

With the ignition switch in the ON or START position, power is supplied

through 10A fuse (No.

21

, located in the fuse block)

to washer switch terminal

5

.

When the lever is pulled to the WASH/F position, ground is supplied

to washer motor terminal

2

from terminal

18

of the wiper switch

through terminal

4

of the wiper switch, and

through body grounds

E37

and

E11

.

Power is supplied

from terminal

3

of the washer switch

to washer motor terminal

1

.

With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the combination switch (wiper
amplifier) in the same manner as the intermittent operation.

FRONT WIPER AND WASHER

System Description (Cont’d)

EL-187

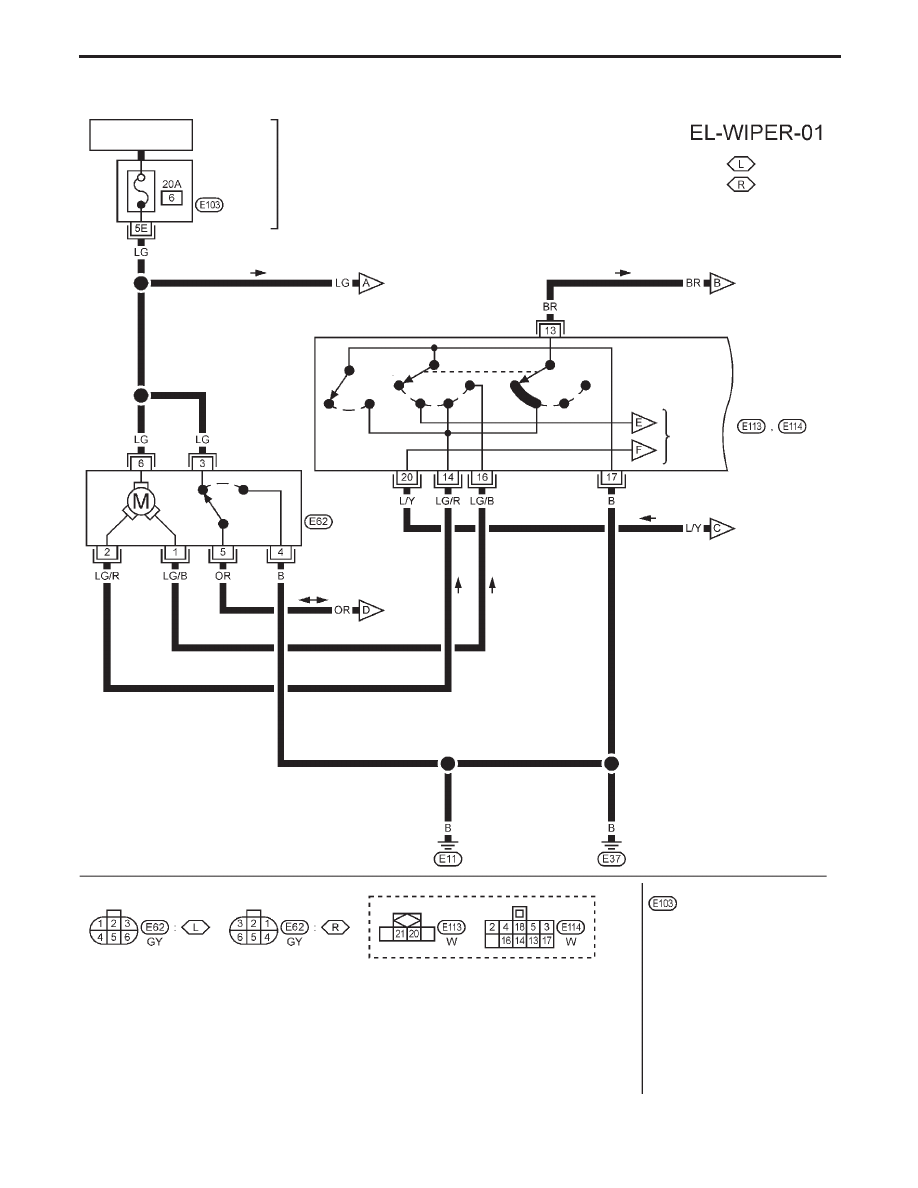

Wiring Diagram — WIPER —

YEL175C

IGNITION SWITCH

ON or START

FUSE BLOCK
(J/B)

Refer to EL-POWER.

Next page

Next page

Next
page

COMBINATION
SWITCH
(FRONT WIPER
SWITCH)

LOW

HIGH

FRONT WIPER
MOTOR

Next page

Next page

: LHD models

: RHD models

REFER TO THE FOLLOWING

FUSE BLOCK - Junction Box (J/B)

OFF

MIST

OFF

INT

LO

HI

OFF

INT

LO

HI

FRONT WIPER AND WASHER

EL-188

YEL882C

FRONT WIPER AND WASHER

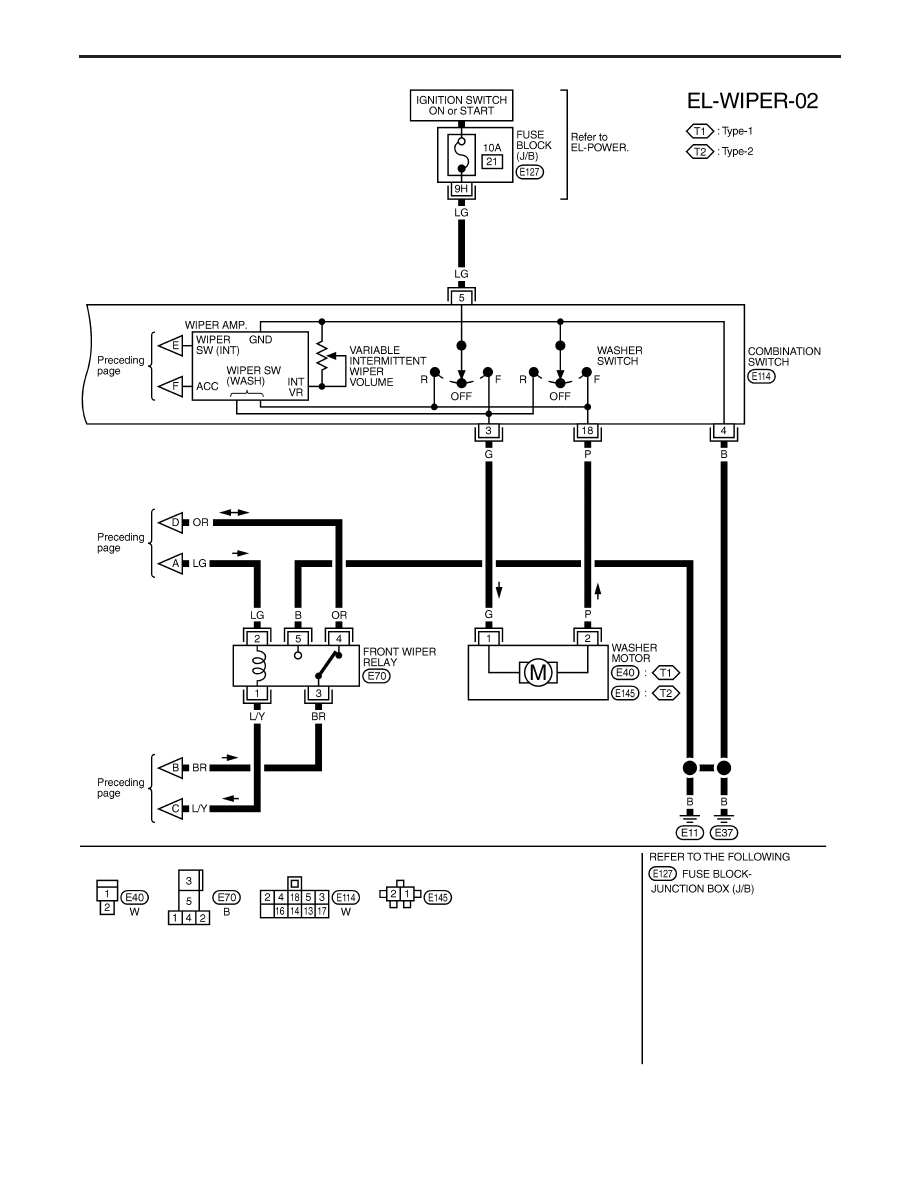

Wiring Diagram — WIPER — (Cont’d)

EL-189

Removal and Installation

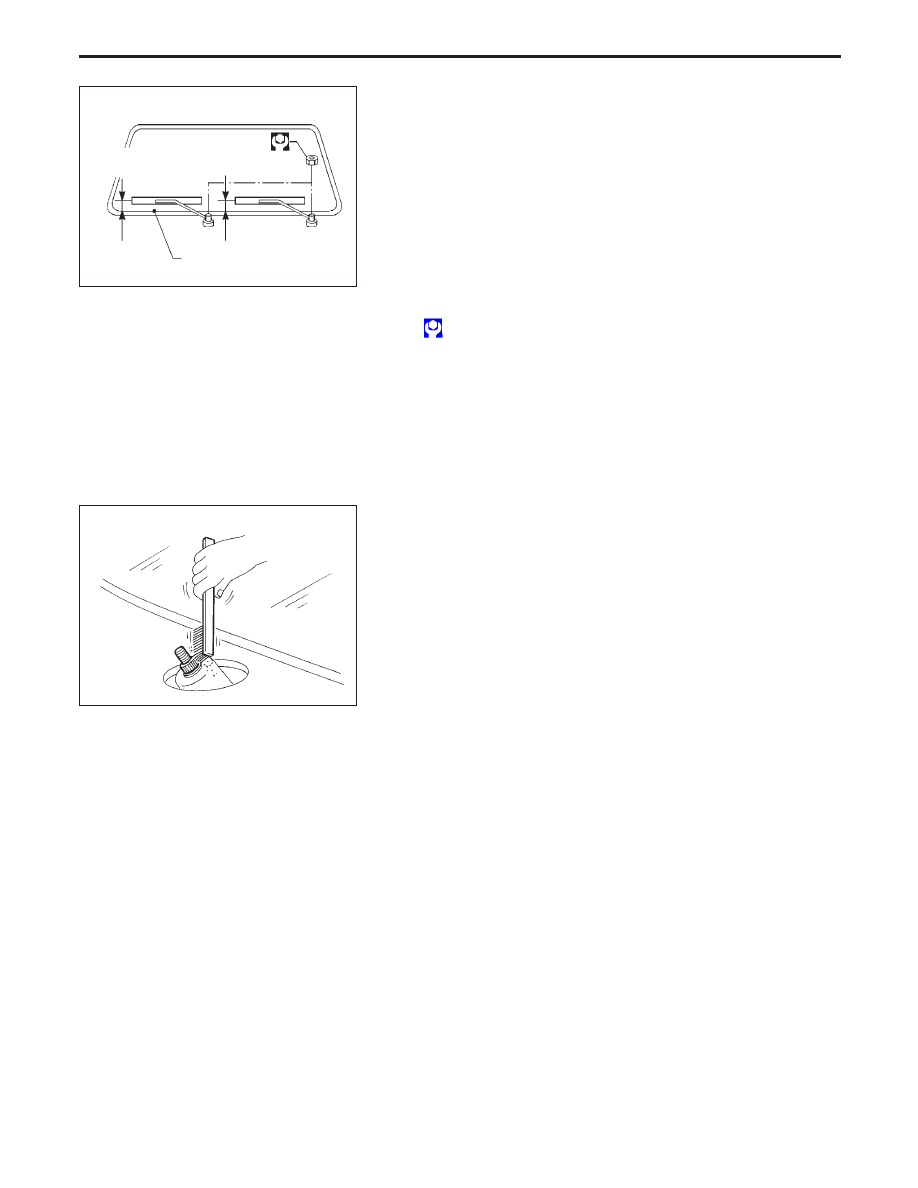

WIPER ARMS

1. Prior to wiper arm installation, turn on wiper switch to oper-

ate wiper motor and then turn it “OFF” (Auto Stop).

2. Lift the blade up and then set it down onto glass surface. Set

the blade center to clearance “C” immediately before tight-
ening nut.

3. Eject washer fluid. Turn on wiper switch to operate wiper

motor and then turn it “OFF”.

4. Ensure that wiper blades stop within clearance “C”.

Clearance “C”: 19 - 33 mm (0.75 - 1.30 in)

Tighten windshield wiper arm nuts to specified torque.

: 21 - 26 N·m (2.1 - 2.7 kg-m, 15 - 20 ft-lb)

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm
looseness.

NEL310

Clearance “C”
(Passenger side)

Clearance “C”
(Driver side)

Cowl top seal

SEL024J

FRONT WIPER AND WASHER

EL-190
