Nissan Primera P11. Manual - part 273





DTC Confirmation Procedure

NCEC0330

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 5 seconds
before conducting the next test.

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.

2)

Start engine and run it for at least 4 minutes at idle speed.

3)

If 1st trip DTC is detected, go to “Diagnostic Procedure”, EC-
SR-293.

With GST

Follow the procedure “With CONSULT-II” above.

NEF068A

DTC P1336 CRANKSHAFT POSITION SENSOR

(CKPS) (OBD) (COG)

SR20DE

DTC Confirmation Procedure

EC-291

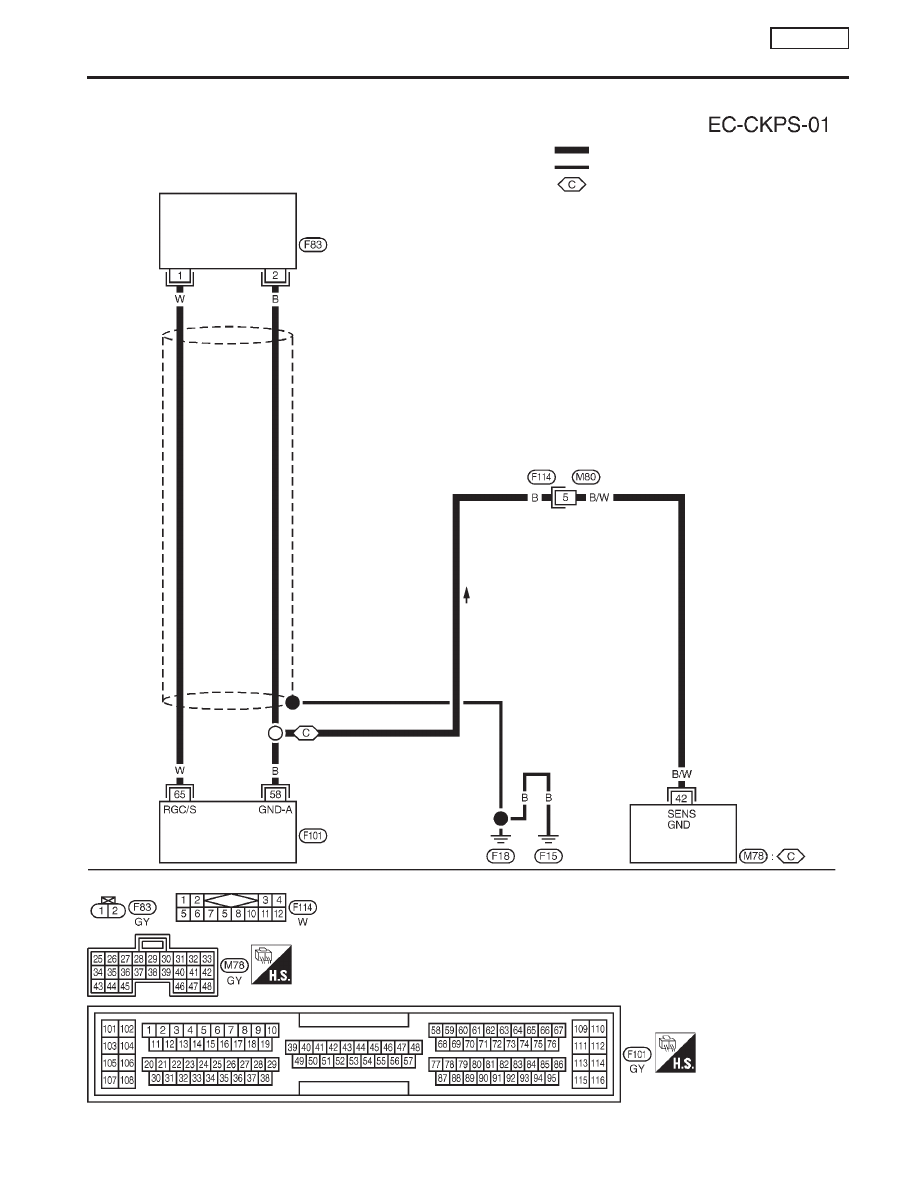

Wiring Diagram

NCEC0331

YEC839

: Detectable line for DTC

: Non-detectable line for DTC

: Hyper CVT models

ECM

TCM
(TRANSMISSION
CONTROL
MODULE)

CRANKSHAFT
POSITION
SENSOR (OBD)

DTC P1336 CRANKSHAFT POSITION SENSOR

(CKPS) (OBD) (COG)

SR20DE

Wiring Diagram

EC-292

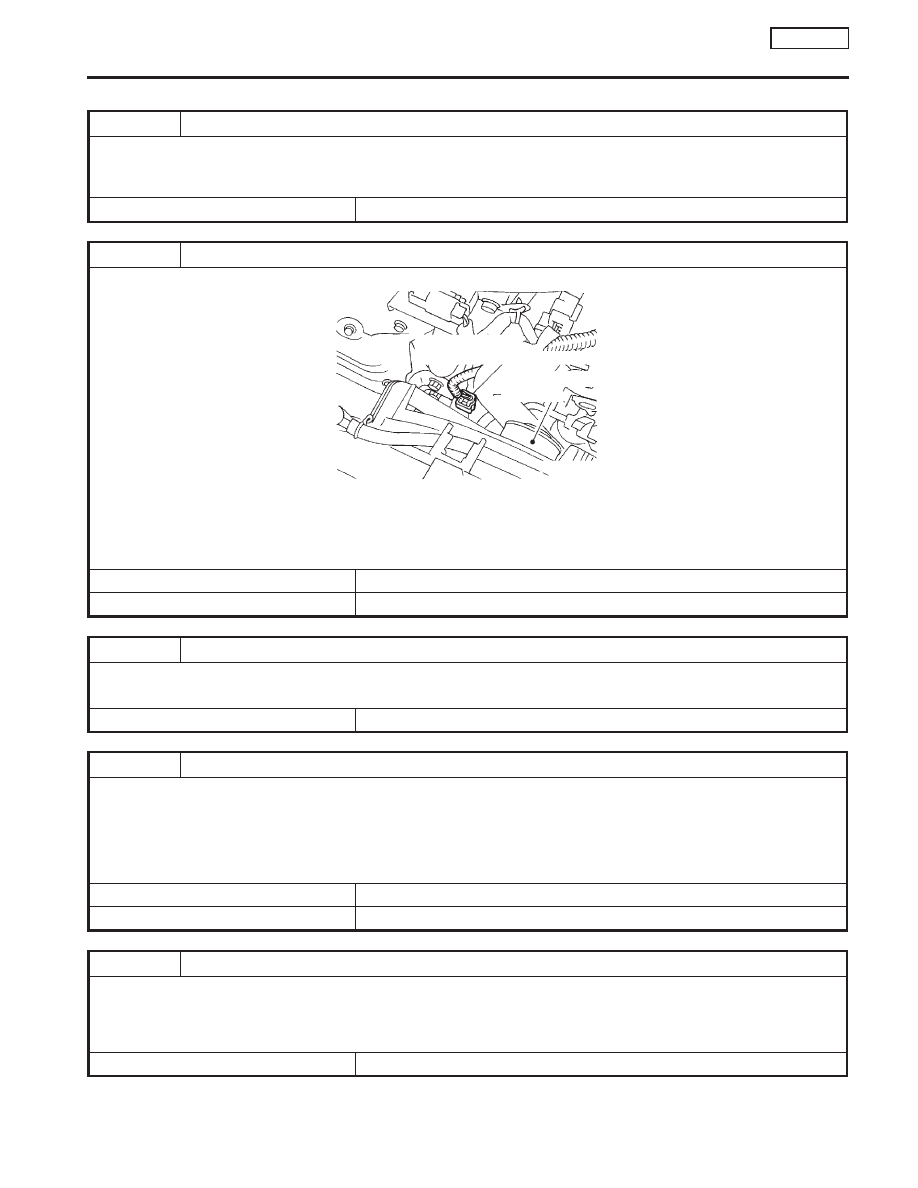

Diagnostic Procedure

NCEC0332

1

RETIGHTEN GROUND SCREWS

1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.

©

GO TO 2.

2

CHECK INPUT SIGNAL CIRCUIT

1. Disconnect crankshaft position sensor (OBD) and ECM harness connectors.

SEF226X

2. Check continuity between ECM terminal 65 and crankshaft position sensor (OBD) harness connector terminal 1.

Refer to wiring diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 4.

NG

©

GO TO 3.

3

DETECT MALFUNCTIONING PART

Check the harness for open or short between crankshaft position sensor (OBD) and ECM.

©

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK GROUND CIRCUIT

1. Reconnect ECM harness connectors.
2. Check harness continuity between crankshaft position sensor harness connector terminal 2 and engine ground.

Refer to wiring diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 5.

5

DETECT MALFUNCTIONING PART

Check the following.

I

Harness for open or short between crankshaft position sensor (OBD) and ECM

I

Harness for open or short between crankshaft position sensor (OBD) and TCM (Transmission control module)

©

Repair open circuit or short to ground or short to power in harness or connectors.

Crankshaft position
sensor (OBD) harness connector

Cooling fan motor
(Left side)

DTC P1336 CRANKSHAFT POSITION SENSOR

(CKPS) (OBD) (COG)

SR20DE

Diagnostic Procedure

EC-293

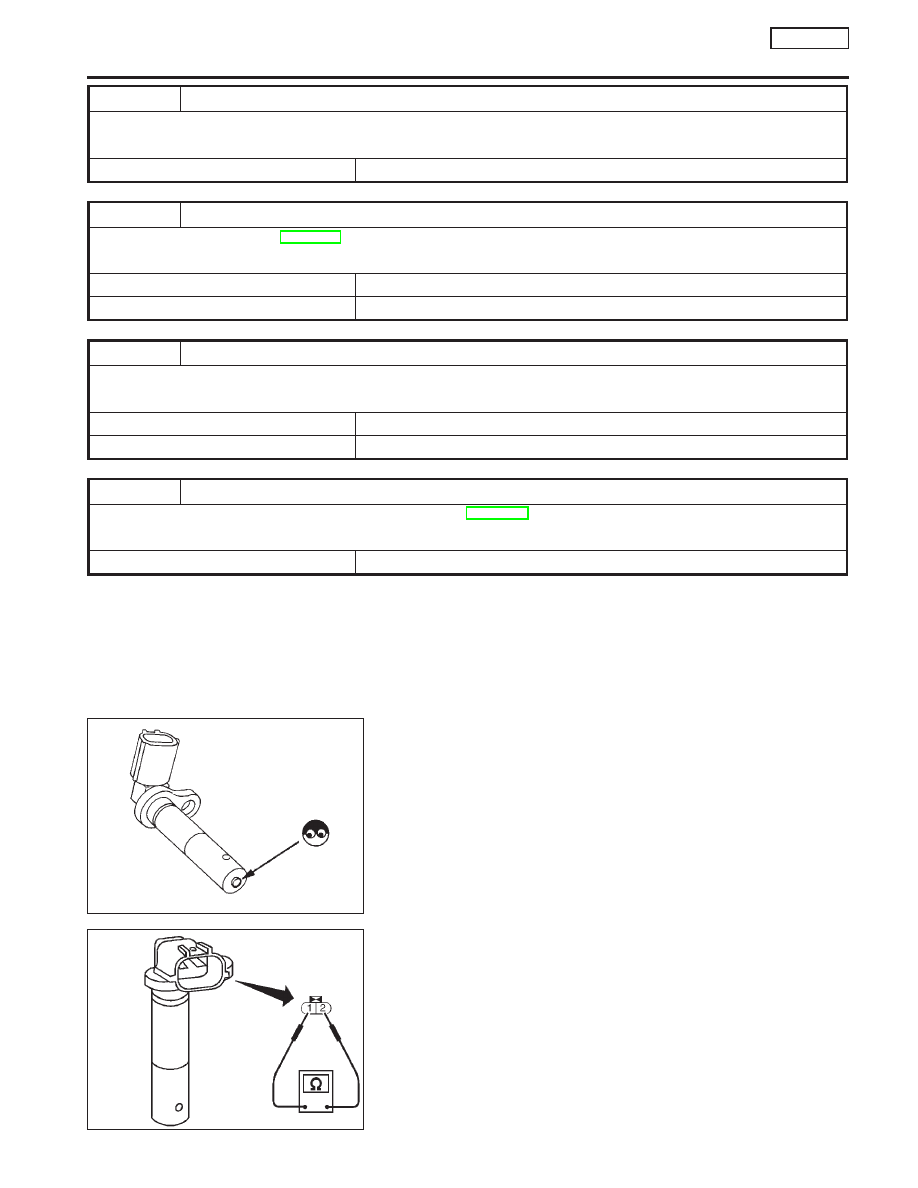

Component Inspection

NCEC0333

CRANKSHAFT POSITION SENSOR (OBD)

NCEC0333S01

1.

Disconnect crankshaft position sensor (OBD) harness connec-
tor.

2.

Loosen the fixing bolt of the sensor.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

Resistance:

M/T models

166 - 204

[at 20°C (68°F)]

CVT models

Approx. 285

[at 20°C (68°F)]

6

CHECK IMPROPER INSTALLATION

Loosen and retighten the fixing bolt of the crankshaft position sensor (OBD). Then retest.

Trouble is not fixed.

©

GO TO 7.

7

CHECK CRANKSHAFT POSITION SENSOR (OBD)

Refer to “Component Inspection”, EC-SR-294.

OK or NG

OK

©

GO TO 8.

NG

©

Replace crankshaft position sensor (OBD).

8

CHECK GEAR TOOTH

Visually check for chipping flywheel or drive plate gear tooth (cog).

OK or NG

OK

©

GO TO 9.

NG

©

Replace the flywheel or drive plate.

9

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-SR-114.

©

INSPECTION END

SEF960N

SEF231W

DTC P1336 CRANKSHAFT POSITION SENSOR

(CKPS) (OBD) (COG)

SR20DE

Component Inspection

EC-294
