Nissan Primera P11. Manual - part 271

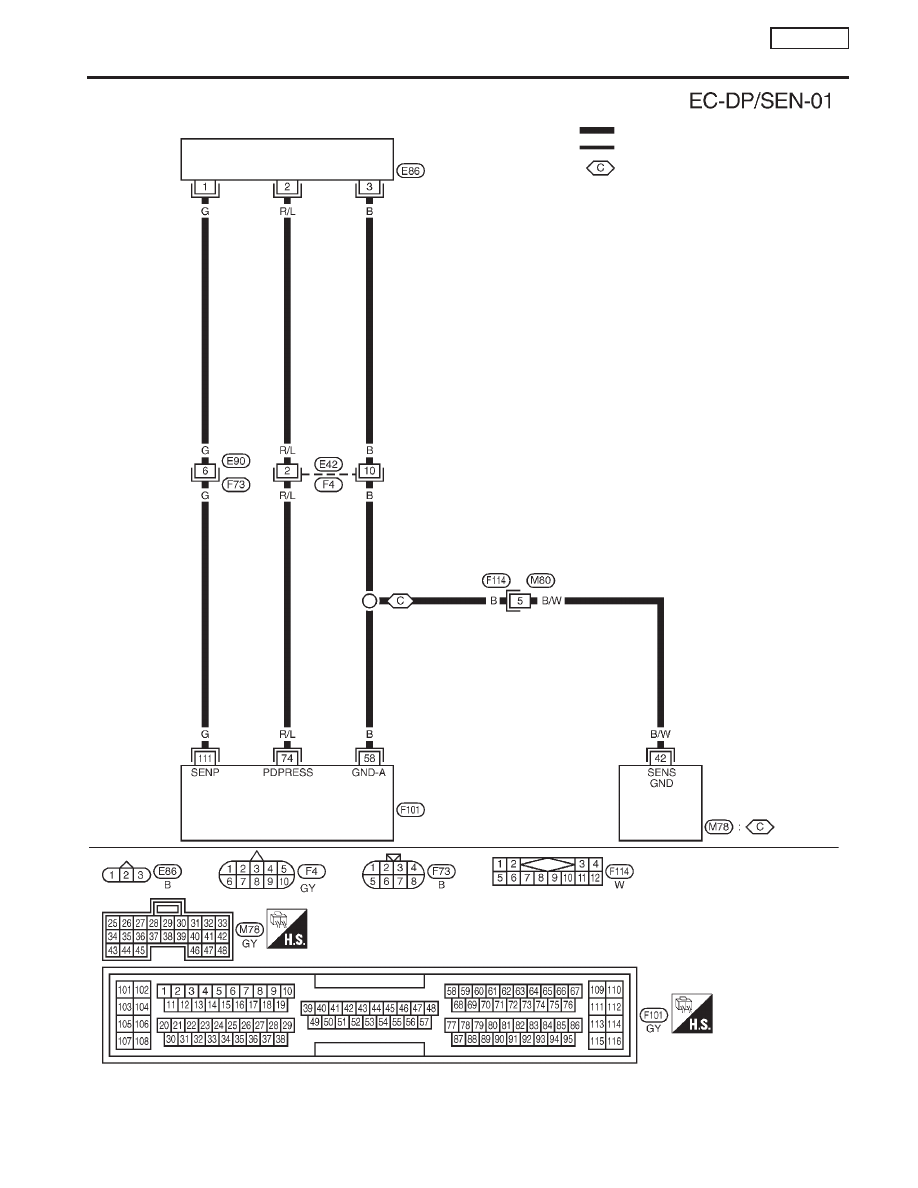

YEC848

: Detectable line for DTC

: Non-detectable line for DTC

: Hyper CVT models

REFRIGERANT
SENSOR

TCM
(TRANSMISSION
CONTROL
MODULE)

ECM

DTC P1217 OVERHEAT (COOLING SYSTEM)

SR20DE

Wiring Diagram (Cont’d)

EC-283

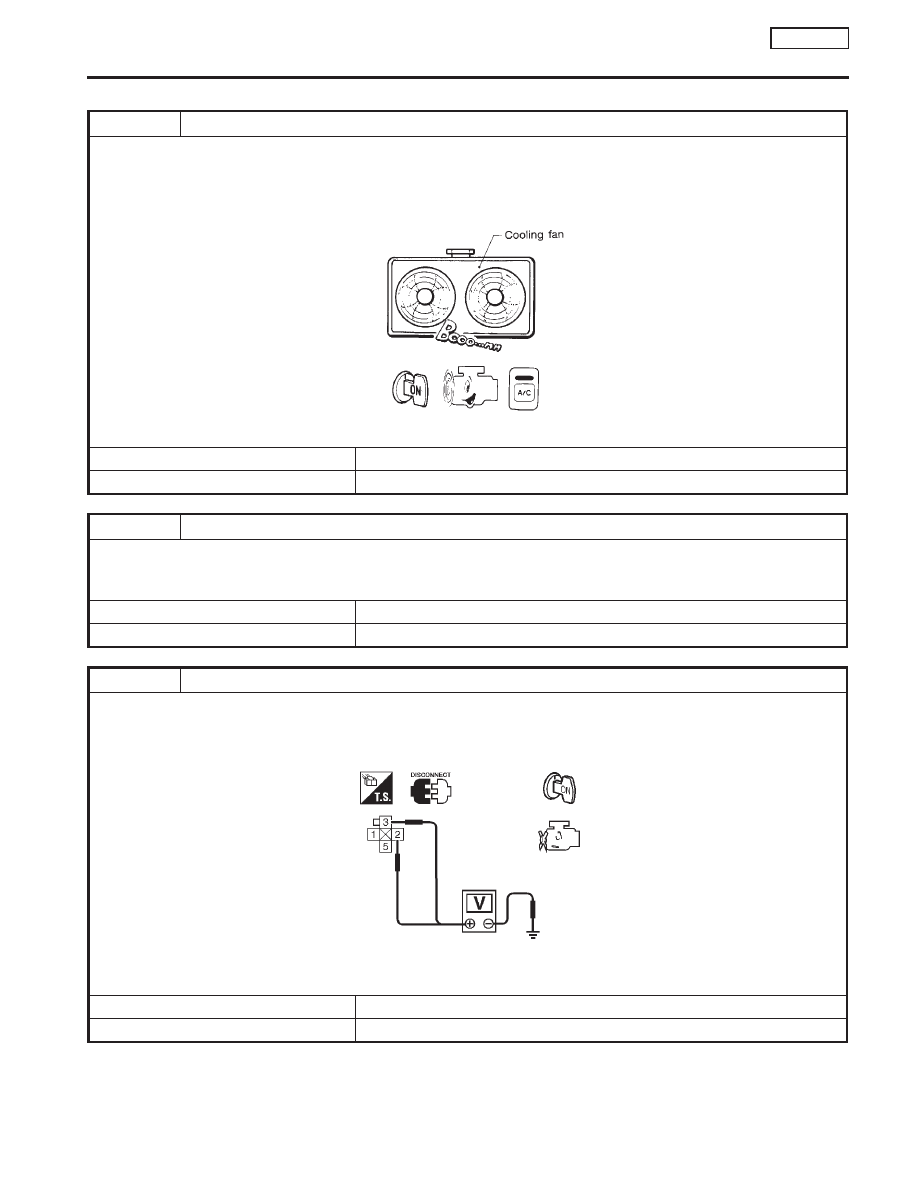

Diagnostic Procedure

NCEC0491

1

CHECK COOLING FAN OPERATION

1. Start engine and let it idle.
2. Set temperature lever at full cold position.
3. Turn air conditioner switch “ON”.
4. Turn blower fan switch “ON”.
5. Make sure that cooling fans-1 and -2 operate.

SEC163BA

OK or NG

OK

©

GO TO 11.

NG

©

GO TO 2.

2

CHECK AIR CONDITIONER OPERATION

Is air conditioner operating?
(Check operation of compressor and blower motor.)

OK or NG

OK

©

GO TO 3.

NG

©

Check for failure of air conditioner to operate. Refer to HA section.

3

CHECK POWER SUPPLY

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay.
3. Turn ignition switch “ON”.
4. Check voltage between terminals 2, 3 and ground with CONSULT-II or tester.

SEF112X

Voltage: Battery voltage

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

DTC P1217 OVERHEAT (COOLING SYSTEM)

SR20DE

Diagnostic Procedure

EC-284

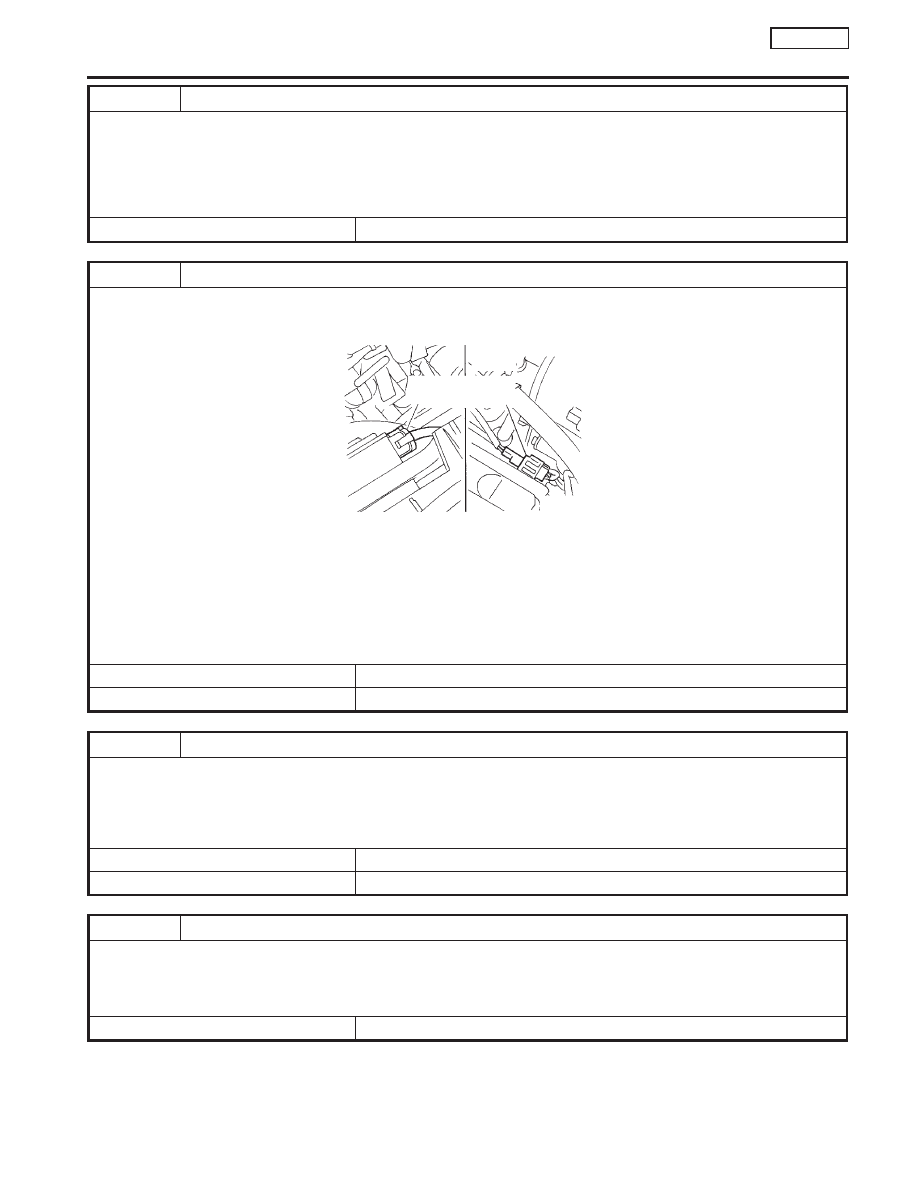

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M70, E125

I

10A fuse

I

40A fusible link

I

Harness for open or short between cooling fan relay and fuse

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK GROUND CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.

SEF225X

3. Check harness continuity between relay terminal 5 and motor-1 terminal 1, motor-1 terminal 2 and body ground. Refer to wiring dia-

gram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
5. Check harness continuity between relay terminal 5 and motor-2 terminal 1, motor-2 terminal 2 and body ground. Refer to wiring dia-

gram.

Continuity should exist.

6. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 6.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

6

CHECK OUTPUT SIGNAL CIRCUIT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 13 and relay terminal 1. Refer to wiring diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 8.

NG

©

GO TO 7.

7

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors E42, F4

I

Harness for open or short between cooling fan relay and ECM

©

Repair open circuit or short to ground or short to power in harness or connectors.

Cooling fan motor

harness connector

Left side

Right side
(View from under the
vehicle)

DTC P1217 OVERHEAT (COOLING SYSTEM)

SR20DE

Diagnostic Procedure (Cont’d)

EC-285

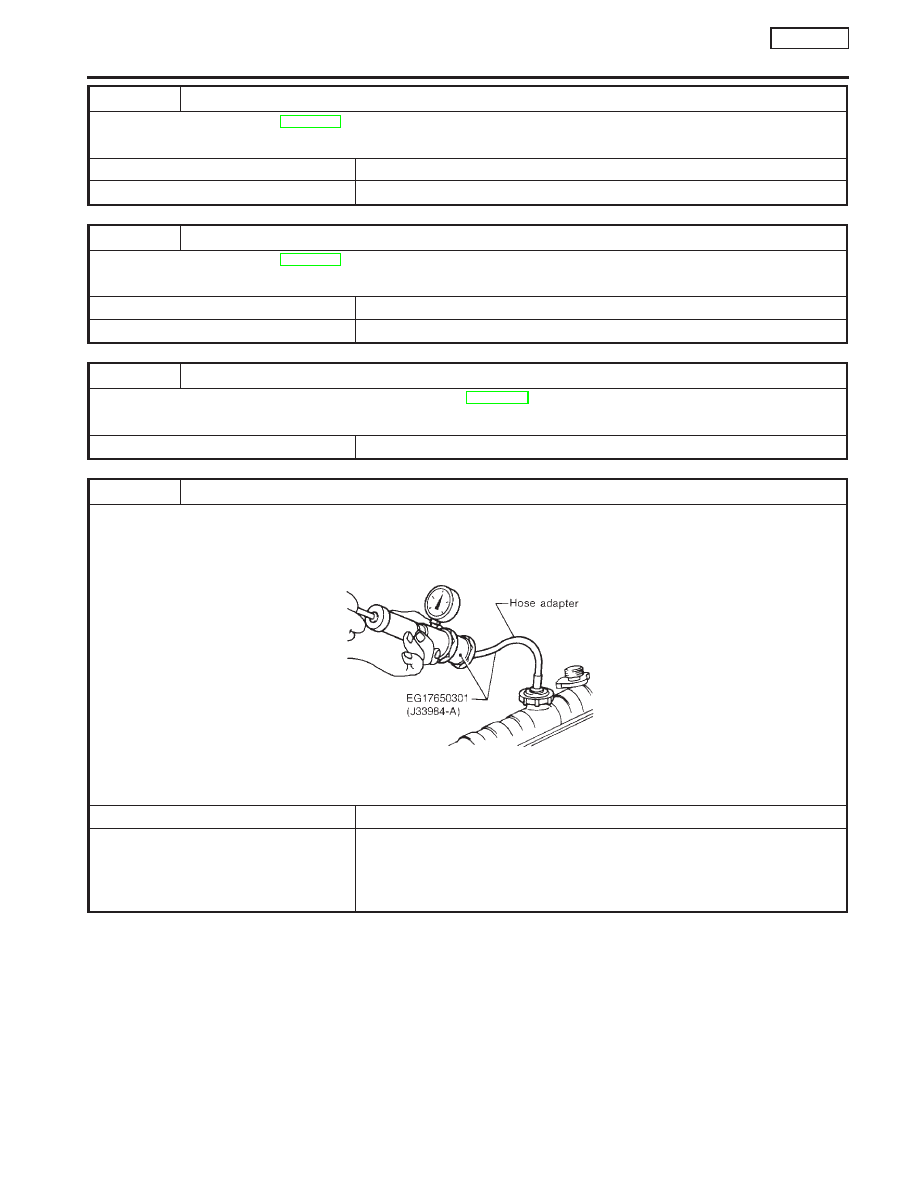

8

CHECK COOLING FAN RELAY

Refer to “Component Inspection”, EC-SR-289.

OK or NG

OK

©

GO TO 9.

NG

©

Replace cooling fan relay.

9

CHECK COOLING FAN MOTORS-1 AND -2

Refer to “Component Inspection”, EC-SR-289.

OK or NG

OK

©

GO TO 10.

NG

©

Replace cooling fan motors.

10

CHECK INTERMITTENT INCIDENT

Perform “TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT”, EC-SR-114.

©

INSPECTION END

11

CHECK COOLING SYSTEM FOR LEAK

Apply pressure to the cooling system with a tester, and check if the pressure drops.

Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm

2

, 23 psi)

CAUTION:
Higher than the specified pressure may cause radiator damage.

SLC754A

Pressure should not drop.

OK or NG

OK

©

GO TO 12.

NG

©

Check the following for leak

I

Hose

I

Radiator

I

Water pump
Refer to LC section (“Water Pump”).

DTC P1217 OVERHEAT (COOLING SYSTEM)

SR20DE

Diagnostic Procedure (Cont’d)

EC-286
