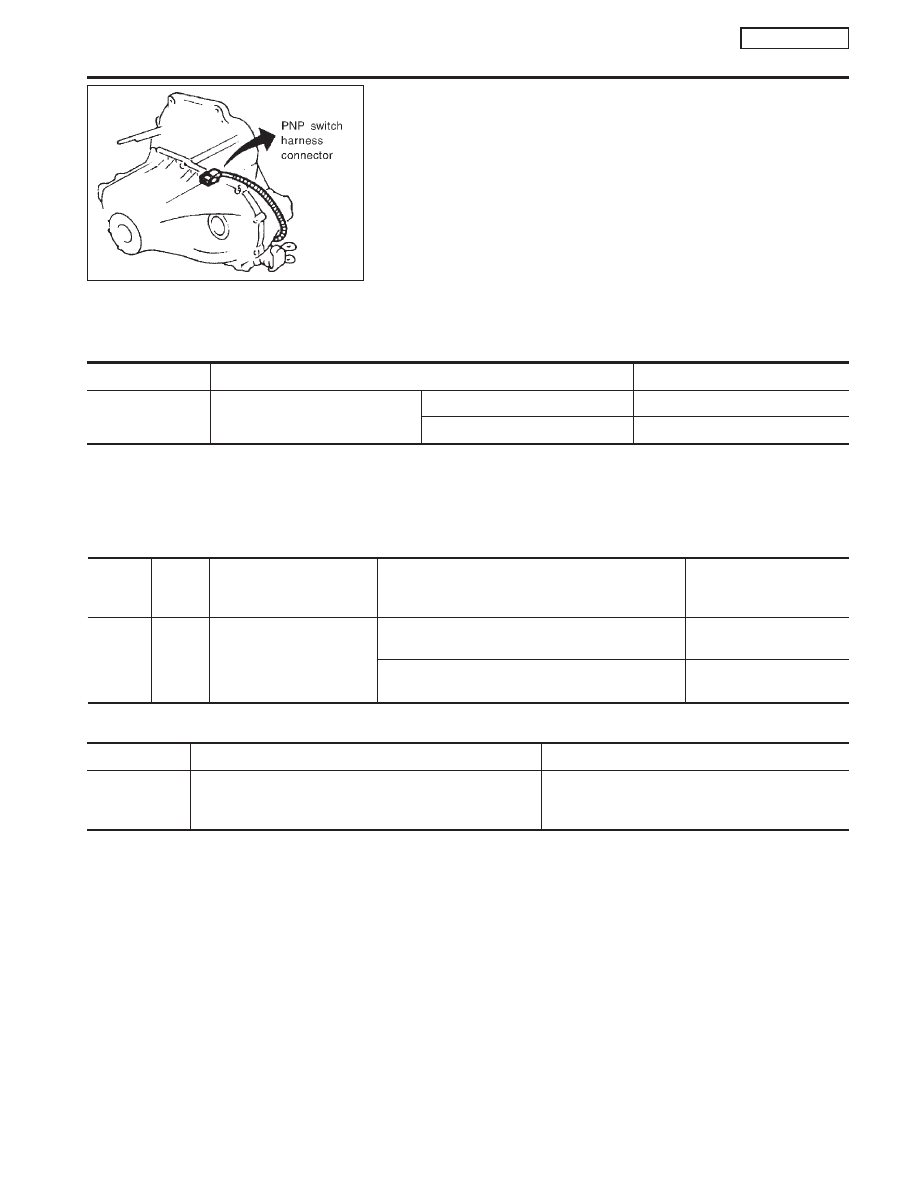

Component Description

NCEC0424

When the gear position is “N”, park/neutral position (PNP) switch
is “ON”.
ECM detects the park/neutral position when continuity with ground
exists.

CONSULT-II Reference Value in Data Monitor
Mode

NCEC0425

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

I

Ignition switch: ON

Shift lever: “N”

ON

Except above

OFF

ECM Terminals and Reference Value

NCEC0426

Specification data are reference values, and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM’s transistor. Use a ground other than ECM terminals, such as the ground.

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

42

G/OR

PNP switch

[Ignition switch “ON”]

I

Gear position is “Neutral position”

Approximately 0V

[Ignition switch “ON”]

I

Except the above gear position

Approximately 5V

On Board Diagnosis Logic

NCEC0427

DTC No.

Malfunction is detected when ...

Check Items (Possible Cause)

P1706
1706

I

The signal of the PNP switch is not changed in the pro-
cess of engine starting and driving.

I

Harness or connectors
(The PNP switch circuit is open or shorted.)

I

PNP switch

DTC Confirmation Procedure

NCEC0428

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 9 seconds
before conducting the next test.

SEF740W

DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCH

QG16

I

18DE

Component Description

EC-313

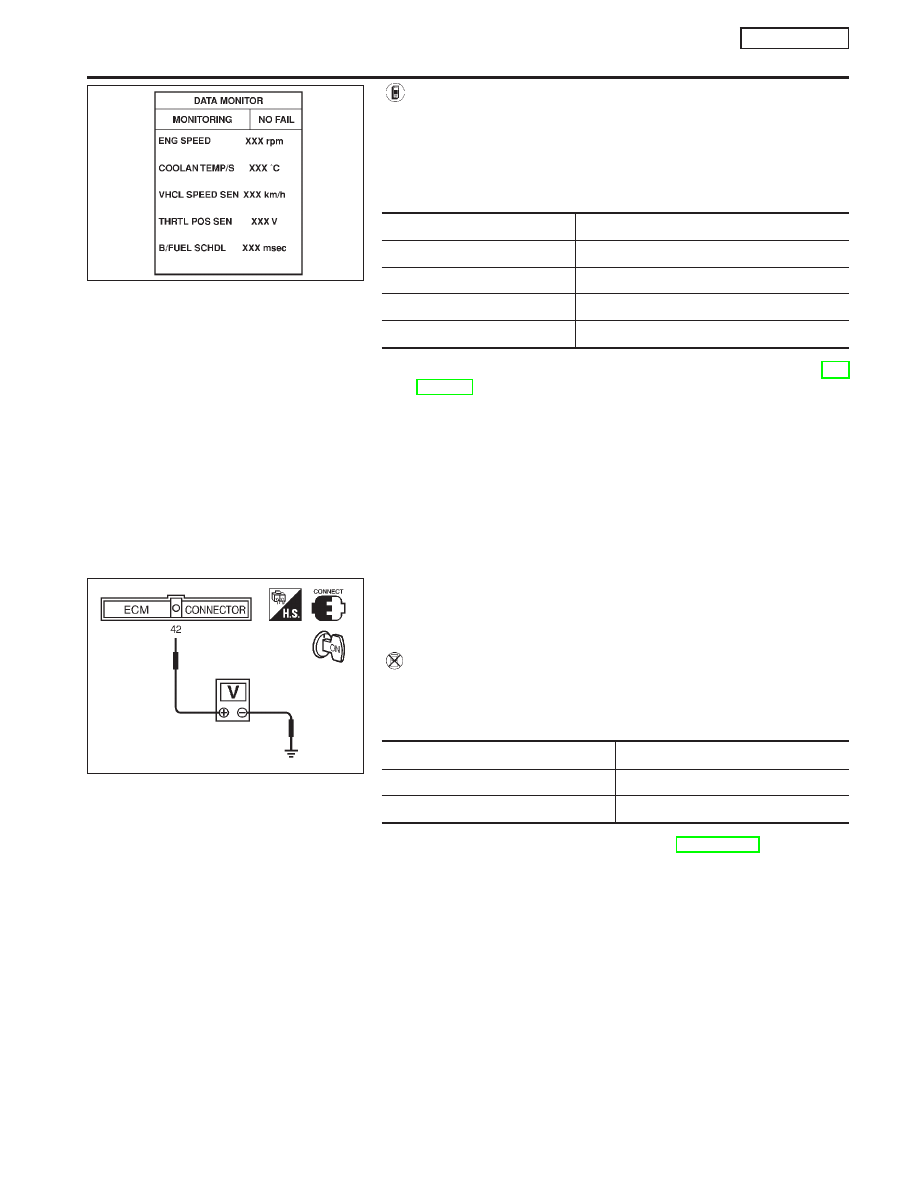

With CONSULT-II

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and warm it up to normal operating temperature.

4)

Maintain the following conditions for at least 50 consecutive
seconds.

ENG SPEED

1,550 - 3,800 rpm

COOLAN TEMP/S

More than 70°C (158°F)

B/FUEL SCHDL

3.0 msec or more

VHCL SPEED SE

70 - 100 km/h (43 - 62 MPH)

Selector lever

Suitable position (Except “N” position)

5)

If 1st trip DTC is detected, go to “Diagnostic Procedure”, EC-
QG-316.

Overall Function Check

NCEC0429

Use this procedure to check the overall function of the park/neutral
position switch circuit. During this check, a 1st trip DTC might not
be confirmed.

Without CONSULT-II

1)

Turn ignition switch “ON”.

2)

Check voltage between ECM terminal 42 (PNP switch signal)
and body ground under the following conditions.

Condition (Gear position)

Voltage (V) (Known good data)

“N” position

Approx. 0

Except the above position

Approx. 5

3)

If NG, go to “Diagnostic Procedure”, EC-QG-316.

NEF118A

SEF137X

DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCH

QG16

I

18DE

DTC Confirmation Procedure (Cont’d)

EC-314

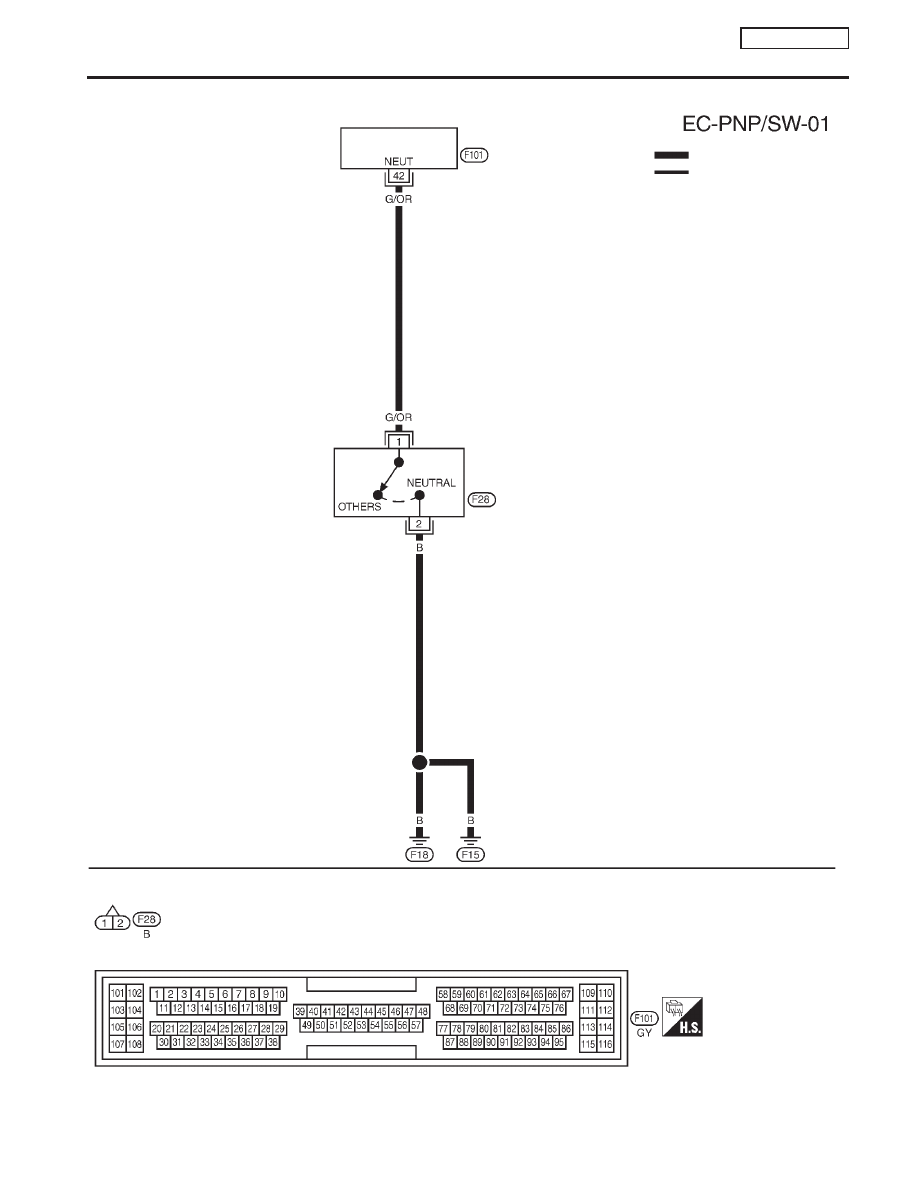

Wiring Diagram

NCEC0430

YEC791

: Detectable line for DTC

: Non-detectable line for DTC

PARK/NEUTRAL
POSITION (PNP)
SWITCH

DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCH

QG16

I

18DE

Wiring Diagram

EC-315

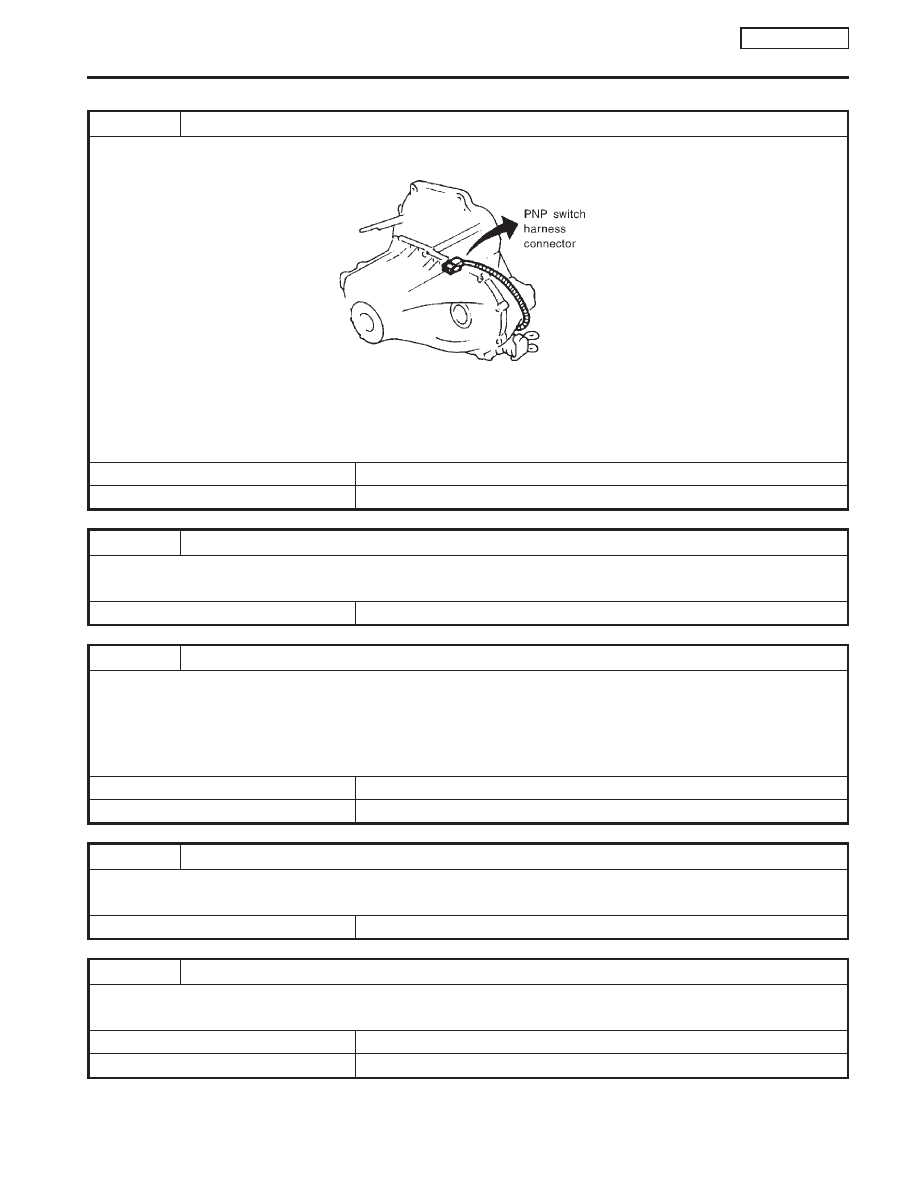

Diagnostic Procedure For M/T Models

NCEC0431

1

CHECK GROUND CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect PNP switch harness connector.

SEF740W

3. Check harness continuity between PNP switch harness connector terminal 2 and body ground.

Refer to wiring diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 3.

NG

©

GO TO 2.

2

DETECT MALFUNCTIONING PART

Check the harness for open or short between PNP switch and body ground.

©

Repair open circuit or short to ground or short to power in harness or connectors.

3

CHECK INPUT SIGNAL CIRCUIT

1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 42 and PNP switch harness connector terminal 1.

Refer to wiring diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the harness for open or short between ECM and PNP switch.

©

Repair open circuit or short to ground or short to power in harness or connectors.

5

CHECK PNP SWITCH

Refer to MT section.

OK or NG

OK

©

GO TO 6.

NG

©

Replace PNP switch.

DTC P1706 PARK/NEUTRAL POSITION (PNP) SWITCH

QG16

I

18DE

Diagnostic Procedure For M/T Models

EC-316
