BODY & TRIM

SECTION

BT

CONTENTS

PRECAUTIONS

............................................................. 2

Service Notice............................................................ 2
Supplemental Restraint System (SRS)

AIR

BAG

and

SEAT BELT PRE-TENSIONER

............. 2

GENERAL SERVICING

................................................. 3

Clip and Fastener ...................................................... 3

BODY END

.................................................................... 5

Body Front End.......................................................... 5
Body Rear End and Opener...................................... 7

DOOR

........................................................................... 13

Front Door................................................................ 13
Rear Door ................................................................ 14

INSTRUMENT PANEL

................................................. 15

INTERIOR TRIM

.......................................................... 18

Side and Floor Trim ................................................. 18
Door Trim ................................................................. 24
Roof Trim ................................................................. 25
Trunk Room Trim ..................................................... 28
Luggage Room Trim ................................................ 29

Back Door Trim........................................................ 30

EXTERIOR

................................................................... 31

SEAT

............................................................................ 40

Front Seat ................................................................ 40
Heated Seat............................................................. 42
Rear Seat................................................................. 43

SUNROOF

.................................................................... 46

Trouble Diagnoses................................................... 49

WINDSHIELD AND WINDOWS

.................................. 53

Windshield and Rear Window ................................. 54
Side Window............................................................ 55
Back Door Window .................................................. 56

MIRROR

....................................................................... 58

Door Mirror............................................................... 58
Rearview Mirror ....................................................... 59

BODY ALIGNMENT

..................................................... 60

Engine Compartment............................................... 60
Underbody ............................................................... 62

BT

Service Notice

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil
or damage them.

Apply sealing compound where necessary when installing parts.

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust
prevention measures.

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

The Supplemental Restraint System “Air Bag” and “Seat Belt Pre-tensioner”, used along with a seat belt,
helps to reduce the risk or severity of injury to the driver and front passenger in a frontal collision. The
Supplemental Restraint System consists of air bag modules (located in the center of the steering wheel and
on the instrument panel on the passenger side), seat belt pre-tensioners, a diagnosis sensor unit, warning
lamp, wiring harness and spiral cable. Information necessary to service the system safely is included in the
RS section of the Service Manual.
If the vehicle is equipped with side air bag as the Supplemental Restraint System, the side air bag used along
with the seat belt helps to reduce the risk or severity of injury to the driver and front passenger in a side
collision. The side air bag consists of air bag modules (located in the outer side of front seats), satellite
sensor, diagnosis sensor unit (which is one of components of air bags for a frontal collision), wiring harness,
warning lamp (which is one of components of air bags for a frontal collision).

WARNING:

To avoid rendering the SRS inoperative (which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation) all maintenance must be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to do so
in this Service Manual. SRS wiring harnesses are covered with yellow insulation (either just
before the harness connectors or for the complete harness) for easy identification.

PRECAUTIONS

BT-2

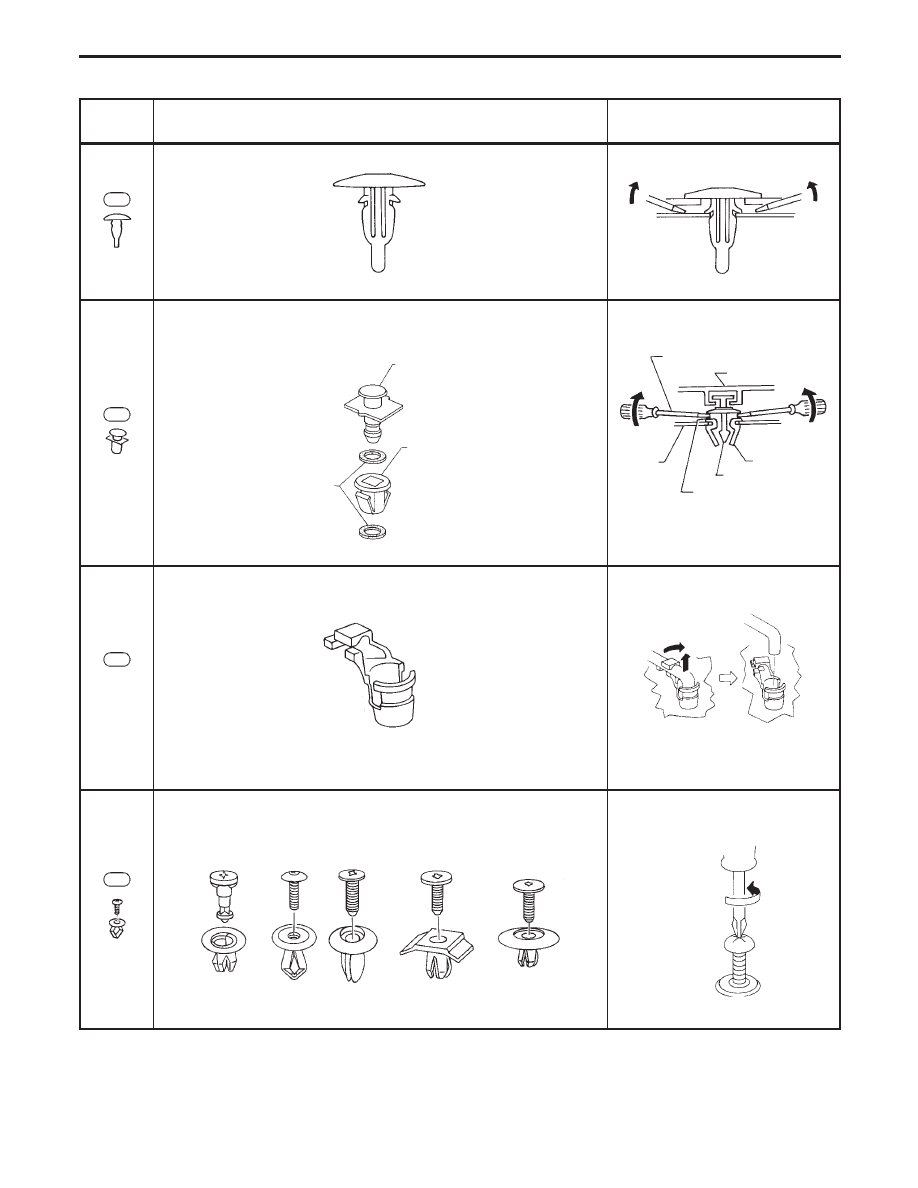

Clip and Fastener

Clips and fasteners in BT section correspond to the following numbers and symbols.

Replace any clips and/or fasteners which are damaged during removal or installation.

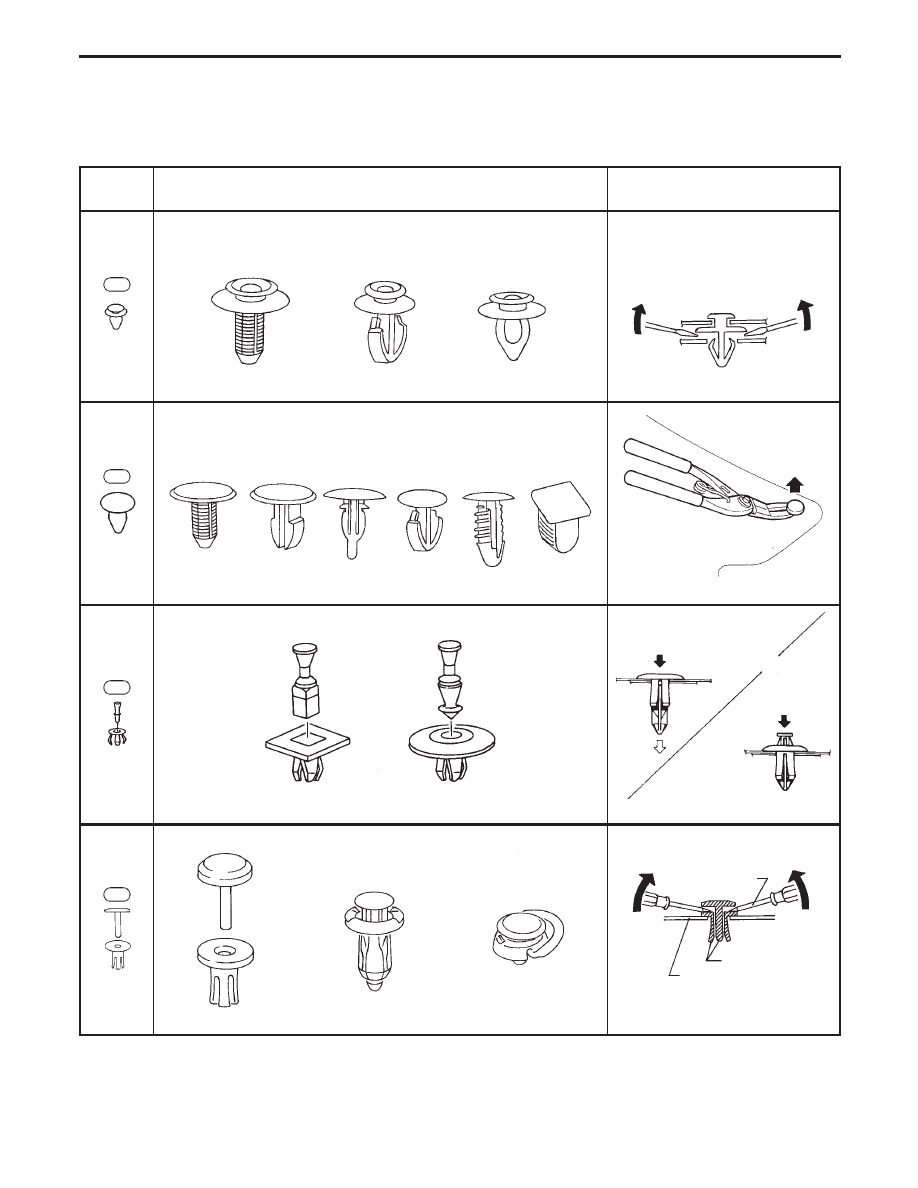

Symbol

No.

Shapes

Removal & Installation

C101

SBF302H

SBF367BA

C103

SBT095

SBF423H

C203

SBF258G

SBF708E

C205

MBT080A

SBF638C

Removal:
Remove by bending up with
flat-bladed screwdrivers or
clip remover.

Removal:
Remove with a clip remover.

Push center pin to
catching position.
(Do not remove
center pin by hitting it.)

Push

Installation:

Push

Removal:

Screwdriver

Clip

Finisher

GENERAL SERVICING

BT-3

Symbol

No.

Shapes

Removal & Installation

CE117

SBF174D

SBF175DA

CF118

SBF151D

SBF259G

CR103

SBF768B

SBF770B

CS101

SBF078B

SBF992G

Removal:
Remove by bending up with a
flat-bladed screwdriver or pliers.

Clip-A

Clip-B
(Grommet)

Sealing
washer

Removal:
Holder portion of clip must be spread
out to remove rod

Removal:
1. Screw out with a Phillips screwdriver.
2. Remove female portion with flat-bladed

screw-driver.

Removal:

Flat-bladed screwdriver

Finisher

Clip-B
(Grommet)

Clip-A

Sealing
washers

Body
panel

GENERAL SERVICING

Clip and Fastener (Cont’d)

BT-4
