CHECK WARNING LAMP INDICA-
TION.
Disconnect ABS actuator and electric
unit connector.
Does the warning lamp activate?

Yes

(See below)

CHECK HARNESS CONNECTOR.
Check ABS actuator and electric unit
pin terminals for damage or the con-
nection of ABS actuator and electric
unit harness connector.
Reconnect ABS actuator and electric
unit harness connector. Then retest

REPLACE.
Replace ABS actuator
and electric unit.

Inspection end.

CHECK HARNESS FOR SHORT.
1. Disconnect ABS actuator and elec-

tric unit connector.

2. Check voltage between ABS actua-

tor and electric unit connector (body
side) terminal 21, 22, and ground.

Battery voltage should not exist.

Repair harness or con-
nector between fuse and
ABS actuator and electric
unit connector terminal.

CHECK COMBINATION METER.
Check combination meter. Refer to
WARNING LAMPS in EL section.

NBR284

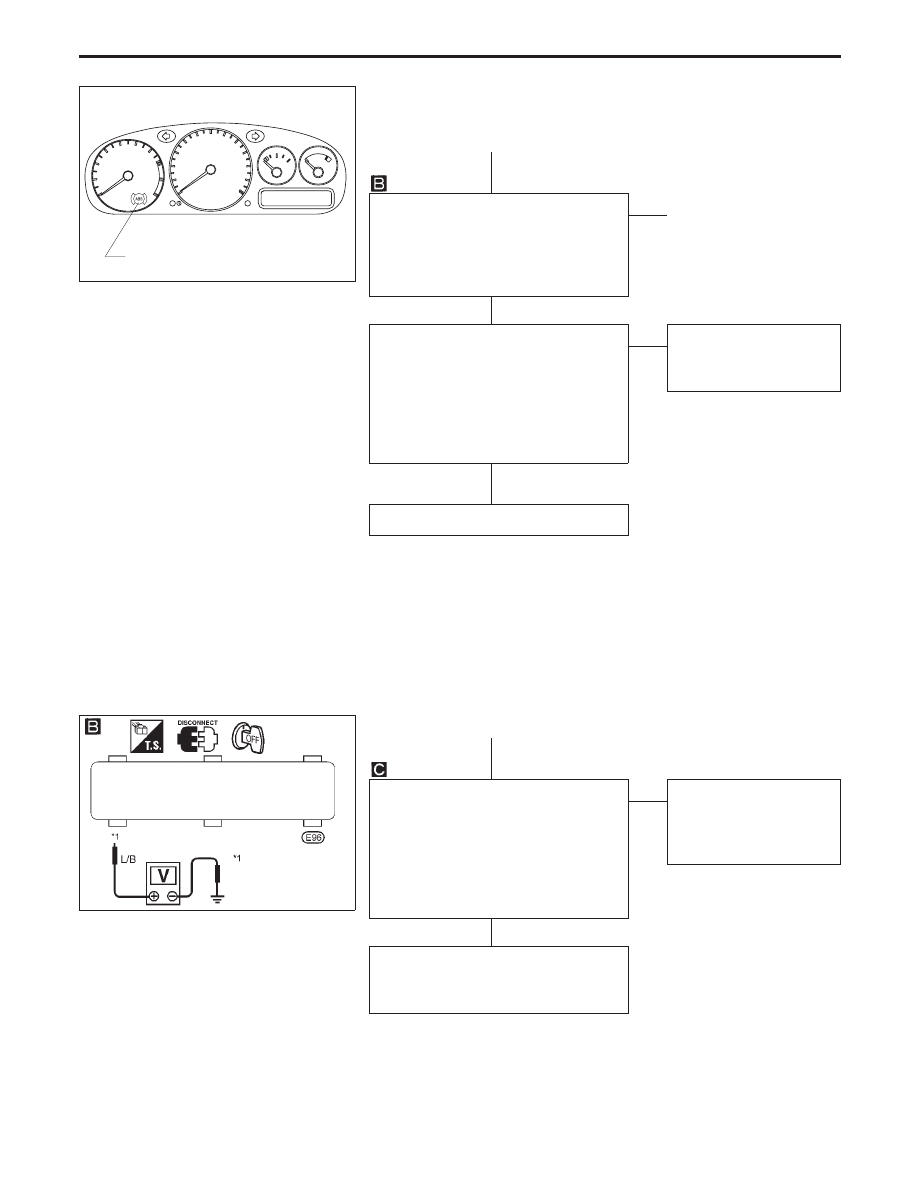

ABS warning light

NBR417

ABS ACTUATOR AND

ELECTRIC UNIT CONNECTOR

21: CVT models
22: M/T models

TROUBLE DIAGNOSES FOR SYMPTOMS

Diagnostic Procedure 11 (ABS Warning lamp
does not come on when ignition switch is
turned ON) (Cont’d)

BR-89

Diagnostic Procedure 12 (Warning lamp
stays on when ignition switch is turned ON)

CHECK WARNING LAMP.
1. Disconnect ABS actuator and electric

unit connector.

2. Connect suitable wire between ABS

actuator and electric unit connector

E78

(body side) terminal

and ground.

Warning lamp should not activate.

Repair combination
meter.
Check the following

●

Harness connector

E78

●

Harness for open or
short between ABS
actuator and electric
unit and fusible link

If NG, repair harness ro
connector

Inspection end.

CHECK ABS MOTOR GROUND.
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and elec-

tric unit connector.

3. Check continuity between ABS

actuator and electric unit connector

E78

(body side) terminal

and

ground.

Continuity should exist.

Check the following

●

Harness connector

E78

●

Harness for open or
short between ABS
actuator and electric
unit and fusible link

If NG, repair harness ro
connector

REPLACE.
Replace ABS actuator and electric unit.

NBR418

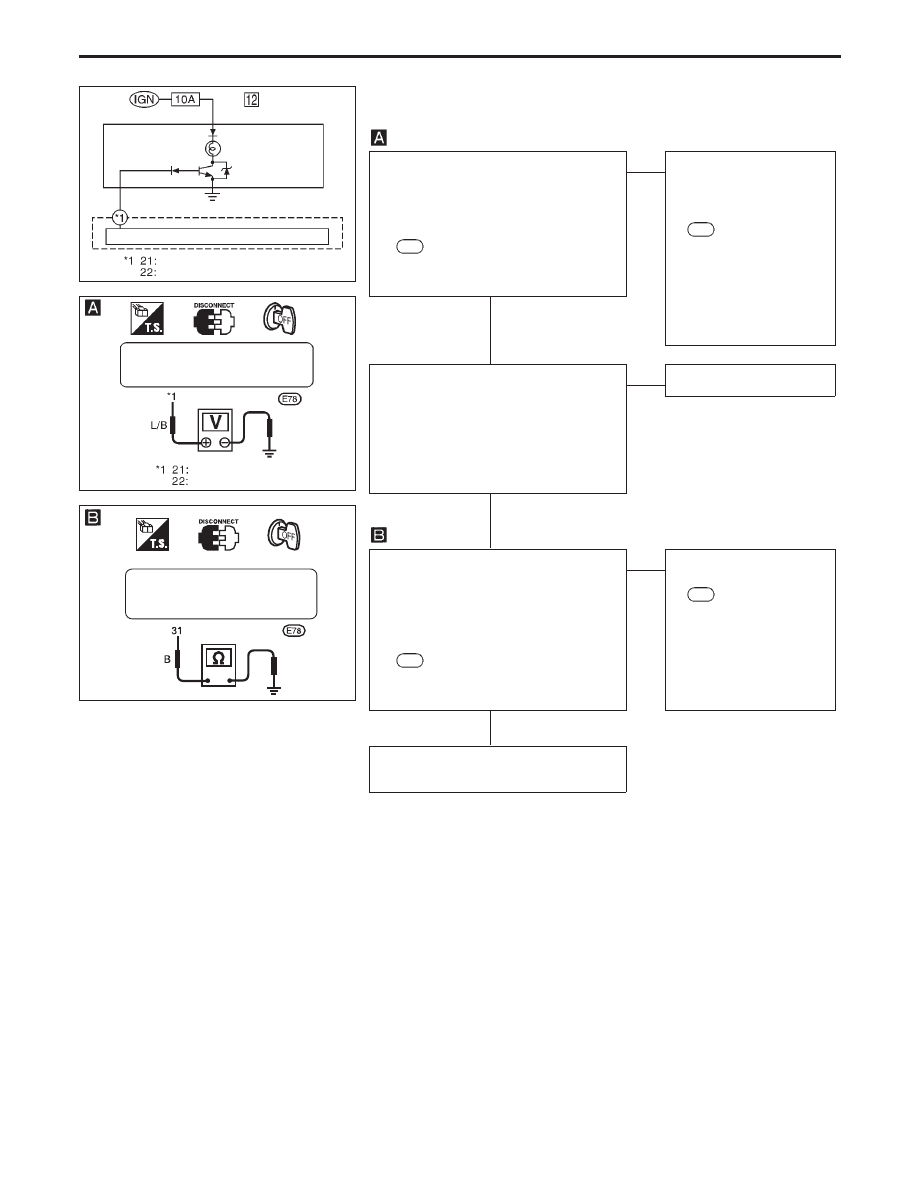

Fuse

Combination meter

ABS
warning
lamp

CVT models
M/T models

ABS control unit

ABS actuator and electric unit

NBR419

ABS ACTUATOR AND

ELECTRIC UNIT CONNECTOR

CVT models
M/T models

YBR186

ABS ACTUATOR AND

ELECTRIC UNIT CONNECTOR

TROUBLE DIAGNOSES FOR SYMPTOMS

BR-90

General Specifications

Unit: mm (in)

Applied model

QG16DE, QG18DE and CD20T

QG16DE, QG18DE

and CD20T

SR20DE

For LHD models

(except Wagon)

For RHD models &

Wagon models (LHD/RHD)

CVT models

M/T models

Without ABS

With ABS

(optional for

LHD models)

With ABS

Front brake

CL25VG

CL25VBG

FN3-57/22

Brake model

disc brake

Cylinder bore diameter

57.2 (2.252)

Pad
length

width

thickness

109 x 50.1 x 11

(94.29 x 1.97 x 0.43)

109 x 50.1 x 11

(4.29 x 1.97 x 0.43)

112 x 56.2 x 11

(4.41 x 2.21 x

0.43)

Rotor outer
diameter

thickness

257

(10.12

0.87)

280

(11.04

0.87)

Rear brake

CL9HCG

LT20N

CL9HDG

CL11HEG

Brake model

disc brake

drum brake

disc brake

Cylinder bore diameter

34.4 (1.354)

17.46 (0.6874)

34.4

(1.354)

38.2 (1.504)

Lining or pad
length

width

thickness

79.8 x 38.5 x 9.3

(3.14 x 1.52 x

0.37)

195 x 35 x 4.5

(7.68 x 1.38 x

0.18)

79.8 x 38.5 x 9.3

(3.14 x 1.52 x 0.37)

Drum inner diameter or rotor
outer
Diameter

thickness

258 x 10

(10.2 x 0.39)

203.2 (8.00)

278 x 10

(10.9

0.39)

258 x 10

(10.2 x 0.39)

Master cylinder
Cylinder bore diameter

23.81

(0.94)

Control valve

Valve model

Dual proportioning valve

—

Split point [kPa (bar, kg/cm

psi)]

reducing ratio

1.96 (0.0196, 0.0200, 0.284) x 0.4

—

Brake booster

Booster model

BJKCE

Diaphragm diameter

Primary: 205 (8.1)

Secondary: 180 (7.1)

Specified brake fluid

DOT 4

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-91

Inspection and Adjustment

DISC BRAKE

Unit: mm (in)

CL25VG

CL25VBG

FN3-57/22

CL9HCG

CL9HDG

CL11HEG

Pad wear limit

Minimum thickness

2.0 (0.079)

Rotor repair limit

20.0

9.0

Minimum thickness

(0.787)

(0.354)

Maximum runout

0.07 (0.0028)

Maximum thickness
variation

0.02 (0.0008)

DRUM BRAKE

Unit: mm (in)

Brake model

LT20N

Lining wear limit

Minimum thickness

1.5 (0.059)

Drum repair limit

Maximum inner diameter

204.5 (8.051)

Maximum out-of-round

0.03 (0.0012)

BRAKE PEDAL

Unit: mm (in)

Applied model

RHD

LHD

Free height

M/T

160 - 170 (6.30 - 6.69)

151 - 161 (5.94 - 6.34)

CVT

169 - 179 (6.65 - 7.05)

160 - 170 (6.30 - 6.69)

Depressed height

[under force of 490 N (50 kg, 110 lb)
with engine running]

M/T

80 - 90 (3.15 - 3.54)

71 - 81 (2.80 - 3.19)

CVT

89 - 99 (3.50 - 3.90)

80 - 91 (3.15 - 3.54)

PARKING BRAKE CONTROL

Control type

Center lever

Number of notches

[under force of 196 N
(20 kg, 44 lb)]

6 - 8

Number of notches when
warning switch comes on

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-92
