Nissan Primera P11. Manual - part 49





DATA MONITOR MODE

MONITOR ITEM

CONDITION

SPECIFICATION

FR RH SENSOR
FR LH SENSOR
REAR RH SENSOR
REAR LH SENSOR

Drive vehicle.
(Each wheel is rotating.)

Wheel speed signal
Almost the same speed as speedometer.

STOP LAMP SW

Brake is depressed.

Depress the pedal: ON
Release the pedal: OFF

FR RH IN SOL
FR RH OUT SOL
FR LH IN SOL
FR LH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL

1. Drive vehicle at speeds

over 30 km/h (19 mph) for
at least one minute.

2. Engine is running.

Operating conditions for each solenoid valve are indicated.
ABS is not operating: OFF

MOTOR RELAY

ABS is not operating: OFF
ABS is operating: ON

ACTUATOR RELAY

Ignition switch is set to the
“ON” position or engine is
running.

Ignition switch in the “ON” position (Engine stops): OFF
Engine running: ON

WARNING LAMP

Warning lamp is turned on: ON
Warning lamp is turned off: OFF

BATTERY VOLT

Power supply voltage for control unit

Trouble Diagnosis — General Description

CONSULT-II Inspection Procedure (Cont’d)

BR-73

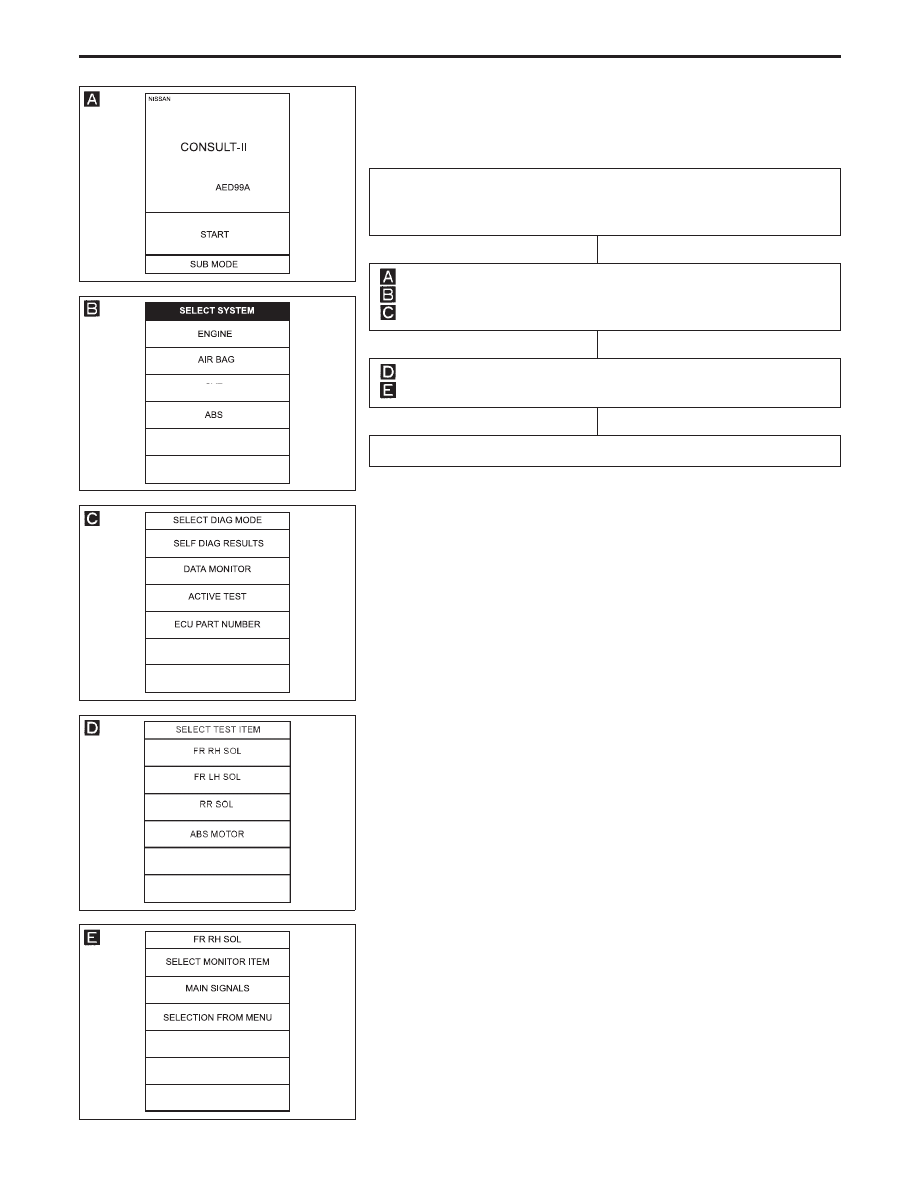

ACTIVE TEST PROCEDURE

When conducting Active test, vehicle must be stationary.

When ABS warning lamp stays on, never conduct Active test.

1) Turn ignition switch to the “LOCK” position.
2) Connect CONSULT-II to Data Link Connector.
3) Start engine.

1) Touch “START” on CONSULT-II screen.
2) Touch “ABS”.
3) Touch “ACTIVE TEST”.

1) Select active test item by touching screen.
2) Touch “START”.

Carry out the active test by touching screen key.

C2NCS01

C2SSE01

.

CVT

C2SDM01

C2STI01

C2FRS01

H

H

H

Trouble Diagnosis — General Description

CONSULT-II Inspection Procedure (Cont’d)

BR-74

ACTIVE TEST MODE

TEST ITEM

CONDITION

JUDGEMENT

FR RH SOLENOID
FR LH SOLENOID
RR RH SOLENOID
RR LH SOLENOID

Engine is running.

Brake fluid pressure control operation

IN SOL

OUT SOL

UP (Increase):
KEEP (Hold):
DOWN (Decrease):

OFF

ON
ON

OFF
OFF

ON

ABS MOTOR

ABS actuator motor

ON: Motor runs (ABS motor relay ON)
OFF: Motor stops (ABS motor relay OFF)

Note: Active test will automatically stop ten seconds after the test starts. (LIMIT SIGNAL monitor

shows ON.)

Ground Circuit Check

ABS ACTUATOR AND ELECTRIC UNIT GROUND

Check resistance between ABS actuator and electric unit
connector terminals and ground.

Resistance: approximately 0

YBR170

ABS ACTUATOR AND

ELECTRIC UNIT CONNECTOR

Trouble Diagnosis — General Description

CONSULT-II Inspection Procedure (Cont’d)

BR-75

Malfunction Code/Symptom Chart

MODELS WITH SELF-DIAGNOSIS FUNCTION

Code No. (No. of LED flashes)

Malfunctioning part

Reference page

12

Self-diagnosis could not detect any malfunctions.

18

Sensor rotor

BR-77

21

Front right sensor (open-circuit)

BR-77

22

Front right sensor (short-circuit)

BR-77

25

Front left sensor (open-circuit)

BR-77

26

Front left sensor (short-circuit)

BR-77

31

Rear right sensor (open-circuit)

BR-77

32

Rear right sensor (short-circuit)

BR-77

35

Rear left sensor (open-circuit)

BR-77

36

Rear left sensor (short-circuit)

BR-77

41

Actuator front right outlet solenoid valve

BR-79

42

Actuator front right inlet solenoid valve

BR-79

45

Actuator front left outlet solenoid valve

BR-79

46

Actuator front left inlet solenoid valve

BR-79

51

Actuator rear right outlet solenoid valve

BR-79

52

Actuator rear right inlet solenoid valve

BR-79

55

Actuator rear left outlet solenoid valve

BR-79

56

Actuator rear left inlet solenoid valve

BR-79

57*

Power supply (Low voltage)

BR-83

61

Actuator motor or motor relay

BR-81

63

Solenoid valve relay

BR-79

71

Control unit

BR-84

ABS warning lamp stays on when
ignition switch is turned on.

Control unit power supply circuit
Warning lamp bulb circuit
Control unit or control unit connector
Solenoid valve relay stuck
Power supply for solenoid valve relay coil

BR-90

ABS warning lamp stays on, during
self-diagnosis.

Control unit

ABS warning lamp does not come
on when ignition switch is turned
on.

Fuse, warning lamp bulb or warning lamp circuit
Control unit

BR-88

ABS warning lamp does not come
on during self-diagnosis.

Control unit

Pedal vibration and noise

BR-87

Long stopping distance

BR-86

Unexpected pedal action

BR-86

ABS does not work.

BR-87

ABS works frequently.

BR-85

*: Under voltage that is too low, the control unit disable the ABS. It does not set the ABS in fail-safe condition. Instead, the ABS
becomes a conventional brake system. After the power supply has resumed, the warning lamp goes off, making it possible for the
ABS to be re-engaged.

Trouble Diagnosis — General Description

BR-76
