Nissan Primera P11. Manual - part 45





How to Perform Trouble Diagnoses for Quick
and Accurate Repair

INTRODUCTION

The ABS system has an electronic control unit to control major
braking functions. The control unit accepts input signals from
sensors and utilises the data to instantly drive the actuators. It is
essential that both input and output signals are correct and
stable. It is also important to check for conventional problems:
such as air leaks in booster lines, lack of brake fluid, or other
problems with the brake system.
It is much more difficult to diagnose a problem that occurs inter-
mittently rather than catastrophically. Most intermittent problems
are caused by poor electric connections or faulty wiring. In this
case, careful checking of suspicious circuits may help prevent
the unnecessary replacement of good parts.
A visual check may not be sufficient to find the cause of the
problems, so a road test should also be performed.
Before undertaking actual checks, take just a few minutes to talk
with a customer who approaches with a ABS complaint. The
customer is a very good source of information on such problems;
especially intermittent ones. Through the talks with the customer,
find out what symptoms are present and under what conditions
they occur.
Start your diagnosis by looking for “conventional” problems first.
This is one of the best ways to troubleshoot brake problems on
an ABS controlled vehicle.

SEF233G

SEF234G

TROUBLE DIAGNOSES

BR-57

WORK FLOW

CHECK IN

F

Reference item

LISTEN TO CUSTOMER COMPLAINTS

INVESTIGATE ITEMS YOU SHOULD CARRY OUT
RELARED TO EACH SYMPTOM AND NOTE

F

Go to MALFUNCTION
CODE/SYMPTOM
CHART,
BR-76.

CHECK FOR ANY SERVICE BULLETINS.

E

ELIMINATE GOOD SYSTEMS AND GOOD PARTS

F

Go to Preliminary
Check,
BR-59.

Not self-diagnostic item

Self-diagnostic item

H

H

DETERMINE MALFUNCTION-
ING CIRCUIT(S) OR PART(S).

F

Go to Self-diagnosis,
BR-67.

Self-diagnosis

H

Go to Diagnostic
Procedure(s) 6 - 12,
BR-85.

Go to Component
Parts and Harness
Connector
Location,
BR-60.

ELIMINATE GOOD PART(S), HARNESS(ES) OR CONNEC-
TOR(S) THROUGH ELECTRICALLY TESTING

F

Malfunctioning

harness(es) and

connector(s)

Malfunctioning parts

H

H

INSPECTION OF EACH
COMPONENT

F

Go to Diagnostic Pro-
cedure(s) 1 - 5,
BR-77.

H

REPAIR

REPAIR OR REPLACE

H

H

NG

FINAL CHECK

OK

CHECK OUT

H

H

H

H

H

TROUBLE DIAGNOSES

How to Perform Trouble Diagnoses for Quick
and Accurate Repair (Cont’d)

BR-58

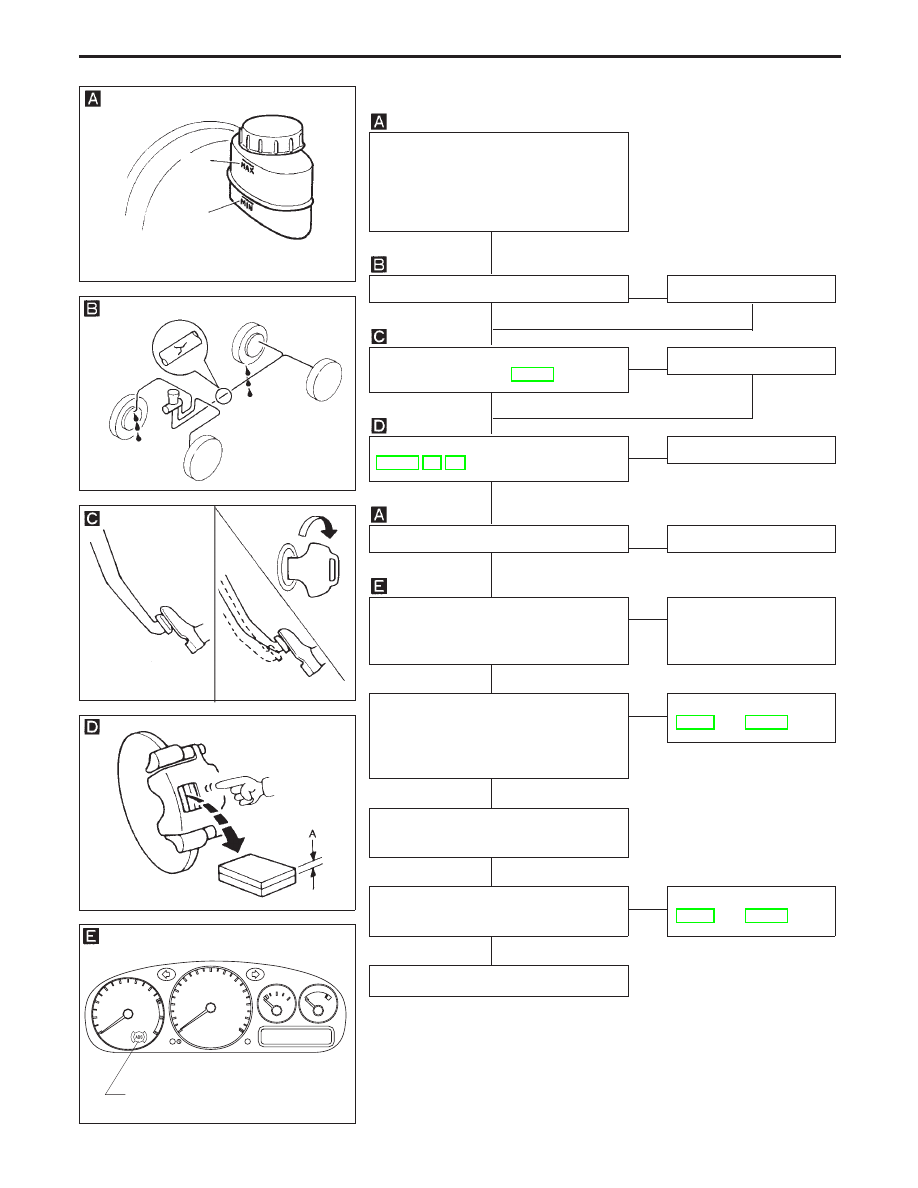

Preliminary Check

Check brake fluid level in reservoir
tank.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Low fluid level may indicate brake pad
wear or leakage from brake line.

Check brake line for leakage.

OK

E

NG

Repair.

F

Check brake booster for operation and
air tightness. Refer to BR-18.

OK

E

NG

Replace.

F

Check brake pads and rotor. Refer to
BR-23, 26, 33.

OK

E

NG

Replace.

Check brake fluid level in reservoir tank.

OK

E

NG

Fill up brake fluid.

Check warning lamp activation.
When ignition switch is turned on,
warning lamp turns on.

OK

E

NG

Check fuse, warning
lamp bulb and warning
lamp circuit.

Check warning lamp for deactivation.
When ignition switch is turned on,
warning lamp turns on, then deacti-
vates after 1 second.

OK

E

NG

Go to Self-diagnosis,
BR-67 and BR-70.

Drive vehicle at 30 km/h (19 mph) for
at least one minute.

Ensure warning lamp remains off while
driving.

OK

E

NG

Go to Self-diagnosis,
BR-67 and BR-70.

END

NBR141

MAX.

MIN.

SBR389C

SBR058C

SBR059C

.

NBR284

ABS warning light

H

H

H

H

H

H

H

H

H

TROUBLE DIAGNOSES

BR-59

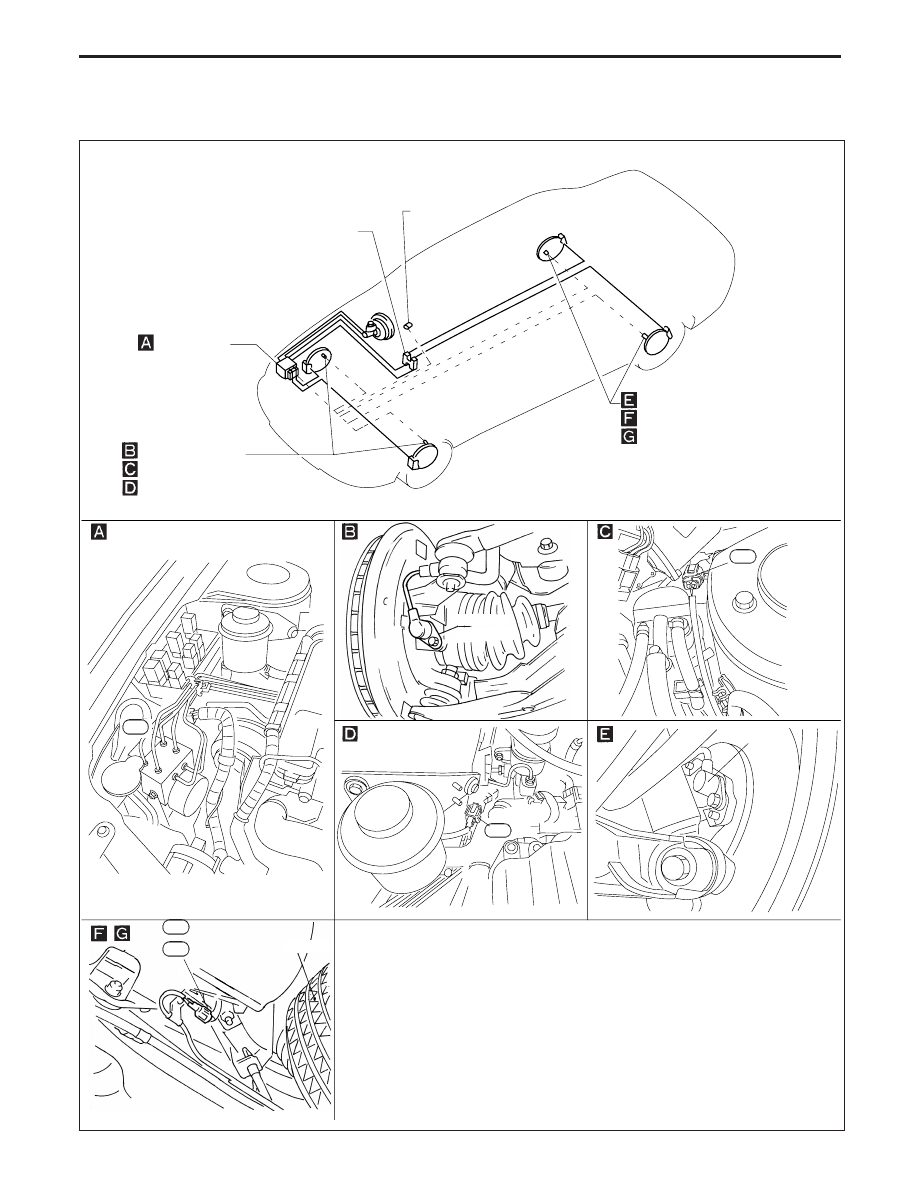

Component Parts and Harness Connector
Location

NBR285

Brake tube connector

Warning light

ABS actuator
and electric unit

Front wheel sensors

Front left wheel sensor connector

Front right wheel sensor connector

Sensor

E17

Rear wheel sensors

Rear left wheel sensor connector

Rear right wheel sensor connector

B33

Rear left wheel
sensor connector

B32

Rear right wheel
sensor connector

.

Rear tire

.

E78

E57

Sensor

TROUBLE DIAGNOSES

BR-60
