Installation

NCAT0116

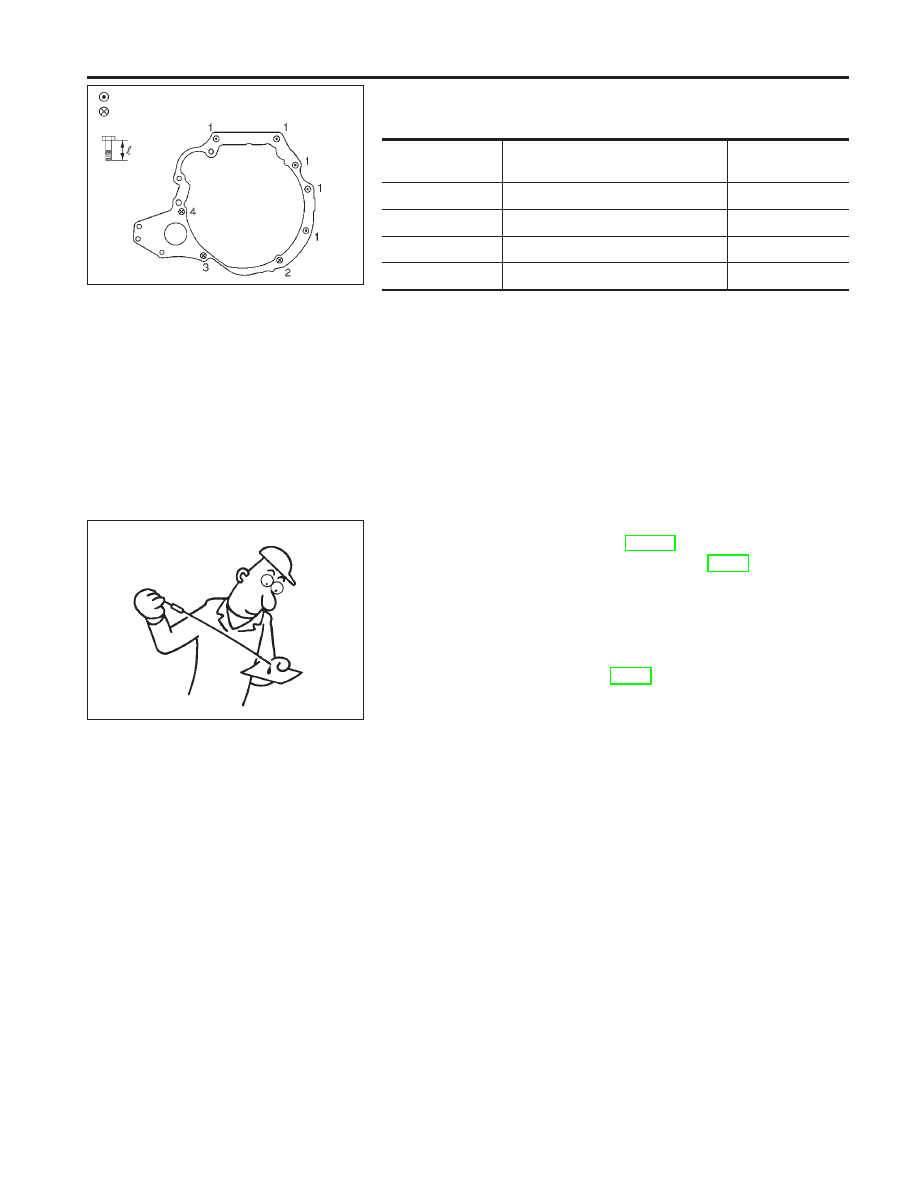

1.

Tighten bolts fixing transaxle.

Bolt No.

Tightening torque

N

m (kg-m, ft-lb)

Bolt length “



mm (in)

1

70 - 79 (7.1 - 8.1, 51 - 59)

40 (1.57)

2

31 - 36 (3.1 - 3.7, 23 - 26)

35 (1.38)

3

31 - 36 (3.1 - 3.7, 23 - 26)

47 (1.85)

4

70 - 79 (7.1 - 8.1, 52 - 58)

65 (2.56)

2.

Install torque converter to drive plate.

I

With converter installed, rotate crankshaft several turns to
check that transaxle rotates freely without binding.

3.

Reinstall any part removed.

4.

Adjust control cable. Refer to AT-114.

5.

Check continuity of PNP switch. Refer to AT-53.

6.

Refill transaxle with CVT fluid and check fluid level.

7.

Move selector lever through all positions to be sure that tran-
saxle operates correctly. With parking brake applied, idle
engine. A slight shock should be felt through the hand gripping
the selector each time the transaxle is shifted.

8.

Perform road test. Refer to AT-36.

SAT666J

: Transaxle to engine

: Engine to transaxle

SAT638A

REMOVAL AND INSTALLATION

Installation

AT-117

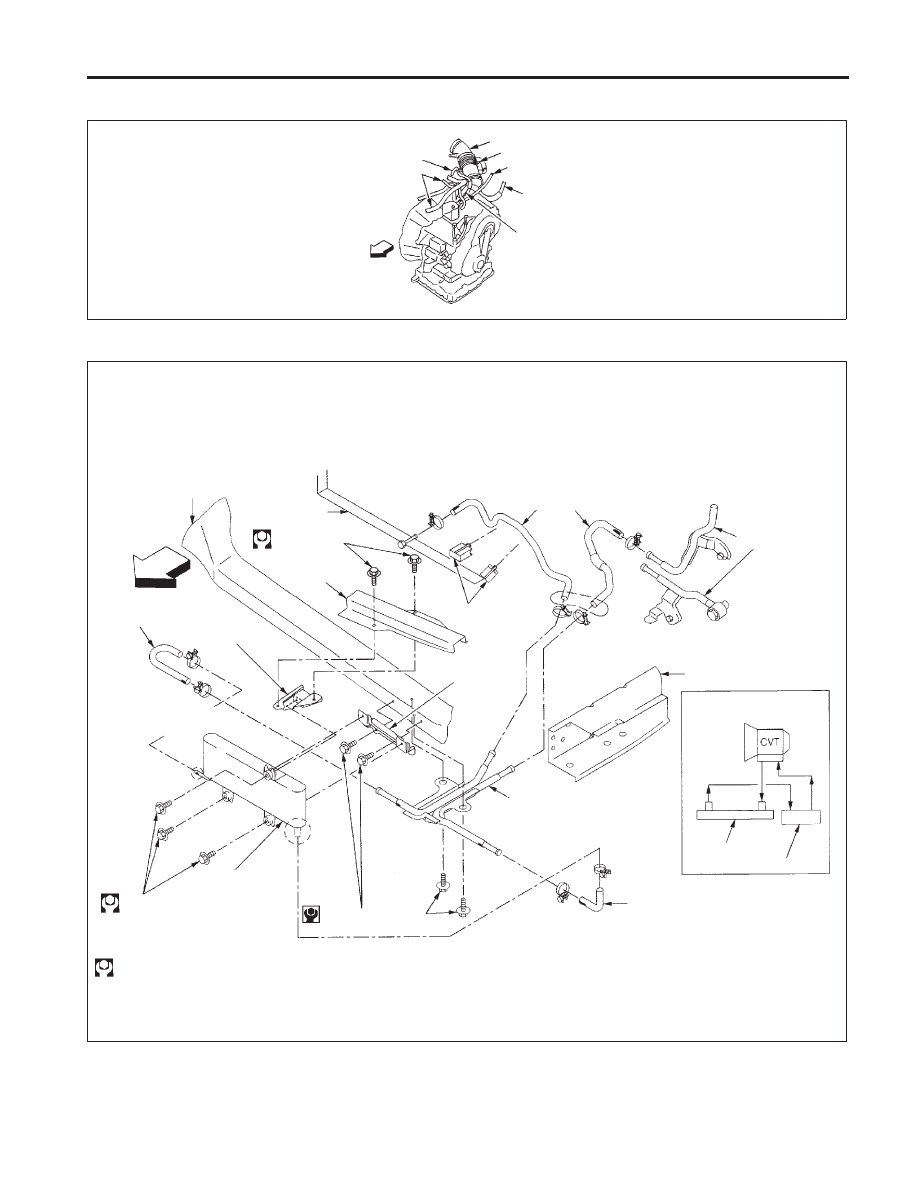

Air Breather Hose

CVT Fluid Cooler (Hyper CVT-M6)

Air duct

Clip

Control cable

Air conditioner tube

Paint mark upside
More than 17 mm insert

Front

Engine harness

Air breather hose

NAT312

SR20DE

Radiator core support (lower)

Radiator

4.5 - 5.7 (0.45 - 0.59)

Bumper retainer

Front

Hose

Upper bracket

Fluid cooler

4.5 - 5.7 (0.45 - 0.59)

: N·m (kg-m)

4.5 - 5.7 (0.45 - 0.59)

Tube

Hose

Radiator

CVT fluid cooler

CVT fluid hydraulic circuit

Side member

Tube

Hose

Radiator shroud

Lower bracket

NAT313

SEC. 310

REMOVAL AND INSTALLATION

Air Breather Hose

AT-118

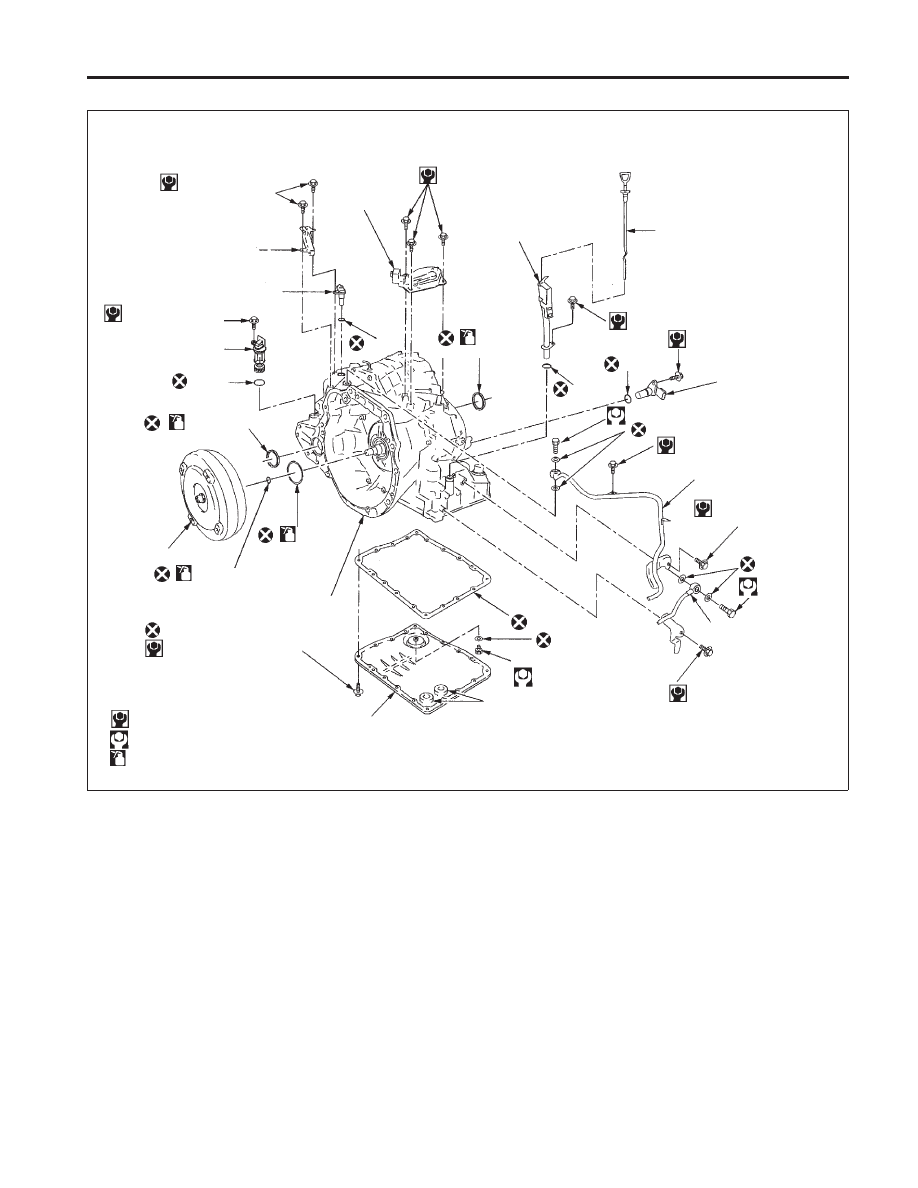

Components

NAT311

Fluid level gauge

Fluid charging pipe

5.0 - 6.8 (0.5 - 0.7, 44 - 60)

PNP SW

5.0 - 6.8
(0.5 - 0.7, 44 - 60)

Dropping resistor

Secondary pulley speed sensor

5.0 - 6.8
(0.5 - 0.7, 44 - 60)

Speedometer pinion

O-ring

O-ring

Differential
oil seal

Torque converter

Input shaft O-ring

Oil pump
oil seal

CVT assy

Oil pan installation bolt (18)

6.9 - 8.8 (0.7 - 0.9, 61 - 78)

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: CVT fluid NS-1

Oil pan

Magnet

Drain bolt

30 - 39 (3.0 - 4.0, 22 - 29)

Gasket

Oil pan gasket

4.5 - 5.7 (0.45 - 0.59, 40 - 50)

Tube (inlet)

40 - 58
(4.0 - 6.0,
30 - 43)

Copper washer

4.5 - 5.7
(0.45 - 0.59, 40 - 50)

Tube (outlet)

4.5 - 5.7 (0.45 - 0.59, 40 - 50)

Copper washer

40 - 58 (4.0 - 6.0, 30 - 43)

Primary pulley
speed sensor

5.0 - 6.8 (0.5 - 0.7, 44 - 60)

O-ring

O-ring

4.5 - 5.7 (0.45 - 0.59, 40 - 50)

Differential
oil seal

SEC. 310

311

312

319

REMOVAL AND INSTALLATION

Components

AT-119

General Specifications

NCAT0179

Engine

SR20DE

Automatic transaxle model

RE0F06A

Automatic transaxle assembly

Model code number

8E020

Transaxle gear ratio

D range

Variable

Reverse

1.586

Final drive

5.473

Recommended fluid

Nissan CVT fluid NS-1*1

Fluid capacity

8.1



(7-1/8 Imp qt)

*1: Refer to MA section (“Fluids and Lubricants”, “RECOMMENDED FLUIDS AND LUBRICANTS”).

Any other fluid will damage the CVT.

Stall Revolution

NCAT0181

Engine

Stall revolution

rpm

(SR20DE)

2,350 - 2,850

Line Pressure

NCAT0182

Engine speed

rpm

Line pressure MPa (kg/cm

2

, psi)

R position

D position

L position

Idle

0.6 (6.1, 87)

Stall

4.1 (42, 595)

Removal and Installation

NCAT0197

Unit: mm (in)

Distance between end of converter housing and torque converter

15.9 (0.626) or more

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

AT-120
