Diagnostic Procedure

NCAT0062

1

CHECK GROUND CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 8 and ground.

Resistance:

2.5 - 5

Ω

OK or NG

OK

©

GO TO 2.

NG

©

Check the following items:

I

Line pressure solenoid valve
Refer to “Component Inspection”, AT-78.

I

Harness of terminal cord assembly for short or open

2

CHECK POWER SOURCE CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal 8 and TCM harness connector terminal 2.

Resistance:

11.2 - 12.8

Ω

OK or NG

OK

©

GO TO 3.

NG

©

Check the following items:

I

Dropping resistor
Refer to “Component Inspection”, AT-78.

I

Harness for short or open between TCM terminal 2 and terminal cord assembly (Main
harness)

3

CHECK POWER SOURCE CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Check continuity between terminal 8 and TCM harness connector terminal 1.

Continuity should exist.

If OK, check harness for short to ground and short to power.

3. Reinstall any part removed.

OK or NG

OK

©

GO TO 4.

NG

©

Repair open circuit or short to ground or short to power in harness or connectors.

4

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-75.

OK or NG

OK

©

INSPECTION END

NG

©

1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-

nector.

DTC P0745 LINE PRESSURE SOLENOID VALVE

Diagnostic Procedure

AT-77

Component Inspection

=NCAT0063

LINE PRESSURE SOLENOID VALVE

NCAT0063S01

I

For removal, refer to AT-116.

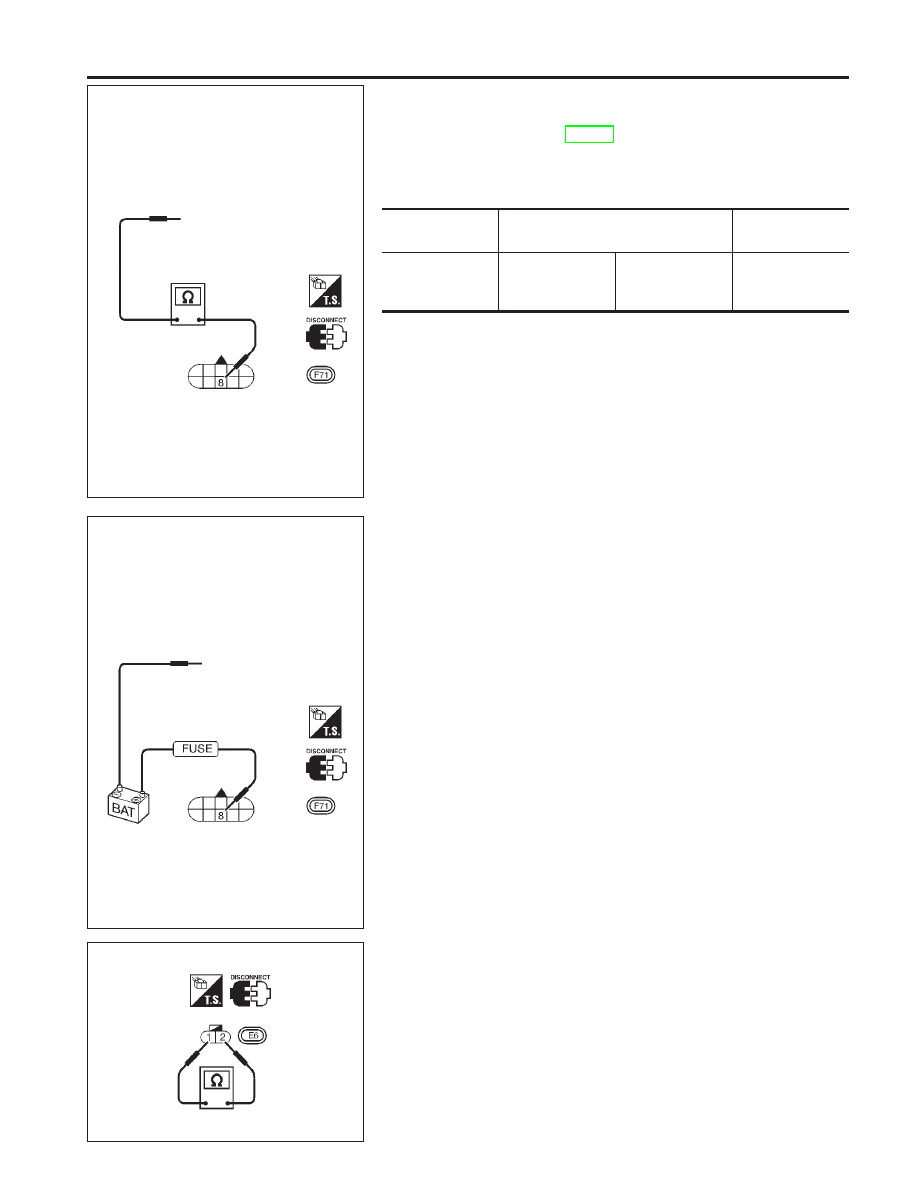

Resistance Check

NCAT0063S0101

I

Check resistance between two terminals.

Solenoid valve

Terminal No.

Resistance

(Approx.)

Line pressure
solenoid valve

8

Ground of line

pressure solenoid

valve

2.5 - 5

Ω

Operation Check

NCAT0063S0102

I

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground of line
pressure solenoid valve.

DROPPING RESISTOR

NCAT0063S02

I

Check resistance between two terminals.

Resistance:

11.2 - 12.8

Ω

SAT686J

To line pressure
solenoid valve

SAT687J

To line pressure
solenoid valve

SAT444J

DTC P0745 LINE PRESSURE SOLENOID VALVE

Component Inspection

AT-78

Description

NCAT0070

I

Throttle position sensor
The throttle position sensor detects the throttle valve position
and sends a signal to the TCM.

I

Throttle position switch
Consists of a wide open throttle position switch and a closed
throttle position switch.
The wide open throttle position switch sends a signal to the
TCM when the throttle valve is open at least 1/2 of the full
throttle position. The closed throttle position switch sends a
signal to the TCM when the throttle valve is fully closed.

CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE

NCAT0070S01

Remarks: Specification data are reference values.

Monitor item

Condition

Specification

Throttle position sensor

Fully-closed throttle

Approximately 0.5V

Fully-open throttle

Approximately 4V

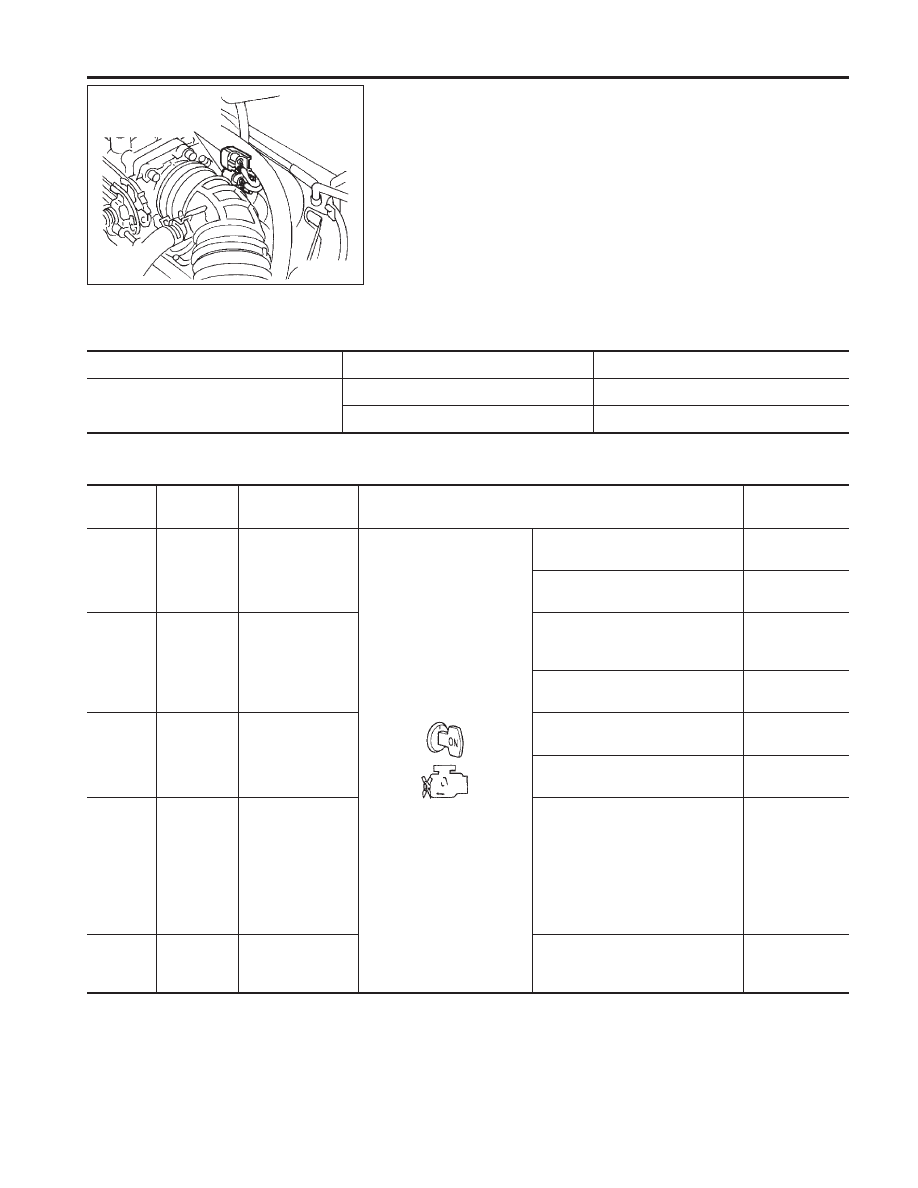

TCM TERMINALS AND REFERENCE VALUE

NCAT0070S02

Remarks: Specification data are reference values.

Terminal

No.

Wire color

Item

Condition

Judgement

standard

16

Y

Closed throttle
position switch
(in throttle position
switch)

When releasing accelerator pedal
after warming up engine.

Battery voltage

When depressing accelerator pedal
after warming up engine.

Approx. 0V

17

LG

Wide open throttle
position switch
(in throttle position
switch)

When depressing accelerator pedal
more than half-way after warming
up engine.

Battery voltage

When releasing accelerator pedal
after warming up engine.

Approx. 0V

32

G

Throttle position
sensor
(Power source)

When turning ignition switch to
“ON”.

4.5 - 5.5V

When turning ignition switch to
“OFF”.

Approx. 0V

41

GY

Throttle position
sensor

When depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in
response to throttle position.)

Fully-closed
throttle:
Approximately
0.3V
Fully-open
throttle:
Approximately
3V

42

B

Ground
(Throttle position
sensor)

—

—

SAT413J

Throttle position
sensor and throttle
position switch

DTC P1705 THROTTLE POSITION SENSOR

Description

AT-79

ON BOARD DIAGNOSIS LOGIC

NCAT0070S03

Diagnostic trouble code

Malfunction is detected when ...

Check items (Possible cause)

: TP SEN/CIRC A/T

TCM receives an excessively low or high
voltage from the sensor.

I

Harness or connectors
(The sensor circuit is open or shorted.)

I

Throttle position sensor

I

Throttle position switch

: P1705

: MI Code No. 1705

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NCAT0070S04

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.

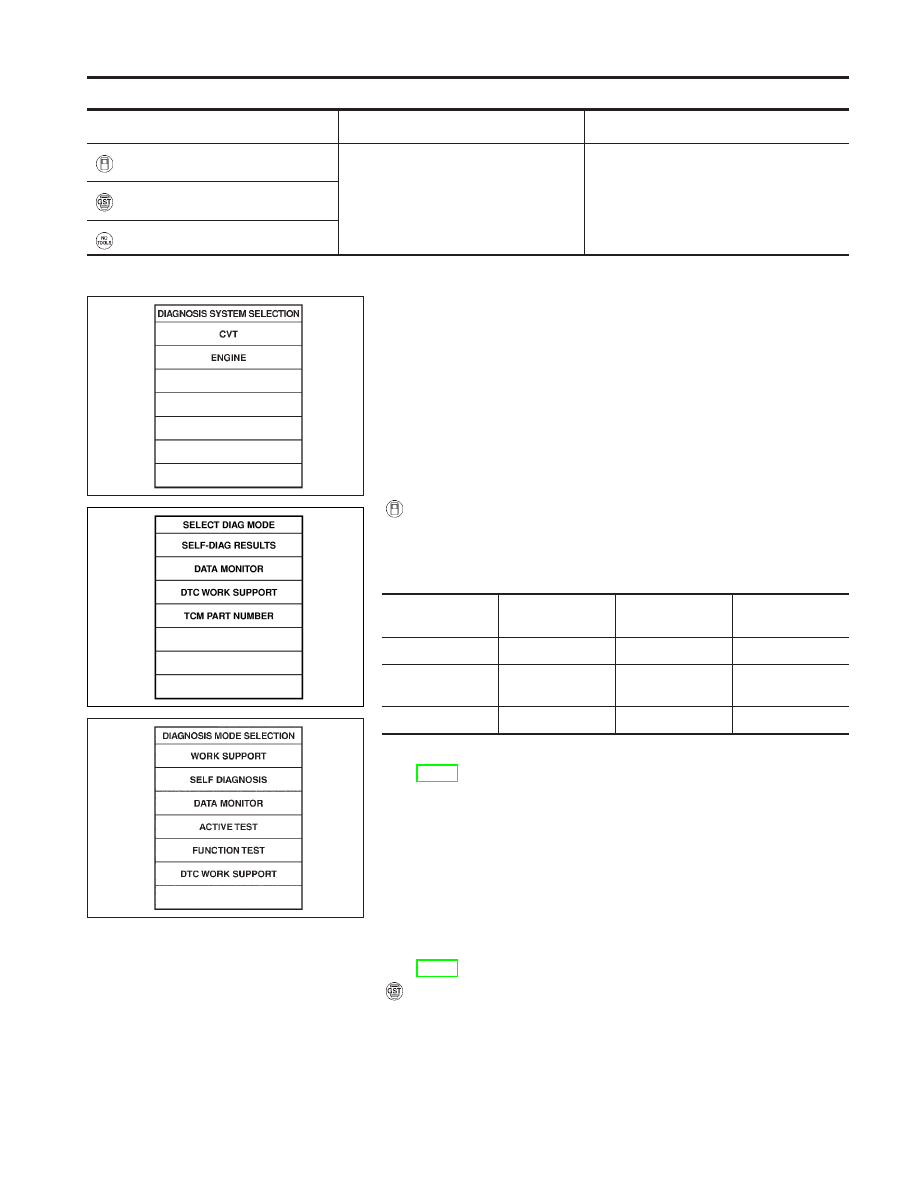

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
for “CVT” with CONSULT-II.

2)

Check the following.

Acceleratr pedal

condition

THRTL POS SEN

CLOSED THL/SW

W/O THRL/P

⋅

SW

Fully released

Less than 0.5V

ON

OFF

Partially

depressed

0.5 - 1.9V

OFF

OFF

Fully depressed

1.9 - 4.0V

OFF

ON

If the check result is NG, go to “DIAGNOSTIC PROCEDURE”,
AT-82.
If the check result is OK, go to following step.

3)

Turn ignition switch “ON” and select “DATA MONITOR” mode
for “ENGINE” with CONSULT-II.

4)

Start engine and maintain the following conditions for at least
5 consecutive seconds. Then release accelerator pedal com-
pletely.

VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POSI SEN: Approximately 3V or less
Selector lever: D position

If the check result is NG, go to “DIAGNOSTIC PROCEDURE”,
AT-82.

With GST

Follow the procedure “With CONSULT-II”.

SAT651J

SAT971J

SAT654J

DTC P1705 THROTTLE POSITION SENSOR

Description (Cont’d)
