Nissan Frontier D22. Manual - part 811





MT-50

[FS5R30A]

TRANSMISSION ASSEMBLY

INSTALLATION

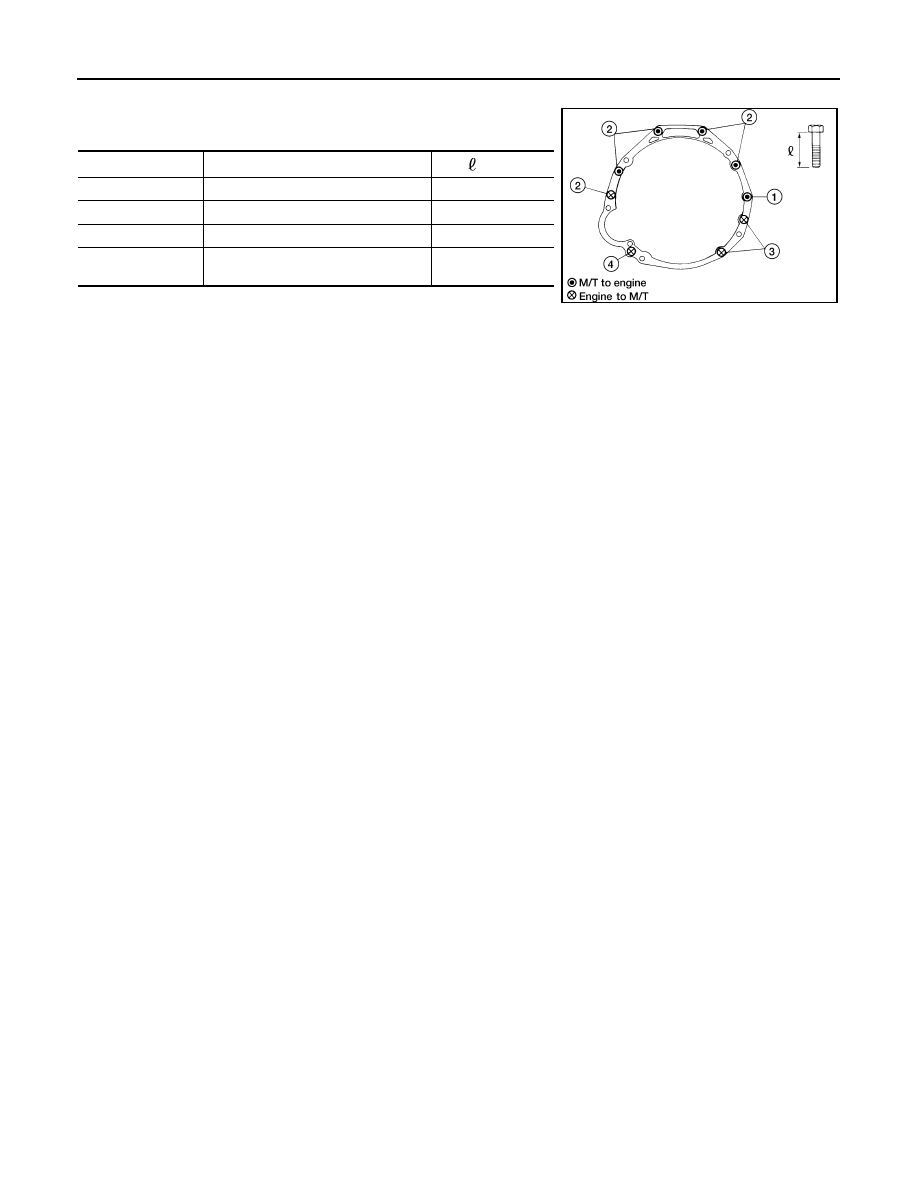

Tighten the bolts securing the transmission to the specified
torques in the chart below.

Installation is in the reverse order of removal.

Bolt No.

Tightening torque N·m (kg-m, ft-lb)

 mm (in)

1

39 - 49 (4.0 - 5.0, 29 - 36)

65 (2.56)

2

39 - 49 (4.0 - 5.0, 29 - 36)

58 (2.28)

3

29 - 39 (3.0 - 4.0, 22 - 29)

20 (0.79)

4 (Starter spacer

and cover plate)

29 - 39 (3.0 - 4.0, 22 - 29)

25 (0.98)

WCIA0185E

TRANSMISSION ASSEMBLY

MT-51

[FS5R30A]

D

E

F

G

H

I

J

K

L

M

A

B

MT

Overhaul

ECS007I1

CASE COMPONENTS

WCIA0187E

MT-52

[FS5R30A]

TRANSMISSION ASSEMBLY

1.

Back-up lamp switch

2.

Park/neutral position (PNP) switch

3.

Control housing bolts

4.

Control housing

5.

Plug

6.

Clip

7.

Dust cover

8.

Rear oil seal

9.

Rear extension

10. Rear extension bolt

11.

Bearing retainer bolt

12. Slide ball bearing

13. Control housing bolt

14. Washer

15. Control housing

16. Baffle plate

17. OD gear case bolt

18. OD gear case

19. Back-up lamp switch

20. Drain plug

21. Front cover oil seal

22. Front cover bolt

23. Washer

24. Ball pin

25. Front cover

26. Gasket

27. Slide ball bearing

28. Transmission case

29. Filler plug

30. Air breather

31. Adapter plate

32. Bearing retainer

TRANSMISSION ASSEMBLY

MT-53

[FS5R30A]

D

E

F

G

H

I

J

K

L

M

A

B

MT

GEAR COMPONENTS

WCIA0188E
