MA-42

CHASSIS AND BODY MAINTENANCE

Checking Disc Brake

ELS000Y9

ROTOR

Check condition, wear and damage.

CALIPER

Check for leakage.

PAD

Check wear or damage.

Checking Drum Brake

ELS000YA

WHEEL CYLINDER

Check for leakage.

DRUM

Check condition and inner surface.

Standard thickness

KA24DE

: 26 mm (1.024 in)

VG33E & VG33ER

: 28 mm (1.10 in)

Minimum thickness

KA24DE

: 24 mm (0.945 in)

VG33E & VG33ER

: 26 mm (1.024 in)

SMA260A

SMA922A

Standard thickness

: 10 mm (0.39 in)

Minimum thickness

: 2.0 mm (0.079 in)

LMA051

Standard inner diameter

KA24DE

: 260.0 mm (10.23 in)

VG33E & VG33ER

: 295.0 mm (11.61 in)

Drum repair limit (inner diameter)

KA24DE

: 261.5 mm (10.30 in)

VG33E & VG33ER

: 296.5 mm (11.67 in)

SMA848B

CHASSIS AND BODY MAINTENANCE

MA-43

C

D

E

F

G

H

I

J

K

M

A

B

MA

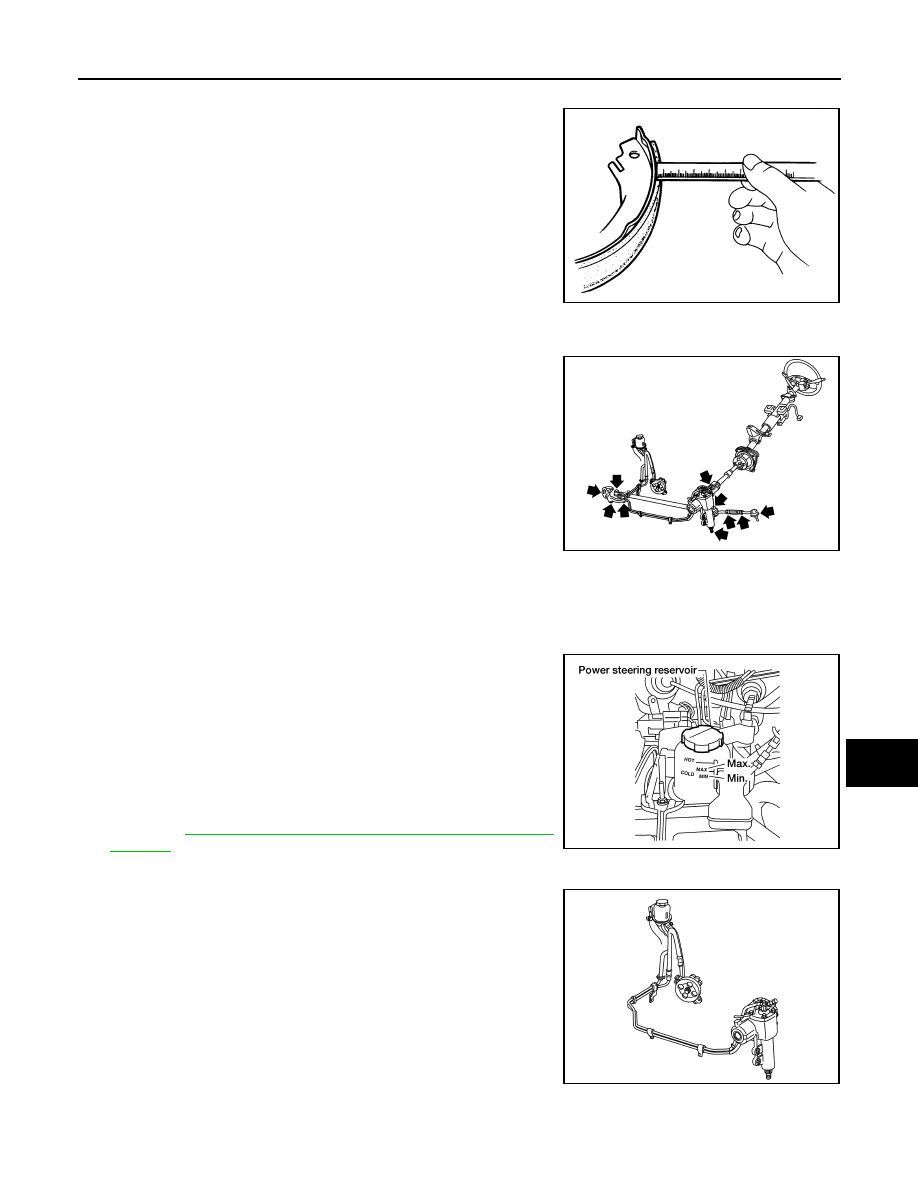

LINING

Check wear or damage.

Checking Steering Gear and Linkage

ELS000YB

STEERING GEAR

Check steering gear housing for looseness, damage and oil
leakage.

Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

Checking Power Steering Fluid and Lines

ELS000YC

CHECKING FLUID LEVEL

Check fluid level with engine off.

Check fluid level on reservoir. Use “HOT” range at fluid tempera-
tures of 50

° to 80°C (122° to 176°F). Use “COLD” range at fluid

temperatures of 0

° to 30°C (32° to 86°F).

CAUTION:

Do not overfill.

Recommended fluid is Genuine NISSAN PSF, Canada NIS-
SAN Automatic Transmission Fluid, DEXRON™ III, MER-
CON™ or equivalent ATF may also be used.
Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

CHECKING LINES

Check lines for improper attachment, leaks, cracks, damage,
loose connections, chafing and deterioration.

Standard thickness

KA24DE

: 5.5 mm (0.217 in)

VG33E & VG33ER

: 6.1 mm (0.240 in)

Minimum thickness

Lining wear limit

: 1.5 mm (0.059 in)

SMA849B

AMA144

AMA155

AST255

MA-44

CHASSIS AND BODY MAINTENANCE

Checking Axle and Suspension Parts

ELS000YD

FRONT AND REAR AXLE AND SUSPENSION PARTS

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

Shake each wheel to check for excessive play.

Rotate each wheel to check for abnormal noise.

Check axle and suspension nuts and bolts for looseness.

Check strut (shock absorber) for oil leakage or other damage.

Check suspension ball joint for grease leakage and ball joint
dust cover for cracks or other damage.

DRIVE SHAFT

Check boot and drive shaft for cracks, wear, damage, and grease
leakage.

SMA525A

ASU018

SFA901

CHASSIS AND BODY MAINTENANCE

MA-45

C

D

E

F

G

H

I

J

K

M

A

B

MA

Lubricating Locks, Hinges and Hood Latches

ELS000YE

Lubricate the locations shown. Refer to

MA-12, "RECOMMENDED FLUIDS AND LUBRICANTS"

 .

WLIA0002E
