REAR WIPER MOTOR

WW-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

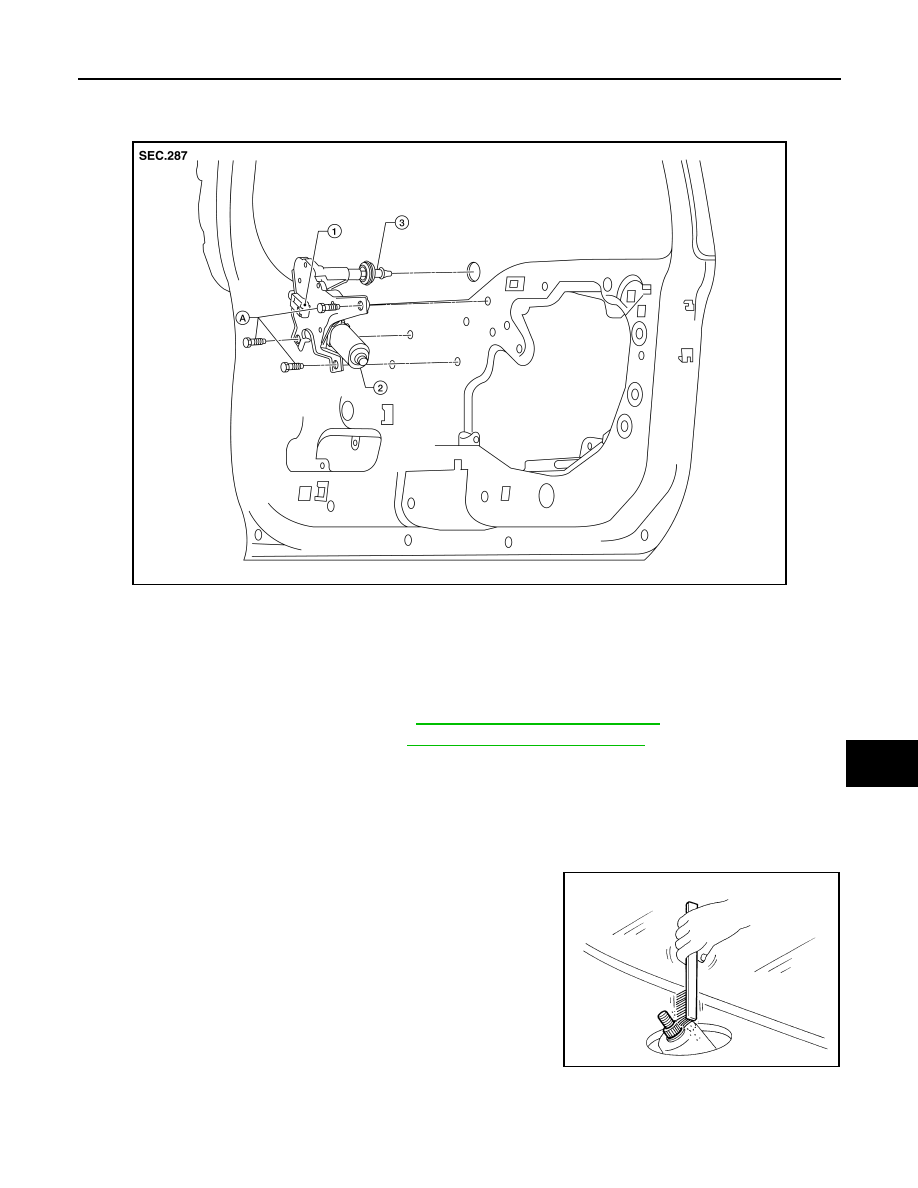

REAR WIPER MOTOR

Removal and Installation

INFOID:0000000009484734

REMOVAL

CAUTION:

Do not drop rear wiper motor or cause it to contact other parts.
1. Remove rear wiper arm and blade. Refer to

WW-71, "Removal and Installation"

.

2. Remove back door lower finisher. Refer to

INT-26, "Removal and Installation"

.

3. Position the vapor barrier aside.
4. Disconnect the harness connector from the rear wiper motor.
5. Remove rear wiper motor.
6. Remove rear motor pivot seal.

INSTALLATION

1. Clean up the pivot area as shown.

NOTE:

This will reduce possibility of wiper arm looseness.

2. Install rear motor pivot seal.
3. Install rear wiper motor.
4. Connect the harness connector to the rear wiper motor.

WKIA4966E

1.

Rear wiper motor harness connector

2.

 Rear wiper motor

3.

Rear motor pivot seal

A.

Rear wiper motor bolts

SEL024J

WW-74

< REMOVAL AND INSTALLATION >

REAR WIPER MOTOR

5. Install rear wiper motor cover.
6. Reposition the vapor barrier.
7. Install back door lower finisher. Refer to

INT-26, "Removal and Installation"

.

8. Install and adjust the rear wiper arm and blade. Refer to

WW-71, "Removal and Installation"

.

REAR WASHER TUBE

WW-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

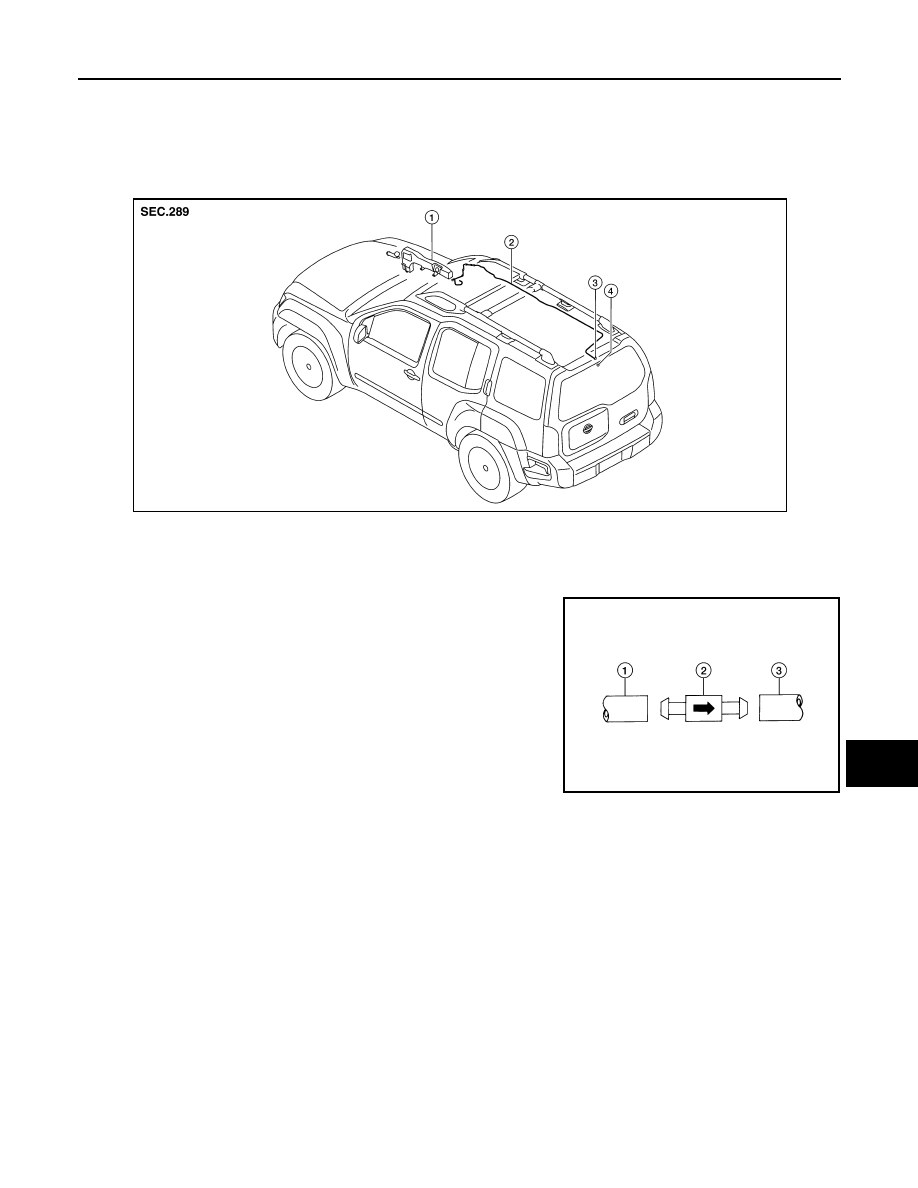

REAR WASHER TUBE

Removal and Installation

INFOID:0000000009484735

REAR WASHER HOSE LAYOUT

NOTE:

Connect the check valve (2) to the washer tank tube (1) so that the

directional arrow on the check valve (2) points towards the washer

nozzle tube (3).

1.

Washer tank

2.

Rear washer hose

3.

Check valve

4.

Rear washer nozzle

WKIA4969E

WKIA4242E

WW-76

< REMOVAL AND INSTALLATION >

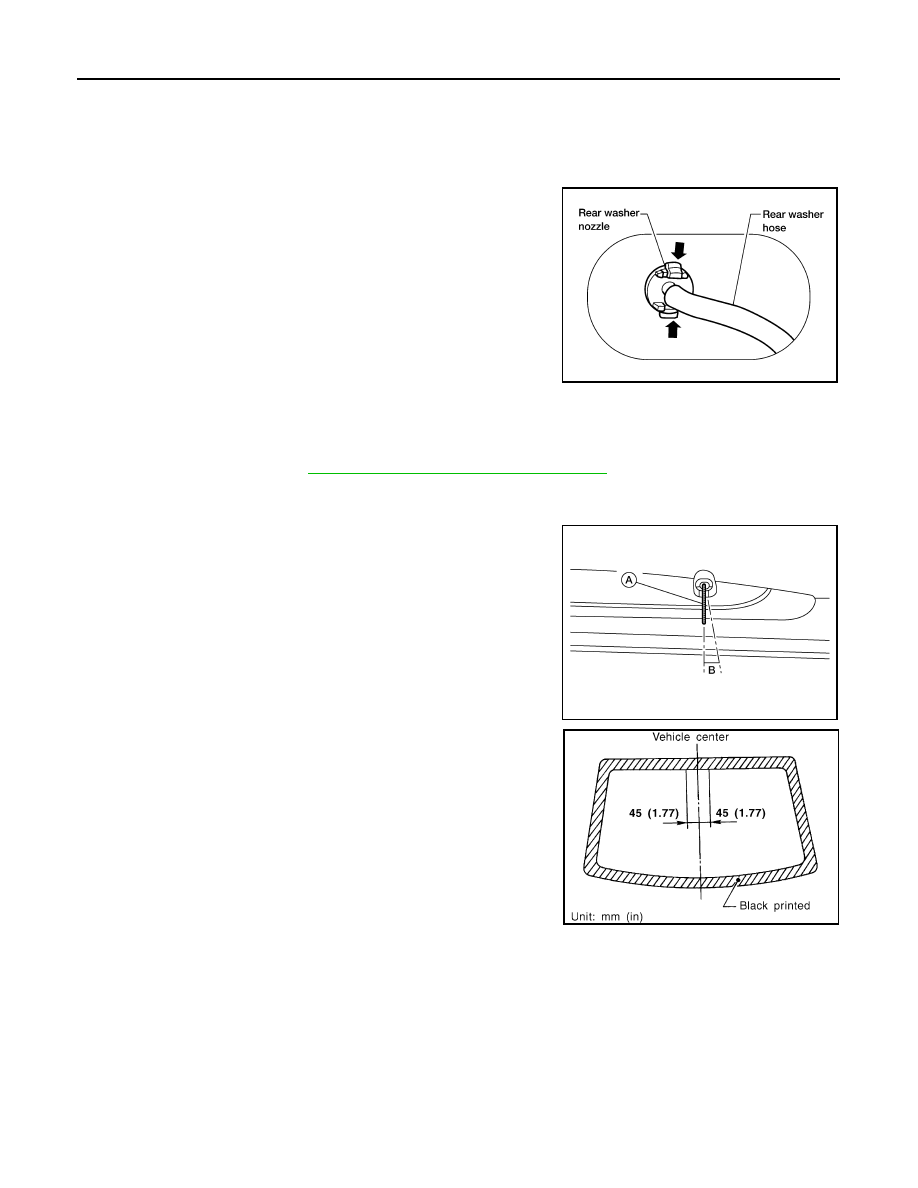

REAR WASHER NOZZLE

REAR WASHER NOZZLE

Removal and Installation

INFOID:0000000009484736

REMOVAL

1. Disconnect rear washer hose from rear washer nozzle.
2. Release retaining clips and remove rear washer nozzle.

INSTALLATION

1. Install rear washer nozzle.
2. Connect rear washer hose.
• Adjust washer nozzle, Refer to

WW-76, "Rear Washer Nozzle Adjustment"

.

Rear Washer Nozzle Adjustment

INFOID:0000000009484737

Adjust washer nozzle with suitable tool (A) as shown.

WKIA4035E

Adjustable range (B)

:

± 10°

AWLIA2276ZZ

WEL912A
