Nissan Xterra. Manual - part 740





FRONT WASHER TUBE

WW-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

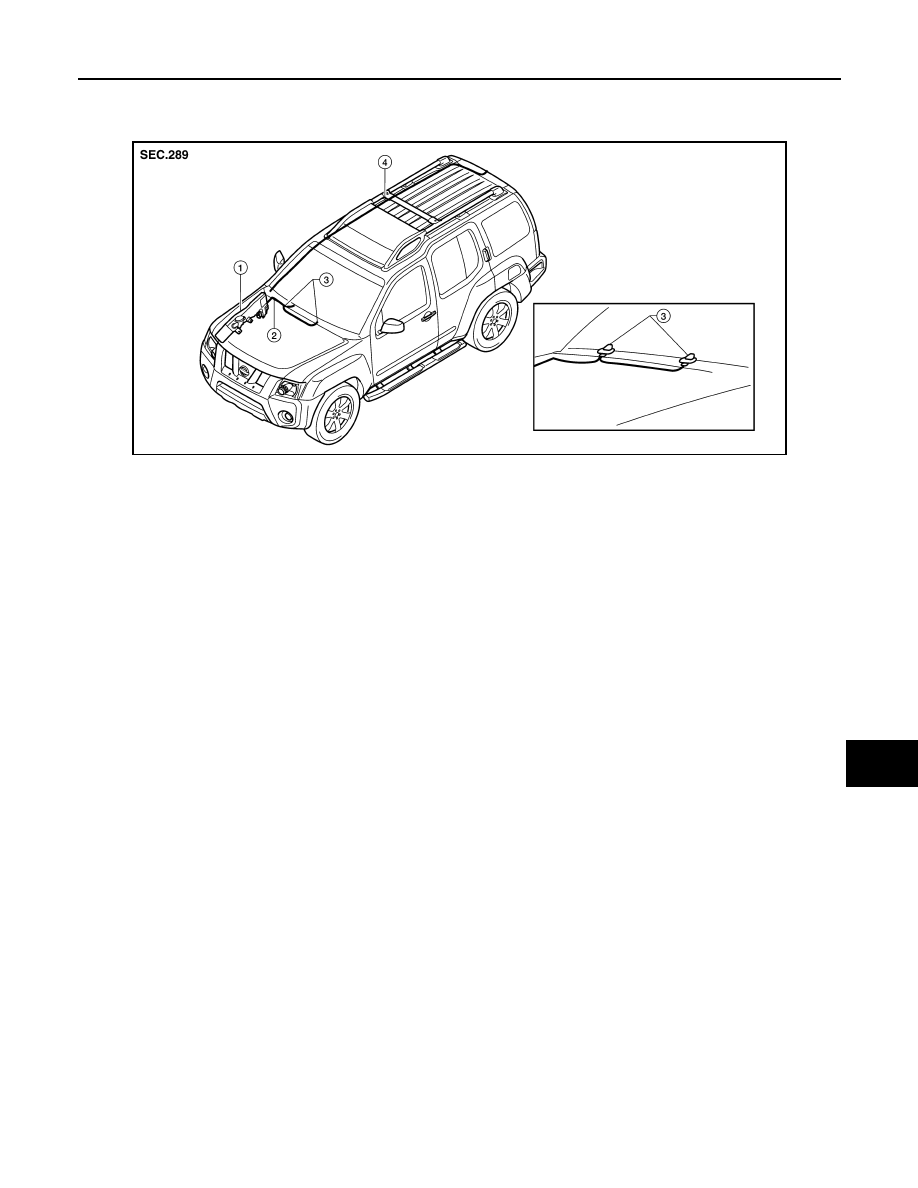

FRONT WASHER TUBE

Washer Tube Layout

INFOID:0000000009484730

WKIA4964E

1.

Washer tank

2.

Front washer hose

3.

Washer nozzles

4.

Rear washer hose

WW-70

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE

FRONT WASHER NOZZLE

Removal and Installation

INFOID:0000000009484731

REMOVAL

1. Remove cowl top cover. Refer to

EXT-20, "Removal and Installation"

.

2. Remove washer nozzles.

INSTALLATION

Installation is in the reverse order of removal.

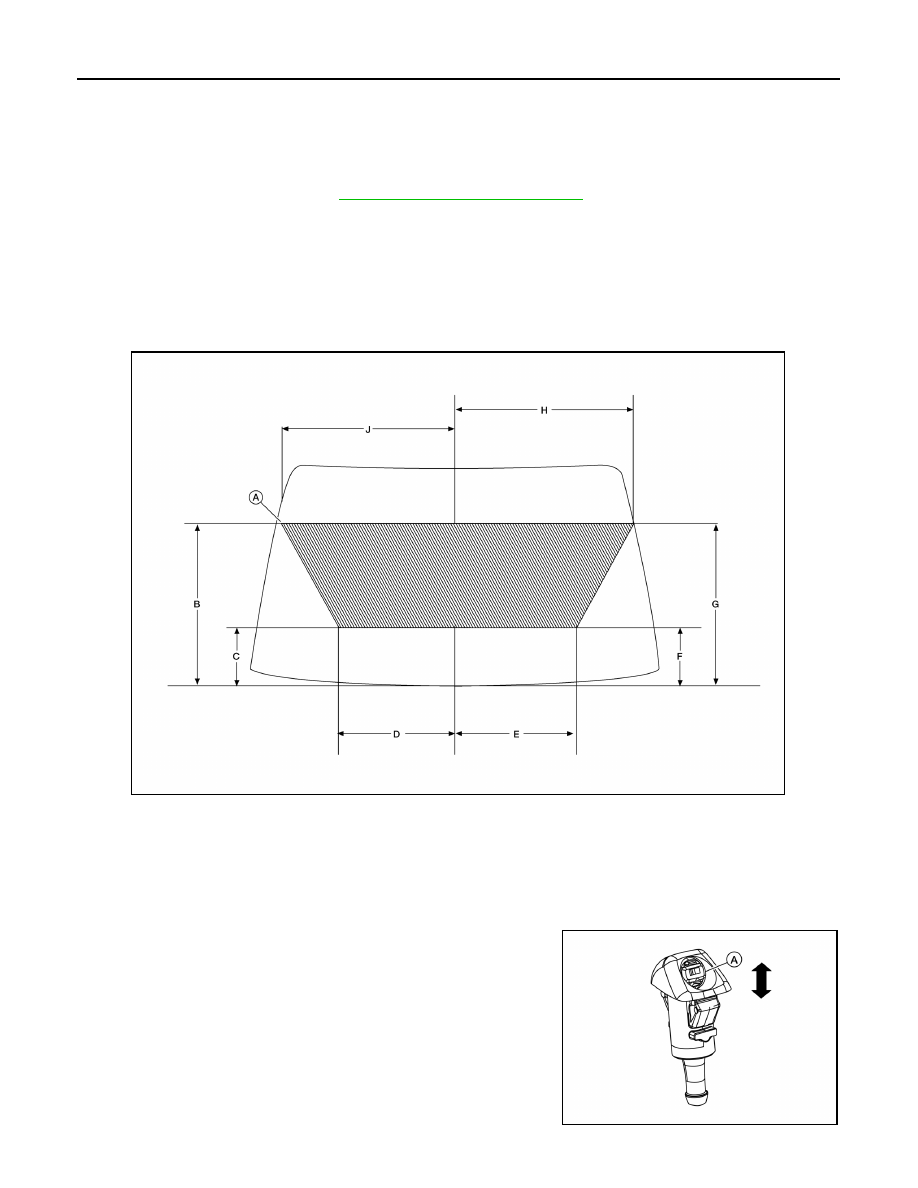

Washer Nozzle Adjustment

INFOID:0000000009484732

Adjust spray pattern to hit the aiming target zone as shown.

CAUTION:

Do not insert anything into the spray nozzle to adjust.

Move the spray nozzle (A) up/down to adjust spray pattern using

suitable tool.

A.

Aiming target zone

B.

615 mm (24.21 in)

C.

223 mm (8.78 in)

D.

432 mm (17.01 in)

E.

456 mm (17.95 in)

F.

232 mm (9.13 in)

G.

620 mm (24.41 in)

H.

662 mm (26.06 in)

J.

644 mm (25.35 in)

AWLIA1867ZZ

ALLIA1024ZZ

REAR WIPER ARM

WW-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

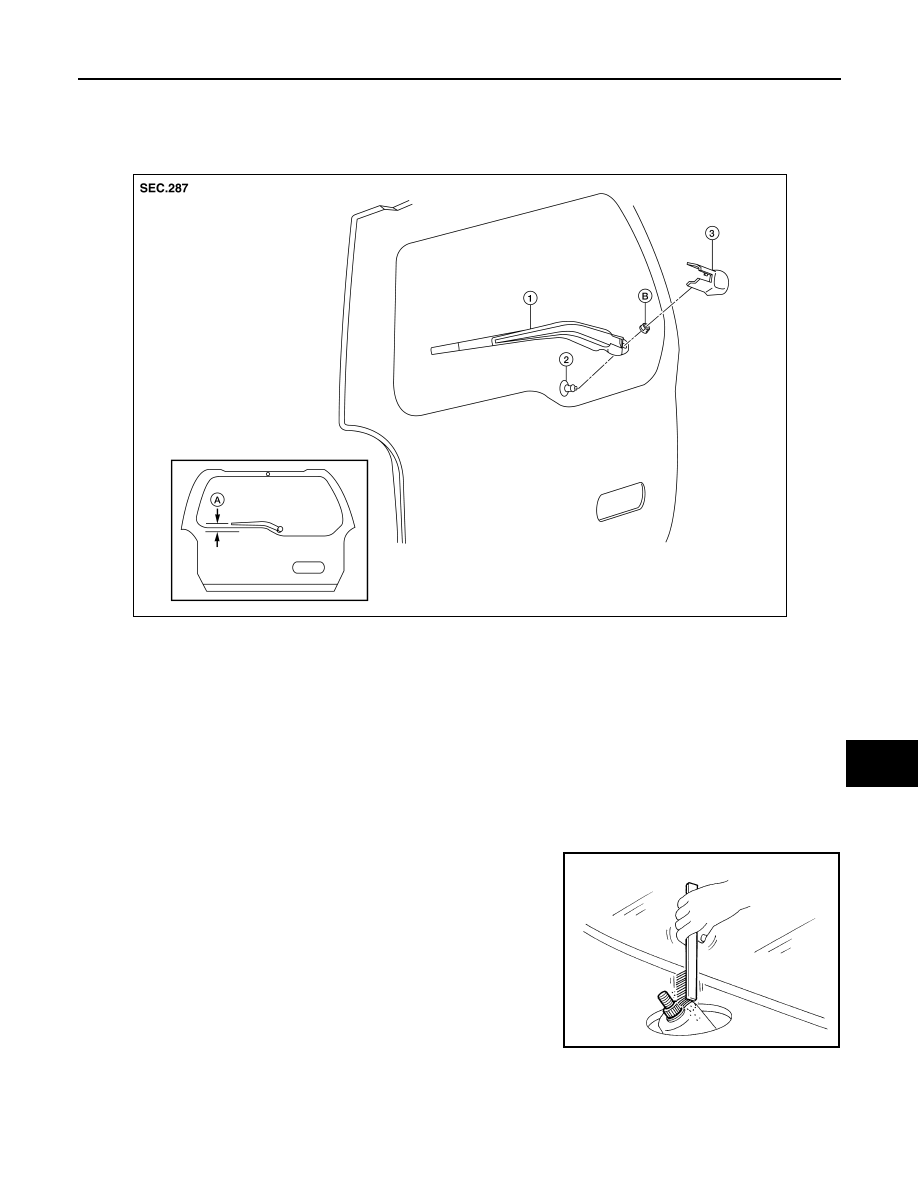

REAR WIPER ARM

Removal and Installation

INFOID:0000000009484733

REAR WIPER ARM

Removal

1. Remove rear wiper arm cover and the rear wiper arm nut.
2. Remove rear wiper arm.
3. Remove wiper blade from the wiper arm (if necessary).

Installation

1. Operate rear wiper motor one full cycle then turn “OFF” (AUTO STOP).
2. Clean up the pivot area as shown.

NOTE:

This will reduce the possibility of wiper arm looseness

3. Install rear wiper blade on the wiper arm.
4. Install rear wiper arm so that it is parallel to the back glass edge.
5. Install wiper arm nut and cover.

1.

Rear wiper arm and blade

2.

Rear wiper motor pivot seal

3.

Rear wiper arm cover

A.

Wiper arm parallel to back glass edge B.

Rear wiper arm nut

WKIA4965E

SEL024J

WW-72

< REMOVAL AND INSTALLATION >

REAR WIPER ARM

REAR WIPER ARM ADJUSTMENT

1. Operate rear wiper motor one full cycle, then turn “OFF” (Auto Stop).
2. Adjust rear wiper arm so that wiper arm and blade is parallel with lower edge of back glass.
3. Install rear wiper arm nut and rear wiper arm cover.
