WASHER TANK

Removal and Installation

INFOID:0000000009484738

REMOVAL

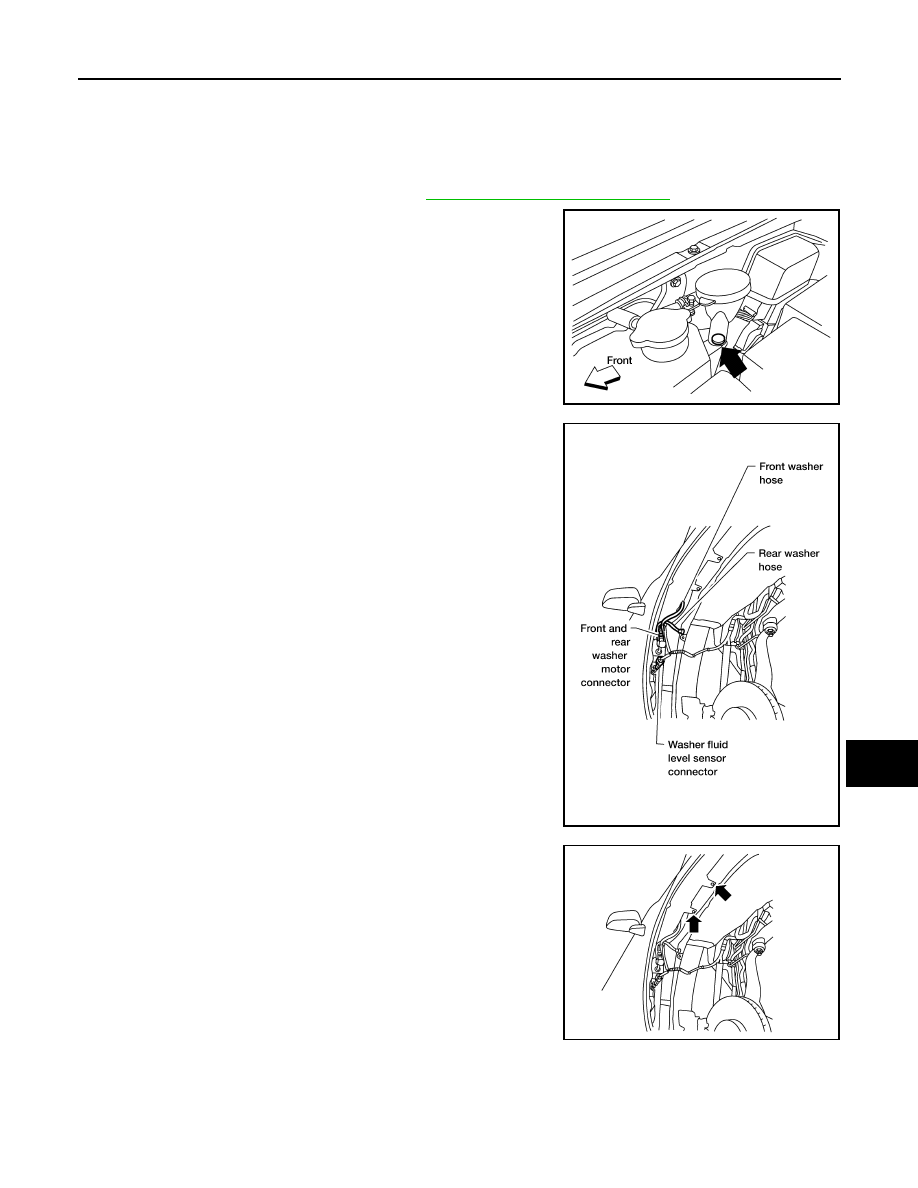

1. Remove front fender protector (RH). Refer to

EXT-22, "Removal and Installation"

.

2. Remove clip and the washer tank filler neck from washer tank.

3. Disconnect washer hoses.
4. Disconnect the harness connector from the washer motor.
5. Disconnect the harness connector from the washer fluid level

sensor (if equipped).

6. Remove washer tank screws and the washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, add water up to the upper level of the washer tank filler neck and check for water

leaks.

LKIA0538E

LKIA0537E

LKIA0539E

WW-78

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

Removal and Installation

INFOID:0000000009484739

REMOVAL

1. Remove front fender protector (RH). Refer to

EXT-22, "Removal and Installation"

.

2. Disconnect the washer hoses.
3. Disconnect the harness connector from the washer motor.

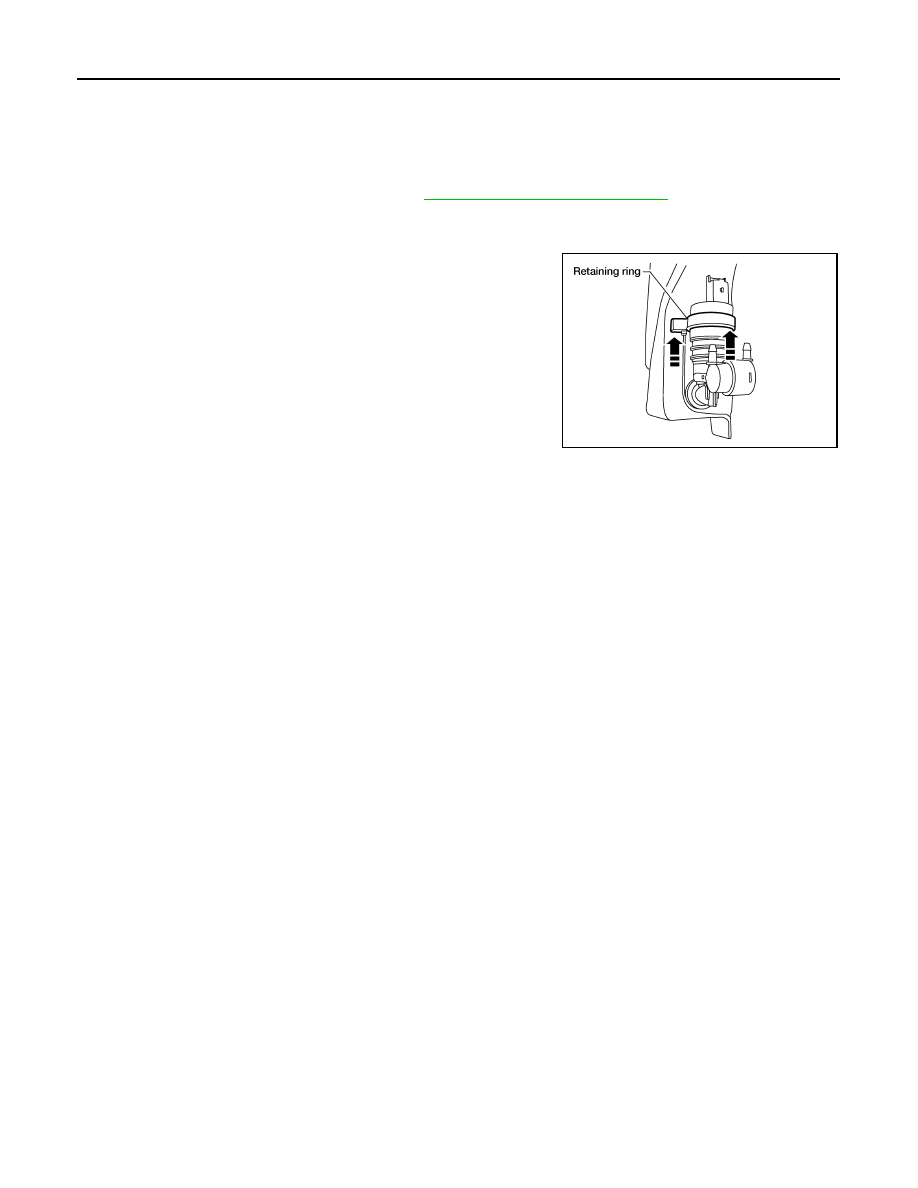

4. Slide retaining ring upward to release washer motor.

5. Disconnect the harness connector from the washer fluid level sensor (if equipped).
6. Remove washer motor from washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not twist the seal when installing the washer motor.

LKIA0540E

WIPER & WASHER SWITCH

WW-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER & WASHER SWITCH

Removal and Installation

INFOID:0000000009484740

REMOVAL

1. Remove the steering column upper and lower covers. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect the harness connector from the wiper washer switch.

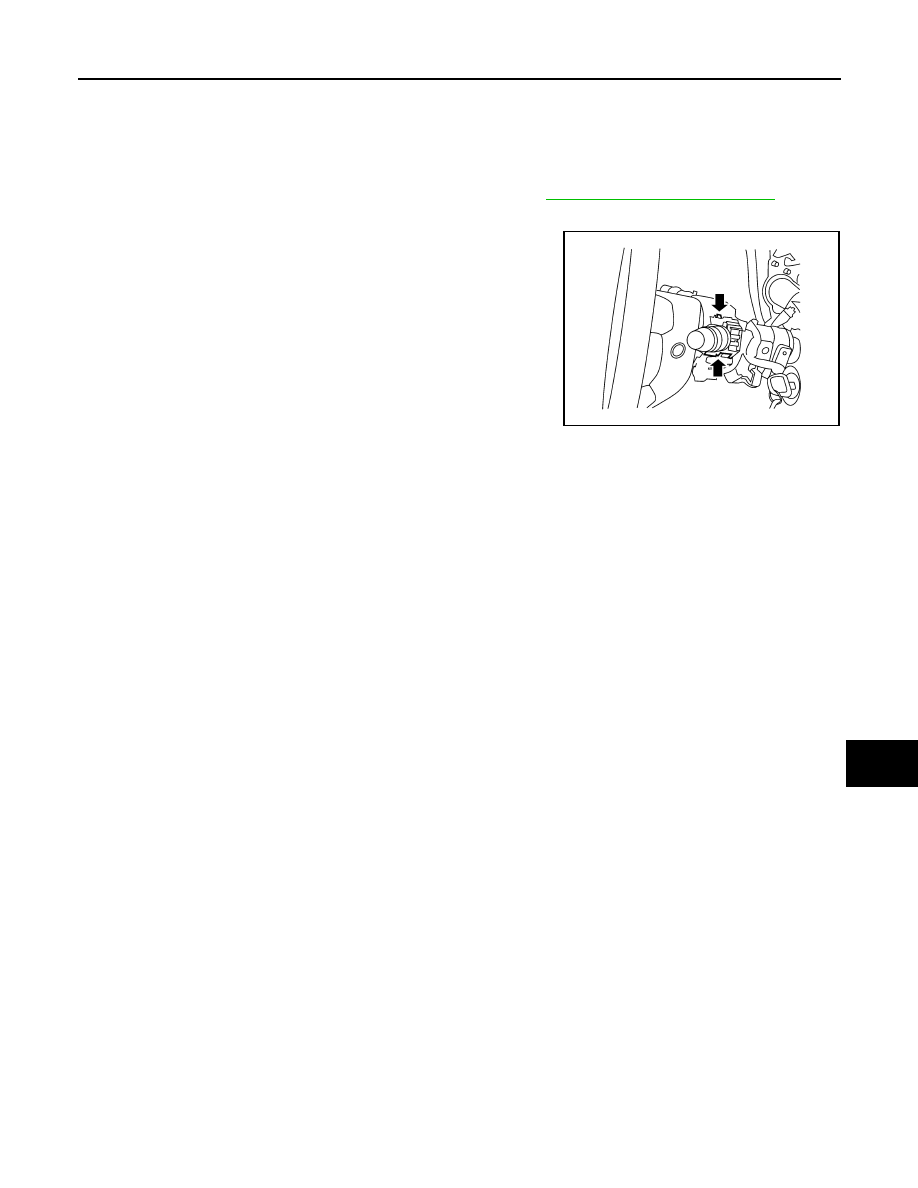

3. Release pawls at wiper and washer switch base and slide switch

away from steering column.

INSTALLATION

Installation is in the reverse order of removal.

WKIA0071E

WW-80

< REMOVAL AND INSTALLATION >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009484741

The washer level switch is part of the washer tank. To replace the washer level switch, refer to

WW-77,

"Removal and Installation"

.
