Nissan Xterra. Manual - part 681

CONTROL VALVE WITH TCM

TM-237

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

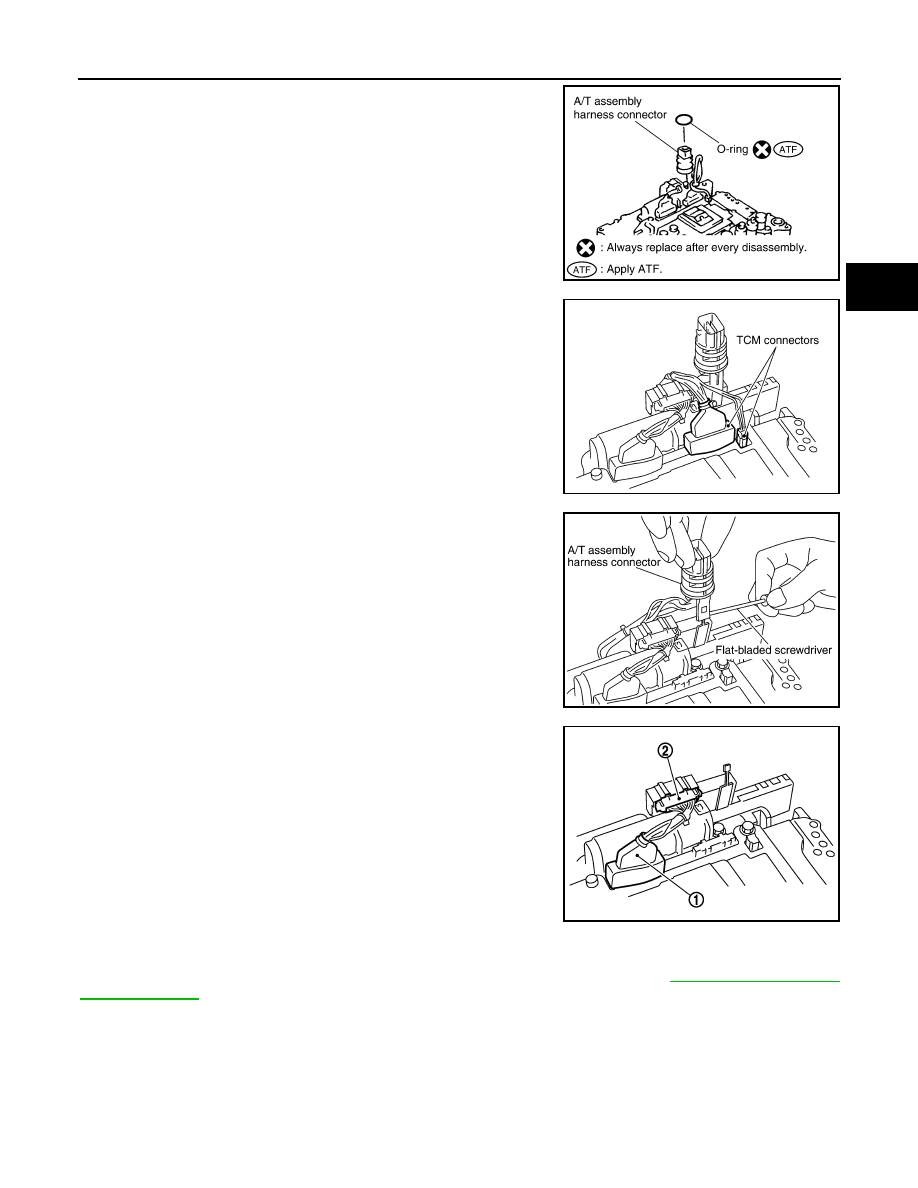

14. Remove O-ring from A/T assembly harness connector.

CAUTION:

Do not reuse O-ring.

15. Disconnect TCM connectors.

CAUTION:

Do not damage harness connectors.

16. Remove A/T assembly harness connector from control valve

with TCM using suitable tool.

17. Disconnect TCM connector (1) and transmission range switch

harness connector (2).

CAUTION:

Do not damage harness connectors.

INSTALLATION

CAUTION:

After completing installation, check for A/T fluid leaks and fluid level. Refer to

TM-215, "Checking the

A/T Fluid (ATF)"

.

SCIA5155E

SCIA5447E

SCIA5448E

JSDIA1317ZZ

TM-238

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

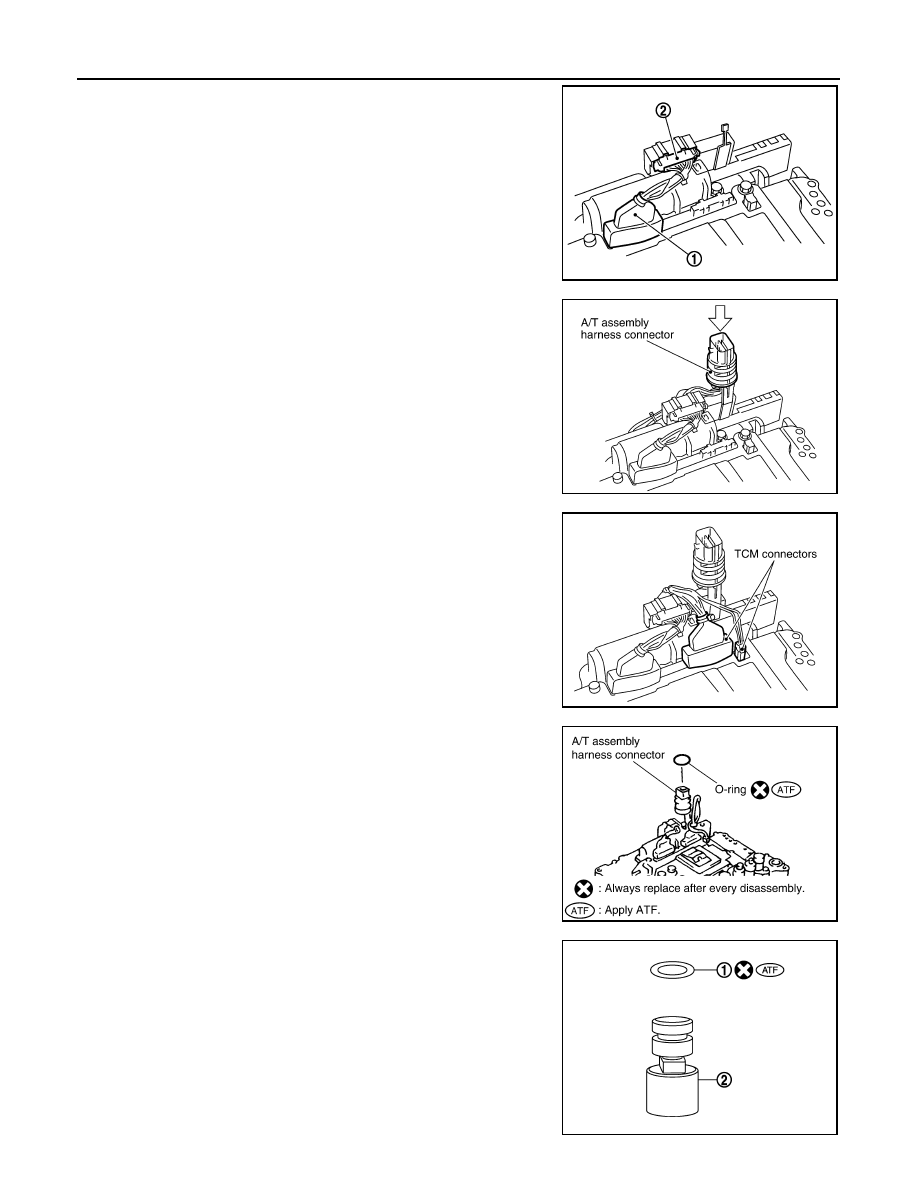

1. Connect TCM connector (1) and transmission range switch har-

ness connector (2).

2. Install A/T assembly harness connector to control valve with

TCM.

3. Connect TCM connector.

4. Install new O-ring in A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

5. Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

JSDIA1313ZZ

CONTROL VALVE WITH TCM

TM-239

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

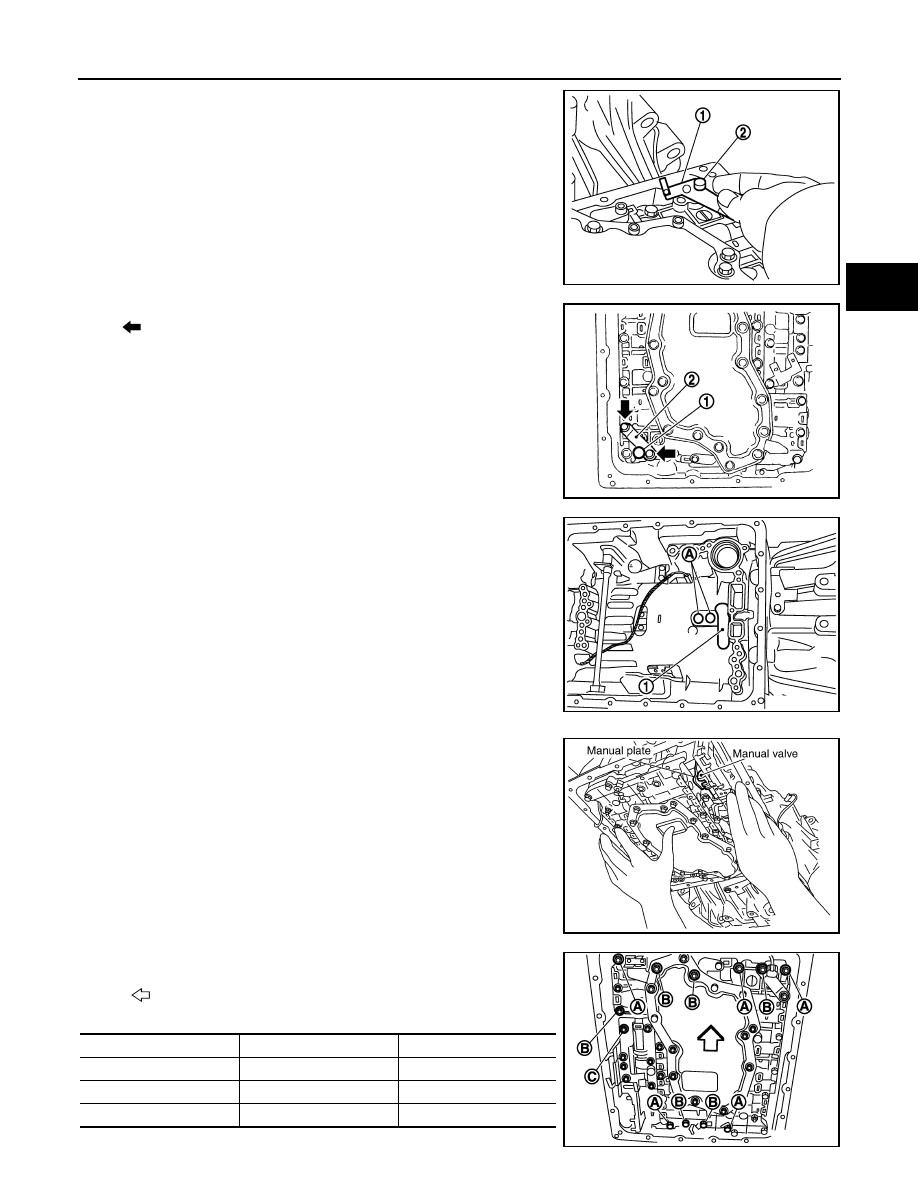

6. Install plug (2) to bracket(1).

7. Install plug (1) [with bracket (2)] to control valve with TCM.

•

:Bolt

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve with

TCM.

8. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

9. Install bolts (A), (B) and (C) in control valve with TCM.

JSDIA1312ZZ

JSDIA1311ZZ

(1)

: Brake band

JSDIA1318ZZ

SCIA5142E

: Front

Bolt symbol

Length mm (in)

Number of bolts

(A)

42 (1.65)

5

(B)

55 (2.17)

6

(C)

40 (1.57)

1

SCIA8074E

TM-240

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

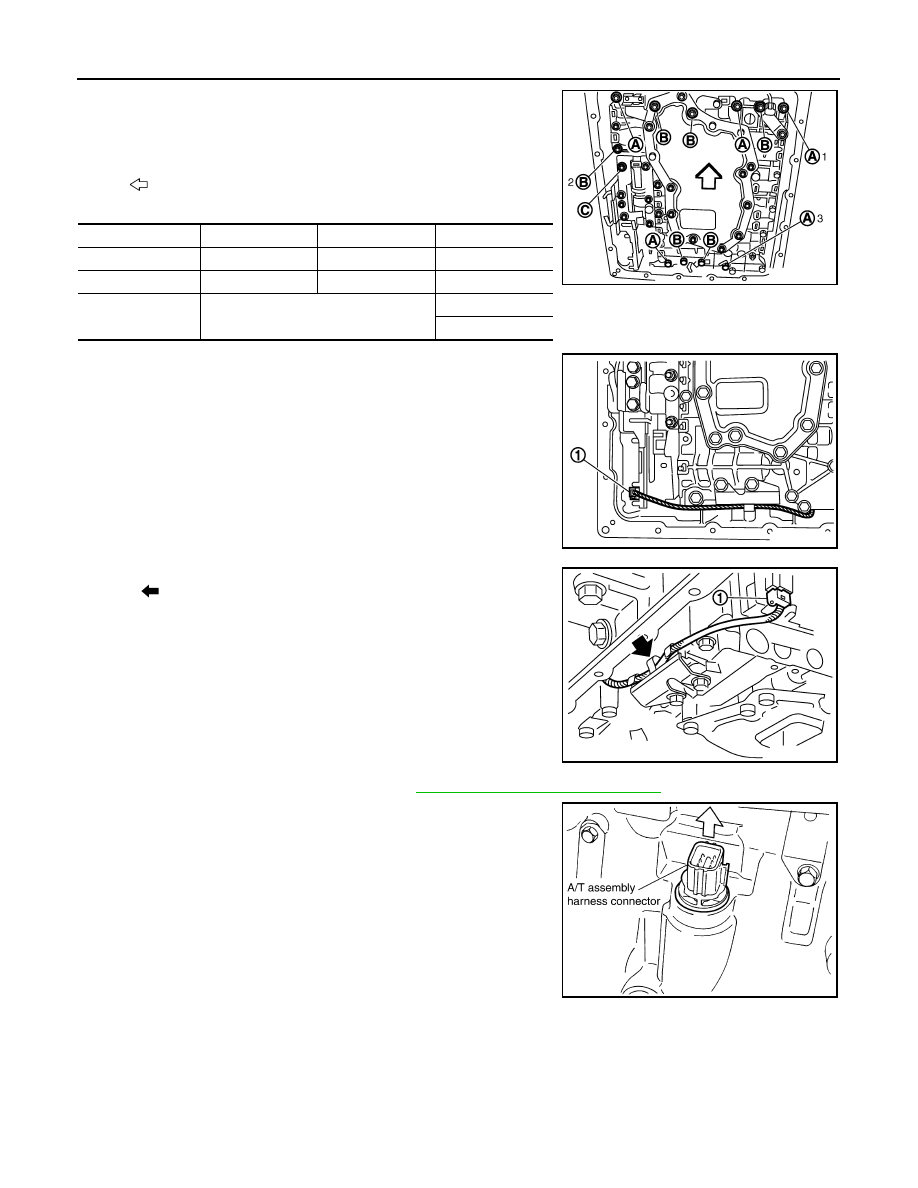

10. Tighten bolt (1A), (2B) and (3A) temporarily to prevent disloca-

tion. After that tighten them in order (1

→ 2 → 3). Then tighten

other bolts. Tighten control valve with TCM bolts to the specified

torque.

11. Connect output speed sensor harness connector (1).

12. Securely fasten output speed sensor (1) harness with terminal

clip (

).

13. Install oil pan to transmission case. Refer to

TM-232, "Removal and Installation"

.

14. Pull up A/T assembly harness connector.

CAUTION:

Do not damage harness connector.

: Front

Bolt symbol

(A)

(B)

(C)

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (kg-m, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8075E

JSDIA1319ZZ

JSDIA1316ZZ

SCIA5038E
