ROAD TEST

TM-229

< PERIODIC MAINTENANCE >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

 With CONSULT

Read the gear position.
Is downshifting correctly performed?

YES

>> GO TO 3.

NO

>> Record the malfunction, GO TO 3.

3.

CHECK ENGINE BRAKE

Check engine brake.
Does engine braking effectively reduce speed in 1

1

 position?

YES

>> 1. Stop the vehicle.

2. Carry out the self-diagnostics. Refer to

TM-103, "CONSULT Function (TRANSMISSION)"

.

NO

>> Record the malfunction, then continue the trouble diagnosis.

TM-230

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

SHIFT CONTROL SYSTEM

REMOVAL AND INSTALLATION

SHIFT CONTROL SYSTEM

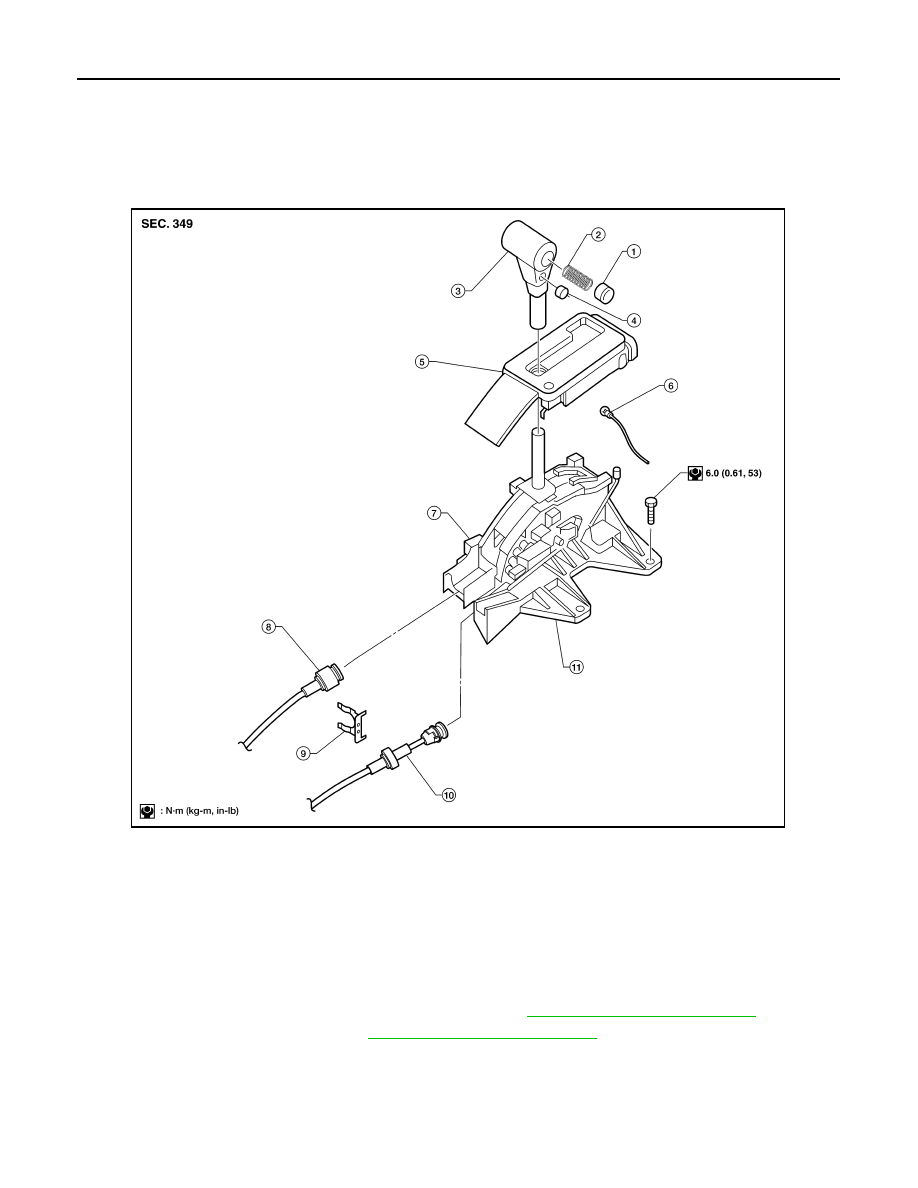

Exploded view

INFOID:0000000009485602

Removal and Installation

INFOID:0000000009485603

REMOVAL

1. Remove instrument lower panel RH and glove box. Refer to

IP-19, "Removal and Installation"

.

2. Remove the center console. Refer to

IP-21, "Removal and Installation"

.

3. Disconnect the following from the shift selector assembly.

• Shift selector control cable

• Key interlock cable

• Shift selector harness connector

4. Remove the shift selector assembly.

1.

Shift selector handle button

2.

Shift selector handle spring

3.

Shift selector handle

4.

Overdrive control switch

5.

Position indicator

6.

Position lamp

7.

Shift selector harness connector

8.

Shift selector control cable

9.

Lock plate

10. Key interlock cable

11. Shift selector assembly

WCIA0503E

SHIFT CONTROL SYSTEM

TM-231

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5. Remove the shift selector handle, if necessary.
6. Remove the position indicator, if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Install and adjust the shift selector control cable. Refer to

TM-231, "Inspection and Adjustment"

.

• Install and adjust the key interlock cable. Refer to

TM-244, "Removal and Installation"

.

Inspection and Adjustment

INFOID:0000000009485604

INSPECTION

With the shift selector handle in the “P” position, turn the ignition switch to the ON position with the engine

OFF.

Confirm that the following conditions apply.

• The shift selector handle can be moved from the “P” position only when the brake pedal is depressed.

• The shift selector handle stops at each position with the feel of engagement when it is moved through all the

positions.

• There is no excessive effort, sticking, noise or rattle.

• The actual position of the shift selector handle matches the position shown by the position indicator and the

A/T body.

• The back-up lamps illuminate only when the shift selector handle is placed in the “R” position.

• The back-up lamps do not illuminate when the shift selector handle is pushed against the “R” position when

in the “P” or “N” position.

• The engine can only be started with the shift selector handle in the “P” and “N” positions.

• The A/T is locked completely when shift selector handle is in the “P” position.

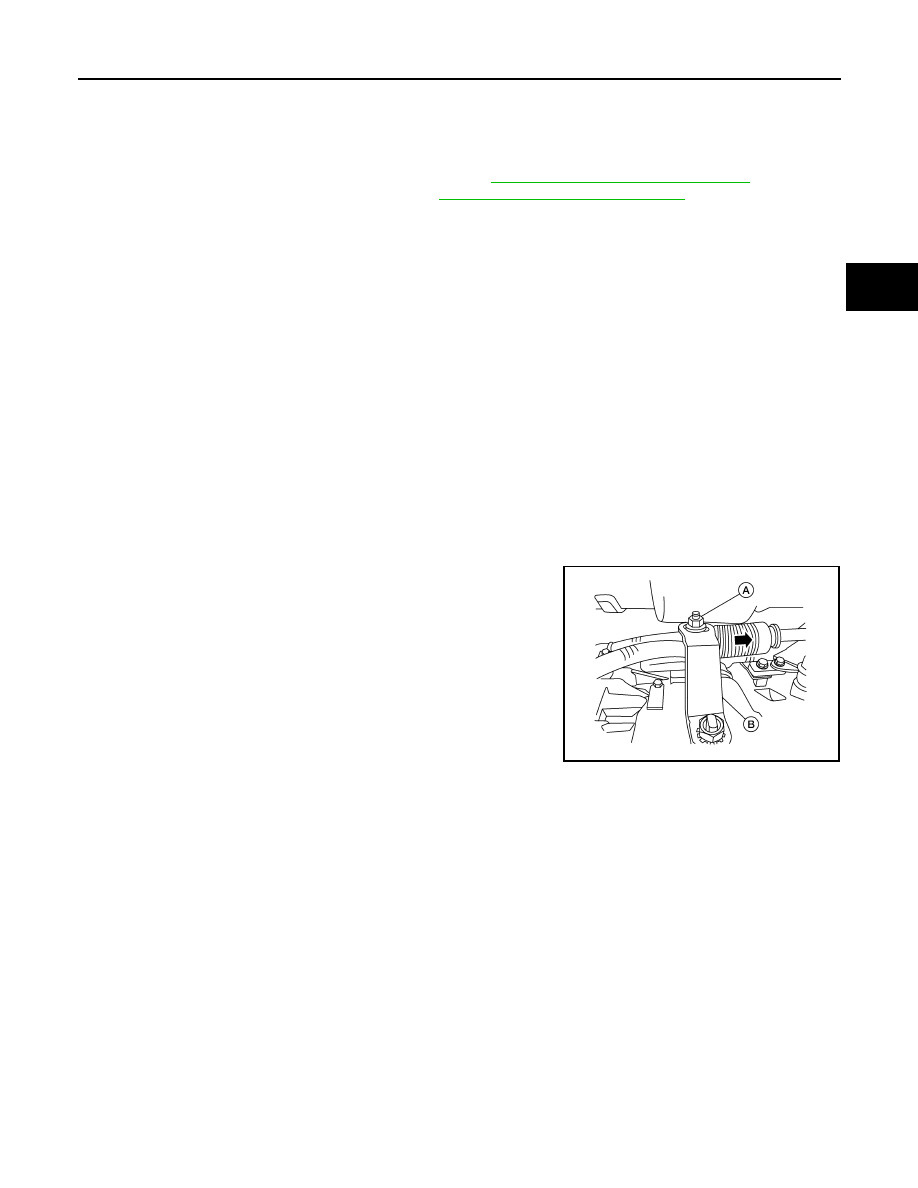

ADJUSTMENT

1. Loosen shift selector control cable nut (A).
2. Place the manual lever (B) and shift selector handle in “P” posi-

tion.

3. Push the shift selector control cable in the direction shown with a

force of 9.8 N (1kg, 2.2 lb), and release it. This is in the natural

state, tighten shift selector control cable nut (A) to specifications.

Shift selector control
cable nut (A)

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

AWDIA0755ZZ

TM-232

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

OIL PAN

OIL PAN

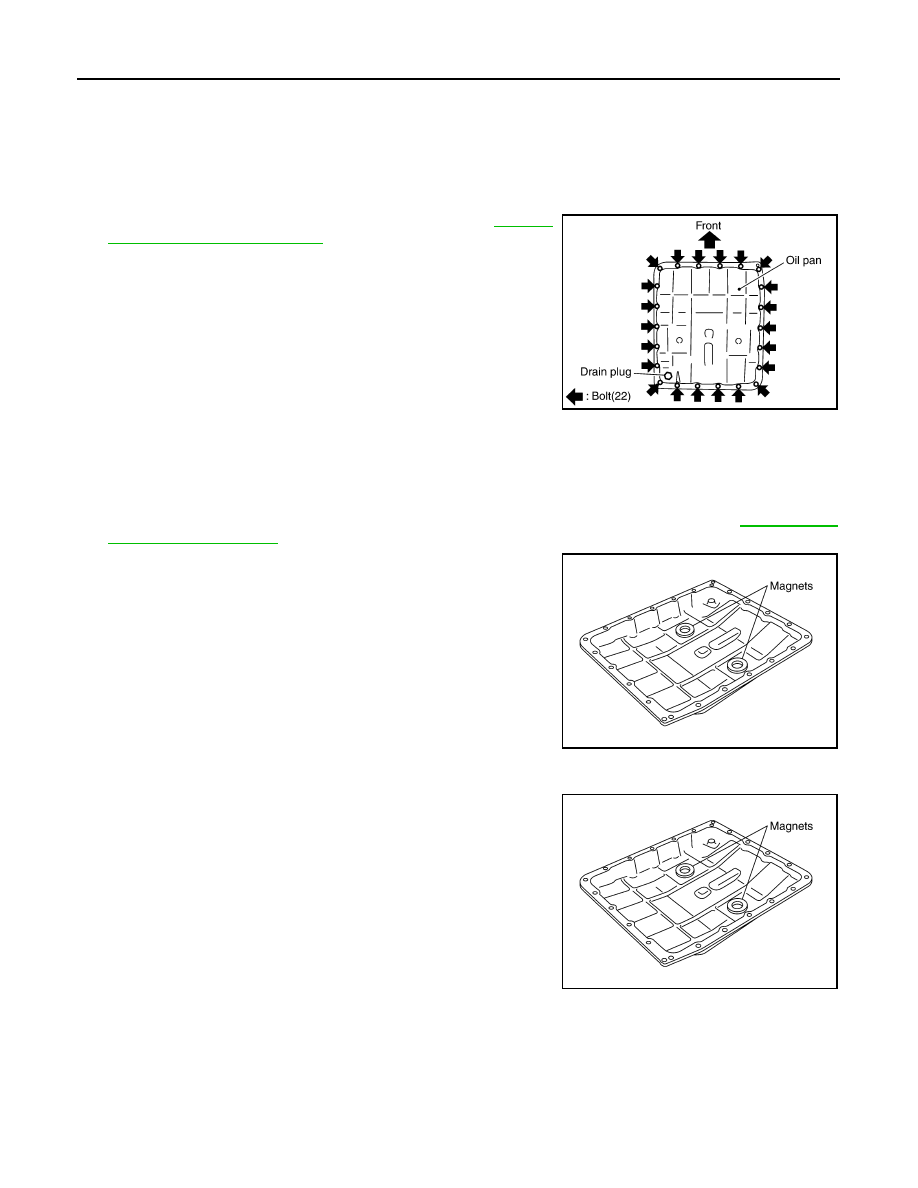

Removal and Installation

INFOID:0000000009485605

REMOVAL AND INSTALLATION

Removal

1. Remove the drain plug to drain A/T fluid. Refer to

TM-217,

"Changing the A/T Fluid (ATF)"

.

2. Remove oil pan bolts.
3. Remove oil pan and gasket.

4. Check for foreign materials in oil pan to help determine cause of malfunction. If the A/T fluid is very dark,

has some burned smell, or contains foreign particles then friction material (clutches, band) may need

replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves,

servo, and clutches to stick and can inhibit pump pressure.

CAUTION:

If friction material is detected, flush the transmission cooler after repair. Refer to

TM-218, "A/T

Fluid Cooler Cleaning"

.

5. Remove magnets from oil pan.

Installation

1. Install the oil pan magnets as shown.

SCIA2308E

SCIA5200E

SCIA5200E
