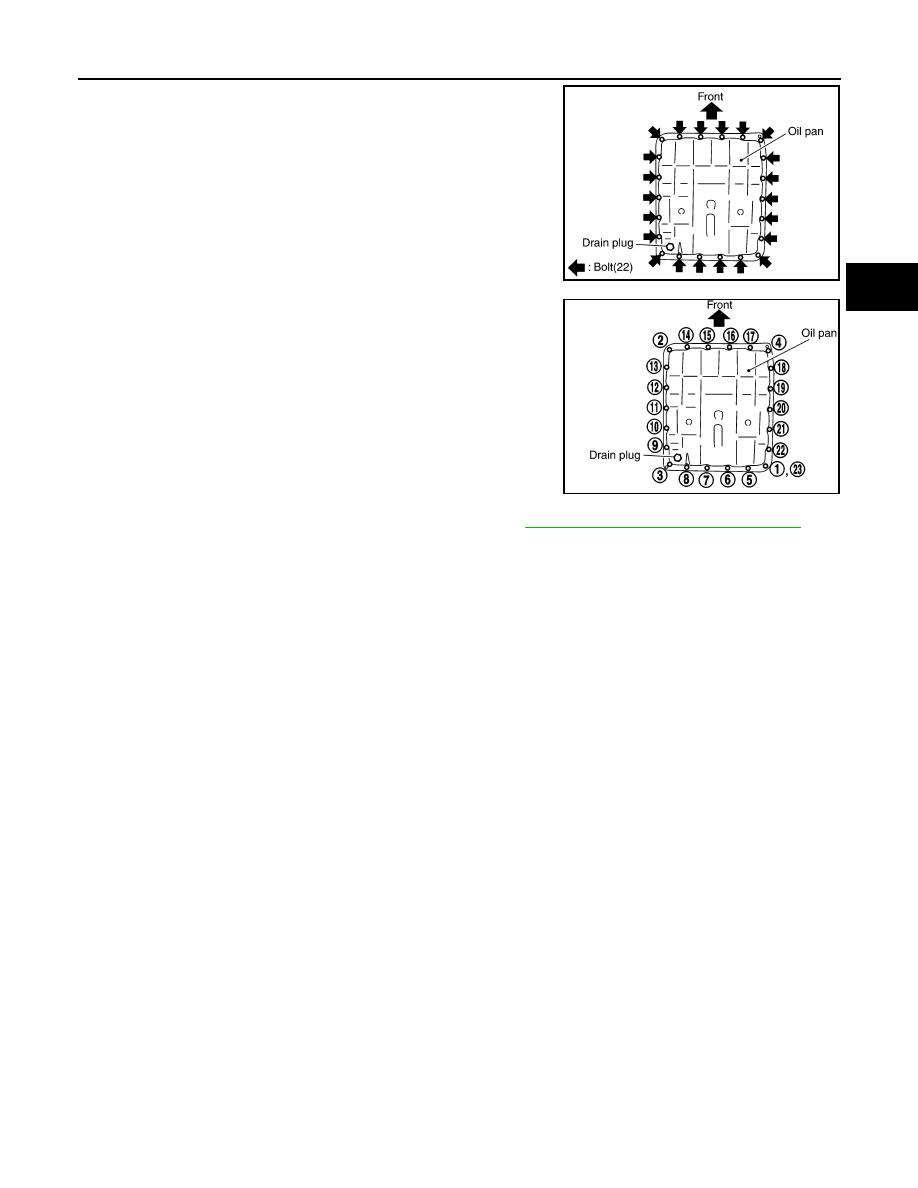

OIL PAN TM-233 < REMOVAL AND INSTALLATION > [5AT: RE5R05A] C E F G H I J K L M A B TM N O P 2. Install the oil pan with new oil pan gasket. CAUTION: • Be sure the oil drain plug is located to the rear of the transmission assembly. • Before installing oil pan bolts, remove any traces of old sealant from the sealing surfaces and threaded holes. • Do not reuse old gasket, replace with a new one. • Always replace the oil pan bolts as they are self-sealing. • Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket. 3. Tighten oil pan bolts in numerical order as shown. 4. Refill the A/T with fluid and check for fluid leakage. Refer to TM-215, "Checking the A/T Fluid (ATF)" . SCIA2308E Oil pan bolts : 7.9 N·m (0.81 kg-m, 70 in-lb) SCIA4113E |
