Nissan Xterra. Manual - part 588

FRONT SEAT

SE-31

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Assembly is in the reverse order of disassembly.

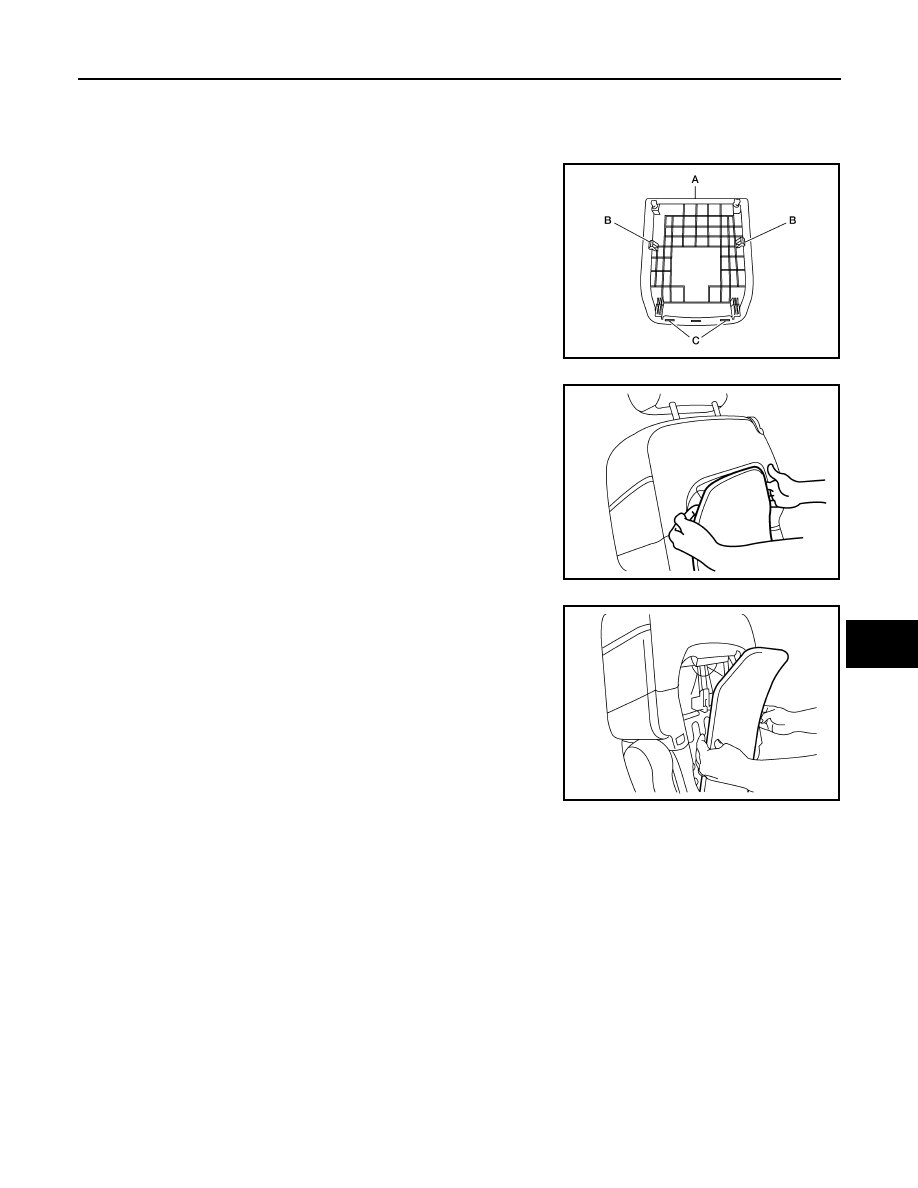

PASSENGER SEATBACK BOARD - SOFT SEATBACK

Removal

1. The seatback board is attached to the seat frame with the follow-

ing:

• Two top tabs (A)

• Two side tabs (B)

• Two bottom clips (C) (must be replaced)

2. Move seat to forward position.

3. Hold the seatback board as shown and pull the top of the seat-

back board down and away from the seatback frame.

4. Pull the middle part of the seatback board to disengage the side

tabs from the seatback frame.

5. Pull the lower part of the seatback board to disengage the bot-

tom clips from the seatback frame.

Installation

Installation is in the reverse order of removal.

• The two bottom clips must be replaced for installation

• Secure the side tabs last for installation

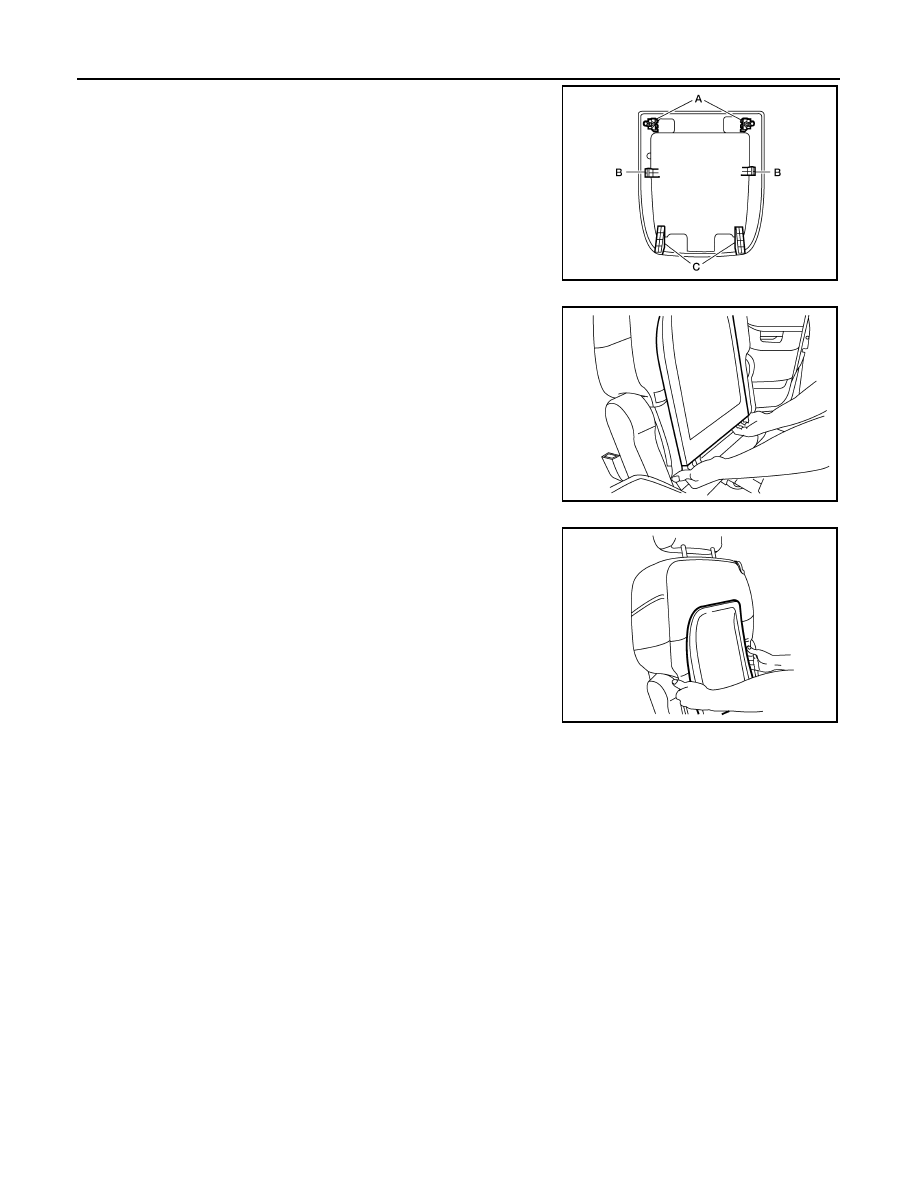

PASSENGER SEATBACK BOARD - HARD SEATBACK

Removal

ALIIA0366ZZ

ALIIA0368ZZ

ALIIA0367ZZ

SE-32

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

1. The seatback board is attached to the seat frame with the follow-

ing:

• Two top tabs (A)

• Two side tabs (B)

• Two bottom clips (C) (must be replaced)

2. Move seat to forward position.

3. Hold the seatback board as shown and pull the bottom of the

seatback board away from the seatback frame.

4. Pull the middle part of the seatback board up and away to disen-

gage the side tabs from the seatback frame.

5. Lift the upper part of the seatback board to disengage the top tabs from the seatback frame.

Installation

Installation is in the reverse order of removal.

• The two bottom clips must be replaced for installation

• Secure the side tabs last for installation

ALIIA0369ZZ

ALIIA0370ZZ

ALIIA0371ZZ

REAR SEAT

SE-33

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

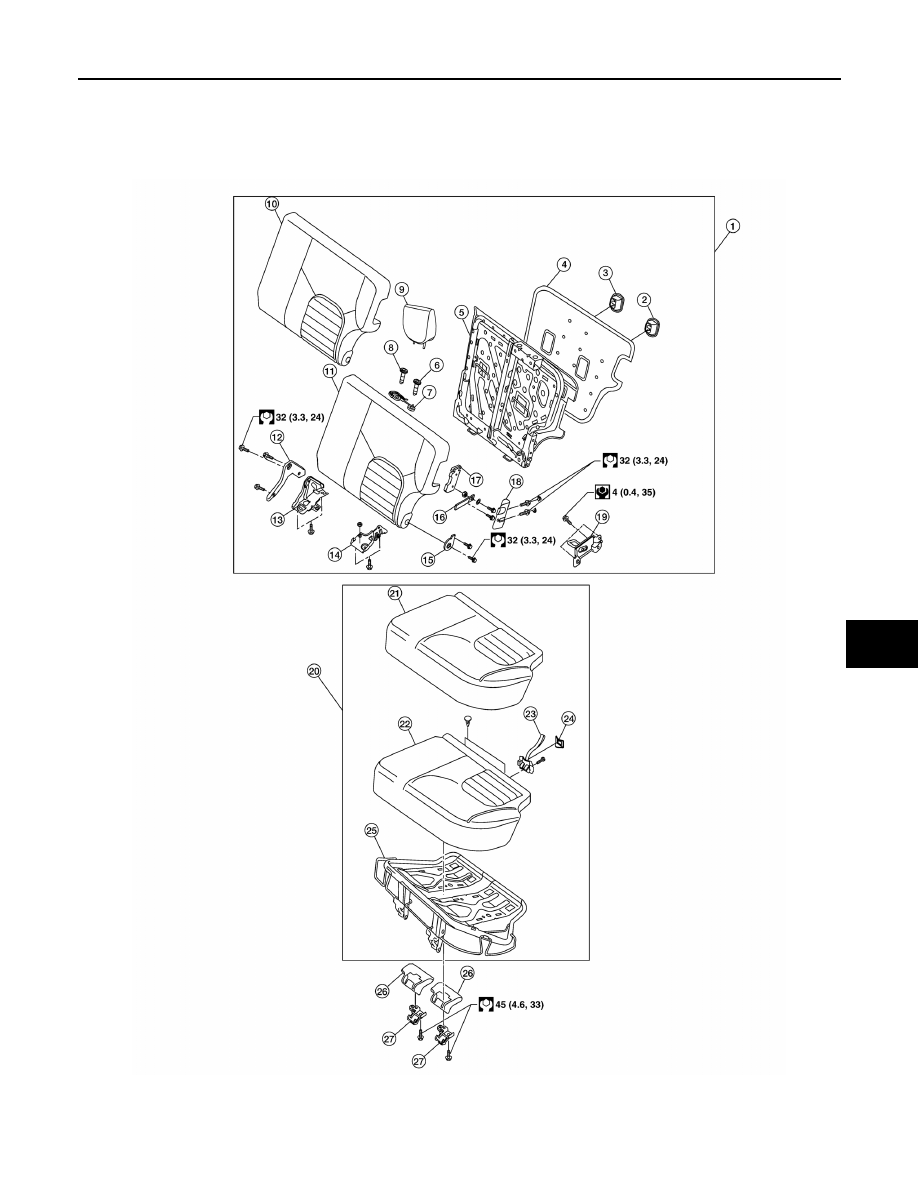

REAR SEAT

Disassembly and Assembly

INFOID:0000000009483057

Rear Seat (LH)

AWJIA0790GB

1.

Seatback assembly

2.

Tie down hook outboard

3.

Tie down hook inboard

4.

Seatback board

5.

Seatback frame assembly

6.

Locking headrest guide

SE-34

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

7.

Seat belt comfort guide

8.

Headrest guide

9.

Headrest

10. Seatback trim

11. Seatback pad

12. Inboard hinge cover

13. Inboard hinge bracket

14. Outboard hinge bracket

15. Outboard pivot cover

16. Seatback release strap

17. Seatback latch assembly

18. Seatback latch cover

19. Seatback striker

20. Seat cushion assembly

21. Seat cushion trim

22. Seat cushion pad

23. Rear seat assembly lock

24. Rear seat lock cover

25. Seat cushion frame assembly

26. Seat cushion pivot cover

27. Seat cushion pivot
