FRONT SEAT

SE-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

7. Remove the bolts (two for each side) and the seatback assem-

bly.

Installation

Installation is in the reverse order of removal.

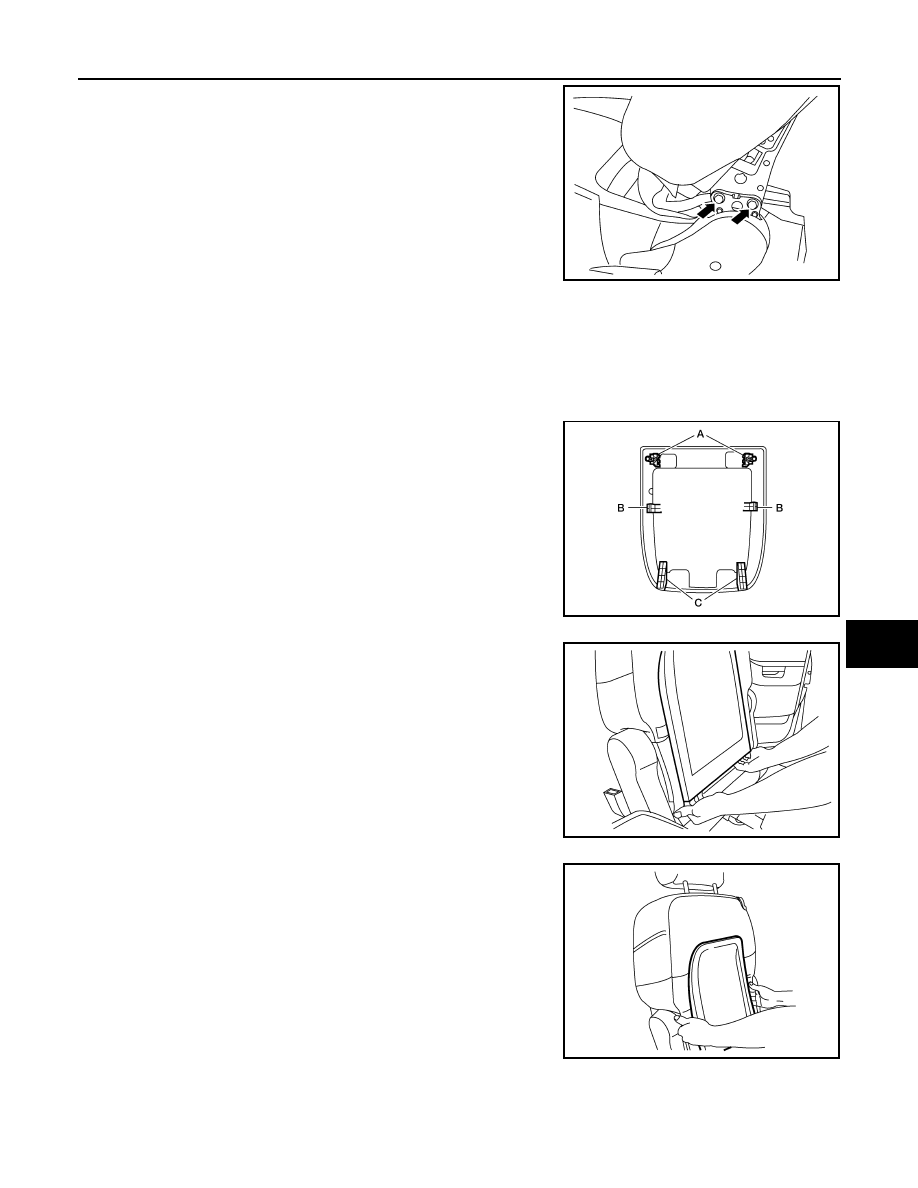

SEATBACK ASSEMBLY - PASSENGER’S SEAT, WITH HARD SEATBACK

Removal

1. Remove the passenger seat assembly.
2. The seatback board is attached to the seat frame with the follow-

ing:

• Two top tabs (A)

• Two side tabs (B)

• Two bottom clips (C) (must be replaced)

3. Move seat to forward position.

4. Hold the seatback board as shown and pull the bottom of the

seatback board away from the seatback frame.

5. Pull the middle part of the seatback board to disengage the side

tabs from the seatback frame.

6. Lift the upper part of the seatback board to disengage the top tabs from the seatback frame.

LIIA2420E

ALIIA0369ZZ

ALIIA0370ZZ

ALIIA0371ZZ

SE-24

< REMOVAL AND INSTALLATION >

FRONT SEAT

7. Remove the bolts (two for each side) and the seatback assem-

bly.

Installation

Installation is in the reverse order of removal.

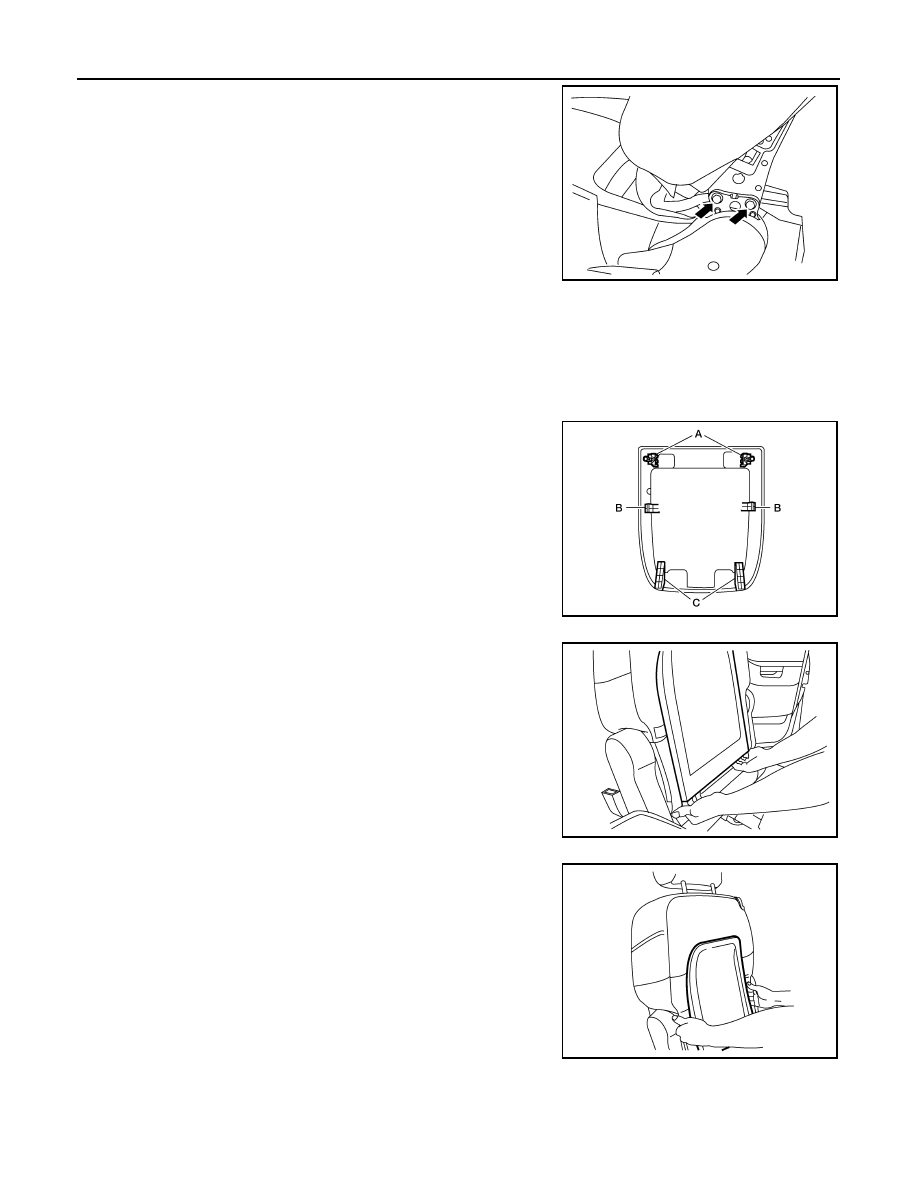

SEATBACK ASSEMBLY - PASSENGER’S FOLD FLAT SEAT

Removal

1. Remove the passenger seat assembly.
2. The seatback board is attached to the seat frame with the follow-

ing:

• Two top tabs (A)

• Two side tabs (B)

• Two bottom clips (C) (must be replaced)

3. Move seat to forward position.

4. Hold the seatback board as shown and pull the bottom of the

seatback board away from the seatback frame.

5. Pull the middle part of the seatback board to disengage the side

tabs from the seatback frame.

6. Lift the upper part of the seatback board to disengage the top tabs from the seatback frame.
7. Remove the seat cushion outer finisher and seat cushion inner finisher.
8. Remove the three seatback assembly bolts and the seatback assembly.

LIIA2420E

ALIIA0369ZZ

ALIIA0370ZZ

ALIIA0371ZZ

FRONT SEAT

SE-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Installation

Installation is in the reverse order of removal.

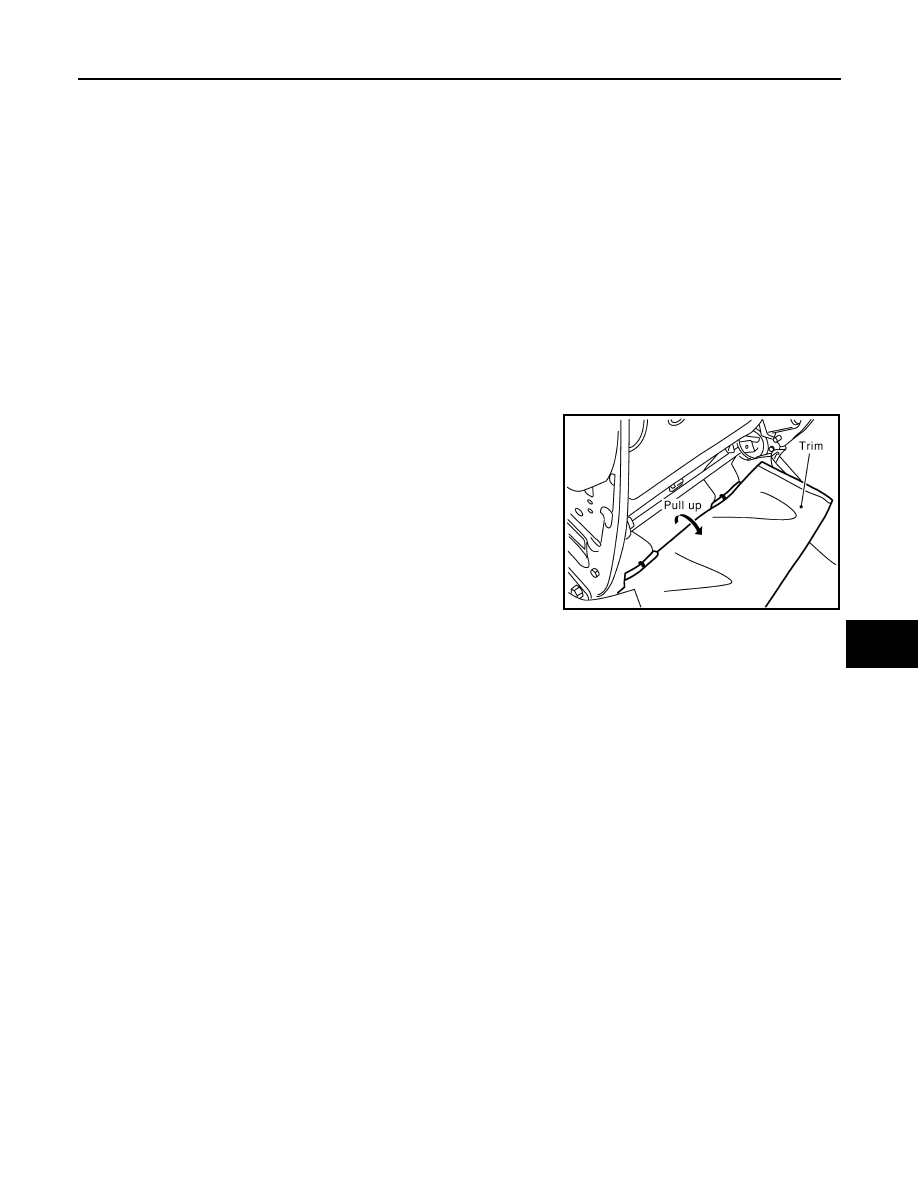

SEAT CUSHION ASSEMBLY

Removal

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.

• When removed, the passenger seat cushion must always be placed pan side UP to prevent damage.

• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

• The Occupant Classification System control module can only be replaced as part of the seat cushion

assembly.

1. Remove the seat assembly.
2. Remove the recline release lever.
3. Remove four bolts and the seat cushion assembly.

• On the fold flat passenger seat it is necessary to unclip the

rear flap j-clip from the seat pan.

Installation

Installation is in the reverse order of removal.

SIIA0503E

SE-26

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

Removal and Installation

INFOID:0000000009483054

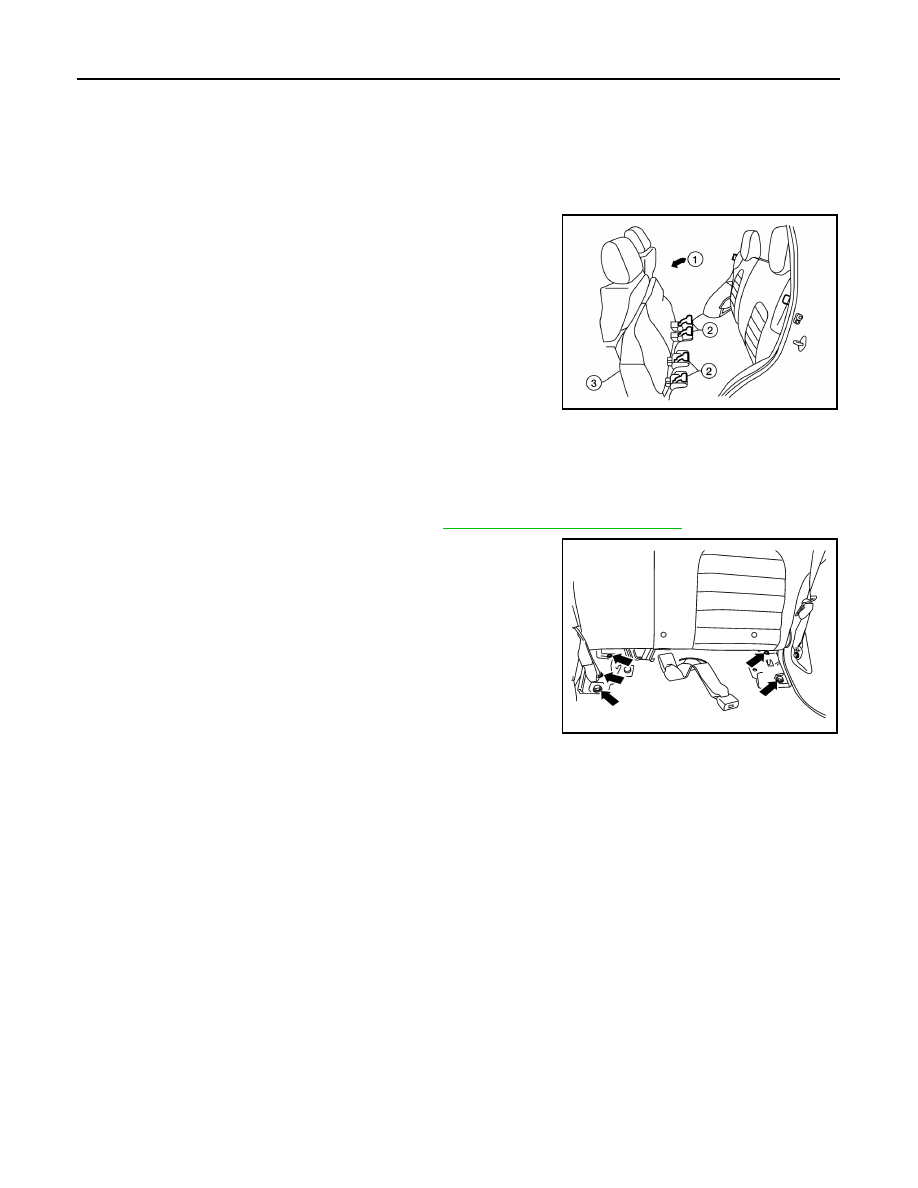

SEAT CUSHION ASSEMBLY

Removal

1. Tilt seat cushion (3) forward (1).
2. Lift cushion lock handles (2).
3. Remove seat cushion assembly

Installation

Installation is in the reverse order of removal.

SEATBACK ASSEMBLY

Removal

1. Remove the luggage floor storage tray. Refer to

INT-24, "Removal and Installation"

.

2. Tilt the seat cushion forward.
3. Remove the seat belt buckle bolt, seatback bolts and seatback-

assembly.

Installation

Installation is in the reverse order of removal.

AWJIA0789ZZ

LIIA2108E

Seatback bolts

: 45 N·m (4.6 kg·m, 33 ft-lb)
