FRONT SEAT

SE-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

Exploded View

INFOID:0000000009483055

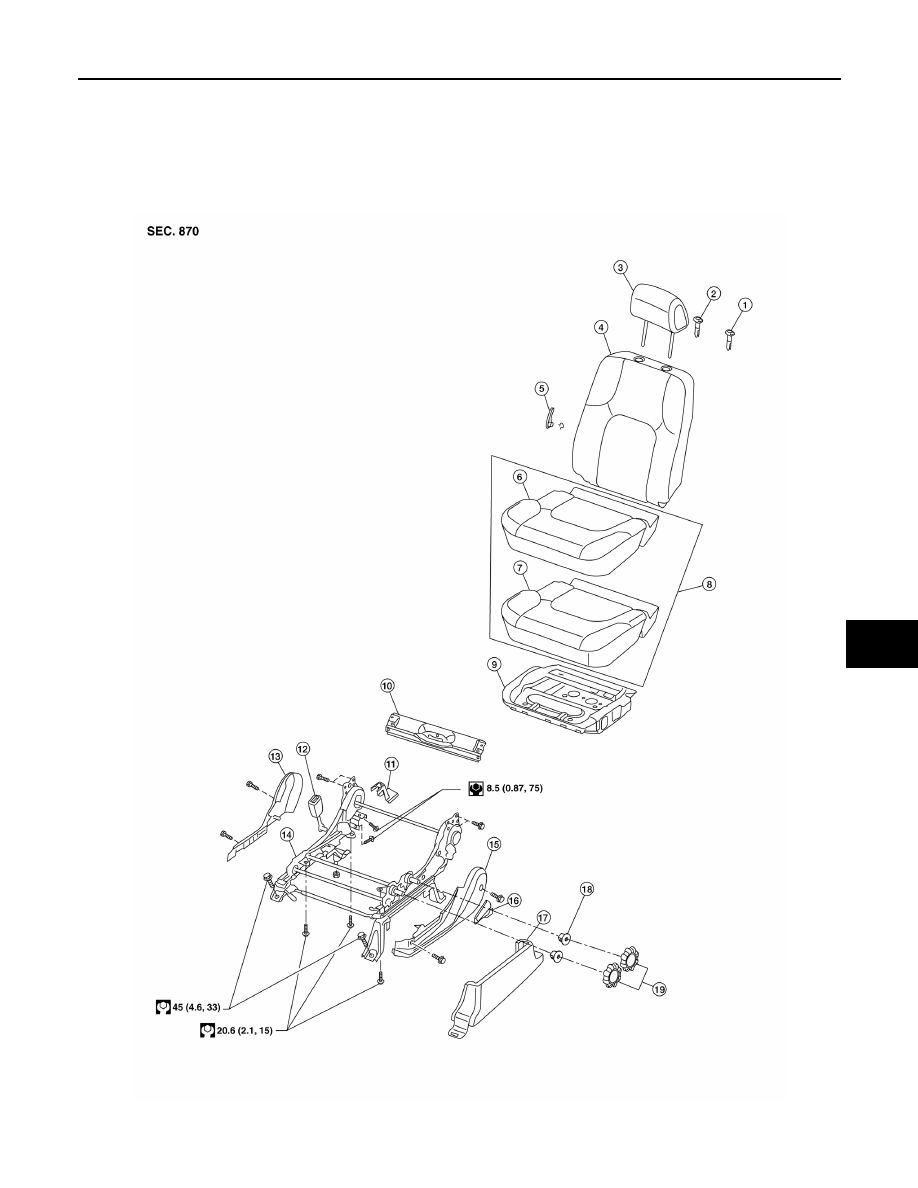

Driver Seat

AWJIA0555GB

SE-28

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

1.

Locking headrest guide

2.

Headrest guide

3.

Headrest

4.

Seatback assembly with side air bag  5.

Lumbar support lever (if equipped)

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat cushion assembly

9.

Seat cushion frame

10. Seat cushion rear finisher

11. Leg cover

12. Seat belt buckle

13. Seat cushion inner finisher

14. Driver seat slide assembly

15. Seat cushion outer finisher

16. Seatback recline release lever

17. Outer pedestal finisher

18. Seat cushion adjusting knob clips (if

equipped)

19. Seat cushion adjusting knobs (if

equipped)

FRONT SEAT

SE-29

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

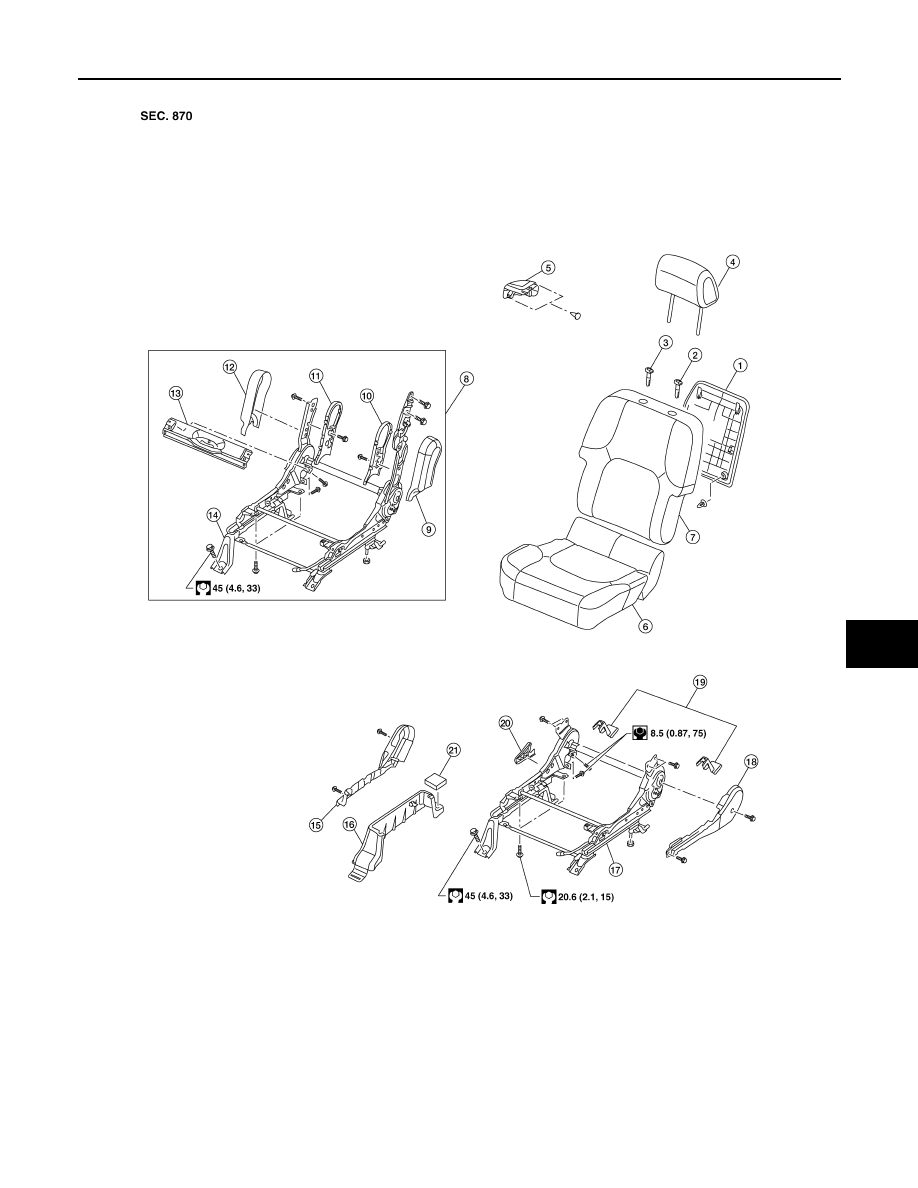

Passenger Seat

AWJIA1275ZZ

1.

Seatback board

2.

Locking headrest guide

3.

Headrest guide

4.

Headrest

5.

Front seatback lever (if equipped)

6.

Seat cushion assembly

7.

Seatback assembly with side air bag 8.

Fold flat seat frame slide assembly

9.

Inboard reclining arm outer cover

10. Inboard reclining arm inner cover

11. Outboard reclining arm inner cover

12. Outboard reclining arm outer cover

13. Seat cushion rear finisher

14. Fold flat seat frame

15. Seat cushion outer finisher

SE-30

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

Disassembly and Assembly

INFOID:0000000009483056

SEATBACK

Disassembly

CAUTION:

• Only complete seatback assemblies can be replaced.

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.
1. Remove the seatback assembly. Refer to

SE-21, "Removal and Installation"

.

2. Remove the headrest.

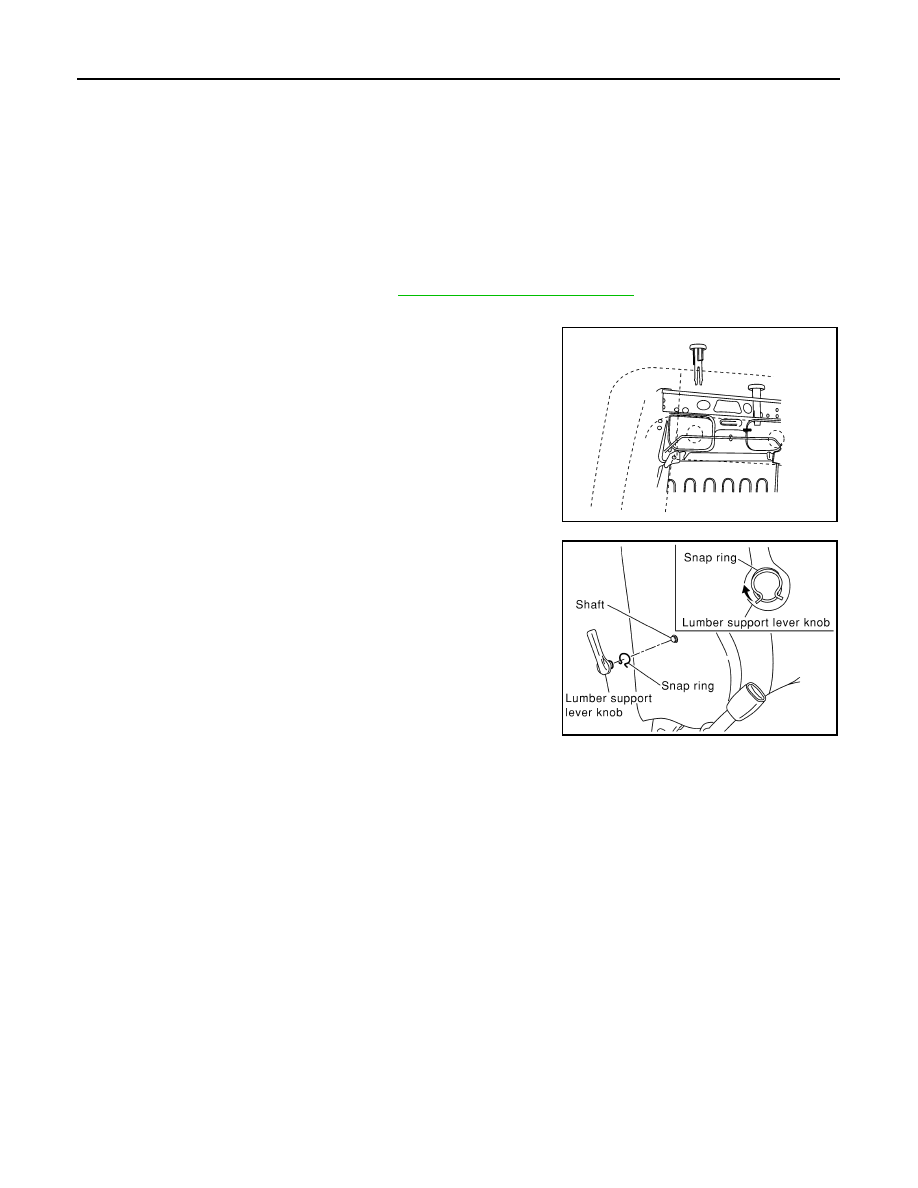

3. From inside of the seatback, squeeze the headrest holder tabs

at the base of the stay pipe and pull upward to remove.

NOTE:

Before installing the headrest holder, check its orientation (front/

rear and right/left).

4. Remove the snap ring and the lumbar support lever knob (if

equipped).

Assembly

Assembly is in the reverse order of disassembly.

SEAT CUSHION TRIM AND PAD

Disassembly

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.

• When removed, the passenger seat cushion must always be placed pan side UP to prevent damage.

• During installation, the wire harness clips must be reinstalled in the holes they were originally in. Do

not add additional clips.

• The Occupant Classification System control module can only be replaced as part of the seat cushion

assembly.

1. Remove the recline release lever.
2. Remove four seat cushion bolts and the seat cushion assembly.
3. On the drivers seat only, remove the seat cushion trim and pad.
4. On the drivers seat only, remove the hog rings to separate the trim cover from the pad.

Assembly

16. Outer pedestal finisher

17. Manual seat frame slide assembly

18. Seat cushion inner cover

19. Leg cover

20. Recline release lever

21. Bolt cap
