Nissan Xterra. Manual - part 589
REAR SEAT
SE-35
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D
E
F
G
H
I
K
L
M
A
B
SE
N
O
P

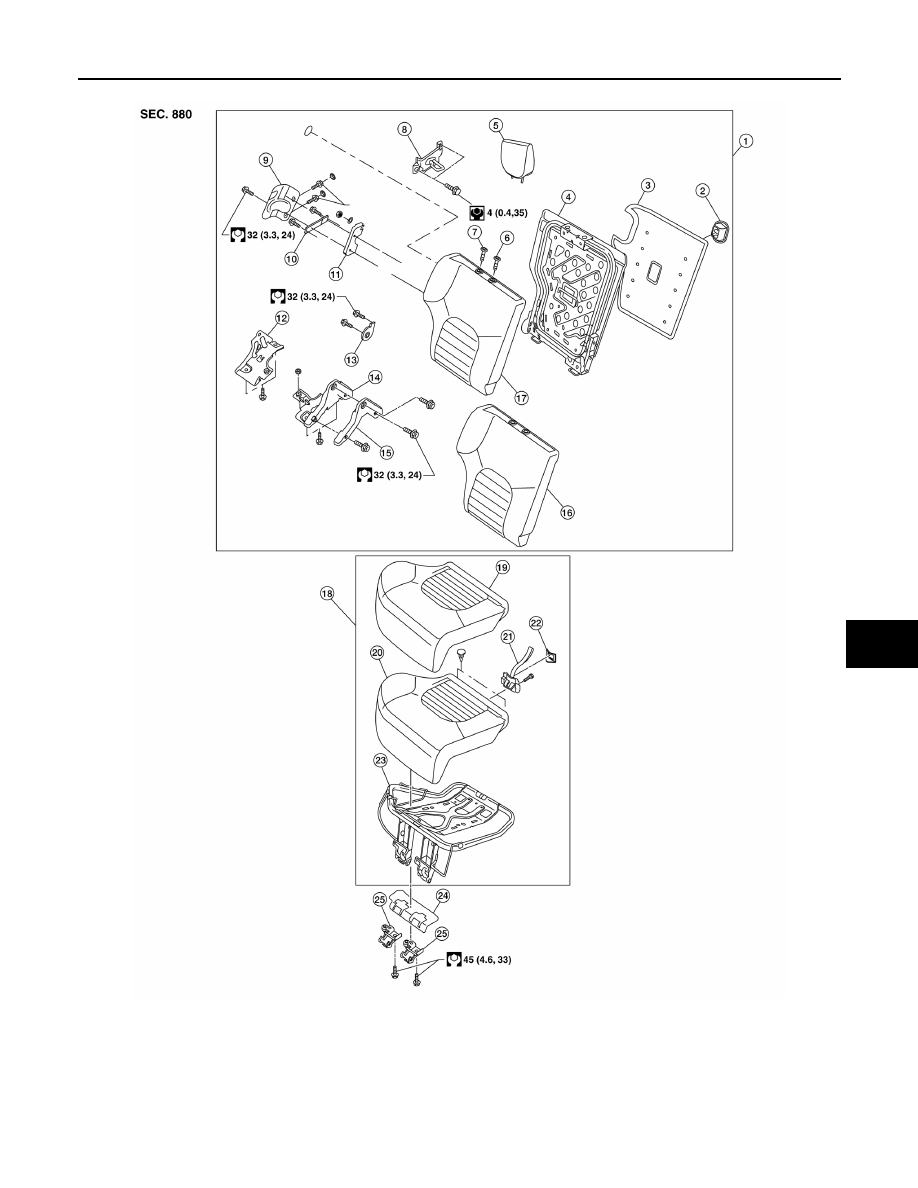

Rear Seat (RH)
AWJIA0791GB
1.
Seatback assembly
2.
Tie down hook
3.
Seatback board
4.
Seatback frame assembly
5.
Headrest
6.
Locking headrest guide
7.
Headrest guide
8.
Seatback striker
9.
Seatback latch cover
10. Seatback release strap
11. Seatback latch assembly
12. Outboard hinge bracket
13. Outboard pivot cover
14. Inboard hinge bracket
15. Inboard hinge cover
16. Seatback trim
17. Seatback pad
18. Seat cushion assembly
