PG-64

< DTC/CIRCUIT DIAGNOSIS >

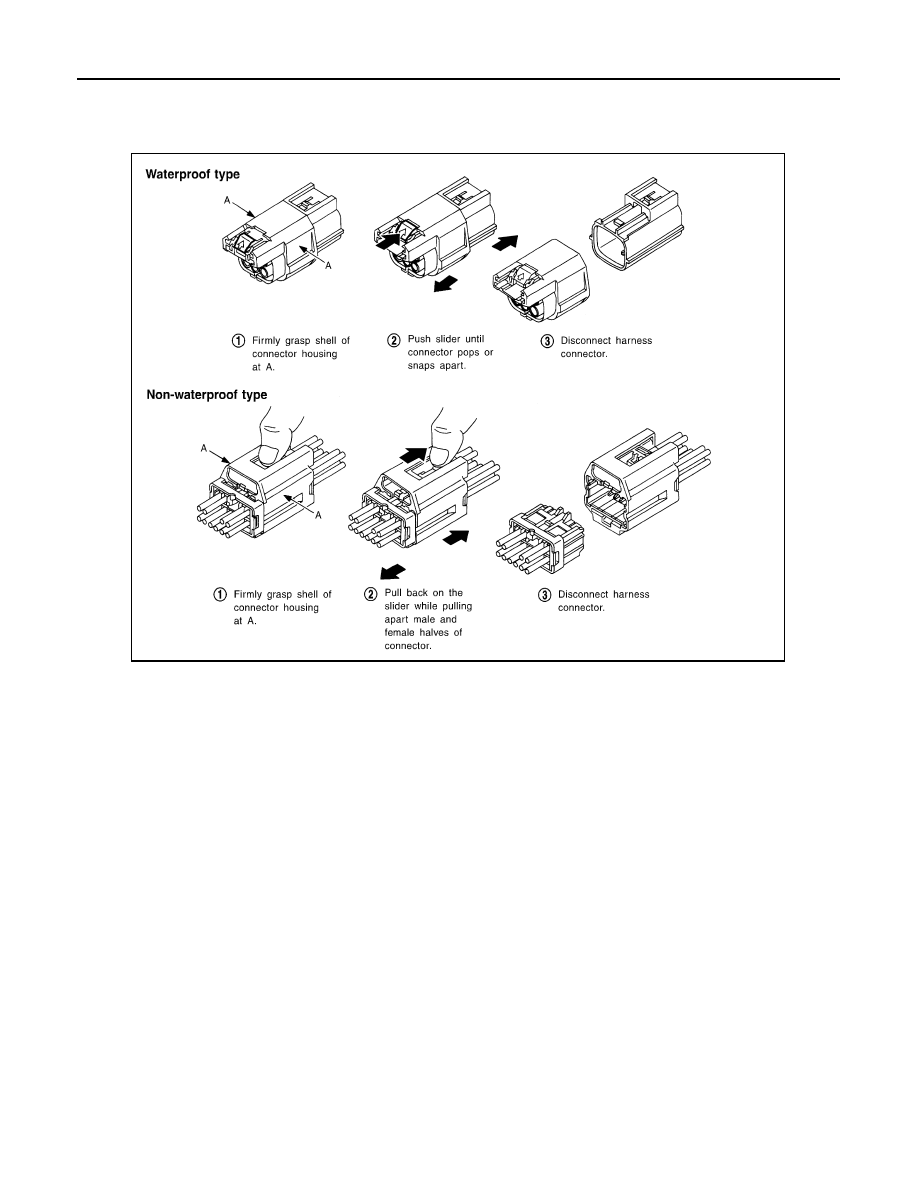

HARNESS CONNECTOR

CAUTION:

• Do not pull the harness or wires when disconnecting the connector.

• Be careful not to damage the connector support bracket when disconnecting the connector.

[Example]

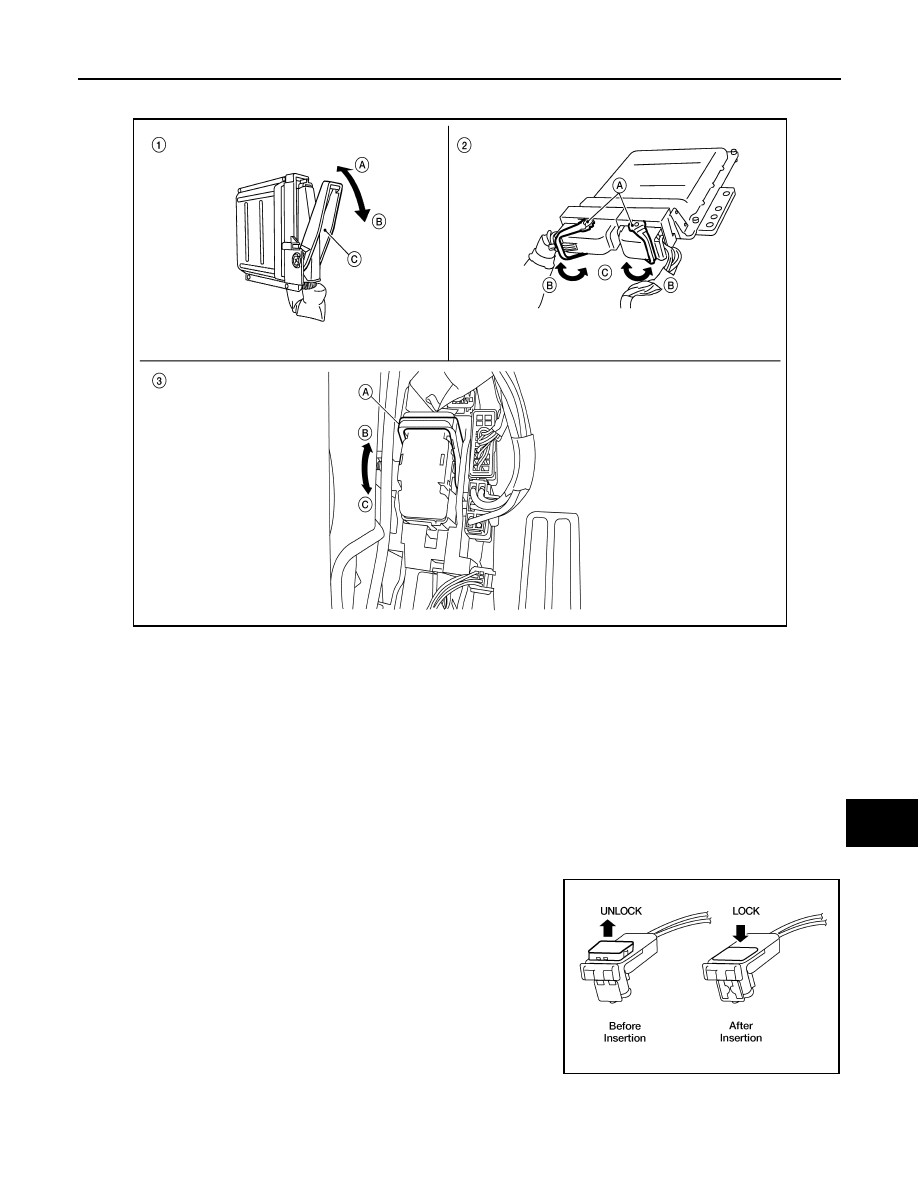

HARNESS CONNECTOR (LEVER LOCKING TYPE)

• Lever locking type harness connectors are used on certain control units and control modules such as ECM,

ABS actuator and electric unit (control unit), etc.

• Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.

• Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec-

tion.

CAUTION:

AEL299C

PG

HARNESS CONNECTOR

PG-65

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these

connectors to avoid damage to the connector housing or terminals.

HARNESS CONNECTOR (DIRECT-CONNECT SRS COMPONENT TYPE)

• SRS direct-connect type harness connectors are used on certain SRS components such as air bag modules

and seat belt pre-tensioners.

• Always pull up to release black locking tab prior to removing connector from SRS component.

• Always push down to lock black locking tab after installing connector to SRS component. When locked, the

black locking tab is level with the connector housing.

CAUTION:

• Do not pull the harness or wires when removing connectors

from SRS components.

LKIA0670E

1.

Control unit with single lever
A. Fasten
B. Loosen
C. Lever

2.

Control unit with dual levers
A. Levers
B. Fasten
C. Loosen

3.

SMJ connector
A. Lever
B. Fasten
C. Loosen

WHIA0103E

PG-66

< DTC/CIRCUIT DIAGNOSIS >

STANDARDIZED RELAY

STANDARDIZED RELAY

Description

INFOID:0000000009484624

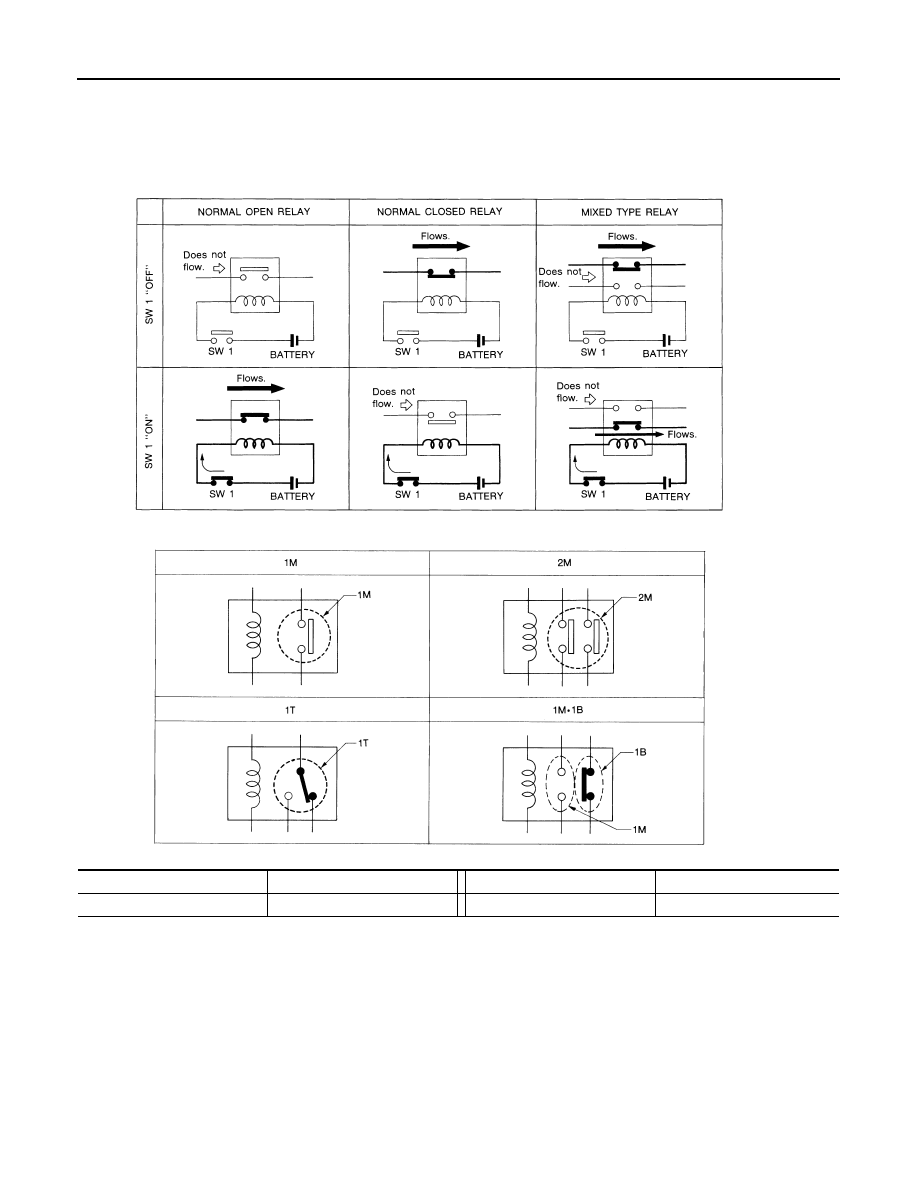

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

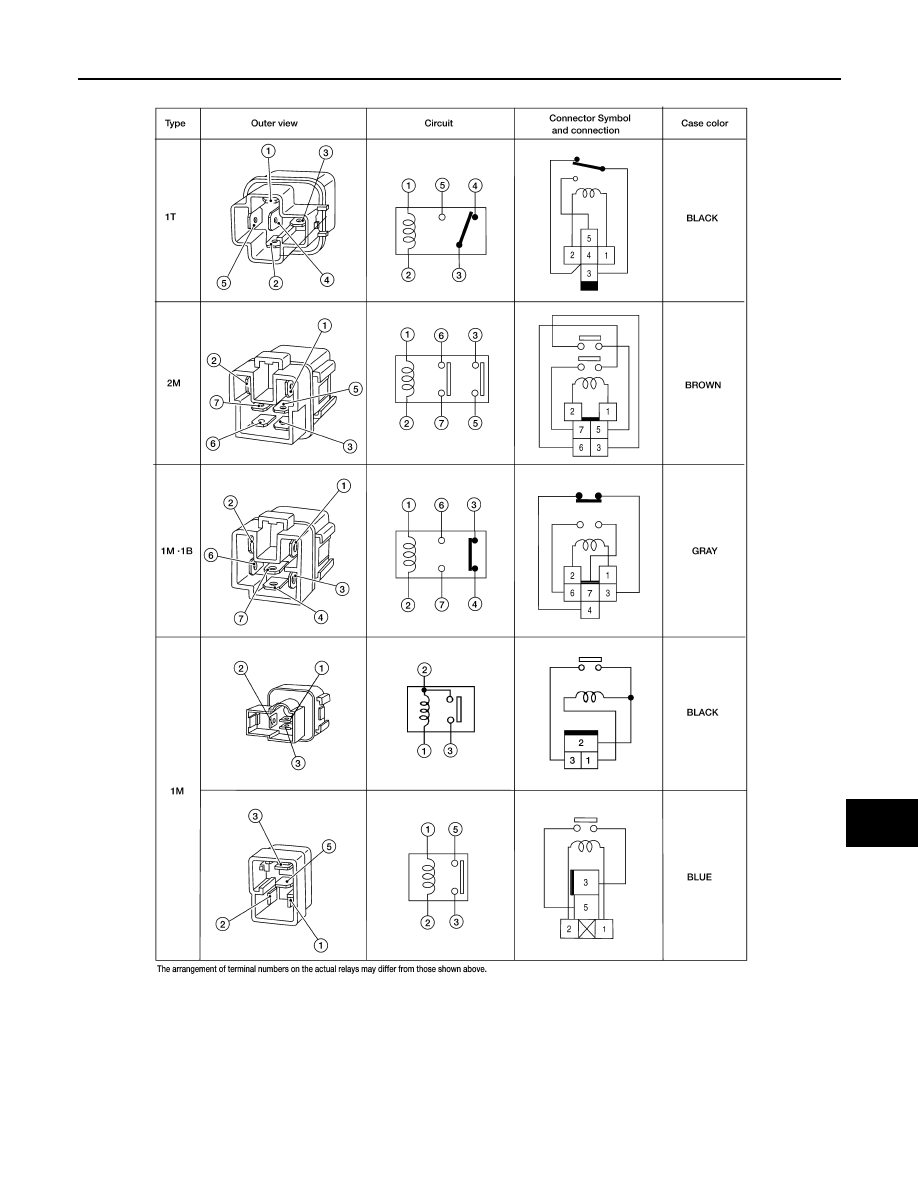

TYPE OF STANDARDIZED RELAYS

SEL881H

SEL882H

1M

1 Make

2M

2 Make

1T

1 Transfer

1M·1B

1 Make 1 Break

PG

STANDARDIZED RELAY

PG-67

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WKIA0253E
