HARNESS

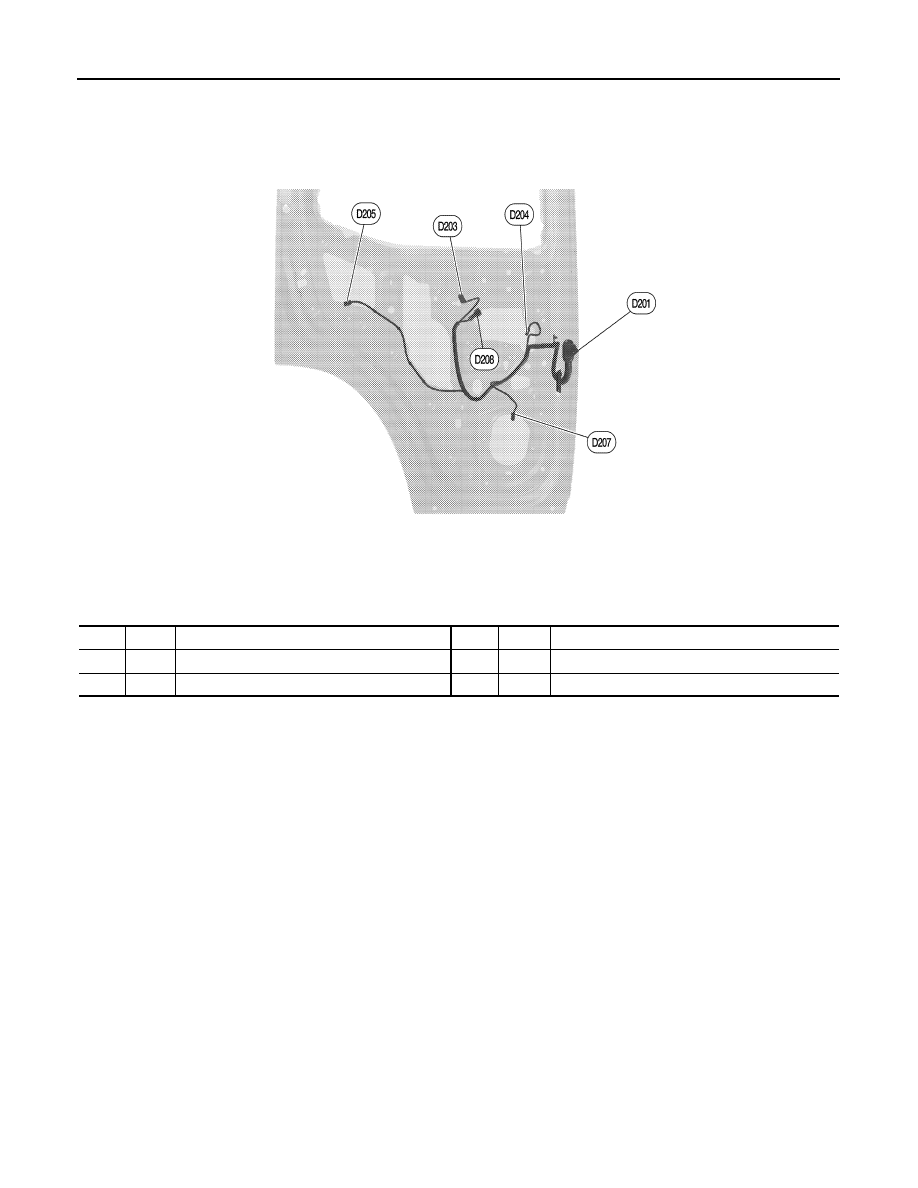

REAR DOOR LH HARNESS

ABMIA2612GB

D201

W/12

: To B6

D205

W/2

: Rear door lock actuator LH

D203

W/8

: Rear power window switch LH

D207

W/2

: Rear door speaker LH

D204

B/2

: Rear power window motor LH

D208

BR/2

: Rear tweeter LH

PG

HARNESS

PG-57

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

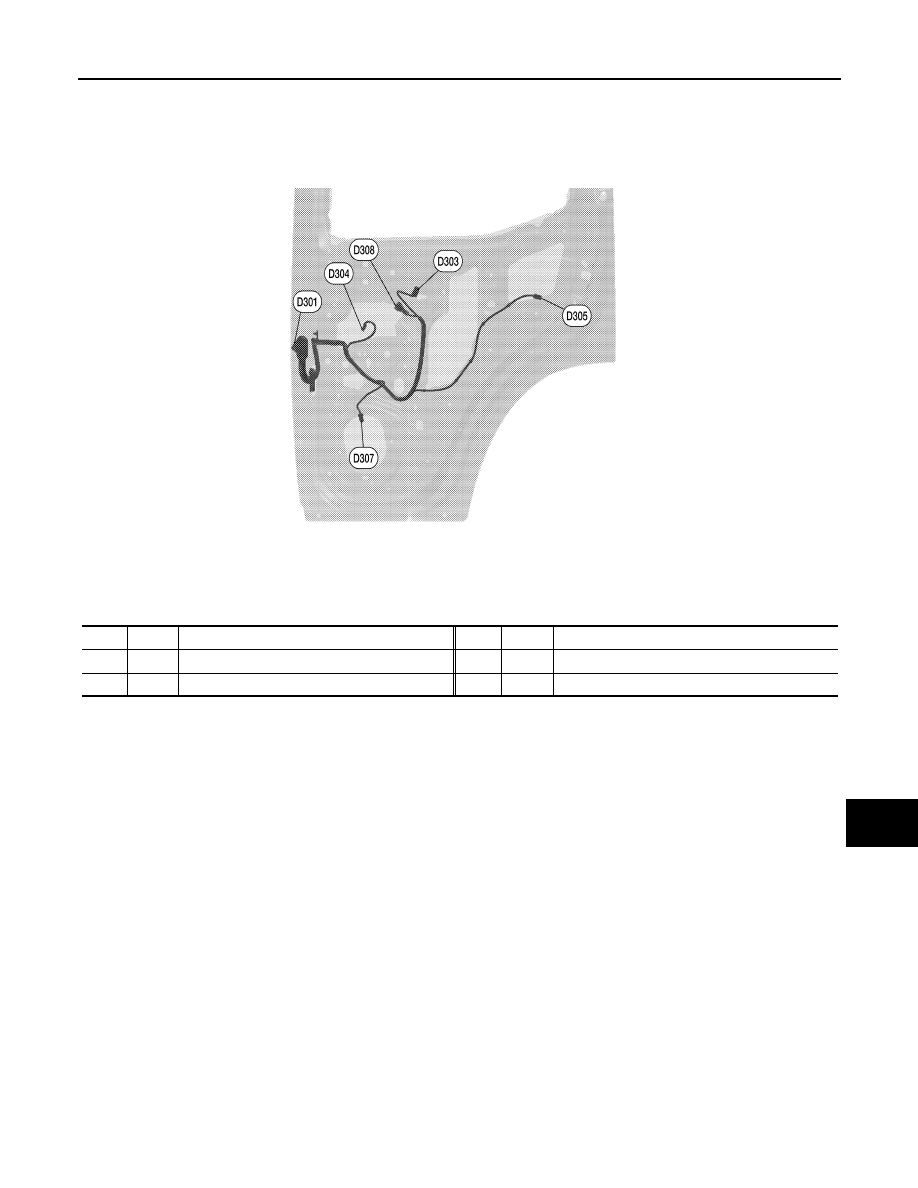

REAR DOOR RH HARNESS

ABMIA2613GB

D301

W/12

: To B106

D305

W/2

: Rear door lock actuator RH

D303

W/8

: Rear power window switch RH

D307

W/2

: Rear door speaker RH

D304

B/2

: Rear power window motor RH

D308

BR/2

: Rear tweeter RH

PG-58

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

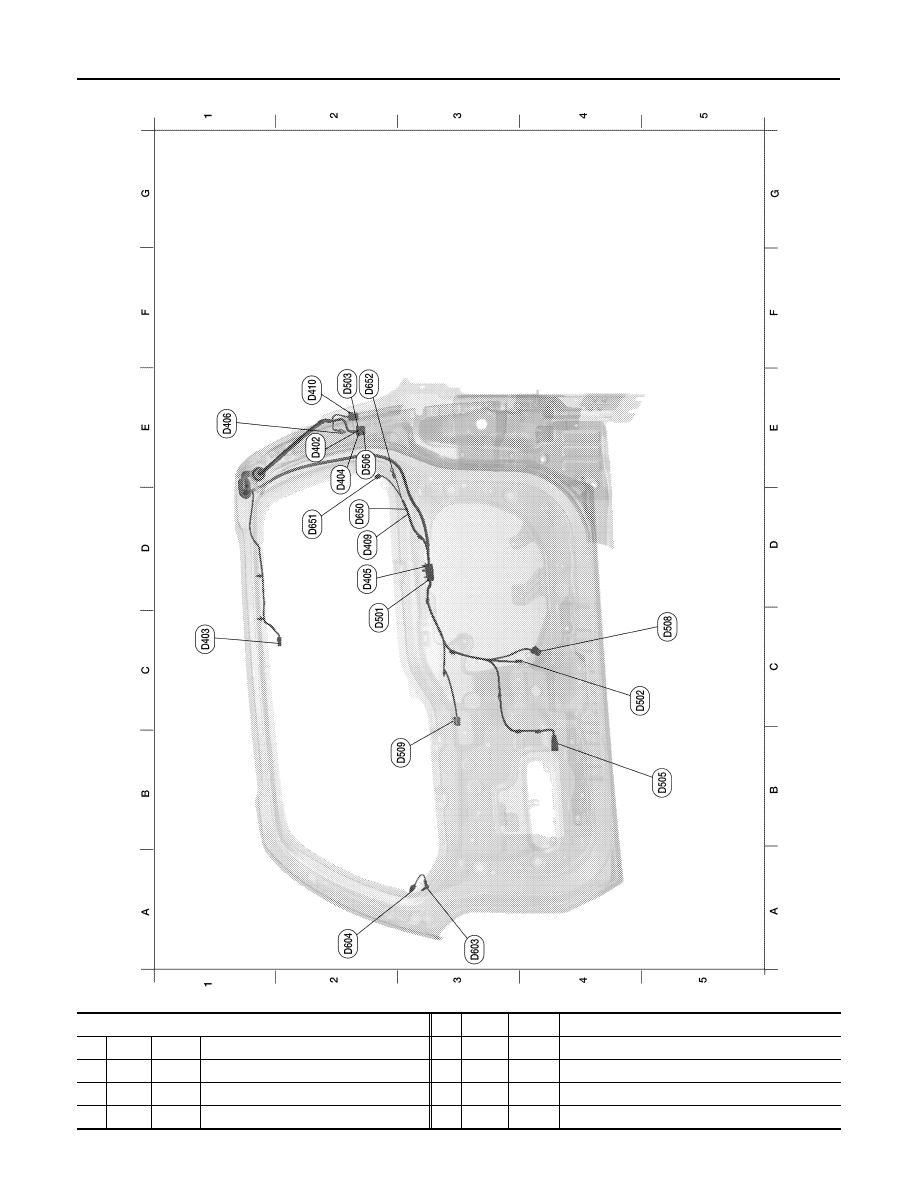

BACK DOOR HARNESS

ABMIA4423ZZ

Back door No. 2 harness

F2

D503

W/8

: To D404

E2 D402

W/16

: To B48

B5

D505

BR/3

: Back door key cylinder switch

C1 D403

W/2

: High-mounted stop lamp

E2

D506

W/4

: Rear view camera

E2 D404

W/8

: To D503

C5 D508

W/4

: Back door lock actuator

D2 D405

W/8

: To D501

B3

D509

W/4

: Rear wiper motor

PG

HARNESS

PG-59

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

E1 D406

—

: Body ground

Rear window defogger sub-harness

D2 D409

W/2

: To D650

A3

D603

—

: Body ground

E2 D410

W/2

: To B50

A2

D604

B/1

: Rear window defogger

Back door harness

D2 D650

W/2

: To D409

C2 D501

W/8

: To D405

D2 D651

B/1

: Rear window defogger

C5 D502

W/3

: Back door switch

E2

D652

—

: Body ground
