PG-60

< DTC/CIRCUIT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000009484622

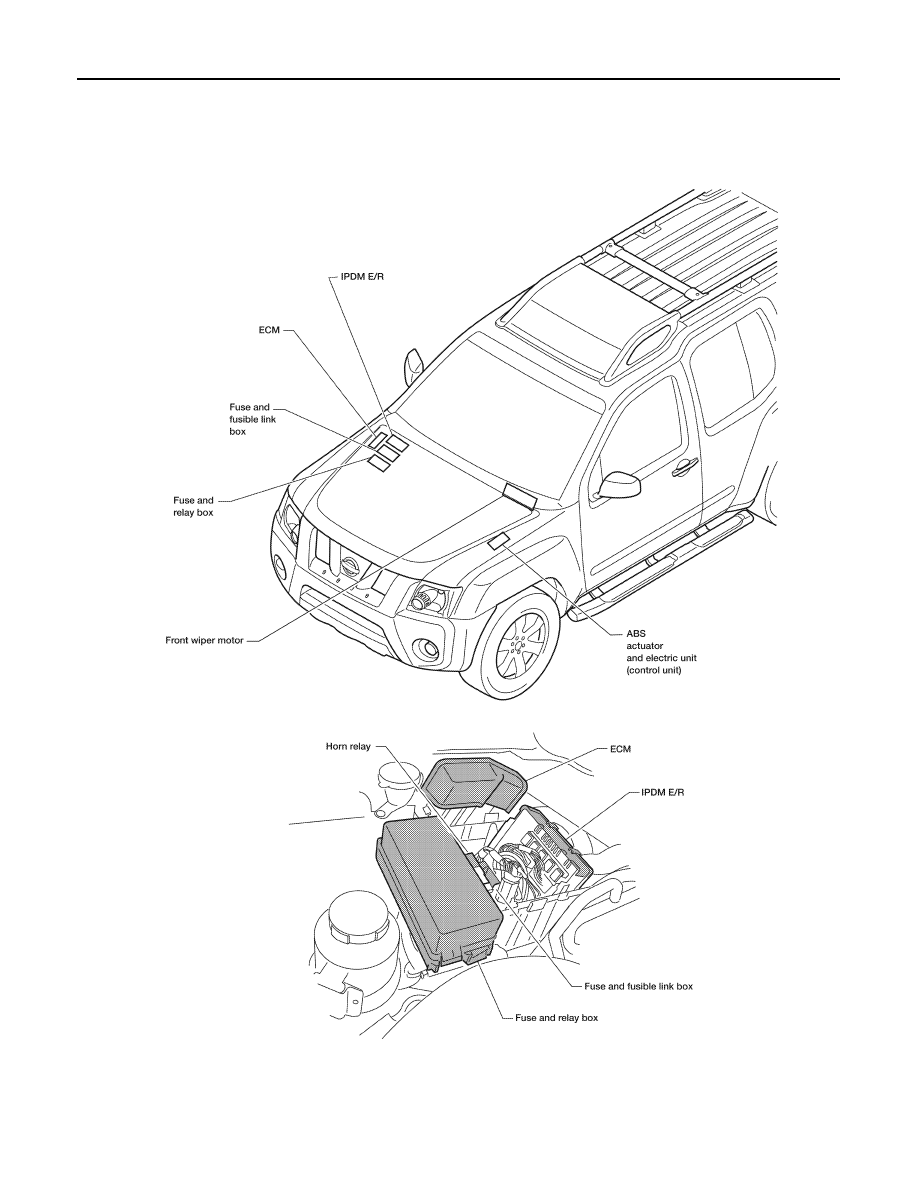

ENGINE COMPARTMENT

ABMIA0412GB

PG

ELECTRICAL UNITS LOCATION

PG-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

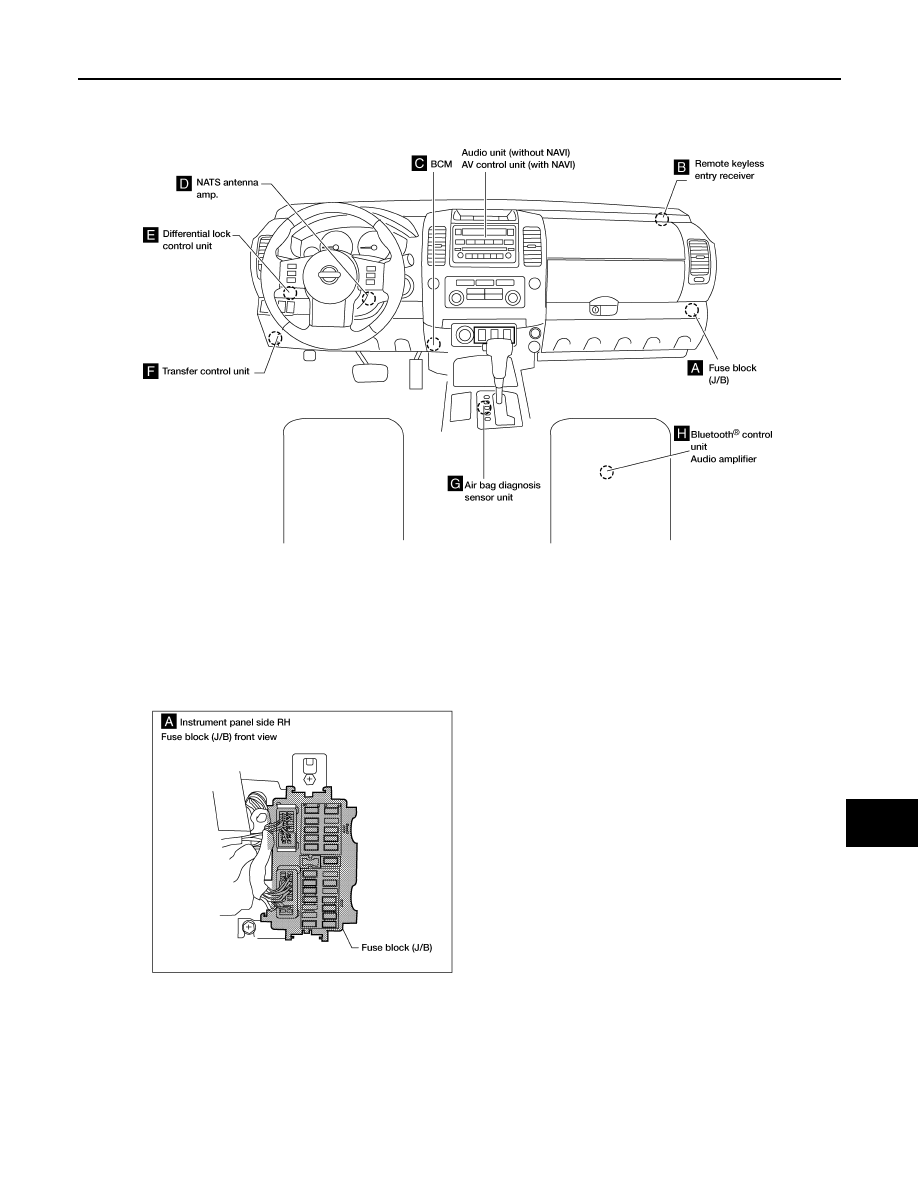

PASSENGER COMPARTMENT

ABMIA5595GB

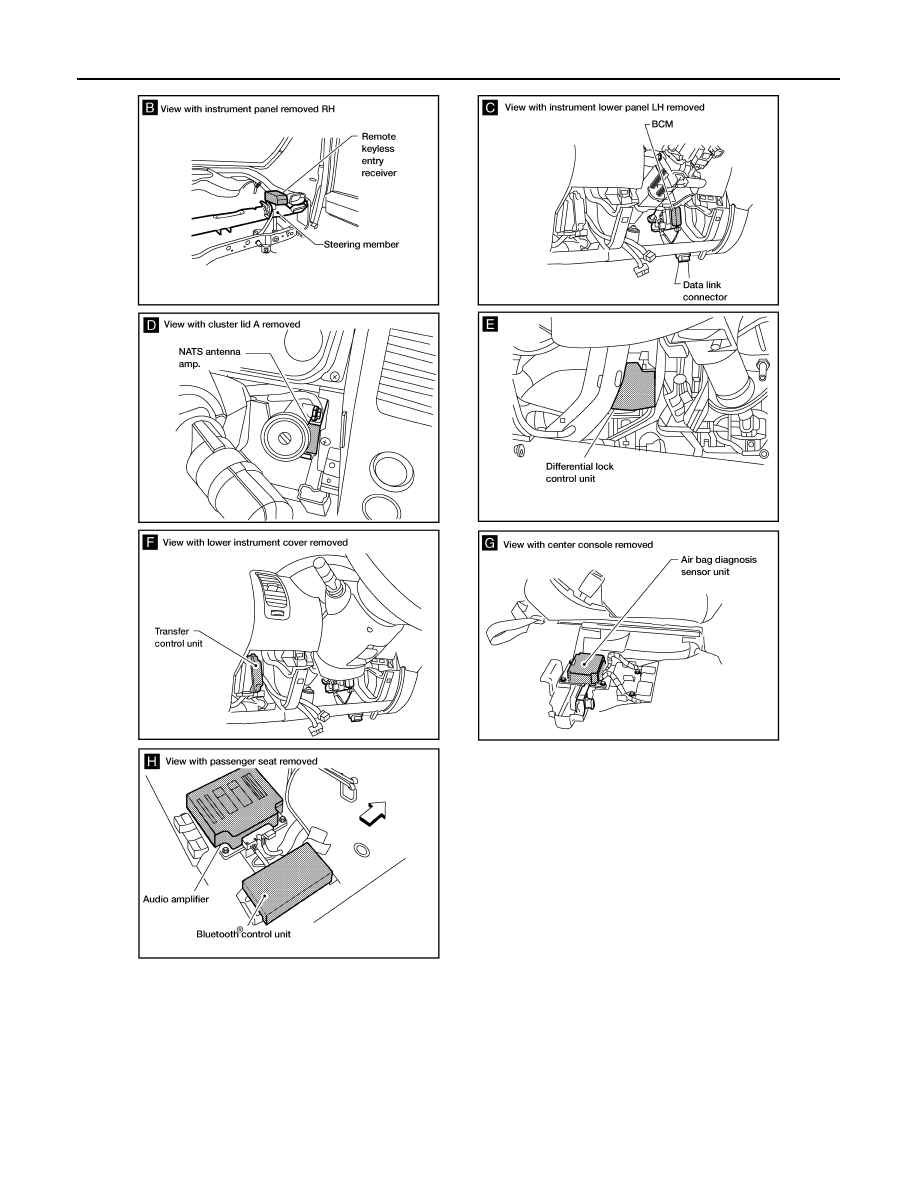

PG-62

< DTC/CIRCUIT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

ABMIA5596GB

PG

HARNESS CONNECTOR

PG-63

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS CONNECTOR

Description

INFOID:0000000009484623

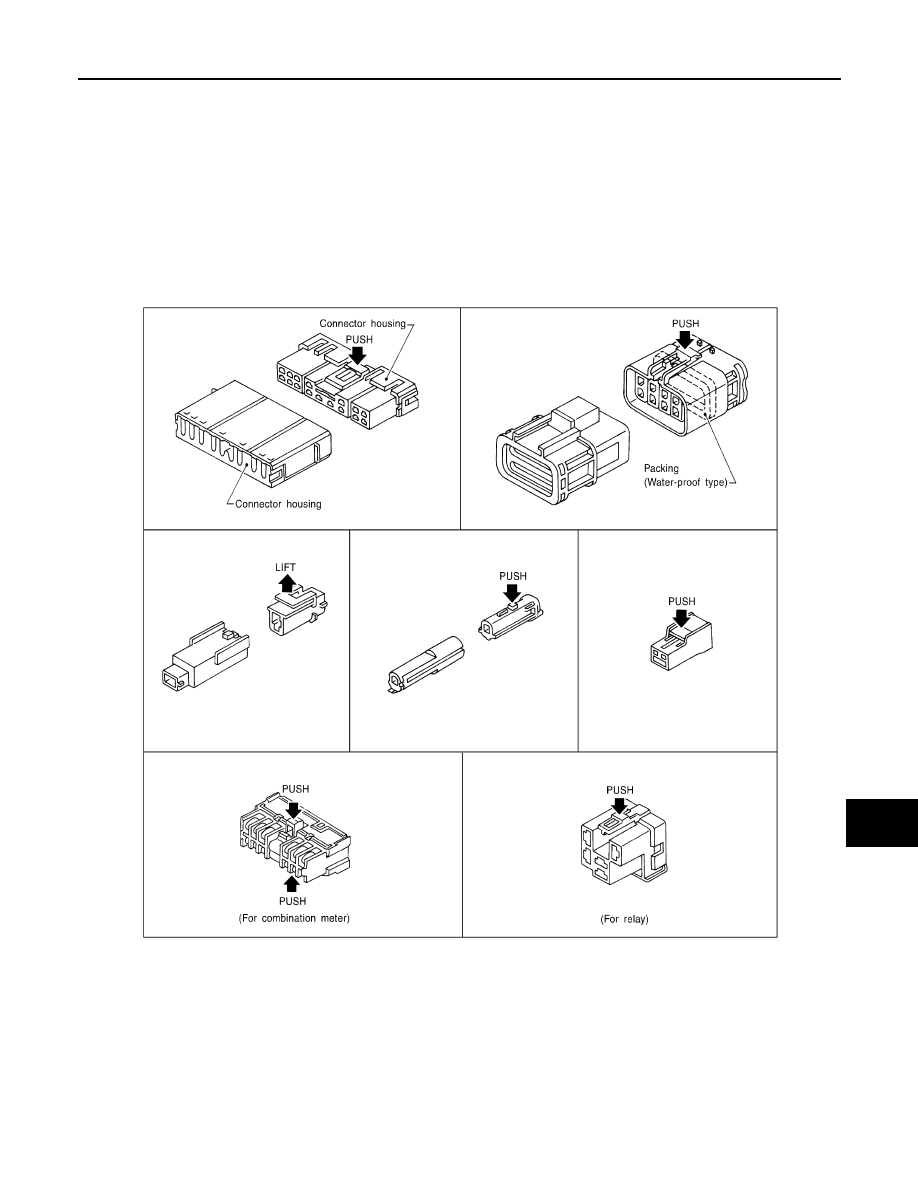

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.

• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the illus-

tration below.

Refer to the next page for description of the slide-locking type connector.

CAUTION:

Do not pull the harness or wires when disconnecting the connector.

[Example]

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustration

below.

SEL769DA
