PG-52

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

E5

B114

Y/2

: RH side air bag (satellite) sensor

F4

B158

W/8

: Audio amplifier

C3 B116

W/3

: Rear door switch RH

F4

B159

W/24

: Audio amplifier

F5

B117

—

: Body ground

G5 B163

W/16

: To M17

E4

B126

Y/2

: Front RH side air bag module

F5

B166

W/3

: Front seat heater RH

E4

B127

Y/2

: Front RH seat belt pre-tensioner

RH front seat harness

B3

B132

—

: Body ground

F4

B351

W/8

: To B136

F4

B136

W/8

: To B351

F4

B352

B/18

: Occupant classification system control unit

E5

B137

W/3

: Belt tension sensor

F4

B353

B/3

: Occupant classification system sensor

PG

HARNESS

PG-53

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

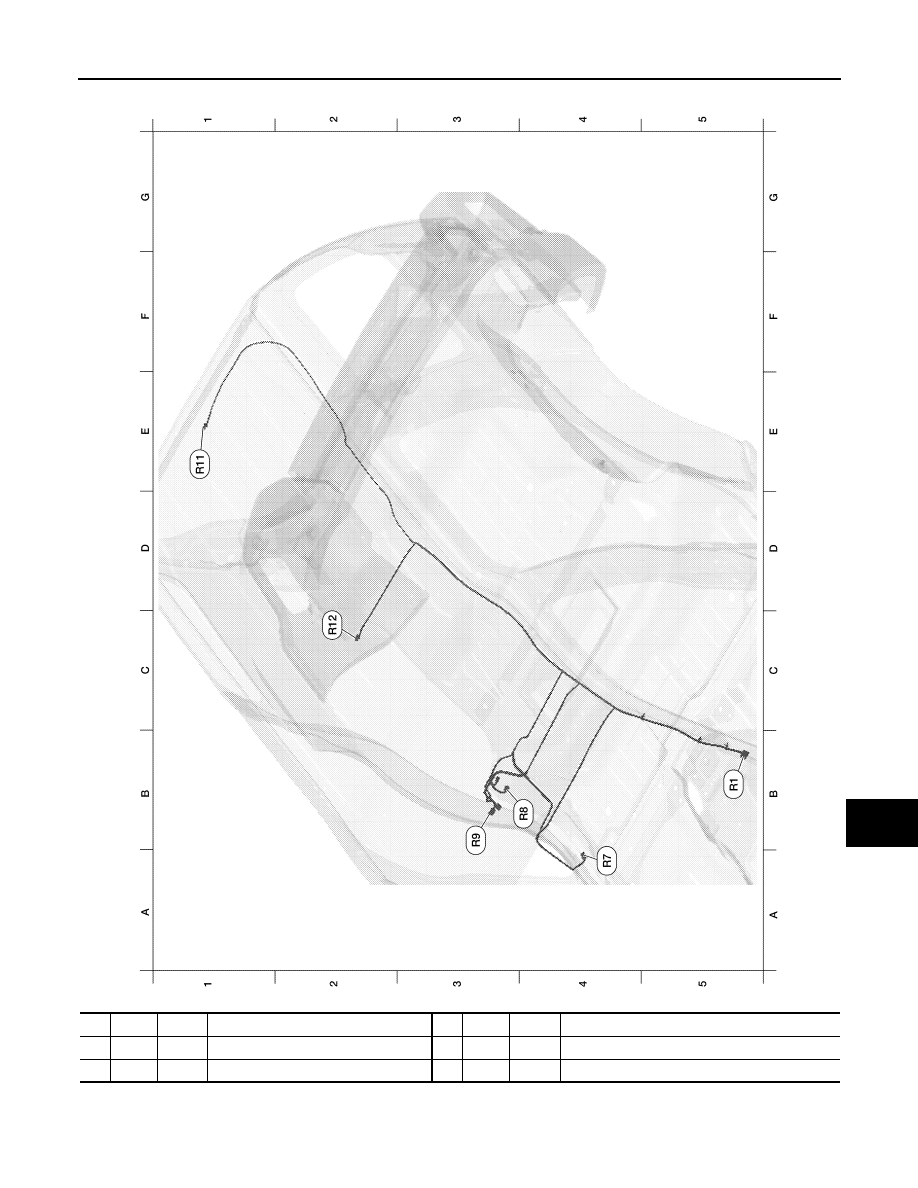

ROOM LAMP HARNESS

ABMIA1511GB

B5

R1

W/24

: To M1

B3

R9

W/3

: Front room/map lamp assembly

A4

R7

W/7

: Auto anti-dazzling inside mirror

E1

R11

W/2

: Cargo lamp

B4

R8

W/4

: Microphone

C2 R12

W/2

: Room lamp 2nd row

PG-54

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

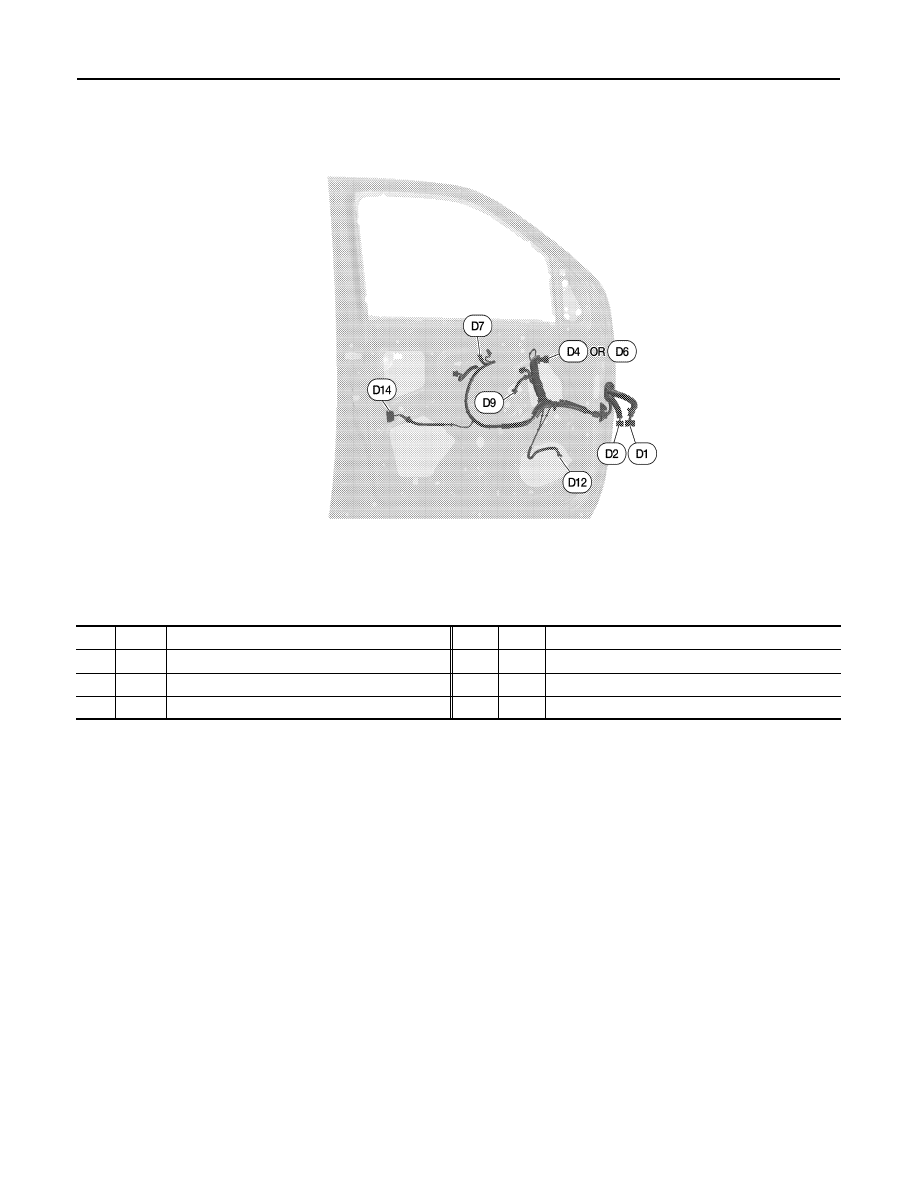

FRONT DOOR LH HARNESS

ABMIA2610GB

D1

W/16

: To M9

D7

W/16

: Main power window and door lock/unlock switch

D2

BR/12

: To M8

D9

BR/2

: Front power window motor LH

D4

B/10

: Door mirror LH (with heated mirrors)

D12

W/2

: Front door speaker LH

D6

B/3

: Door mirror LH (without heated mirrors)

D14

GR/6

: Front door lock assembly LH

PG

HARNESS

PG-55

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

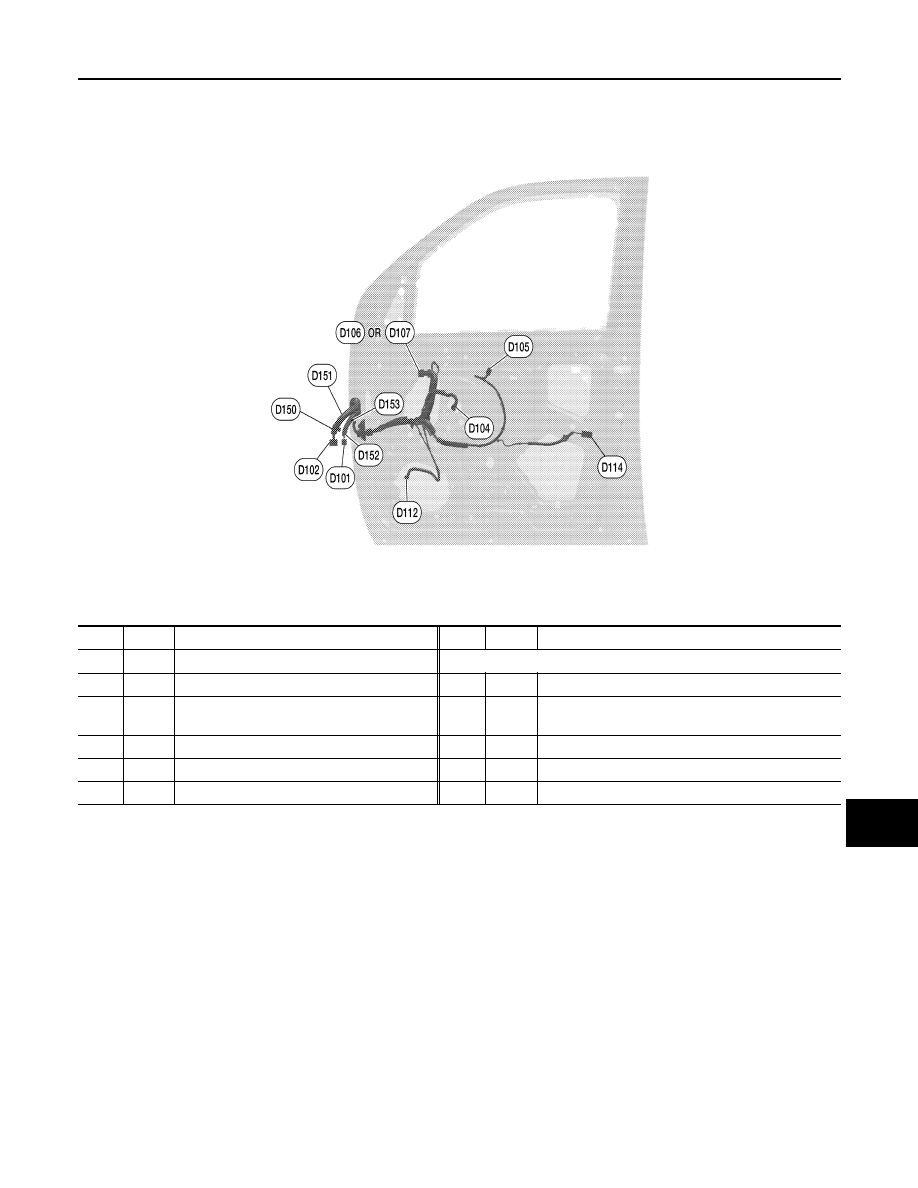

FRONT DOOR RH HARNESS

ABMIA4422GB

D101

W/12

: To D152

D114

W/2

: Front door lock actuator RH

D102

W/16

: To D150

Front door RH sub-harness

D104

BR/2

: Front power window motor RH

D150

W/16

: To D102

D105

W/12

: Power window and door lock/unlock switch
  RH

D151

W/16

: To M74

D106

B/3

: Door mirror RH (without heated mirrors)

D152

W/12

: To D101

D107

B/10

: Door mirror RH (with heated mirrors)

D153

W/12

: To M75

D112

W/2

: Front door speaker RH
