FUSE BLOCK-JUNCTION BOX (J/B)

FUSE BLOCK-JUNCTION BOX (J/B)

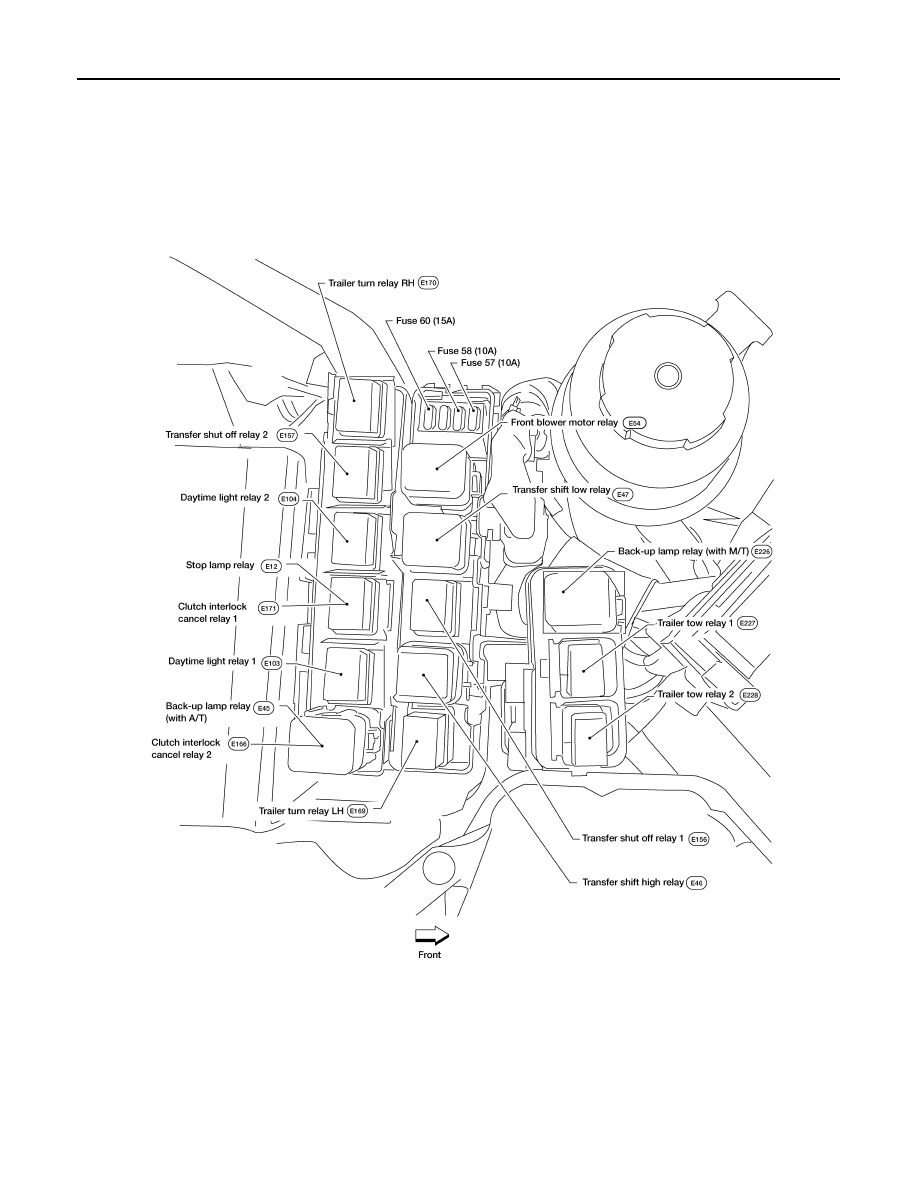

Terminal Arrangement

INFOID:0000000009484625

ABMIA4411GB

PG

FUSE AND FUSIBLE LINK BOX

PG-69

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE AND FUSIBLE LINK BOX

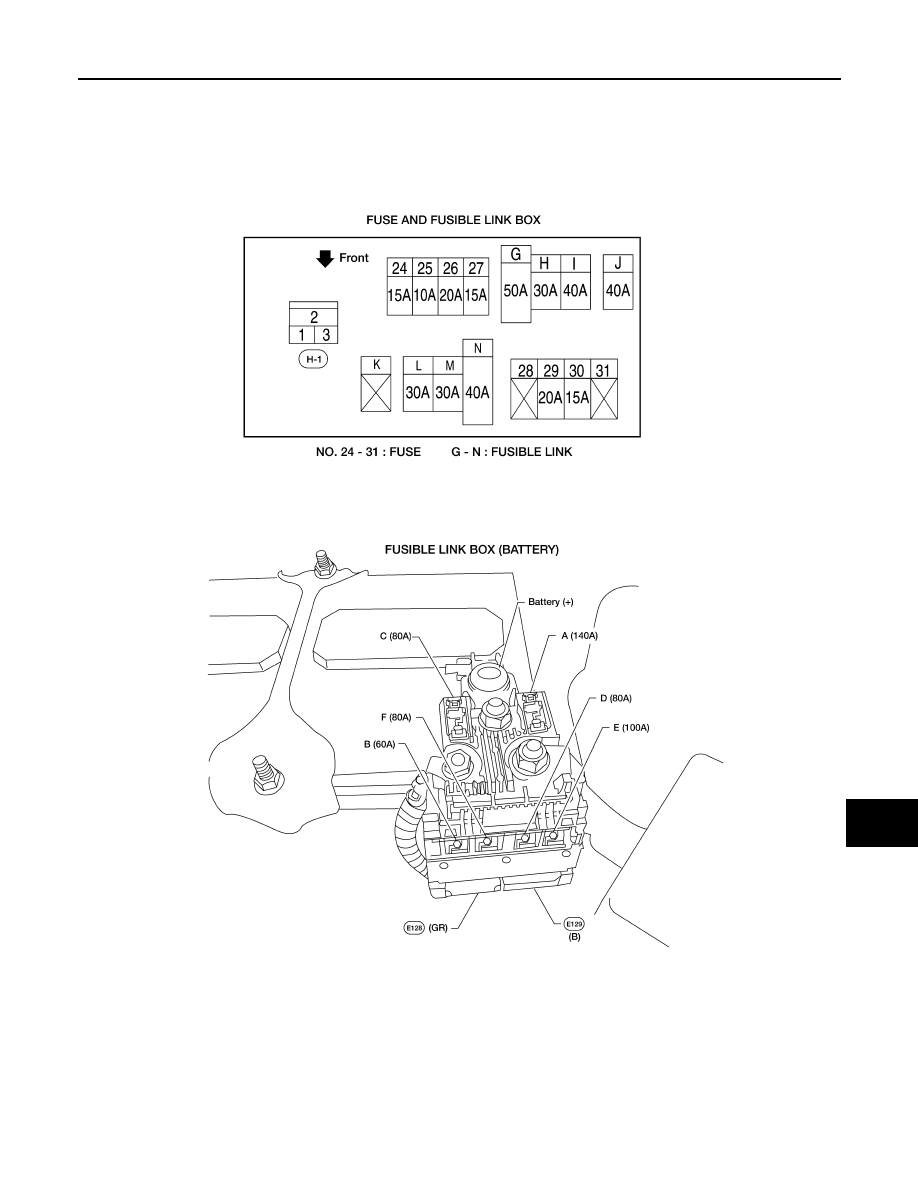

Terminal Arrangement

INFOID:0000000009484626

ABMIA1517GB

PG-70

< DTC/CIRCUIT DIAGNOSIS >

FUSE AND RELAY BOX

FUSE AND RELAY BOX

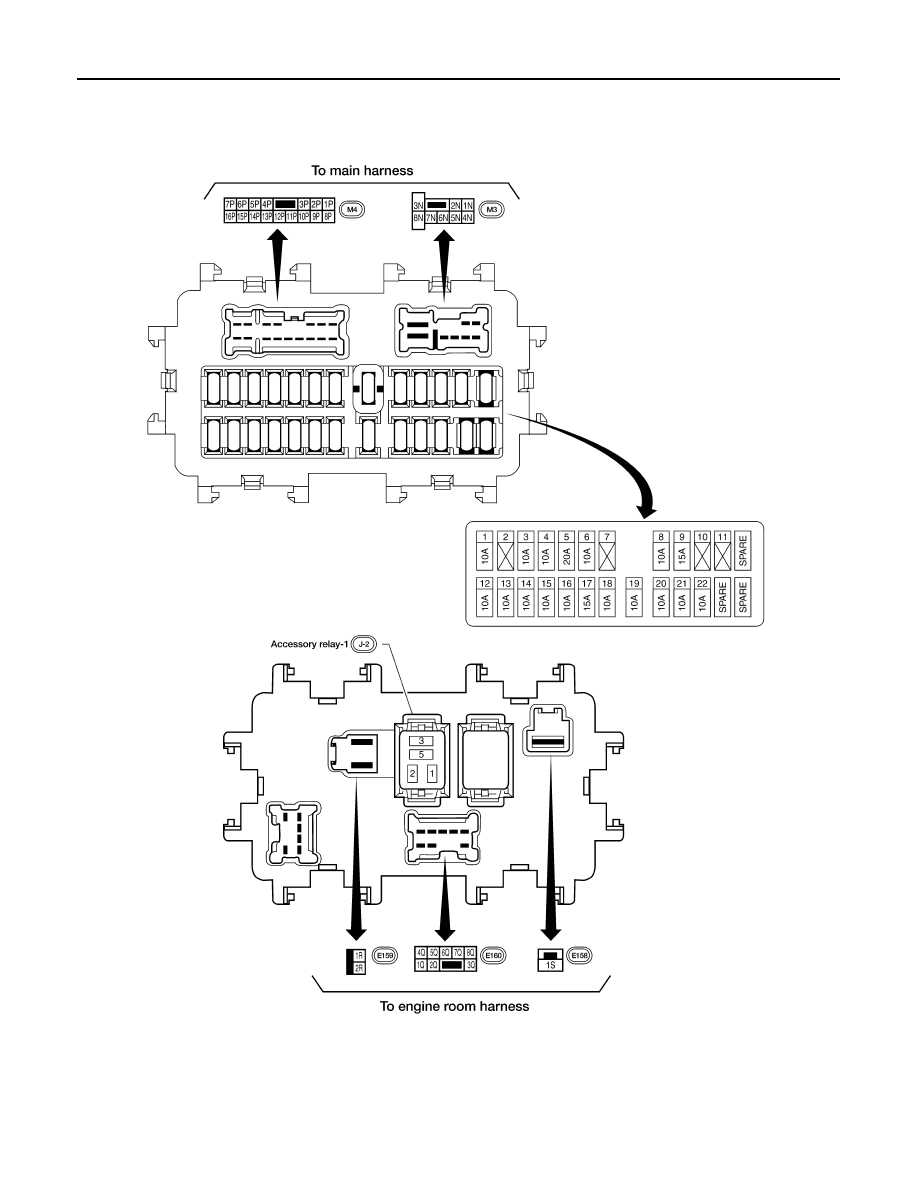

Terminal Arrangement

INFOID:0000000009484627

ABMIA5597GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-71

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

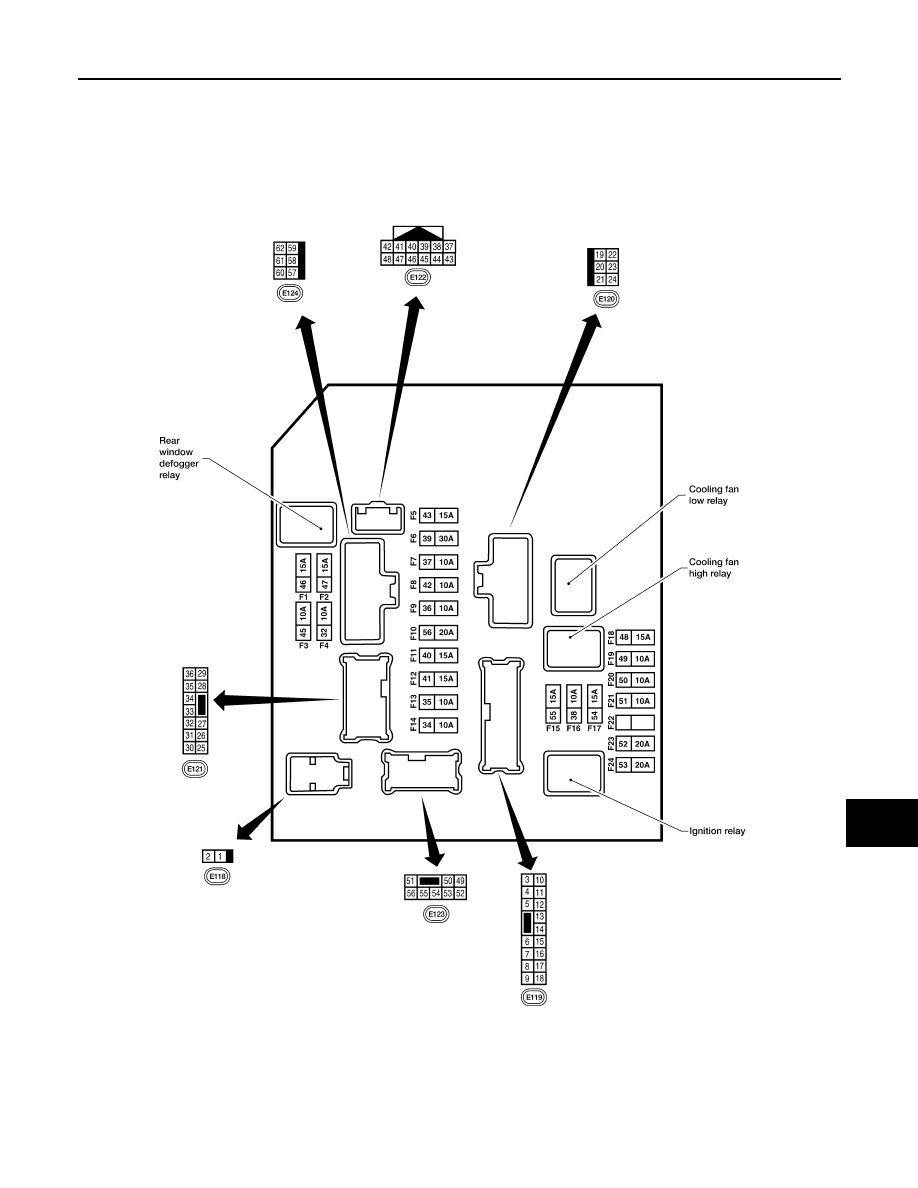

IPDM E/R Terminal Arrangement

INFOID:0000000009484628

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

ABMIA4412GB
