Nissan Xterra. Manual - part 488





IP-20

< REMOVAL AND INSTALLATION >

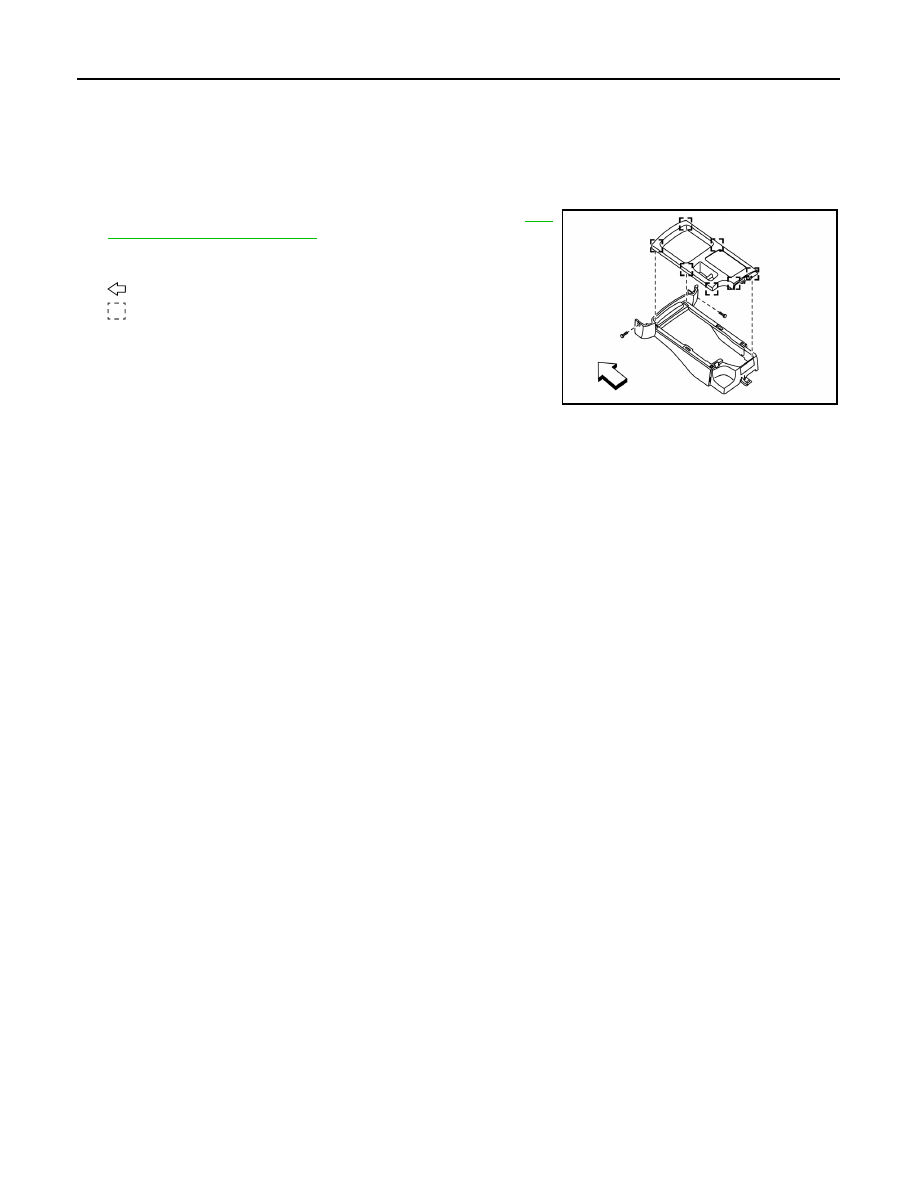

A/T FINISHER

A/T FINISHER

Removal and Installation

INFOID:0000000009485682

REMOVAL

1. Release the cup holder finisher clips using a suitable tool and remove.
2. Remove the shift selector handle (6MT: FS6R31A). Refer to

TM-

18, "Removal and Installation"

.

3. Release the shift slector finisher clips using a suitable tool and

remove.

: Front

: Metal clip

NOTE:

A/T shift selector finisher shown; M/T shift selector finisher simi-

lar.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0664ZZ

CENTER CONSOLE

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

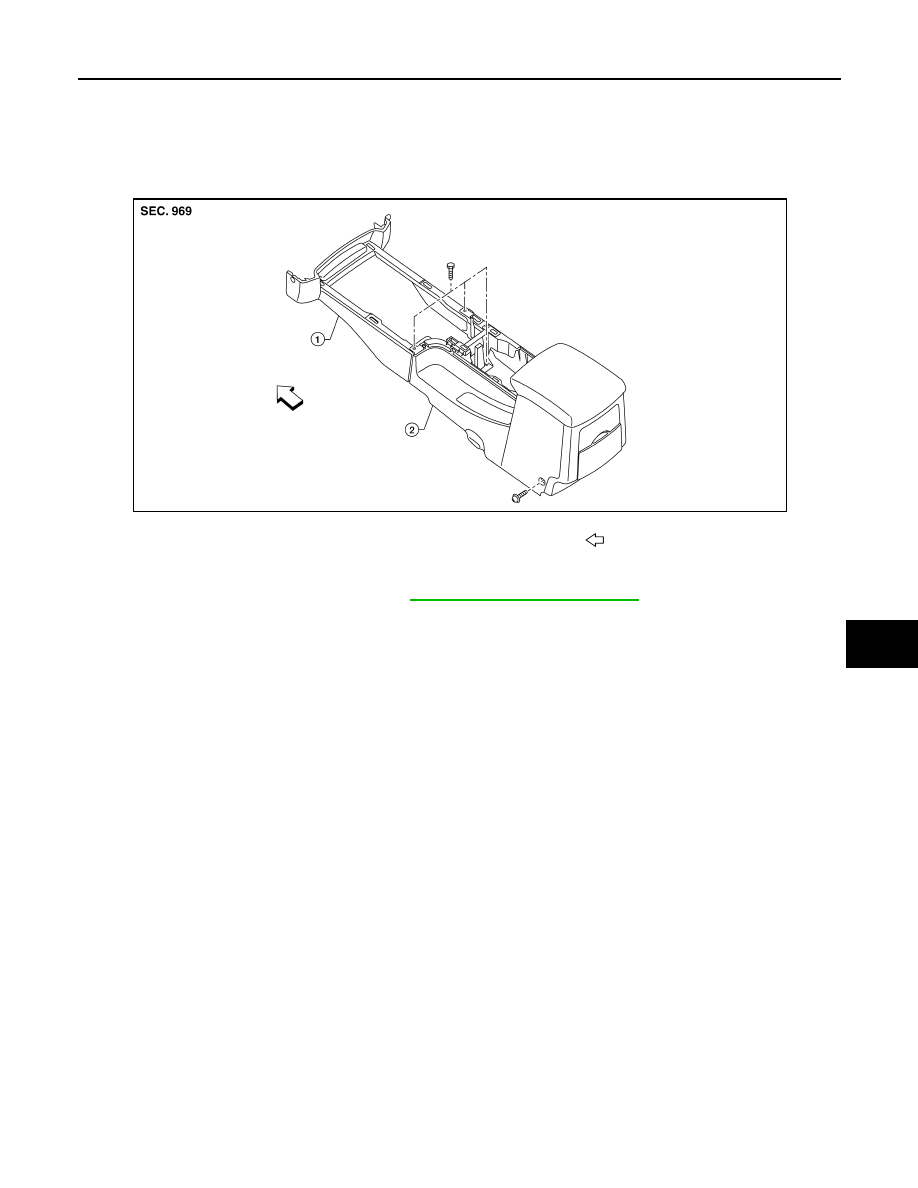

CENTER CONSOLE

Removal and Installation

INFOID:0000000009485683

CENTER CONSOLE

Removal

1. Remove the shift selector finisher. Refer to

IP-21, "Removal and Installation"

.

2. Remove center console screws, then lift center console rear base away from center console front base

while disconnecting harness connectors.

3. Disconnect remaining harness connectors, then remove center console front base.

Installation

Installation is in the reverse order of removal.

1.

Center console front base

2.

Center console rear base

Front

AWJIA0415ZZ

IP-22

< UNIT DISASSEMBLY AND ASSEMBLY >

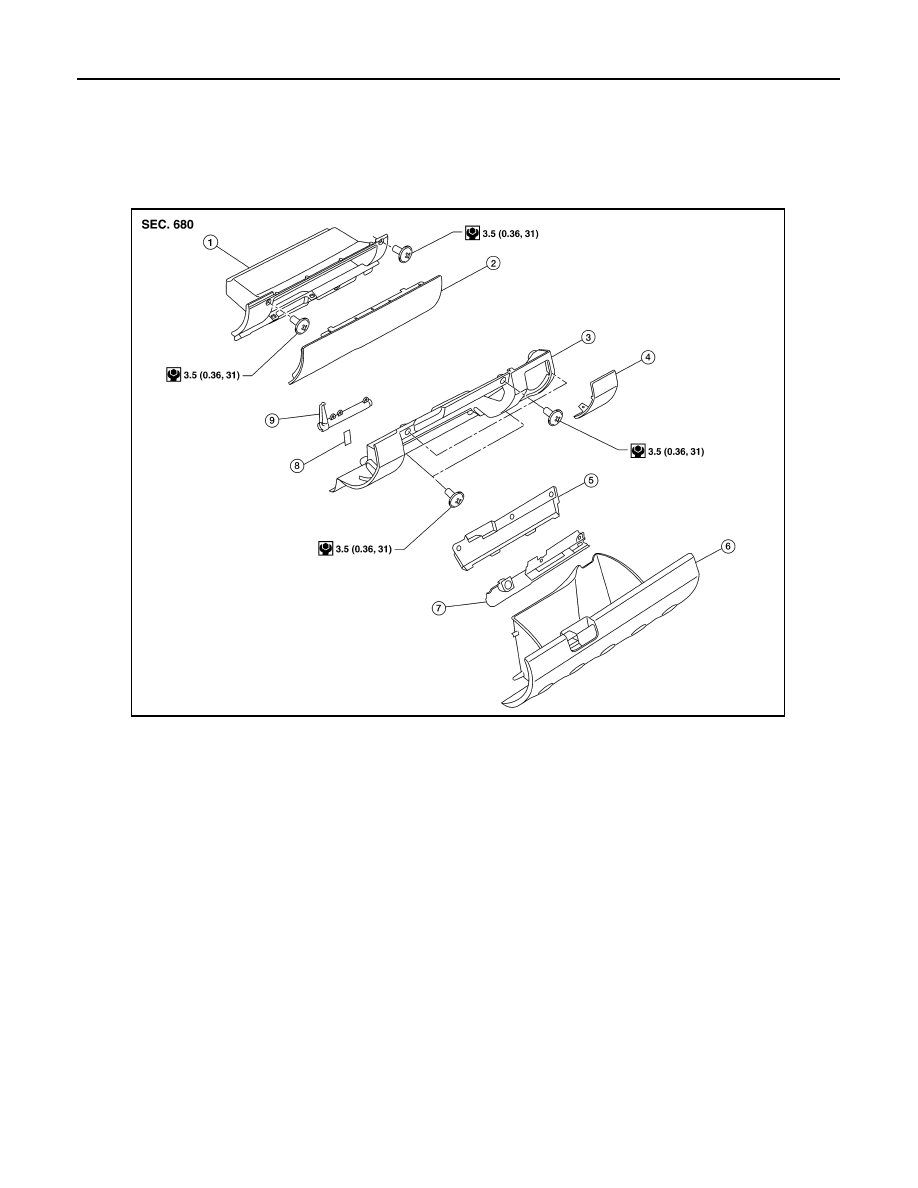

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

UNIT DISASSEMBLY AND ASSEMBLY

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Exploded View

INFOID:0000000009485684

Disassembly and Assembly

INFOID:0000000009485685

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Disassembly

1. Remove fuse block cover.
2. Remove damper hook.
3. Remove lower glove box latch cover.
4. Remove lower glove box latch assembly.

Assembly

Assembly is in the reverse order of disassembly.

UPPER GLOVE BOX

Disassembly

1. Remove upper glove box lid screws.
2. Remove upper glove box lid.

1.

Upper glove box

2.

Upper glove box lid

3.

Lower instrument panel (RH)

4.

Fuse block cover

5.

Lower glove box latch assembly cover 6.

Lower glove box

7.

Lower glove box latch assembly

8.

Damper hook

9.

Lower glove box damper

WIIA1049E

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-23

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Assembly

Assembly is in the reverse order of disassembly.
