IP-12

< REMOVAL AND INSTALLATION >

STEERING COLUMN COVERS

STEERING COLUMN COVERS

Removal and Installation

INFOID:0000000009485675

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2. Remove the steering column cover screws and the steering column upper and lower covers.

INSTALLATION

Installation is in the reverse order of removal.

CLUSTER LID A

IP-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

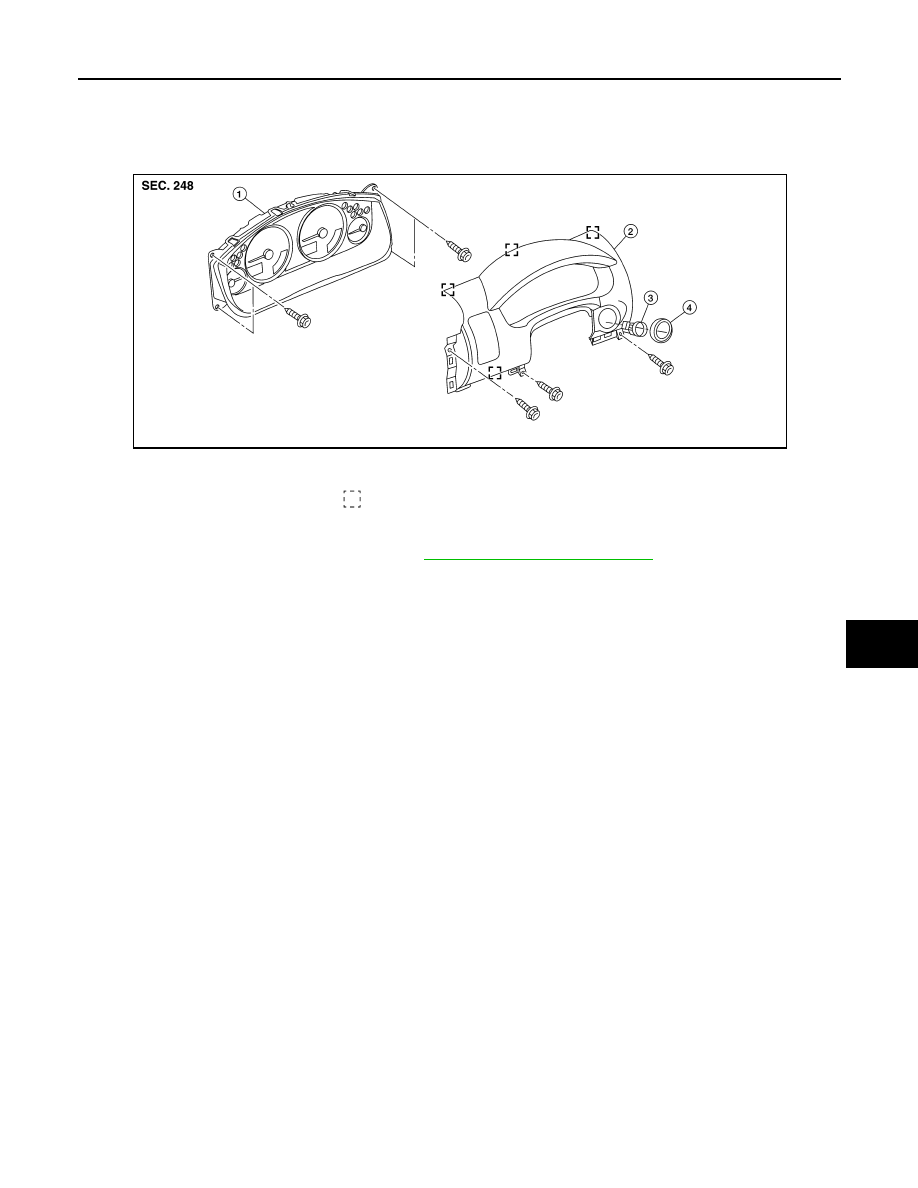

CLUSTER LID A

Removal and Installation

INFOID:0000000009485676

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2. Using a suitable tool, remove the steering lock escutcheon.
3. Remove cluster lid A screws.
4. Release the cluster lid A clips using a suitable tool and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Combination meter

2.

Cluster lid A

3.

Ignition key lamp assembly

4.

Steering lock escutcheon

Metal clip

AWJIA1007ZZ

IP-14

< REMOVAL AND INSTALLATION >

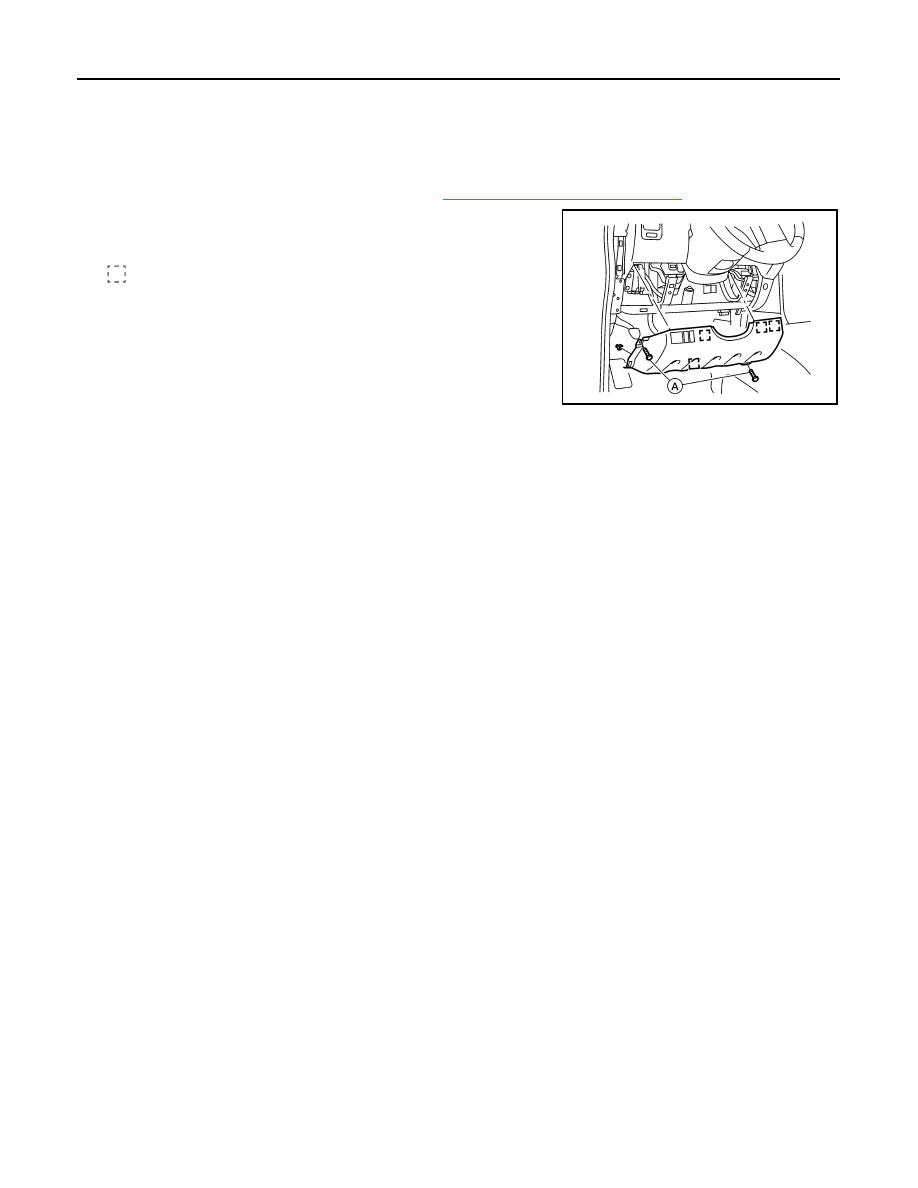

INSTRUMENT LOWER PANEL LH

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000009485677

REMOVAL

1. Remove front pillar upper finisher (LH). Refer to

INT-18, "Removal and Installation"

.

2. Remove instrument lower panel LH screws (A).
3. Release the instrument lower panel LH metal clips using a

sutable tool and remove.

: Metal clip

4. Disconnect the harness connectors from instrument lower panel

LH  and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA1008ZZ

CLUSTER LID C

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

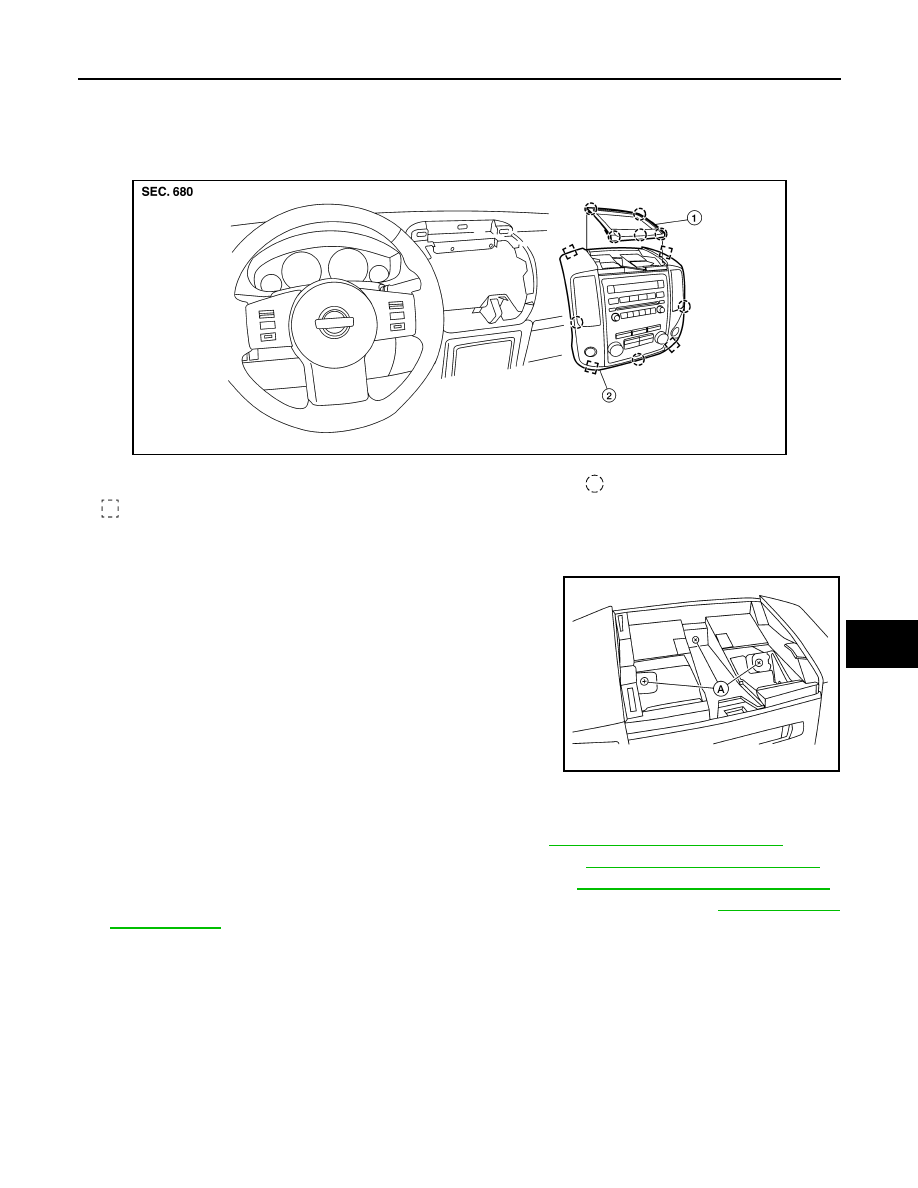

CLUSTER LID C

Removal and Installation

INFOID:0000000009485678

Removal

1. Release the storage tray pawls using a suitable tool and remove.
2. Remove the cluster lid C screws (A).

3. Release the cluster lid C metal clips and pawls using a suitable tool and remove.
4. Disconnect harness connectors from cluster lid C and remove.
5. Remove the audio unit from cluster lid C, if necessary. Refer to

AV-48, "Removal and Installation"

.

6. Remove the front air control from cluster lid C, if necessary. Refer to

VTL-7, "Removal and Installation"

.

7. Remove the hazard switch from cluster lid C, if necessary. Refer to

EXL-162, "Removal and Installation"

.

8. Remove the passenger air bag indicator lamp from cluster lid C, if necessary. Refer to

SR-19, "Removal

and Installation"

.

Installation

Installation is in the reverse order of removal.

AWJIA1009ZZ

1.

Storage tray

2.

Cluster lid C

Pawl

Metal clip

AWJIA1010ZZ
