IP-16

< REMOVAL AND INSTALLATION >

CLUSTER LID D

CLUSTER LID D

Removal and Installation

INFOID:0000000009485679

TYPE 1

Removal

1. Remove center console. Refer to

IP-21, "Removal and Installation"

.

2. Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

3. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-19, "Removal and Installa-

tion"

.

4. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

5. Remove the cluster lid D screws.
6. Disconnect the harness connectors and remove cluster lid D.

Installation

Installation is in the reverse order of removal.

TYPE 2

Removal

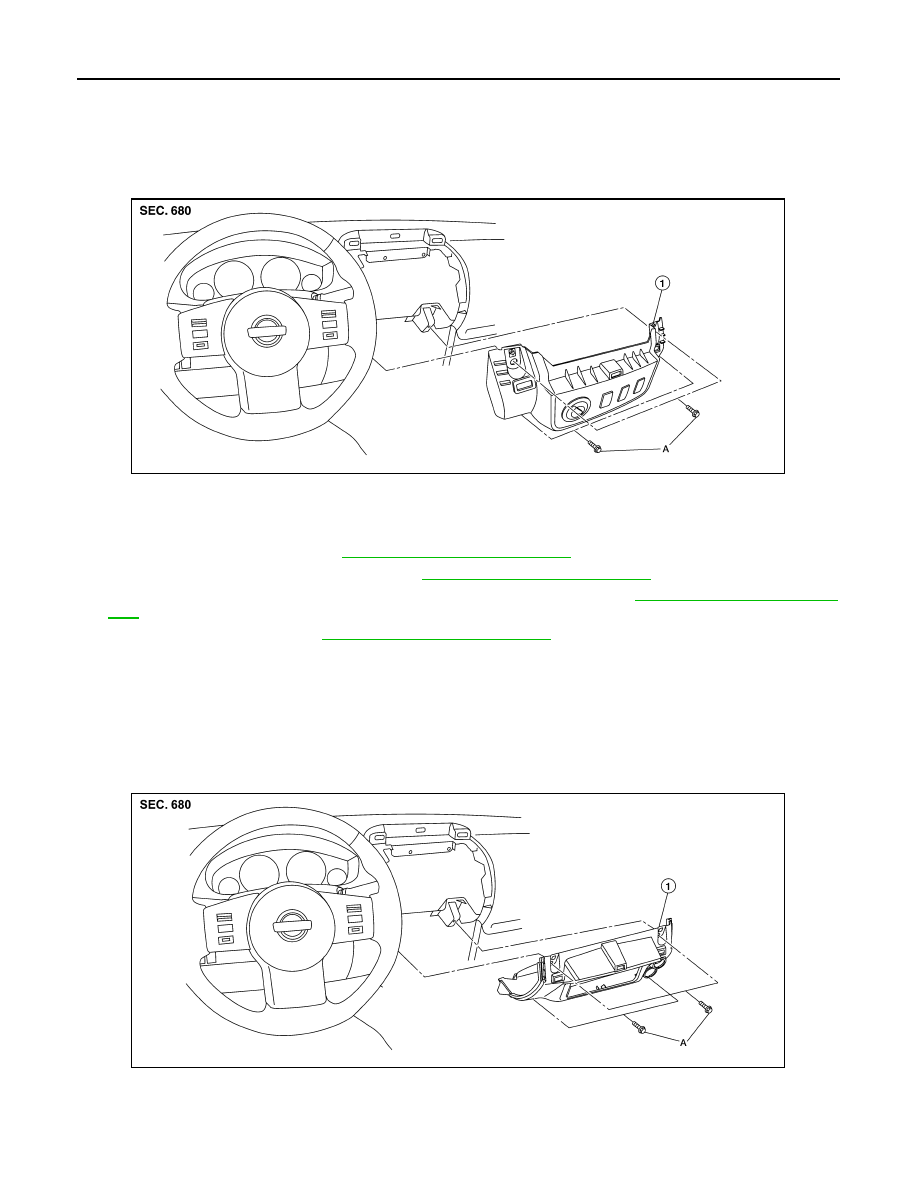

1.

Cluster lid D

A.

Cluster lid D screw

ALJIA0459ZZ

1.

Cluster lid D

A.

Cluster lid D screw

ALJIA0463ZZ

CLUSTER LID D

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

1. Remove center console. Refer to

IP-21, "Removal and Installation"

.

2. Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

3. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-19, "Removal and Installa-

tion"

.

4. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

5. Remove the cluster lid D screws.
6. Disconnect the harness connectors and remove cluster lid D.

Installation

Installation is in the reverse order of removal.

IP-18

< REMOVAL AND INSTALLATION >

UPPER GLOVE BOX

UPPER GLOVE BOX

Removal and Installation

INFOID:0000000009485680

REMOVAL

1. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-19, "Removal and Installa-

tion"

.

2. Remove upper glove box lid screws.
3. Remove upper glove box.

INSTALLATION

Installation is in the reverse order of removal.

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Removal and Installation

INFOID:0000000009485681

REMOVAL

1. Remove front pillar lower finisher (RH). Refer to

INT-18, "Removal and Installation"

.

2. Remove instrument lower panel RH screws.
3. Remove instrument lower panel RH and lower glove box assembly.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Install upper glove box before installing lower glove box if both have been removed.
