SQUEAK AND RATTLE TROUBLE DIAGNOSES

Diagnostic Worksheet

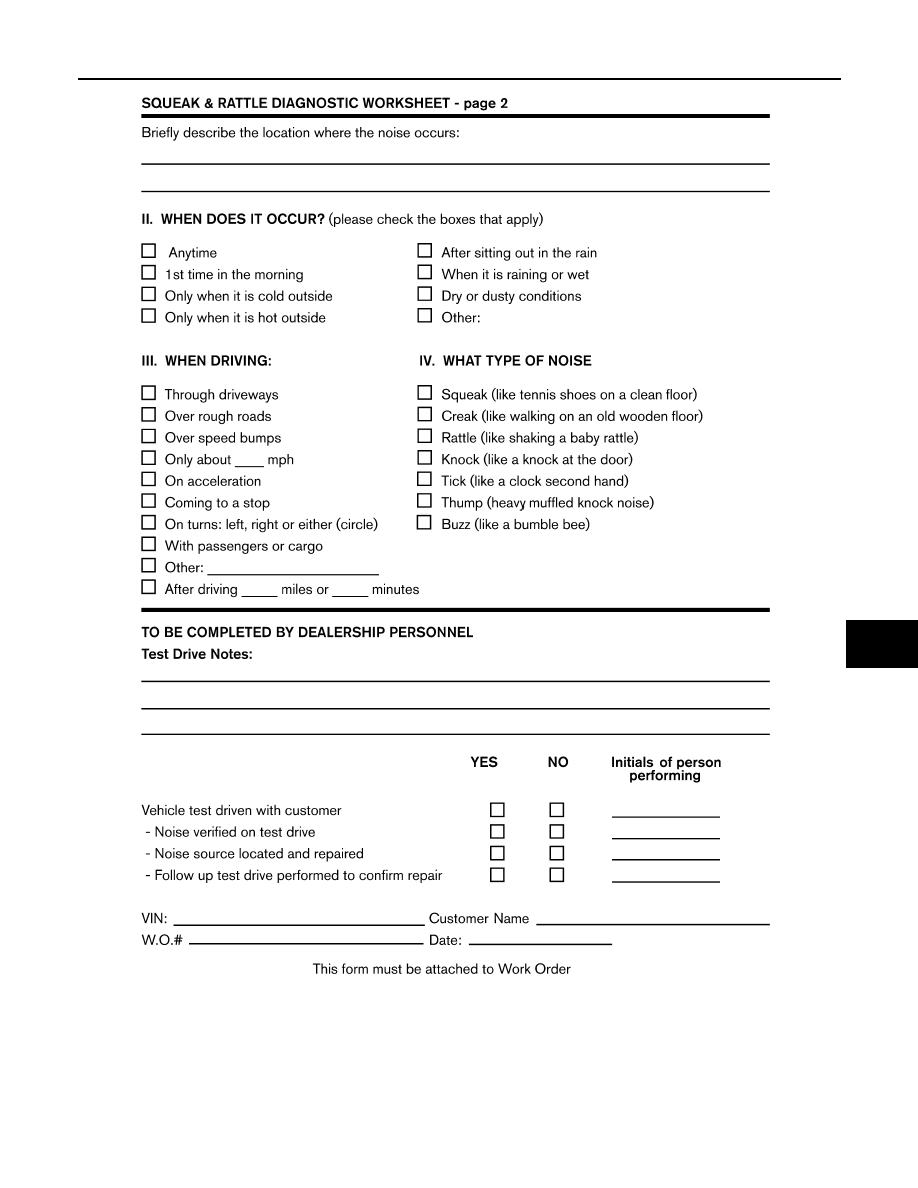

INFOID:0000000009485672

LAIA0072E

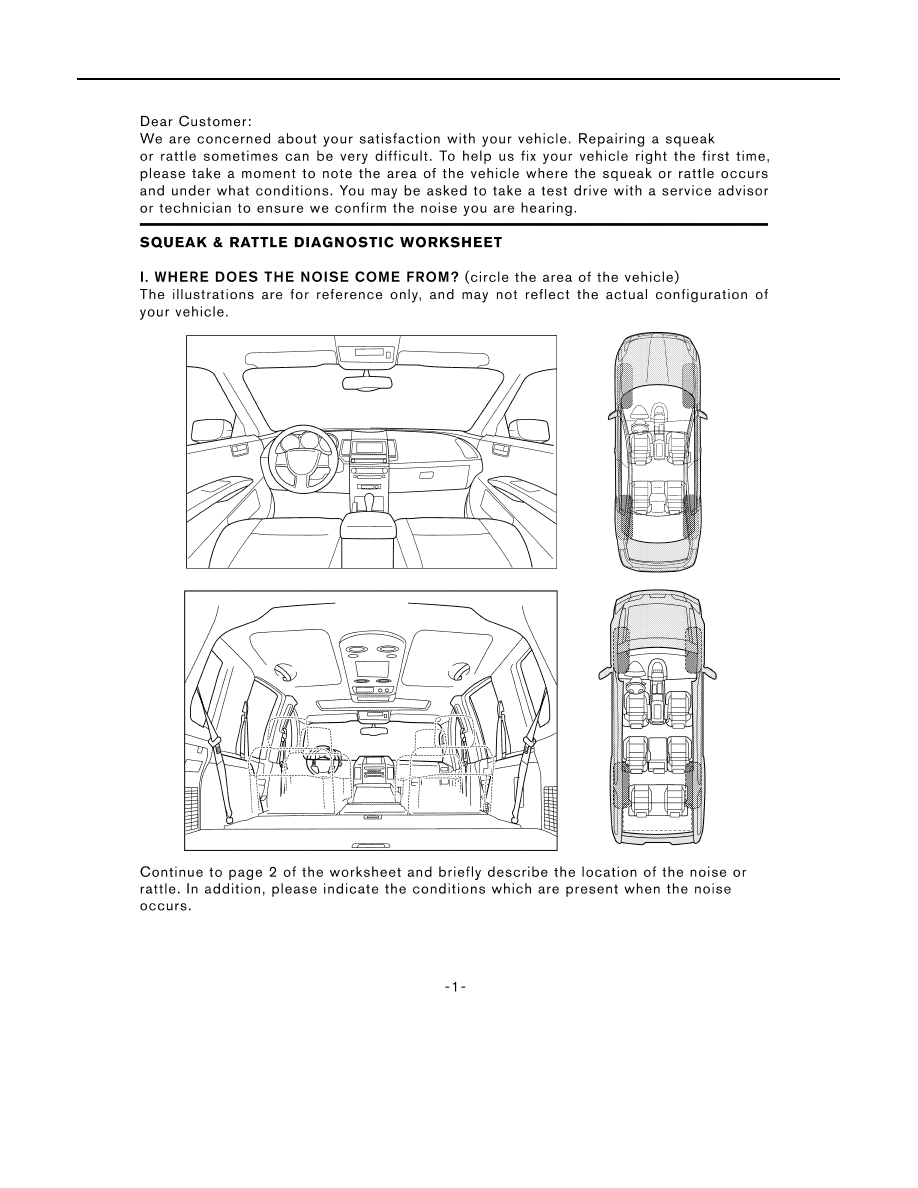

SQUEAK AND RATTLE TROUBLE DIAGNOSES

IP-9

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

LAIA0071E

IP-10

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

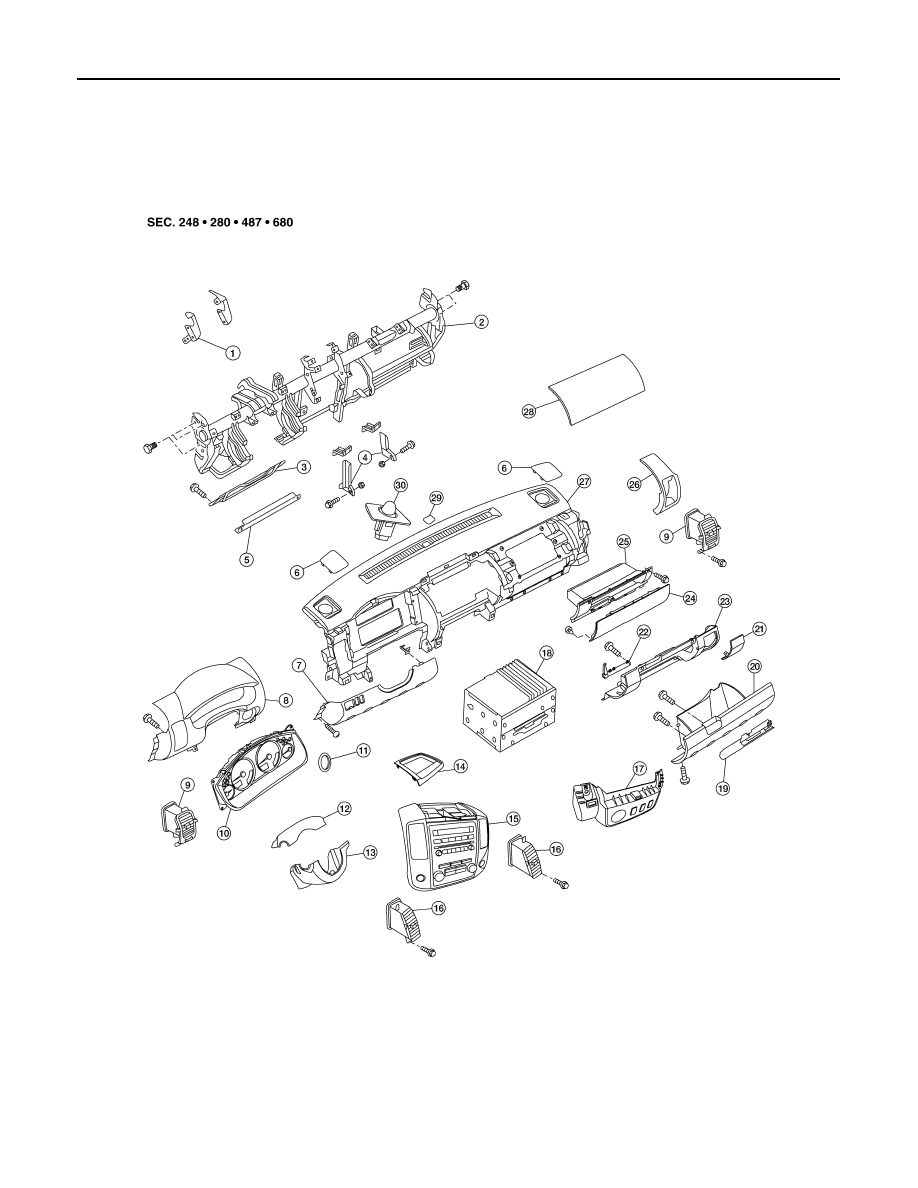

Exploded View

INFOID:0000000009485673

1.

Display unit bracket (LH/RH)

2.

Steering member assembly

3.

Knee protector

4.

Instrument stay (LH/RH)

5.

Knee protector brace

6.

Speaker grille (LH/RH)

7.

Instrument lower panel LH

8.

Cluster lid A

9.

Side ventilator grille (LH/RH)

10. Combination meter

11.

Steering lock escutcheon

12. Steering column upper cover

13. Steering column lower cover

14.

Storage tray

15. Cluster lid C

AWJIA1032ZZ

INSTRUMENT PANEL ASSEMBLY

IP-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000009485674

REMOVAL

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals, then wait at least

three minutes.
1. Disconnect both the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-

72, "Removal and Installation"

.

2. Remove front pillar upper finishers. Refer to

INT-18, "Removal and Installation"

.

3. Remove the center console. Refer to

IP-21, "Removal and Installation"

.

4. Remove the combination meter. Refer to

MWI-84, "Removal and Installation"

.

5. Remove audio unit (if equipped). Refer to

XX-XX, "*****"

 (BASE AUDIO),

AV-108, "Removal and Installa-

tion"

 (DISPLAY AUDIO WITHOUT AMPLIFIER), or

XX-XX, "*****"

 (DISPLAY AUDIO WITH AMPLIFIER).

6. Remove AV control unit (if equipped). Refer to

AV-218, "Removal and Installation"

.

7. Remove cluster lid D. Refer to

IP-16, "Removal and Installation"

.

8. Remove the front passenger air bag module. Refer to

SR-15, "Removal and Installation"

.

9. Remove the instrument stay bolts (LH/RH).
10. Disconnect all remaining harnesses and connectors.
11. Remove instrument panel and pad assembly.

INSTALLATION

Installation is in the reverse order of removal.

16. Center ventilator grille (LH/RH)

17.

Cluster lid D

18. Audio unit

19. Lower glove box latch assembly

20.

Lower glove box assembly

21. Fuse block cover

22. Lower glove box damper assembly

23.

Instrument lower panel RH

24. Upper glove box door

25. Upper glove box

26.

Side ventilator finisher

27. Instrument panel and pad assembly

28. Passenger air bag module

29.

Sensor cover

30. Optical sensor (if equipped)
