BRM-8

< REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

1. Rear floor side (RH)
2. Rear floor rear
3. Storage bin
4. Second seat mounting crossmember
5. Rear floor front
6. Center pillar crossmember assembly
7. Front seat mounting rear crossmember
8. Front floor
9. Front seat mounting crossmember
10. Second crossmember extension
11. Front floor reinforcement
12. Side dash (RH)
13. Lower dash
14. Washer tank bracket
15. Hoodledge reinforcement rear (RH)
16. Hoodledge plate
17. Hoodledge (RH)
18. Hoodledge reinforcement assembly (RH)
19. Rear lower hoodledge (RH)
20. Battery tray
21. Rear lower hoodledge (LH)
22. Hoodledge (LH)
23. Hoodledge reinforcement assembly (LH)
24. Hoodledge reinforcement rear (LH)
25. Side dash (LH)
26. Second crossmember assembly (RH/LH)
27. Inner sill (RH/LH)
28. Front side member assembly (RH/LH)
29. Center floor member assembly
30. Rear side member rear (RH/LH)
31. Rear crossmember
32. Second seat mounting crossmember
33. Third seat mounting bracket assembly
34. Rope hook bracket
35. Rear floor side (LH)
36. Rear floor side upper extension assembly (LH)
37. Third seat mounting rear crossmember assembly
38. Trim mounting bracket
39. Rear floor side upper extension assembly (RH)

BODY COMPONENT PARTS

BRM-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

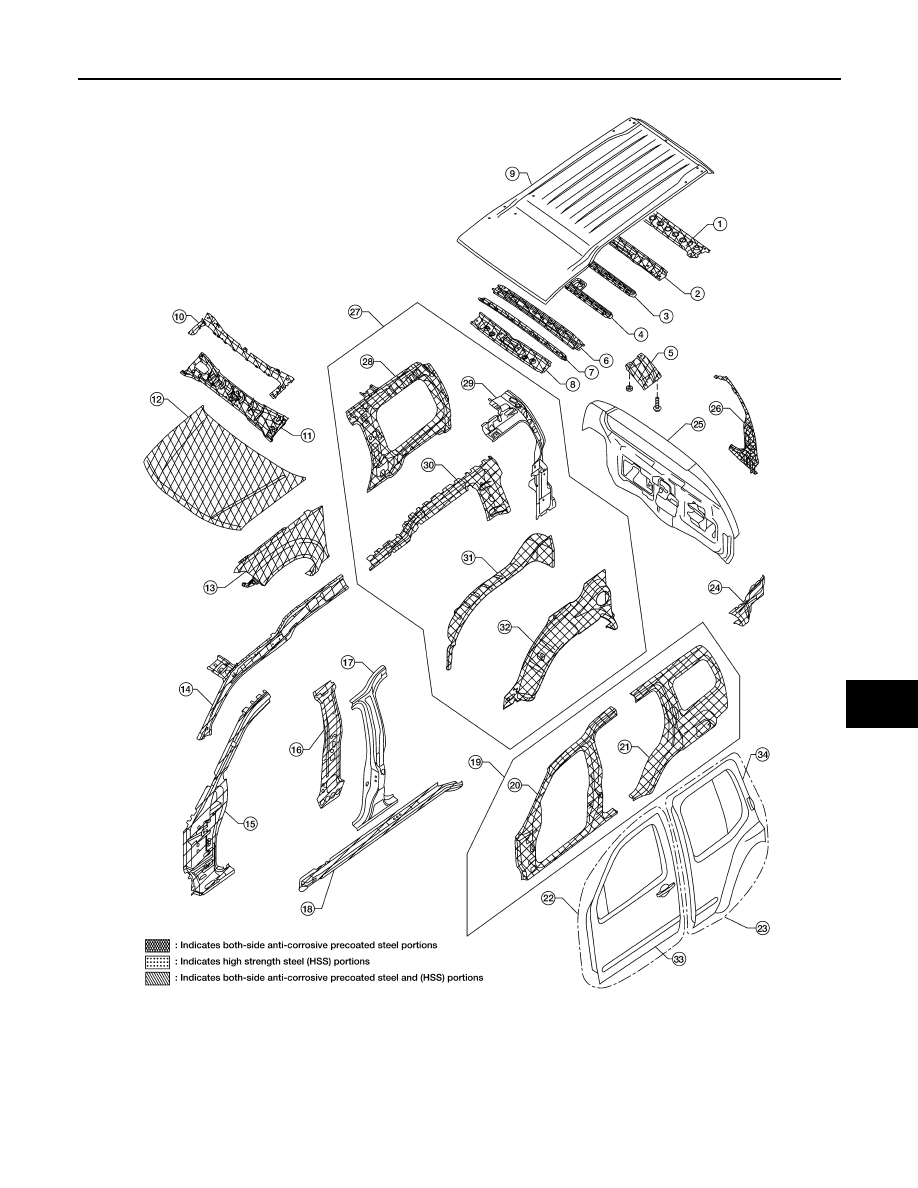

BODY COMPONENT PARTS

1. Rear roof rail
2. Roof 5th bow
3. Roof 4th bow
4. Roof 3rd bow

LIIA2115E

BRM-10

< REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

5. Roof bow second bracket
6. Roof 2nd bow
7. Roof 1st bow
8. Front roof rail
9. Roof
10. Upper dash crossmember assembly
11. Upper dash assembly
12. Hood assembly
13. Front fender (RH/LH)
14. Front inner pillar upper (RH/LH)
15. Front pillar hinge brace (RH/LH)
16. Center inner pillar (RH/LH)
17. Center pillar hinge brace
18. Outer sill reinforcement (RH/LH)
19. Body side outer assembly
20. Front body side outer (RH/LH)
21. Rear body side outer (RH/LH)
22. Front door assembly (RH/LH)
23. Rear door assembly (RH/LH)
24. Rear fender extension (RH/LH)
25. Back door assembly
26. Main back pillar (RH/LH)
27. Body side inner reinforcement assembly (RH/LH)
28. Rear inner side panel (RH/LH)
29. Back pillar reinforcement (RH/LH)
30. Outer roof side rail reinforcement (RH/LH)
31. Rear wheel housing inner (RH/LH)
32. Rear wheel housing outer (RH/LH)
33. Outer front door panel (RH/LH)
34. Outer rear door panel (RH/LH)

BODY COMPONENT PARTS

BRM-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

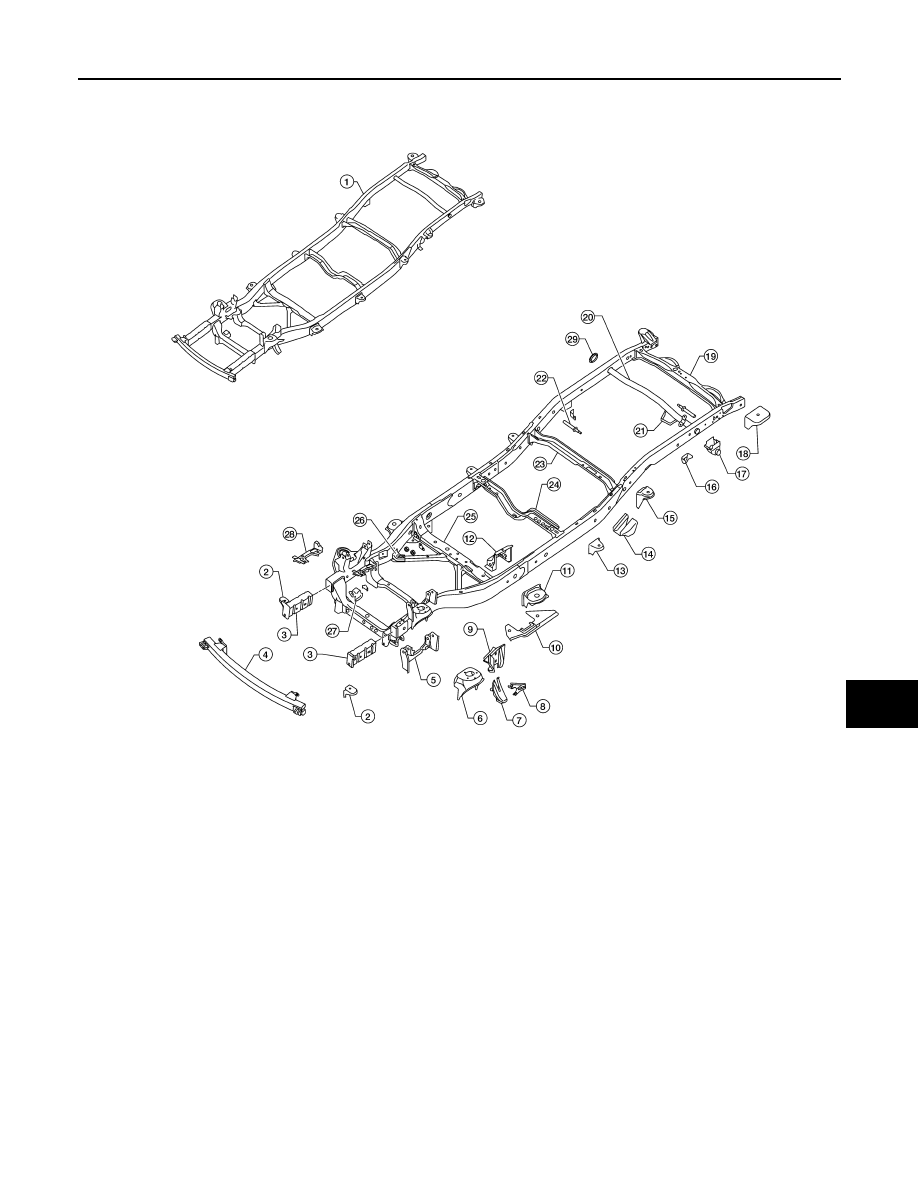

FRAME COMPONENT PARTS

1. Frame assembly
2. 1st cab mounting bracket (RH/LH)
3. Front side member extension assembly (RH/LH)
4. 1st crossmember assembly
5. Front upper link mounting bracket (RH/LH)

LIIA2116E
