6. Front shock absorber mounting bracket (RH/LH)
7. Bound bumper bracket (RH/LH)
8. Front brake hose bracket (RH/LH)
9. Panhard rod bracket reinforcement
10. 4th crossmember gusset (RH/LH)
11. 2nd cab mounting bracket (RH/LH)
12. 4th crossmember gusset (RH/LH)
13. 3rd cab mounting bracket (RH/LH)
14. Rear suspension mounting bracket (RH/LH)
15. 4th cab mounting bracket (RH/LH)
16. Rear bound bumper bracket (RH/LH)
17. Rear suspension rear mounting bracket (RH/LH)
18. Cab mounting bracket assembly (RH/LH)
19. 9th crossmember assembly
20. Rear torsion crossmember
21. Rear brake hose bracket
22. Rear shock pin (RH/LH)
23. 6th crossmember assembly
24. 5th crossmember assembly
25. 4th crossmember assembly
26. Crossmember support (RH/LH)
27. Front differential mounting bracket (RH/LH)
28. Engine mount (RH/LH)
29. Rear torsion crossmember collar (RH/LH)

CORROSION PROTECTION

BRM-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CORROSION PROTECTION

Corrosion Protection

INFOID:0000000009484350

DESCRIPTION

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

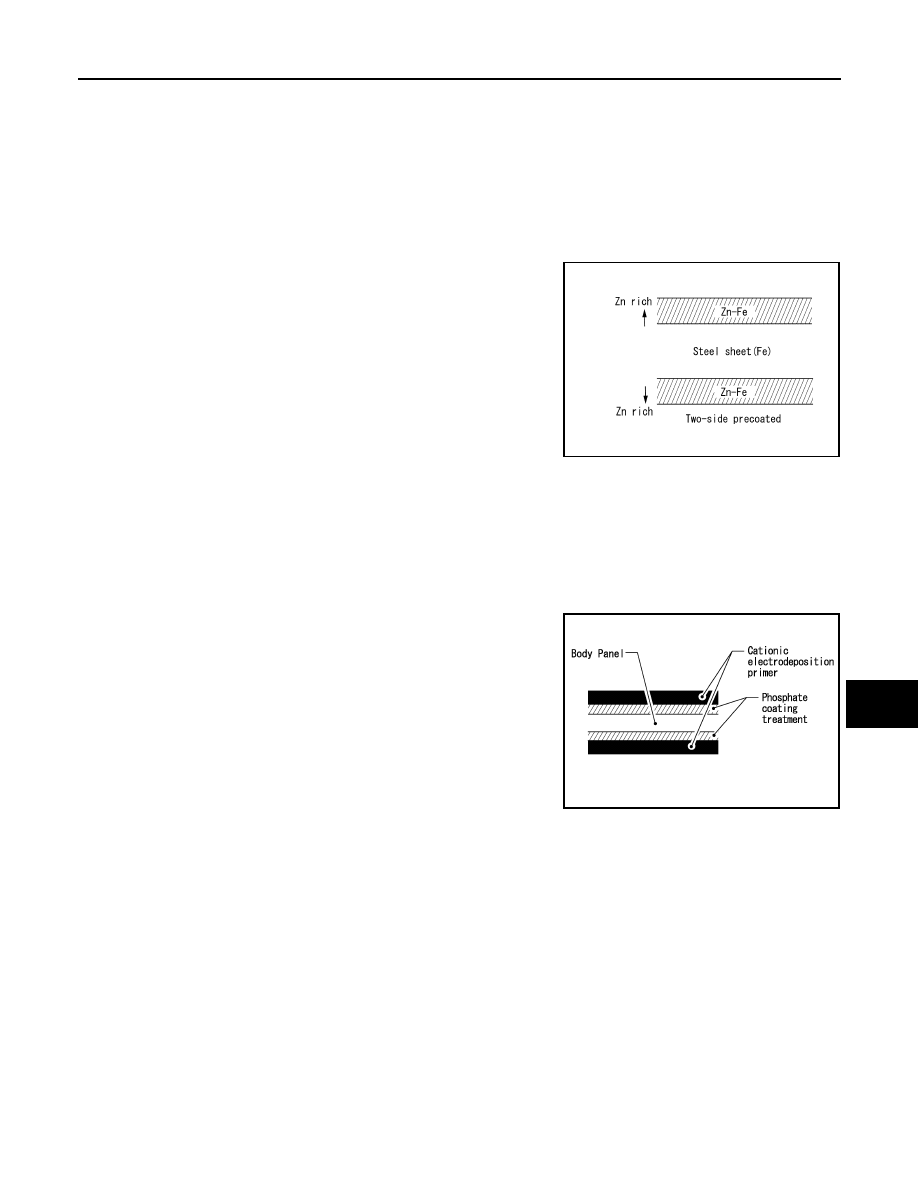

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrode position primer.

NISSAN Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER

A phosphate coating treatment and a cationic electrode position primer, which provide excellent corrosion pro-

tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

NISSAN Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GEN-

UINE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance

built into the vehicle at the factory.

ANTI-CORROSIVE WAX

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

PIIA0093E

PIIA0095E

BRM-14

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf

life.

UNDERCOATING

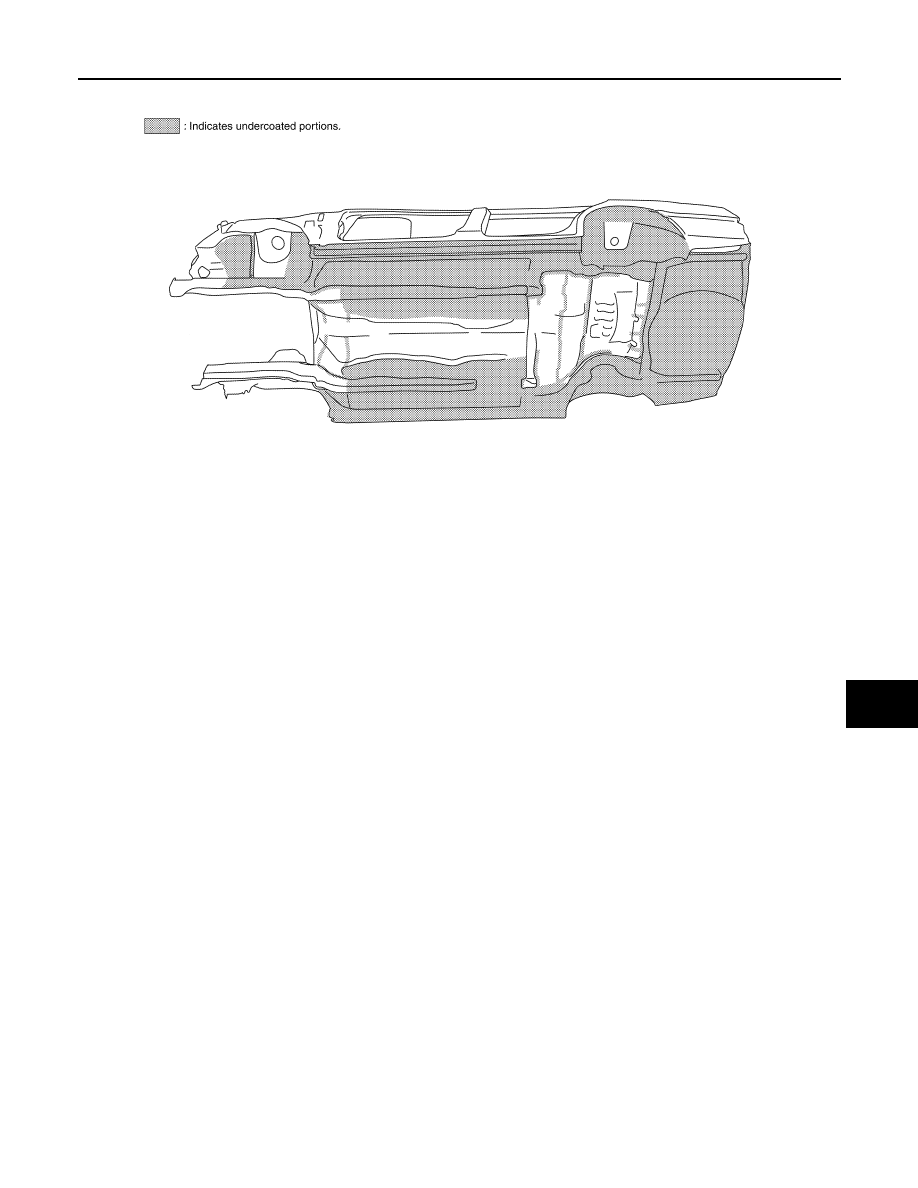

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in undercoating

1. Do not apply undercoating to any place unless specified (such as the areas above the muffler and three

way catalyst which are subjected to heat).

2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.

LIIA2062E

CORROSION PROTECTION

BRM-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

4. Apply bitumen wax after applying undercoating.

Body Sealing

INFOID:0000000009484351

DESCRIPTION

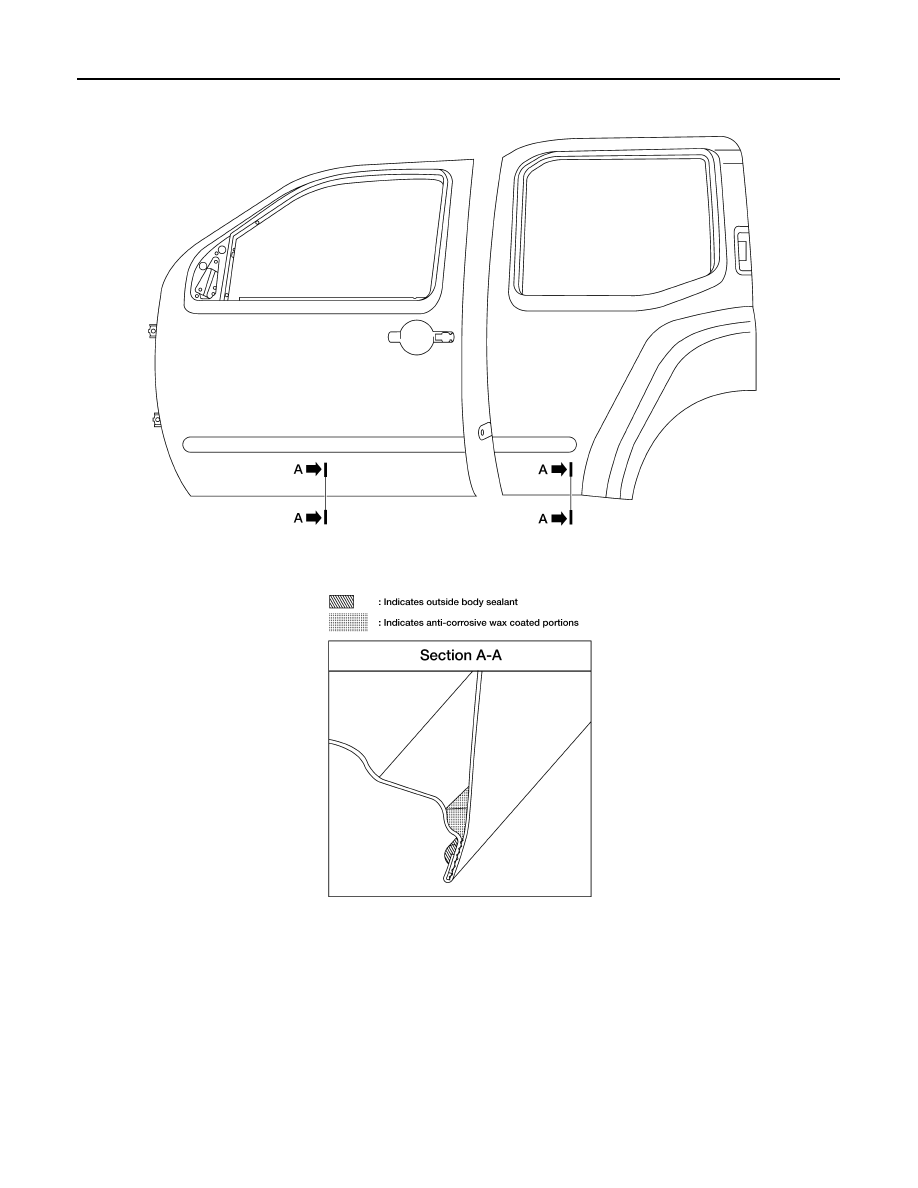

LIIA0129E
