Nissan Xterra. Manual - part 146
BRM-4
< PRECAUTION >
HANDLING PRECAUTIONS
HANDLING PRECAUTIONS
Handling Precaution for Plastics
INFOID:0000000009484348
HANDLING PRECAUTIONS FOR PLASTICS
1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics
(influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.

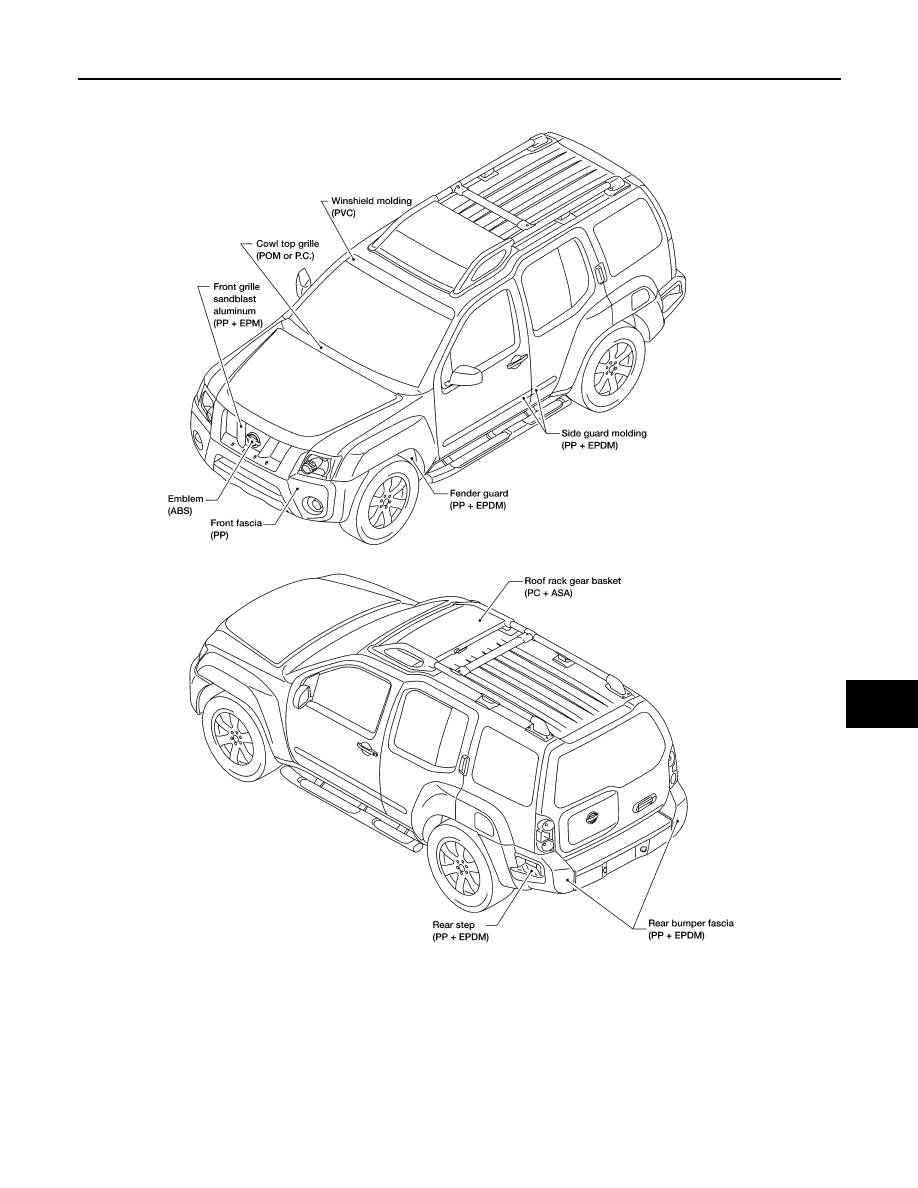

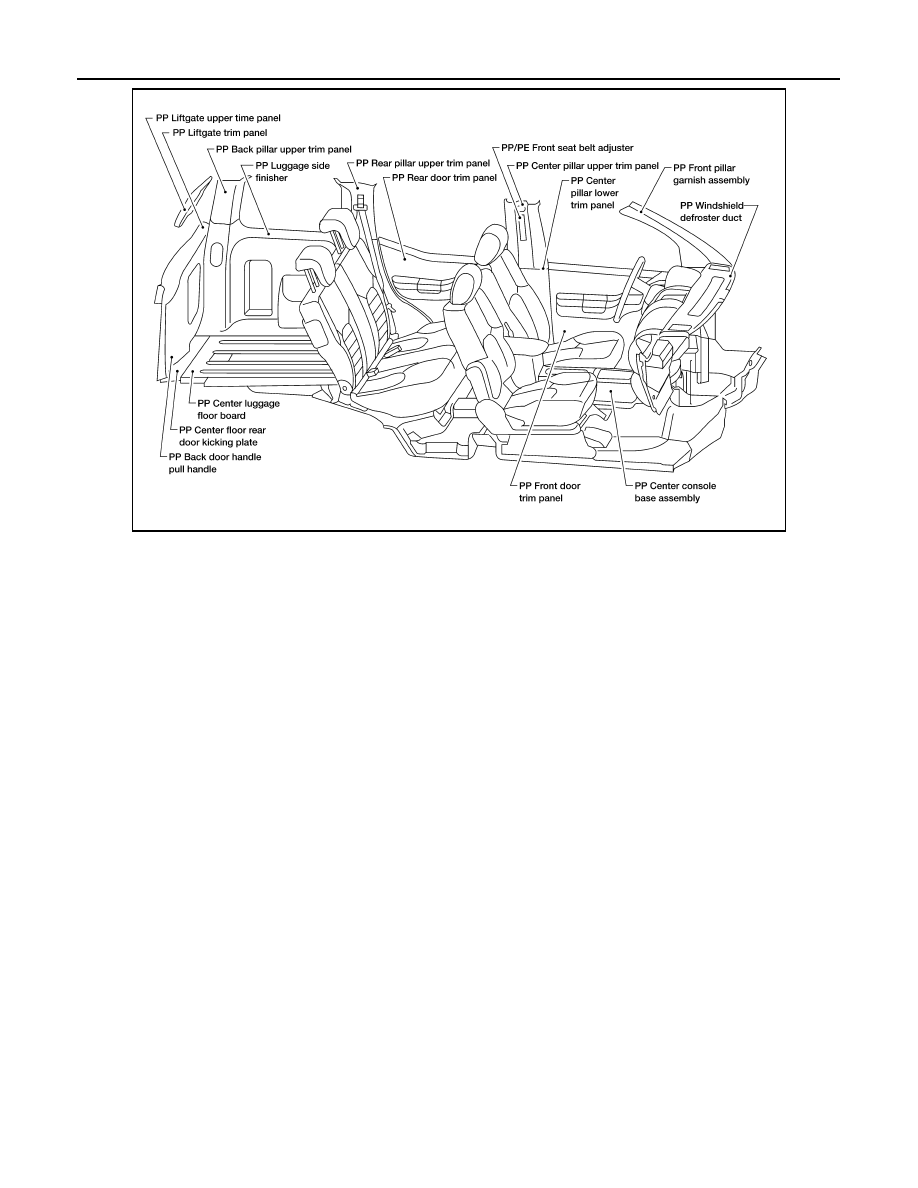

2. Plastic parts should be repaired and painted using methods suiting the materials
,
characteristics.
Abbre-
viation
Material name
Heat resisting
temperature
°C (°F)
Resistance to gasoline and
solvents
Other cautions
PE
Polyethylene
60 (140)
Gasoline and most solvents are
harmless if applied for a very
short time (wipe up quickly).
Flammable
PVC
Polyvinyl Chloride
80 (176)
Same as above.
Poison gas is emitted
when burned.
EPM/
EPDM
Ethylene Propylene (Diene) rub-
ber
80 (176)
Same as above.
Flammable
TPO/
TPR
Thermoplastic Olefine/
Thermoplastic Rubber
80 (176)
Same as above.
Flammable
PP
Polypropylene
90 (194)
Same as above.
Flammable, avoid bat-
tery acid.
UP
Polyester thermoset
90 (194)
Same as above.
Flammable
PS
Polystyrene
80 (176)
Avoid solvents.
Flammable
ABS
Acrylonitrile Butadiene Styrene
resin
80 (176)
Avoid gasoline and solvents.
AES
Acrylonitrile Ethylene Styrene
80 (176)
Same as above.
PMMA
Polymethyl Methacrylate
85 (185)
Same as above.
AAS
Acrylonitrile Acrylic Styrene
85 (185)
Same as above.
AS
Acrylonitrile Styrene
85 (185)
Same as above.
EVA
Polyvinyl Ethyl Acetate
90 (194)
Same as above.
ASA
Acrylonitrile Styrene Acrylate
100 (222)
Same as above.
Flammable
PPO/
PPE
Polyphenylene Oxide/
Polyphenylene Ether
110 (230)
Same as above.
PC
Polycarbonate
120 (248)
Same as above.
PAR
Polyacrylate
180 (356)
Same as above.
L-
LDPE
Lenear Low Density PE
45 (100)
Gasoline and most solvents are
harmless.
Flammable
PUR
Polyurethane
90 (194)
Same as above.
TPU
Thermoplastic Urethane
110 (230)
Same as above.
PPC
Polypropylene Composite
115 (239)
Same as above.
Flammable
POM
Polyacetal
120 (248)
Same as above.
Avoid battery acid.
PBT+P
C
Polybutylene Terephtha-
late+Polycarbonate
120 (248)
Same as above.
Flammable
PA
Polyamide (Nylon)
140 (284)
Same as above.
Avoid immersing in wa-
ter.
PBT
Polybutylene Terephthalate
140 (284)
Same as above.
FRP
Fiber Reinforced Plastics
170 (338)
Same as above.
Avoid battery acid.
PET
Polyethylene Terephthalate
180 (356)
Same as above.
PEI
Polyetherimide
200 (392)
Same as above.
