YAW RATE/SIDE/DECEL G SENSOR

BRC-237

< UNIT REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

YAW RATE/SIDE/DECEL G SENSOR

Removal and Installation

INFOID:0000000009482885

REMOVAL

1. Remove center console rear base. Refer to

IP-10, "Exploded View"

.

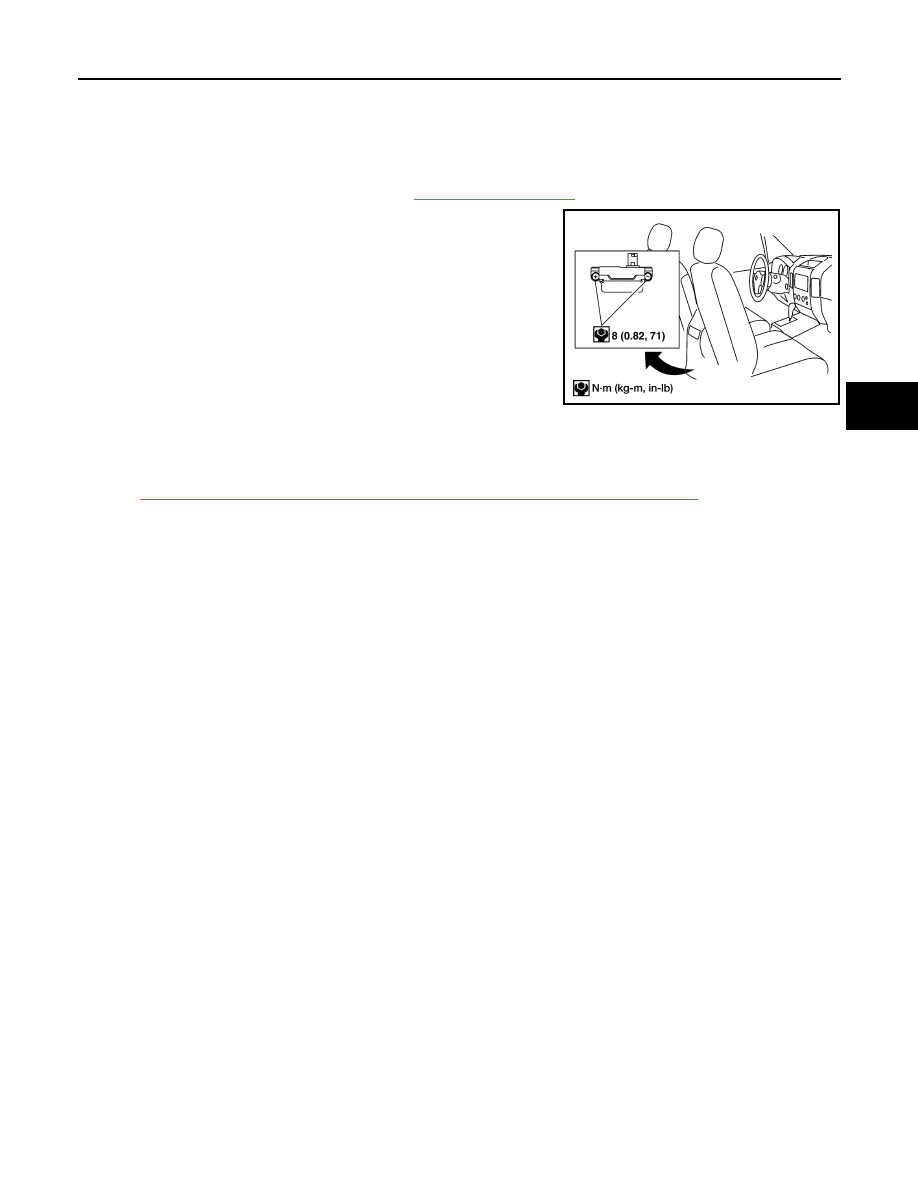

2. Remove yaw rate/side/decel G sensor attaching nuts as shown.

• The location of the sensor is the same for all models.

CAUTION:

• Do not use power tools to remove or install yaw rate/side/

decel G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

3. Disconnect harness connector and remove the yaw rate/side/

decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After performing the above work, calibrate the decel G sensor settings of the yaw rate/side/decel G sensor.

Refer to

BRC-13, "CALIBRATION OF DECEL G SENSOR : Special Repair Requirement"

.

WFIA0230E

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

FEATURES OF NEW MODEL ......................

2

BODY EXTERIOR PAINT COLOR  .....................

2

Body Exterior Paint Color ..........................................

2

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

HANDLING PRECAUTIONS ...............................

4

Handling Precaution for Plastics  ...............................

4

REMOVAL AND INSTALLATION ................

7

BODY COMPONENT PARTS  .............................

7

Body Component Parts  .............................................

7

CORROSION PROTECTION  ............................

13

Corrosion Protection ................................................

13

Body Sealing  ...........................................................

15

BODY CONSTRUCTION ..................................

19

Body Construction  ...................................................

19

BODY ALIGNMENT  ..........................................

20

Body Alignment  .......................................................

20

Body Mounting .........................................................

33

REPAIRING HIGH STRENGTH STEEL  ...........

35

Precaution in Repairing High Strength Steel  ...........

35

REPLACEMENT OPERATIONS .......................

38

Replacement Operation ...........................................

38

Foam Repair ............................................................

53

BRM-2

< FEATURES OF NEW MODEL >

BODY EXTERIOR PAINT COLOR

FEATURES OF NEW MODEL

BODY EXTERIOR PAINT COLOR

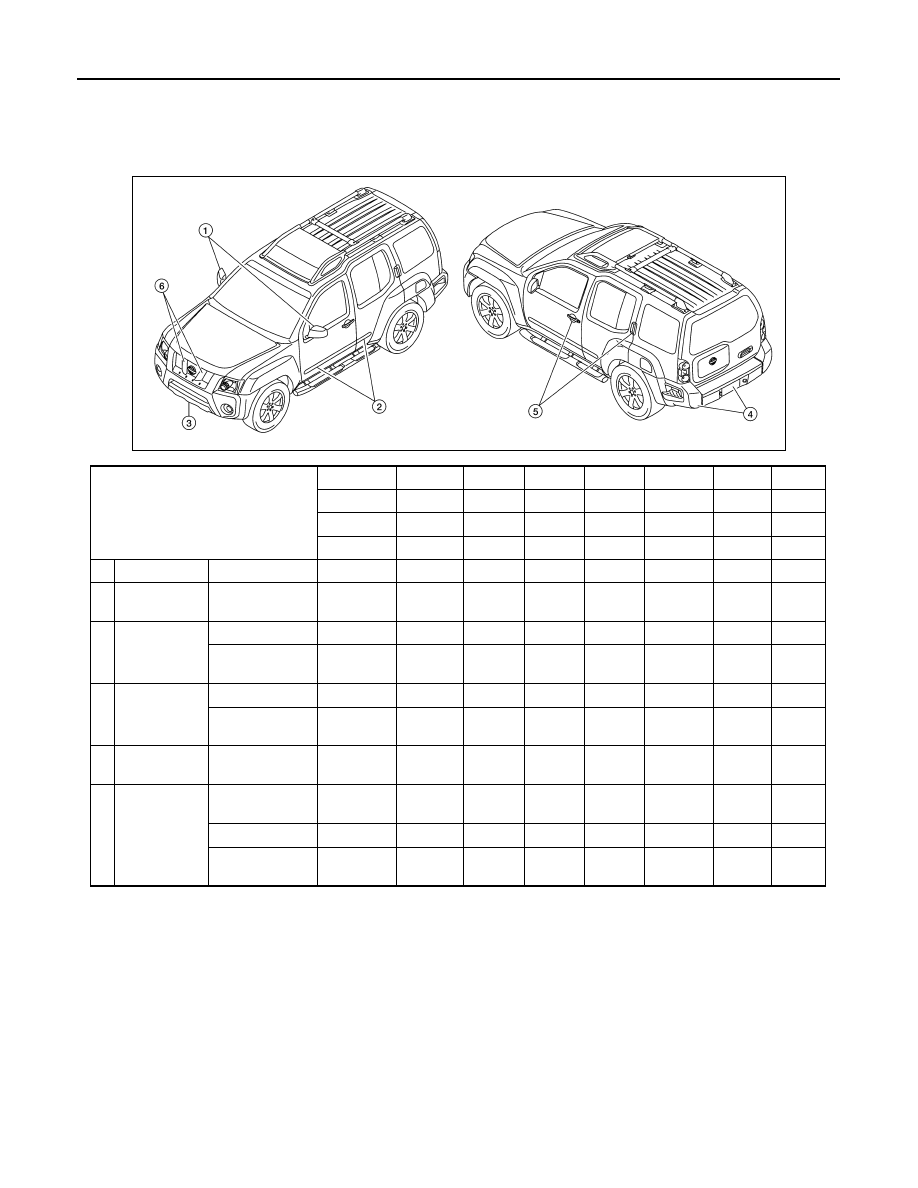

Body Exterior Paint Color

INFOID:0000000009484346

2M: Metallic with clear; 2S: 2-Coat Solid with clear, 2P: Pearl or Mica with clear; 2PM: Pearl - mica and metallic with clear, t: Primerless
carbamate clear

AWIIA1232GB

Component

Color code

K23

K26

KH3

B17

NAH

EAF

QAK

Description

Silver

Grey

Black

Blue

Red

Orange

White

Paint type

2M

2P

2S

2M

2M

2PM

2S

Clear coat

t

t

t

t

t

t

t

1

Door Mirrors

X, S, Pro-4X

Black

—

—

—

—

—

—

—

2

Side Guard
Molding

S, Pro-4X

Black

—

—

—

—

—

—

—

3

Front Bumper
Finisher

Side

Black

—

—

—

—

—

—

—

Center

Sandblast
Aluminum

LX04

LX04

LX04

LX04

LX04

LX04

LX04

4

Rear  Bumper

Side

Black

—

—

—

—

—

—

—

Center

Sandblast
Aluminum

LX04

LX04

LX04

LX04

LX04

LX04

LX04

5

Door Outside
Handles

X, S, Pro-4X

Black

—

—

—

—

—

—

—

6

Front Grille

Emblem

Chromium
plate

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Center

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

Frame

Sandblast
Aluminum

LX04

LX04

LX04

LX04

LX04

LX04

LX04

PRECAUTIONS

BRM-3

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010202314

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.
