TRANSAXLE ASSEMBLY

TM-21

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

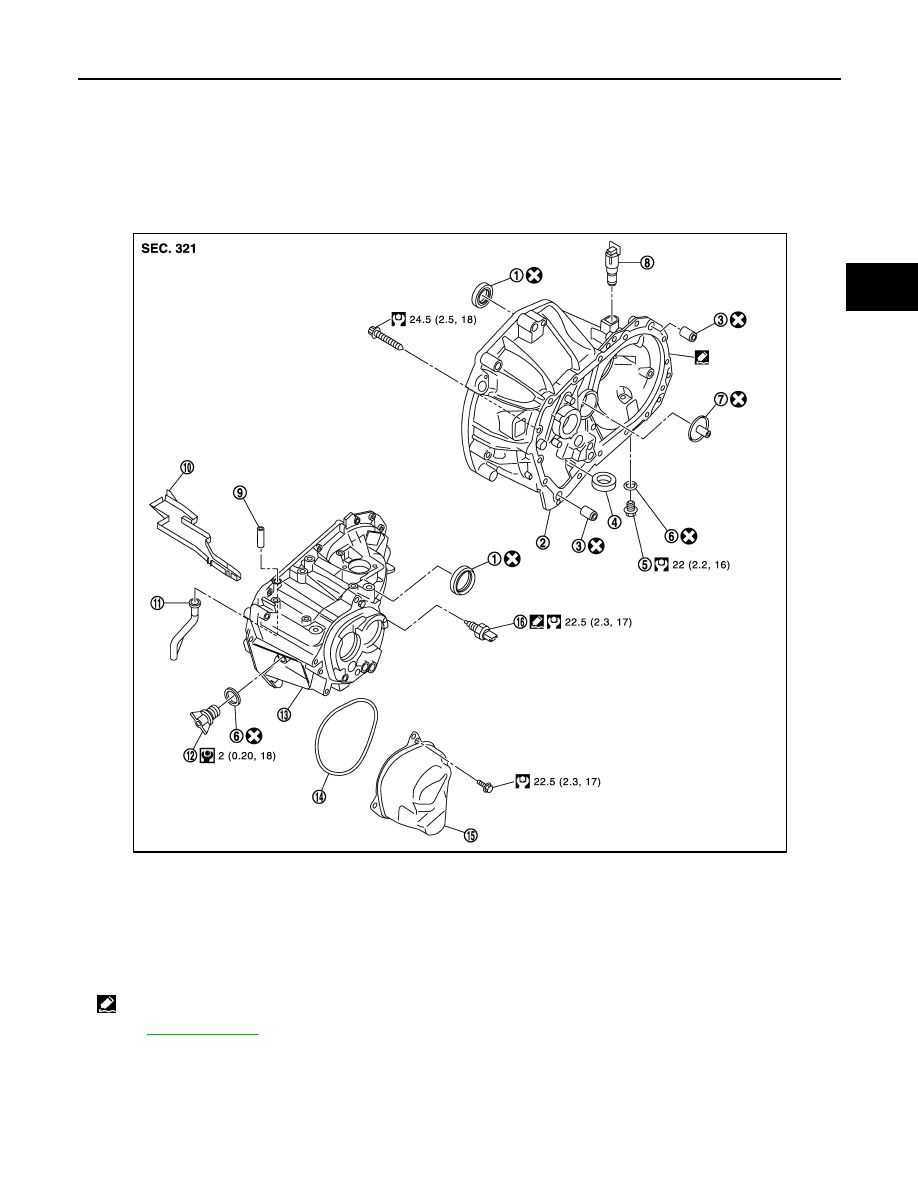

Exploded View

INFOID:0000000006056579

CASE AND HOUSING

SHAFT AND GEAR

1.

Differential side oil seal

2.

Clutch housing

3.

Dowel pin

4.

Magnet

5.

Drain plug

6.

Gasket

7.

Oil channel

8.

Speed sensor

9.

2 way connector

10. Oil gutter

11. Air breather inner tube

12. Filler plug

13. Transaxle case

14. O-ring

15. Rear housing

16. Position switch

: Apply Genuine Liquid Gasket, Three Bond 1215 or an equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0790GB

TM-22

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

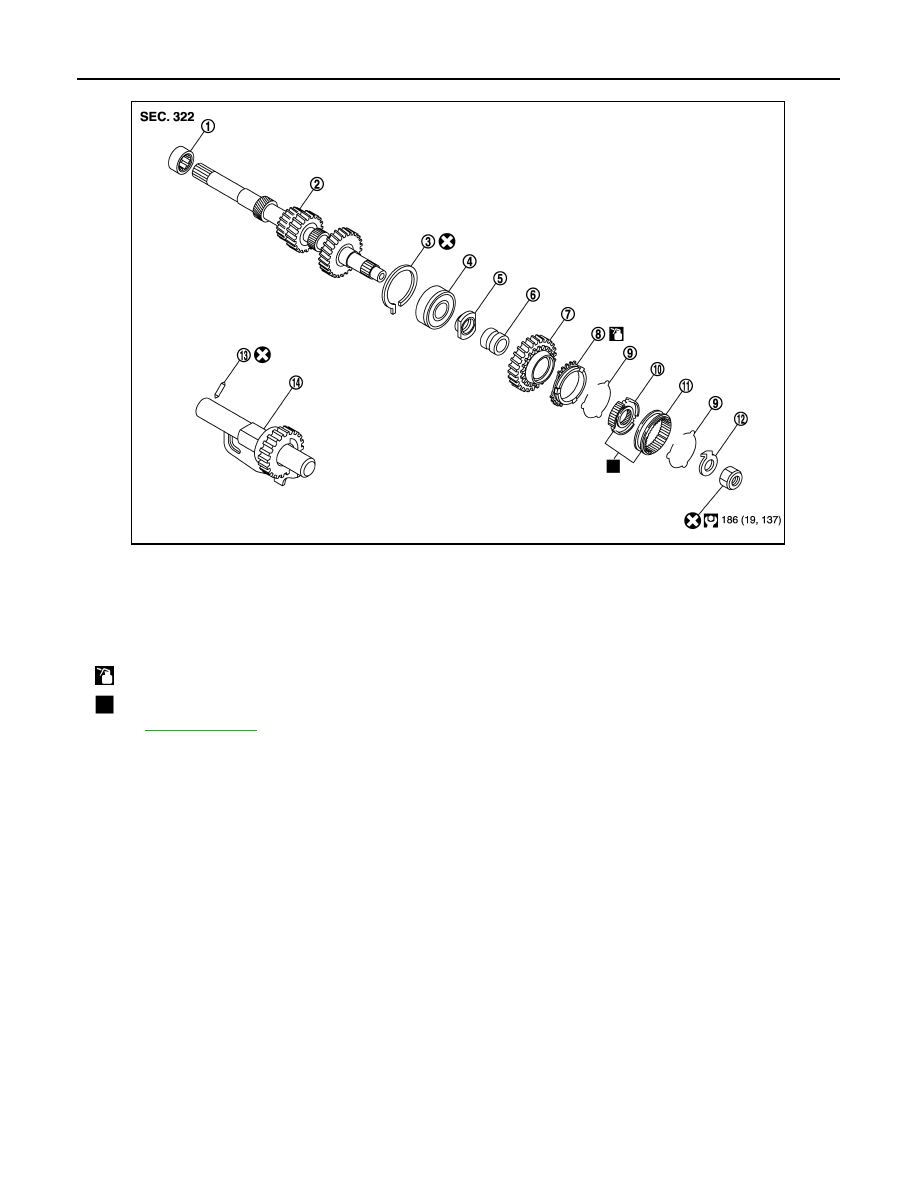

TRANSAXLE ASSEMBLY

1.

Input shaft front bearing

2.

Input shaft

3.

Snap ring

4.

Input shaft rear bearing

5.

Adapter plate

6.

Bushing

7.

5th input gear

8.

5th baulk ring

9.

Spread spring

10. 5th-reverse synchronizer hub

11. 5th-reverse coupling sleeve

12. Retaining pin

13. Reverse gear assembly

: Apply gear oil.

: Replace the parts as a set.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0791GB

TRANSAXLE ASSEMBLY

TM-23

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

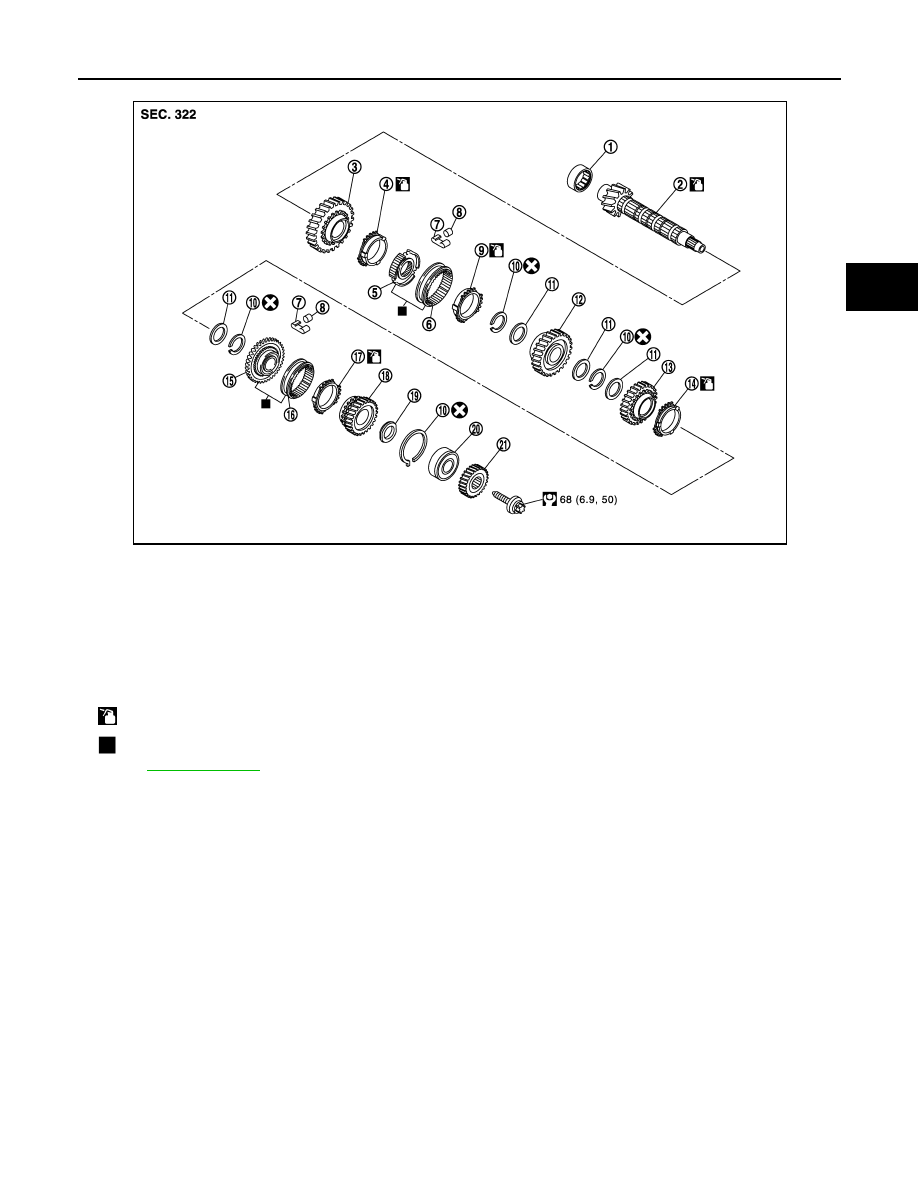

SHIFT FORK AND FORK ROD

1.

Mainshaft front bearing

2.

Mainshaft

3.

1st main gear

4.

1st baulk ring

5.

1st-2nd synchronizer hub

6.

1st-2nd coupling sleeve

7.

Spring

8.

Insert key

9.

2nd baulk ring

10.

Snap ring

11. Thrust washer

12. 2nd main gear

13.

3rd main gear

14. 3rd baulk ring

15. 3rd-4th synchronizer hub

16.

3rd-4th coupling sleeve

17. 4th baulk ring

18. 4th main gear

19.

Spacer

20. Mainshaft rear bearing

21. 5th main gear

: Apply gear oil.

: Replace the parts as a set.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0792GB

TM-24

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

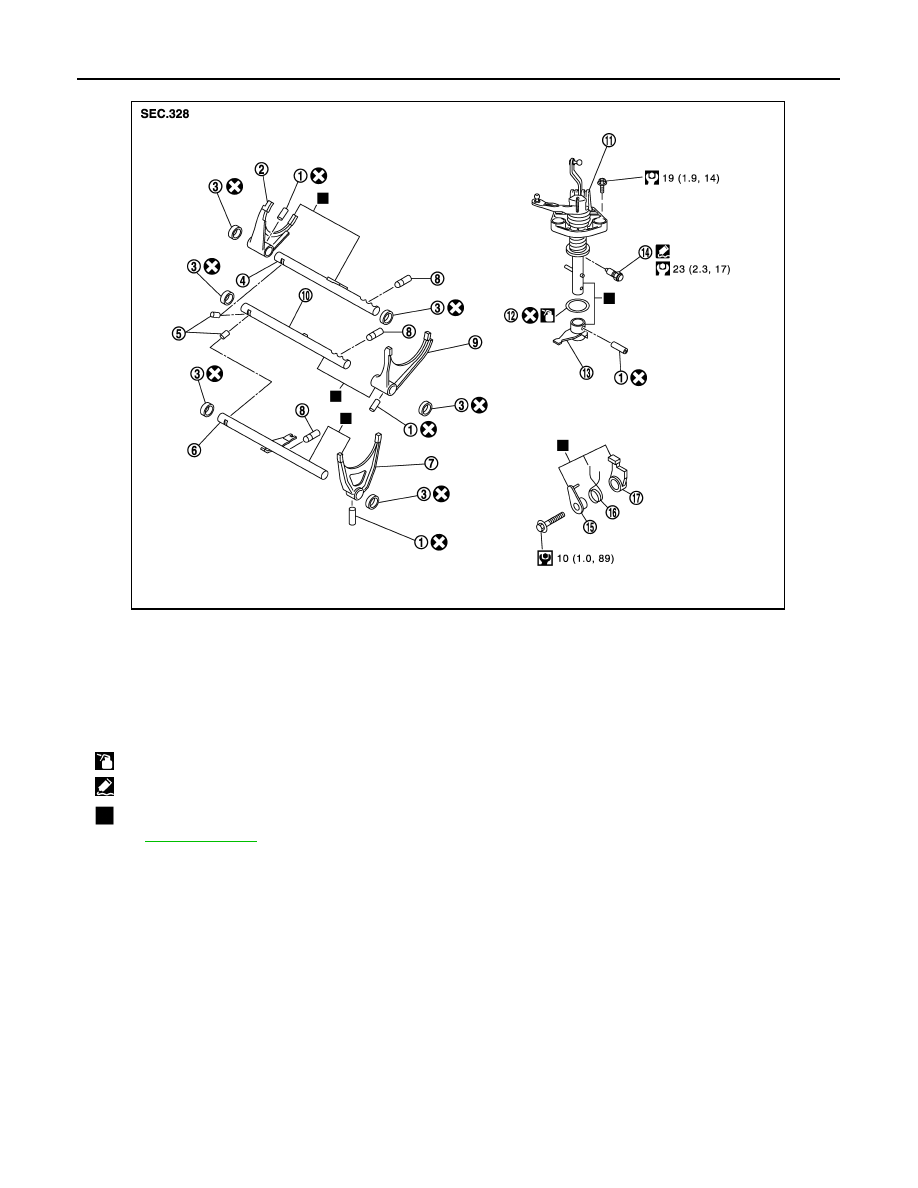

FINAL DRIVE

1.

Retaining pin

2.

1st-2nd shift fork

3.

Bushing

4.

1st-2nd fork rod

5.

Lock pin

6.

5th-reverse fork rod

7.

5th-reverse shift fork

8.

Check ball

9.

3rd-4th shift fork

10. 3rd-4th fork rod

11. Control shaft

12. O-ring

13. Selector

14. Check ball plug

15. Bushing

16. Spring

17. Gear catch

: Apply gear oil.

: Apply Genuine Liquid Gasket, Three Bond 1215 or an equivalent.

: Replace the parts as a set.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0485GB
