MIR-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

*: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

Monitor Item

Condition

REQ SW -DR

Indicates [On/Off] condition of door request switch (driver side)

REQ SW -AS

Indicates [On/Off] condition of door request switch (passenger side)

REQ SW -BD/TR

Indicates [On/Off] condition of back door request switch

PUSH SW

Indicates [On/Off] condition of push-button ignition switch

CLUTCH SW

NOTE:
This item is indicated, but not monitored

BRAKE SW 1

Indicates [On/Off] condition of stop lamp switch

BRAKE SW 2

Indicates [On/Off]* condition of stop lamp switch power supply

DETE/CANCL SW

Indicates [On/Off] condition of P position

SFT PN/N SW

Indicates [On/Off] condition of P or N position

S/L -LOCK

Indicates [On/Off] condition of steering lock unit (LOCK)

S/L -UNLOCK

Indicates [On/Off] condition of steering lock unit (UNLOCK)

S/L RELAY -F/B

Indicates [On/Off] condition of steering lock relay

UNLK SEN -DR

Indicates [On/Off] condition of driver door UNLOCK status

PUSH SW -IPDM

Indicates [On/Off] condition of push-button ignition switch

IGN RLY1 -F/B

Indicates [On/Off] condition of ignition relay 1

DETE SW -IPDM

Indicates [On/Off] condition of P position

SFT PN -IPDM

Indicates [On/Off] condition of P or N position

SFT P -MET

Indicates [On/Off] condition of P position

SFT N -MET

Indicates [On/Off] condition of N position

ENGINE STATE

Indicates [Stop/Stall/Crank/Run] condition of engine states

S/L LOCK-IPDM

Indicates [On/Off] condition of steering lock unit (LOCK)

S/L UNLK-IPDM

Indicates [On/Off] condition of steering lock unit (UNLOCK)

S/L RELAY-REQ

Indicates [On/Off] condition of steering lock relay

VEH SPEED 1

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

VEH SPEED 2

Display the vehicle speed signal received from ABS or VDC or TCM by numerical value [Km/h]

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver side door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger side door status

ID OK FLAG

Indicates [Set/Reset] condition of key ID

PRMT ENG STRT

Indicates [Set/Reset] condition of engine start possibility

PRMT RKE STRT

NOTE:
This item is indicated, but not monitored

TRNK/HAT MNTR

NOTE:
This item is indicated, but not monitored

RKE OPE COUN1

When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing

RKE OPE COUN2

NOTE:
This item is indicated, but not monitored

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is indicated, but not monitored

RKE-PANIC

Indicates [On/Off] condition of PANIC button of Intelligent Key

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key

DIAGNOSIS SYSTEM (BCM)

MIR-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Test item

Description

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation

INSIDE BUZZER

This test is able to check warning chime in combination meter operation
• Take Out: Take away warning chime sounds when CONSULT-III screen is touched
• Key: Key warning chime sounds when CONSULT-III screen is touched
• Knob: OFF position warning chime sounds when CONSULT-III screen is touched
• Off: Non-operation

INDICATOR

This test is able to check warning lamp operation
• KEY ON: “KEY” Warning lamp illuminates when CONSULT-III screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT-III screen is touched
• Off: Non-operation

INT LAMP

This test is able to check interior room lamp operation
• On: Operate
• Off: Non-operation

LCD

This test is able to check meter display information
• B&P N: Engine start information indicate when CONSULT-III screen is touched
• B&P I: Engine start information indicate when CONSULT-III screen is touched
• ID NG: This item is displayed, but cannot be monitored
• ROTAT: This item is displayed, but cannot be monitored
• SFT P: Shift P warning lamp indicate when CONSULT-III screen is touched
• INSRT: This item is displayed, but cannot be monitored
• BATT: Key warning lamp indicator when CONSULT-III screen is touched
• NO KY: Key warning lamp indicator when CONSULT-III screen is touched
• OUTKEY: Engine start information indicate when CONSULT-III screen is touched
• LK WN: Engine start information indicate when CONSULT-III screen is touched

FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT-III screen is touched

P RANGE

This test is able to check AT shift selector power supply
• On: Operate
• Off: Non-operation

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT-III screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT-III screen is
touched

TRUNK/BACK DOOR

NOTE:
This item is indicated, but not tested

RETRACTABLE MIRROR

This test is able to check auto retractable door mirror operation
• On: Operate
• Off: Non-operation

MIR-14

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000006023378

ECU

Reference

BCM

BCS-18, "Reference Value"

BCS-37, "Fail-safe"

BCS-39, "DTC Inspection Priority Chart"

BCS-40, "DTC Index"

DOOR MIRROR SYSTEM

MIR-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

WIRING DIAGRAM

DOOR MIRROR SYSTEM

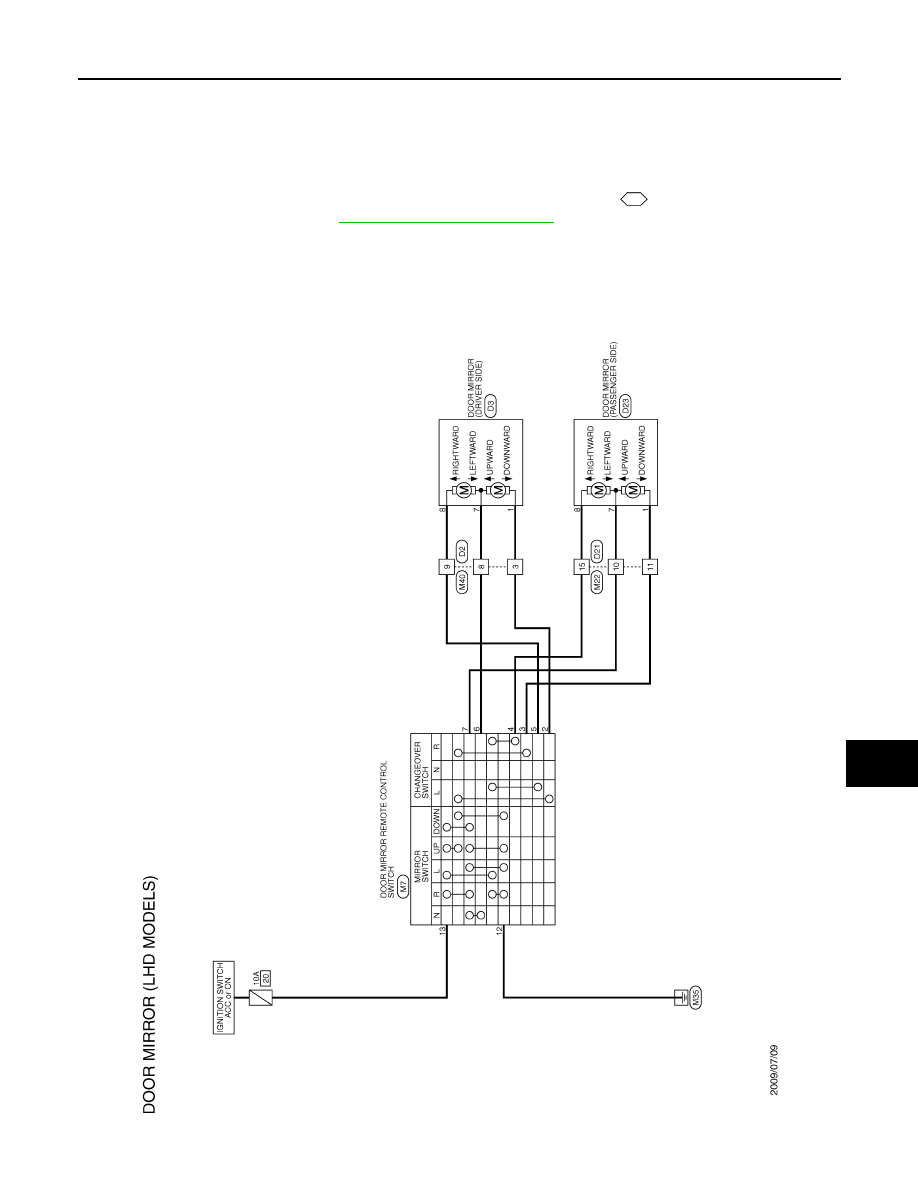

Wiring Diagram

INFOID:0000000006007915

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWM4019GB
