5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

PREPARATION

MIR-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000006007912

Tool name

Description

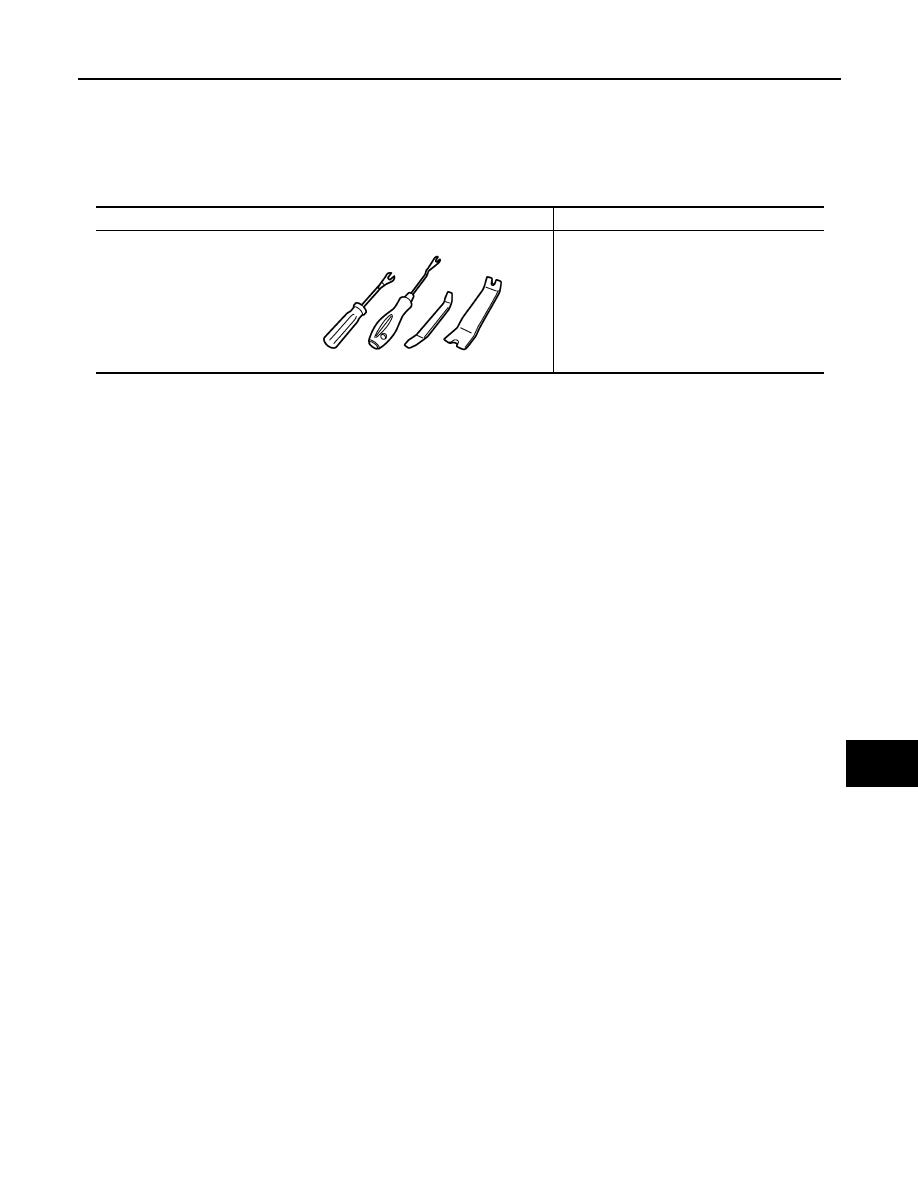

Remover tool

Removes the clips, pawls and metal clips

JMKIA3050ZZ

MIR-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

DOOR MIRROR SYSTEM

DOOR MIRROR SYSTEM : Component Description

INFOID:0000000006007936

AUTO RETRACTABLE DOOR MIRROR SYSTEM

AUTO RETRACTABLE DOOR MIRROR SYSTEM : Component Parts Location

INFOID:0000000006021975

Component

Function

Door mirror remote control
switch

Mirror switch

It supplies power to mirror motor through mirror switch and changeover
switch.

Changeover switch

It transmits the LH/RH control of door mirror that supplies power.

Door mirror

Door mirror motor

It makes mirror face operate from side to side and up and down via inte-
grated motor.

JMLIA1017ZZ

COMPONENT PARTS

MIR-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

AUTO RETRACTABLE DOOR MIRROR SYSTEM : Component Description

INFOID:0000000006021976

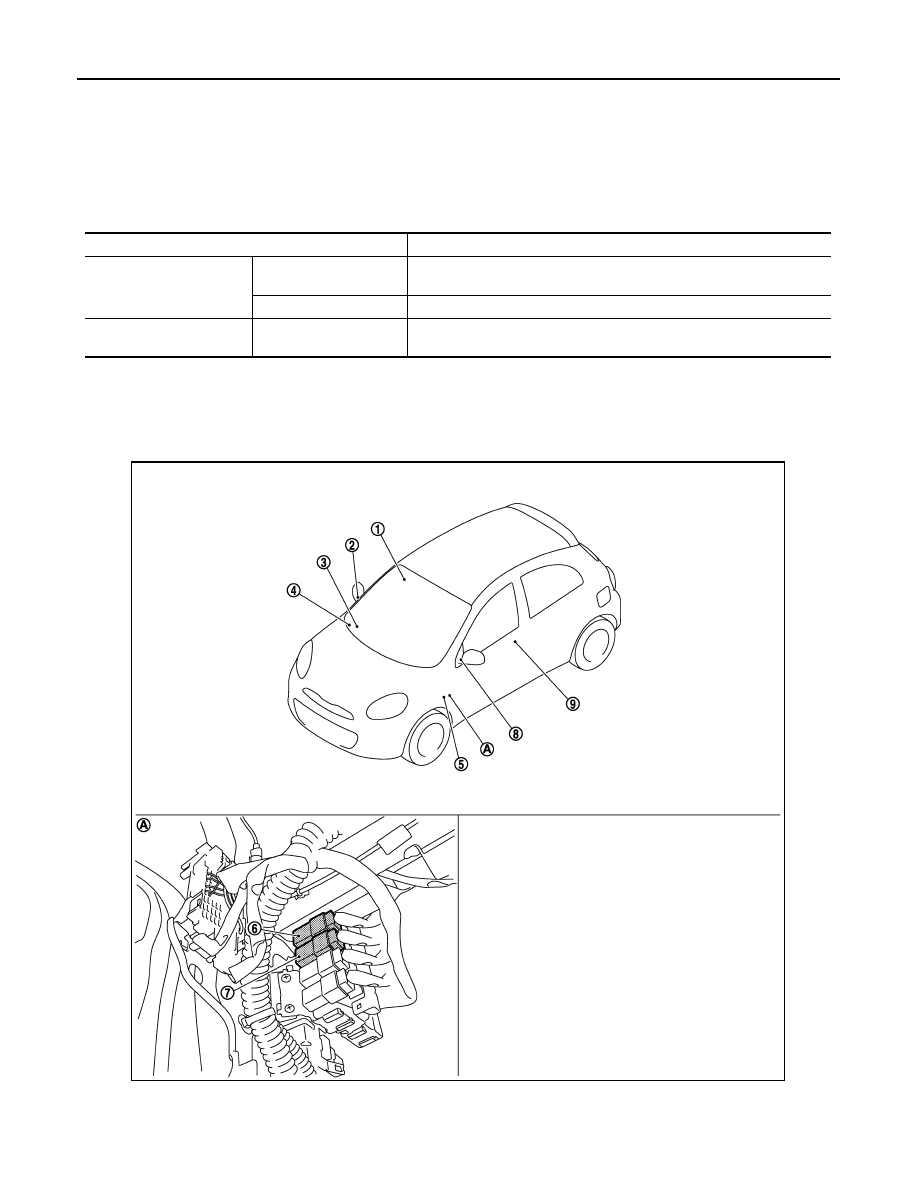

1.

Door request switch (driver side)

2.

Door mirror (driver side)

3.

Remote keyless entry receiver

4.

door mirror remote control switch

5.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

6.

door mirror close relay

7.

door mirror open relay

8.

door mirror open relay

9.

door mirror close relay

A.

View with instrument lower panel RH
removed

Item

Function

BCM

Auto retractable door mirror system is operated when door lock signal is received from Intelli-
gent Key or door request switch.

Remote keyless entry receiver

Receives intelligent Key operation and transmits to BCM

Door request switch

Transmits door lock/unlock operation to BCM

Door mirror remote control switch
(open/close switch)

• Door mirror is retracted by open/close switch.
• Auto retractable door mirror function operates for AUTO side only.

Door mirror (open/close motor)

Door mirror is retracted by open/close switch.

Door mirror open relay

• Power supply is supplied to motor when door mirror is closing.
• This is the ground circuit when auto retractable door mirror is operating.

Door mirror close relay

• Power supply is supplied to motor when door mirror is opening.
• Power supply is supplied to motor when auto retractable door mirror is operating.
