Nissan March K13. Manual - part 458

MIR-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

AUTO RETRACTABLE DOOR MIRROR SYSTEM

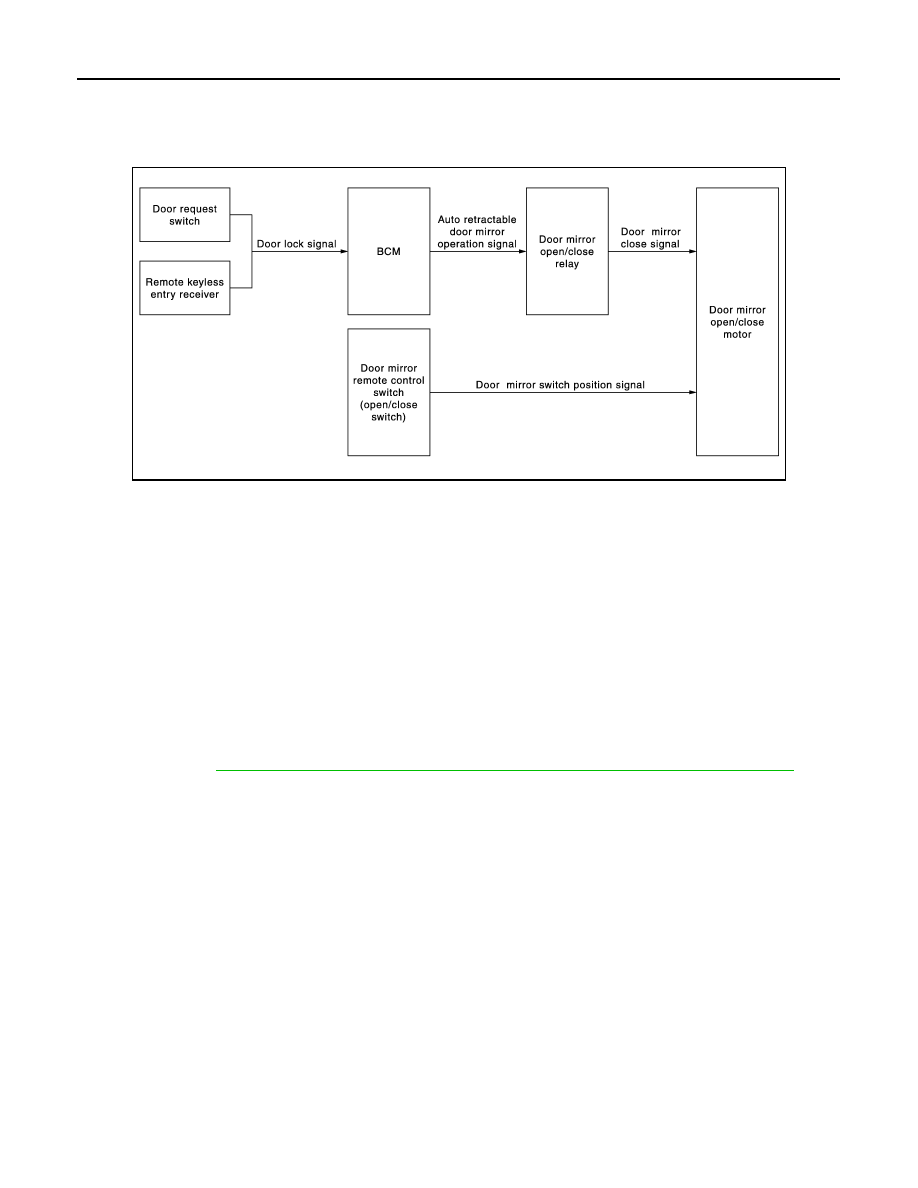

AUTO RETRACTABLE DOOR MIRROR SYSTEM : System Diagram

INFOID:0000000006021979

AUTO RETRACTABLE DOOR MIRROR SYSTEM : System Description

INFOID:0000000006021980

BCM retracts door mirror when door lock signal is received from Intelligent Key or door request switch.

OPERATION CONDITION

The system operates under the following conditions.
• Ignition switch: OFF
• Open/Close switch: AUTO

1.

Press lock button of Intelligent Key or door request switch when the system is in operation condition.

2.

Door mirror open/close relay turns ON for approximately 6 seconds. Door mirror is retracted.

NOTE:
• Auto retractable door mirror system is not operated when BCM detects door lock signal from power window

main switch of door key cylinder switch.

• ON/OFF of auto retractable door mirror system can be set on “WORK SUPPORT” of “BCM” using CON-

SULT-III. Refer to

MIR-10, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

JMLIA0975GB

DIAGNOSIS SYSTEM (BCM)

MIR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006046390

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT-III.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Automatic air conditioner

AIR CONDITONER

×

×

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×

MIR-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)

INFOID:0000000006046389

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition

whenever ignition switch OFF

→

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in
this mode
• On: Operate
• Off: Non-operation

DIAGNOSIS SYSTEM (BCM)

MIR-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DATA MONITOR

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is indicated, but not used

PANIC ALARM SET

Panic alarm button pressing time on Intelligent Key remote control button can be selected
from the following with this mode
• MODE 1: 0.5 sec
• MODE 2: Non-operation
• MODE 3: 1.5 sec

TRUNK OPEN DELAY

NOTE:
This item is indicated, but not used

LO- BATT OF KEY FOB WARN

Intelligent Key low battery warning mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANTI KEY LOCK IN FUNCTI

Key reminder function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

HAZARD ANSWER BACK

Hazard reminder function mode by door request switch and Intelligent Key button can be
selected from the following with this mode
• Lock Only: Door lock operation only
• Unlock Only: Door unlock operation only
• Lock/Unlock: Lock and unlock operation
• Off: Non-operation

ANS BACK I-KEY LOCK

Buzzer reminder function (lock operation) mode by door request switch can be selected
from the following with this mode
• Horn Chirp: Sound horn
• Buzzer: Sound Intelligent Key warning buzzer
• Off: Non-operation

ANS BACK I-KEY UNLOCK

Buzzer reminder function (unlock operation) mode by door request switch can be changed
to operation with this mode
• On: Operate
• Off: Non-operation

SHORT CRANKING OUTPUT

Starter motor can operate during the times below
• 70 msec
• 100  msec
• 200  msec

CONFIRM KEY FOB ID

It can be checked whether Intelligent Key ID code is registered or not in this mode

AUTO LOCK SET

Auto door lock operation time can be changed in this mode
• MODE  1:  OFF
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minutes
• MODE 5: 3 minutes
• MODE 6: 4 minutes
• MODE 7: 5 minutes

ANSWER BACK FUNCTION

Buzzer reminder function mode by Intelligent Key button can be selected from the follow-
ing with this mode
• On: Operate
• Off: Non-operation

TAKE OUT FROM WIN WARN SET

NOTE:
This item is indicated, but not used

RETRACTABLE MIRROR SET

Auto retractable door mirror function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor item

Description
