Nissan March K13. Manual - part 455

MA-26

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

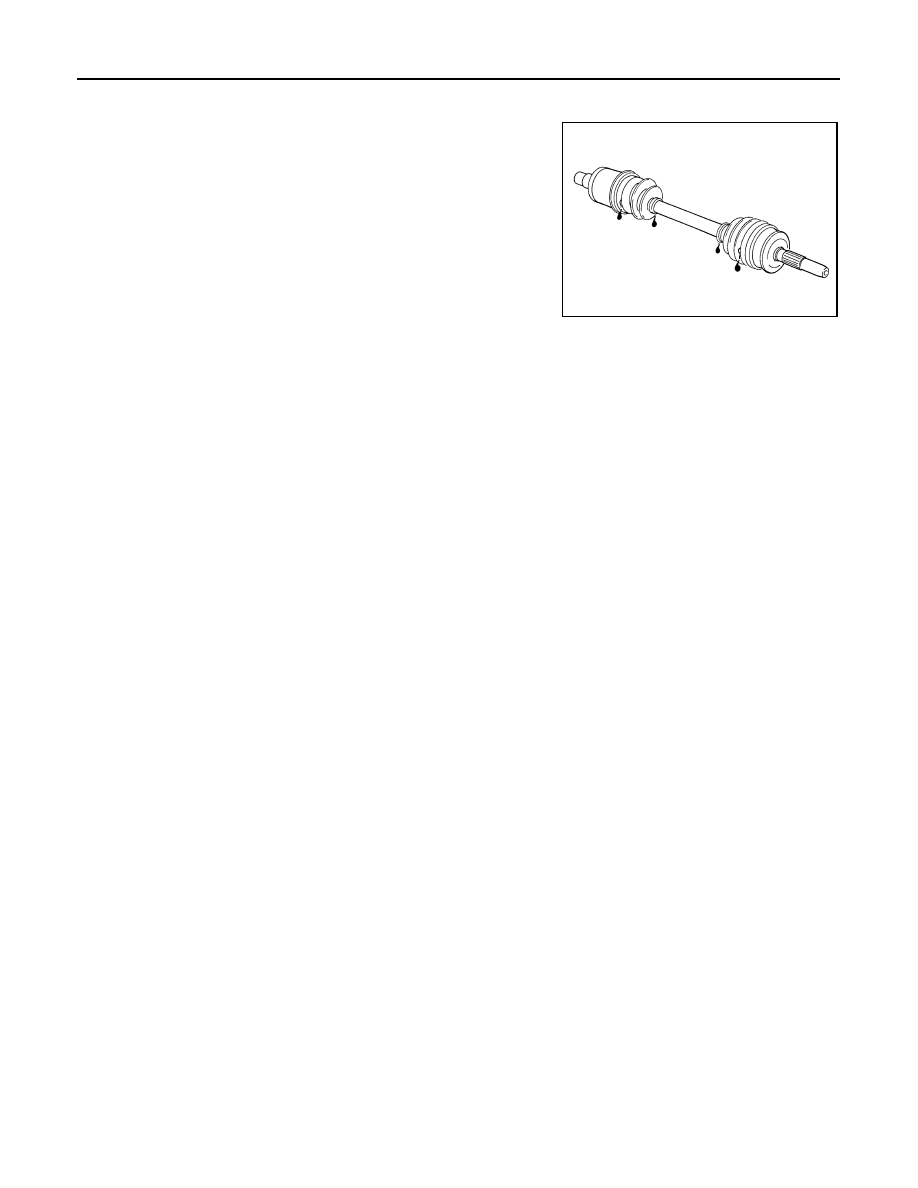

DRIVE SHAFT : Inspection

INFOID:0000000005943137

Check boot and drive shaft for cracks, wear, damage and grease
leakage.

SFA108A

BODY MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000005943138

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000005943139

For front seat belt illustration. Refer to

XX-XX, "*****"

For rear seat belt illustration. Refer to

XX-XX, "*****"

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.
• Never oil tongue and buckle.
• Use a genuine NISSAN seat belt assembly.
For details, refer to

XX-XX, "*****"

in SB section.

• Check anchors for loose mounting
• Check belts for damage
• Check retractor for smooth operation
• Check function of buckles and tongues when buckled and released

BODY CORROSION

BODY CORROSION : Checking Body Corrosion

INFOID:0000000005943140

Visually check body panels for collision damage (scratches, chipping, rubbing, etc.) or damage to the anti-cor-
rosion materials. In particular, check the following locations.

HEMMED PANELS

Hood front end, door lower end, trunk lid rear end, etc.

PANEL JOINT

Side sill of rear fender and center pillar, rear wheel housing of rear fender, around strut tower in engine com-
partment, etc.

PANEL EDGE

Trunk lid opening, sunroof opening, fender wheel-arch flange, fuel filler lid flange, around holes in panel, etc.

PARTS CONTACT

Waist moulding, windshield moulding, bumper, etc.

PART

WITH INTELLIGENT KEY SYSTEM

WITHOUT INTELLIGENT KEY SYSTEM

Hood

Refer to

DLK-111, "Exploded View"

Refer to

XX-XX, "*****"

Hood lock

Refer to

DLK-131, "Exploded View"

Refer to

XX-XX, "*****"

Front door

Refer to

DLK-117, "Exploded View"

Refer to

XX-XX, "*****"

Front door lock

Refer to

DLK-133, "Exploded View"

Refer to

XX-XX, "*****"

Rear door

Refer to

DLK-121, "Exploded View"

Refer to

XX-XX, "*****"

Rear door lock

Refer to

DLK-136, "Exploded View"

Refer to

XX-XX, "*****"

Back door

Refer to

DLK-125, "Exploded View"

Refer to

XX-XX, "*****"

Back door lock

Refer to

DLK-139, "Exploded View"

Refer to

XX-XX, "*****"

MA-28

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

PROTECTORS

Damage or condition of mudguard, fender protector, chipping protector, etc.

ANTI-CORROSION MATERIALS

Damage or separation of anti-corrosion materials under the body.

DRAIN HOLES

Condition of drain holes at door and side sill. When repairing corroded areas, refer to the Corrosion Repair
Manual.

SERVICE DATA AND SPECIFICATIONS (SDS)

MA-29

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

DRIVE BELT

DRIVE BELT : Drive Belt

INFOID:0000000006069235

DRIVE BELT

Belt Deflection

*: When engine is cold.

Belt Tension and Frequency

*: When engine is cold.

ENGINE COOLANT

ENGINE COOLANT : Periodical Maintenance Specification

INFOID:0000000006069238

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

(US qt, Imp qt)

ENGINE OIL

ENGINE OIL : Periodical Maintenance Specification

INFOID:0000000006069237

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

(US qt, lmp qt)

SPARK PLUG

SPARK PLUG : Spark Plug

INFOID:0000000006069236

SPARK PLUG (PLATINUM-TIPPED TYPE)

Location

Deflection adjustment *

Unit: mm (in)

Used belt

New belt

Limit

After adjusted

Drive belt

With A/C

10.9 (0.32)

5.1 - 5.6 (0.19 - 0.21)

4.3 - 4.7 (0.16 - 0.17)

Without A/C

9.8

4.6 - 5.0

3.9 - 4.2

Applied pushing force

98 N (10 kg, 22 lb)

Location

Tension adjustment *

Unit: N (kg, lb)

Frequency adjustment *

Unit: Hz

Used belt

New belt

Used belt

New belt

Limit

After adjusted

Limit

After adjusted

Drive belt

330 (51.0, 112)

876 - 964
(89.4 - 98.3,
197 - 217)

1064 - 1152

(108.5 - 117.5,

239 - 259)

133

217 - 227

239 - 248

Engine coolant capacity (With reservoir tank at “MAX” level)

A/T models

5.5 (5-6/8, 4-7/8)

M/T models (without EGR control
valve)

M/T models (with EGR control valve)

5.7 (6, 5)

Reservoir tank engine coolant capacity (At “MAX” level)

0.7 (3/4, 5/8)

Drain and refill

With oil filter change

3.0 (3-1/8, 2-5/8)

Without oil filter change

2.8 (3, 2-4/8)

Dry engine (Overhaul)

3.5 (3-6/8, 3-1/8)
