BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

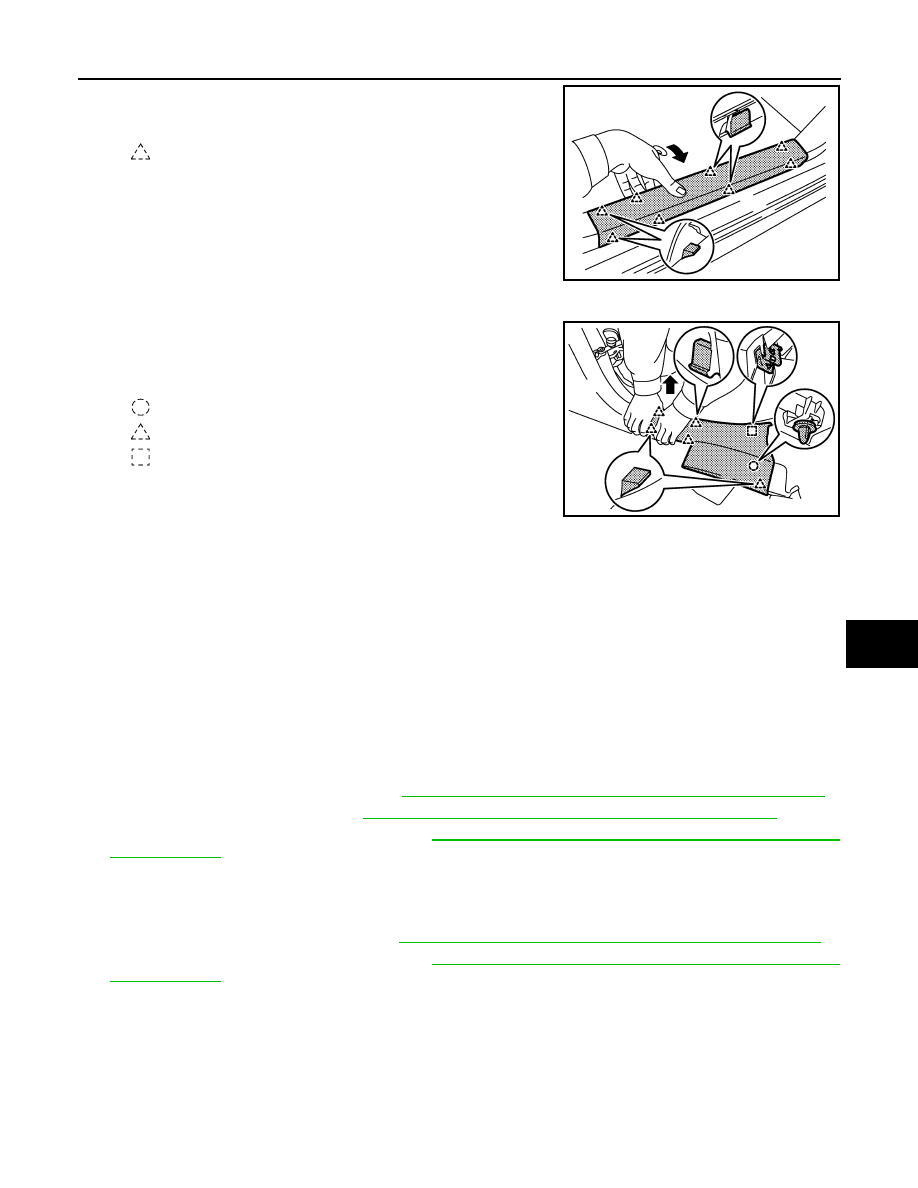

1.

Pull up front kicking plate inner to disengage fixing pawls.

2.

Remove front kicking plate inner from body panel.

REAR KICKING PLATE INNER

1.

Pull up rear kicking plate inner to disengage fixing clip, pawls
and metal clip.

2.

Remove rear kicking plate inner from body panel.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check that all clip, pawls and metal clip are securely fitted in panel holes on body, and
then press them in.

BODY SIDE WELT

BODY SIDE WELT : Removal and Installation

INFOID:0000000006046555

CAUTION:

Never damage the body.

REMOVAL

FRONT BODY SIDE WELT

1.

Remove front kicking plate inner. Refer to

INT-22, "KICKING PLATE INNER : Removal and Installation"

.

2.

Remove dash side finisher. Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installation"

.

3.

Remove center pillar lower garnish. Refer to

INT-23, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

4.

Remove front body side welt.

REAR BODY SIDE WELT

1.

Remove rear kicking plate inner. Refer to

INT-22, "KICKING PLATE INNER : Removal and Installation"

.

2.

Remove center pillar lower garnish. Refer to

INT-23, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

3.

Remove rear body side welt.

INSTALLATION

Install in the reverse order of removal.

CENTER PILLAR LOWER GARNISH

CENTER PILLAR LOWER GARNISH : Removal and Installation

INFOID:0000000006046556

CAUTION:

: Pawl

JMJIA4080ZZ

: Clip

: Pawl

: Metal clip

JMJIA4082ZZ

INT-24

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

Never damage the body.

REMOVAL

1.

Slide front seat assembly to the front most.

2.

Remove front kicking plate inner and rear kicking plate inner. Refer to

INT-22, "KICKING PLATE INNER :

Removal and Installation"

.

3.

Spread center pillar lower garnish where it is engaged to body
side panel, disengage vehicle front side disengage vehicle rear
side.

4.

Remove center pillar lower garnish from body panel.

INSTALLATION

Install in the reverse order of removal.

CENTER PILLAR UPPER GARNISH

CENTER PILLAR UPPER GARNISH : Removal and Installation

INFOID:0000000006046557

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

CENTER PILLAR UPPER GARNISH

1.

Remove front seat belt outer anchor bolt. Refer to

SB-6, "SEAT BELT RETRACTOR : Exploded View"

2.

Remove center pillar lower garnish. Refer to

INT-23, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

3.

Remove front body side welt and rear body side welt. Refer to

INT-23, "BODY SIDE WELT : Removal and

Installation"

.

4.

Disengage center pillar upper garnish lower side fixing pawl with
a remover tool (A).

5.

Pull center pillar upper garnish (1) from inside passenger room, disengage center pillar upper garnish
upper side fixing pawl as shown in the figure below, and then remove center pillar upper garnish from cen-
ter pillar panel (2).

JMJIA4133ZZ

: Pawl

JMJIA4130ZZ

BODY SIDE TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

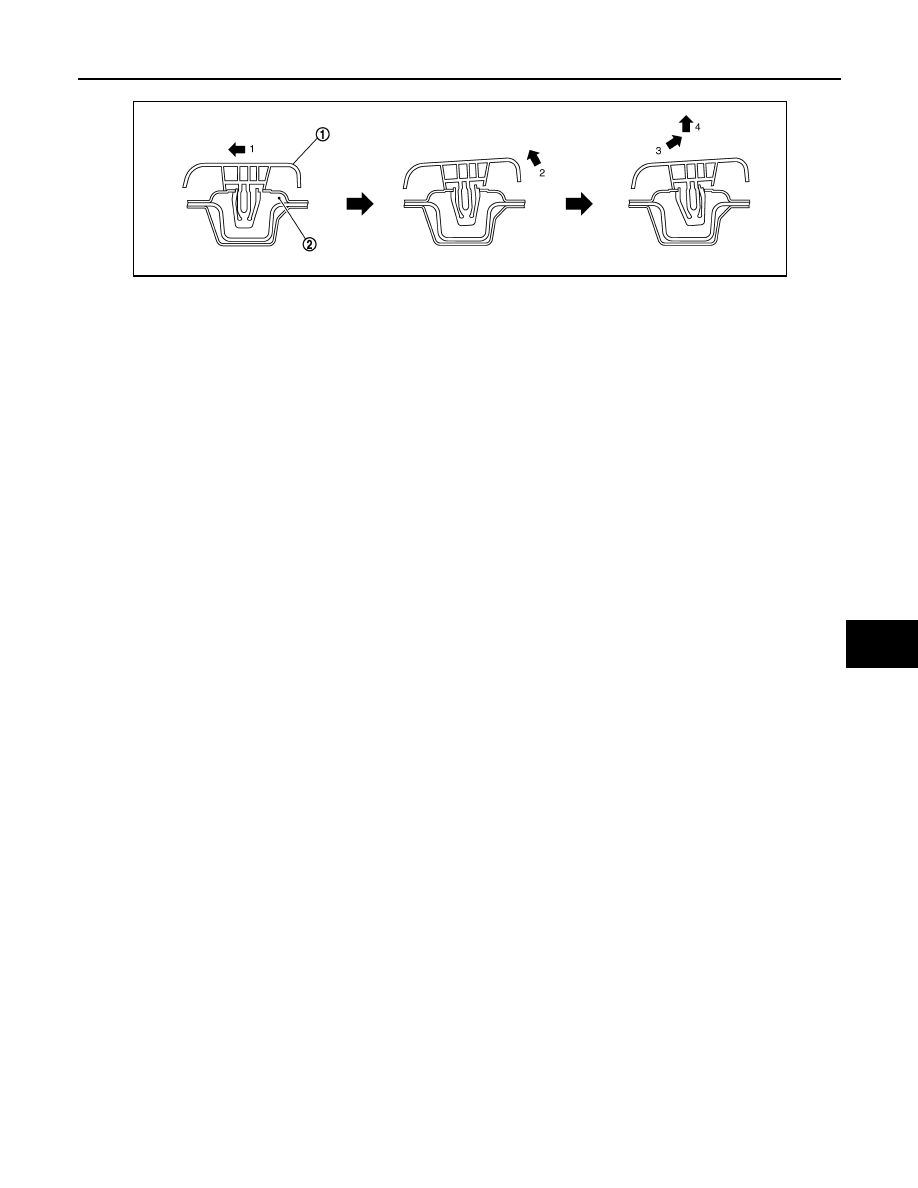

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing, check that pawls and are securely fitted in panel holes on body, and then press them
in.

JMJIA1176ZZ

INT-26

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

Exploded View

INFOID:0000000006046526

Removal and Installation

INFOID:0000000006046527

REMOVAL

1.

Remove front seat assembly (LH/RH). Refer to

SE-15, "Removal and Installation"

.

2.

Remove rear seat cushion and seatback assembly. Refer to

SE-19, "Removal and Installation"

3.

Remove instrument panel assembly and center console assembly. Refer to

IP-13, "Removal and Installa-

tion"

.

4.

Remove A/C unit assembly. Refer to

HA-42, "A/C UNIT ASSEMBLY : Removal and Installation"

.

5.

Disconnect harness connector from diagnosis sensor unit. Refer to

SR-29, "Exploded View"

6.

Remove shift control assembly. Refer to

TM-15, "Removal and Installation"

.

7.

Remove parking brake lever assembly. Refer to

PB-3, "Removal and Installation"

.

8.

Remove front kicking plate inner and rear kicking plate inner (LH/RH). Refer to

INT-22, "KICKING PLATE

INNER : Removal and Installation"

9.

Remove dash side finisher (LH/RH). Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installation"

.

10. Remove front seat belt outer anchor bolt. Refer to

SE-12, "Exploded View"

.

1.

Floor carpet assembly

2.

Floor hook

3.

Front floor spacer RH

4.

Front floor spacer LH

5.

Rear floor spacer LH

6.

Luggage floor spacer front

7.

Luggage floor spacer rear

8.

Tool box

9.

Tool box cover

10.

Rear floor spacer RH

: Vehicle front

JMJIA4097ZZ
