REAR DOOR FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

3.

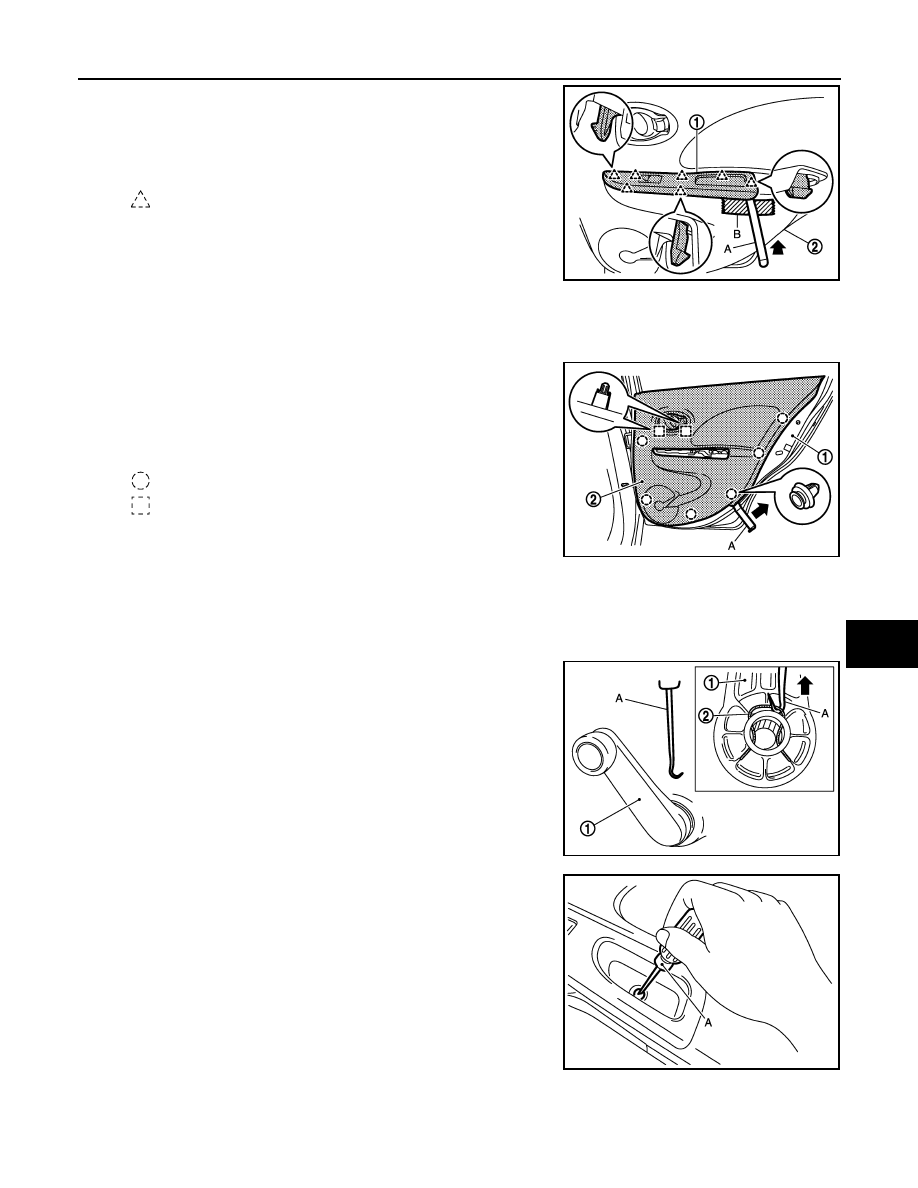

Insert a remover tool (A) between power window switch finisher
(1) and rear door finisher (2) to disengage fixing pawls.

CAUTION:

Apply protective tape (B) to the rear door finisher to protect
from damage.

4.

Remove power window switch finisher, and then disconnect power window switch harness connector.

5.

Remove rear door finisher fixing screw.

6.

Insert a remover tool (A) between rear door panel (1) and rear
door finisher (2) to disengage fixing clips and metal clips.

CAUTION:

Insert remover tool into part shown in the figure.
(Between clips and door panel).

7.

Remove rear door finisher from rear door panel.

Manual window models

1.

Fully open door window.

2.

Remove regulator handle.
NOTE:
Insert hook and pick tool (A) between regulator handle (1) and
regulator sealer to remove sanp pin (2).

3.

Remove door pull handle fixing TORX screw with a screwdriver.

: Pawl

JMJIA4088ZZ

: Clip

: Metal clip

JMJIA4089ZZ

JMJIA0491ZZ

JMJIA4096ZZ

INT-20

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

4.

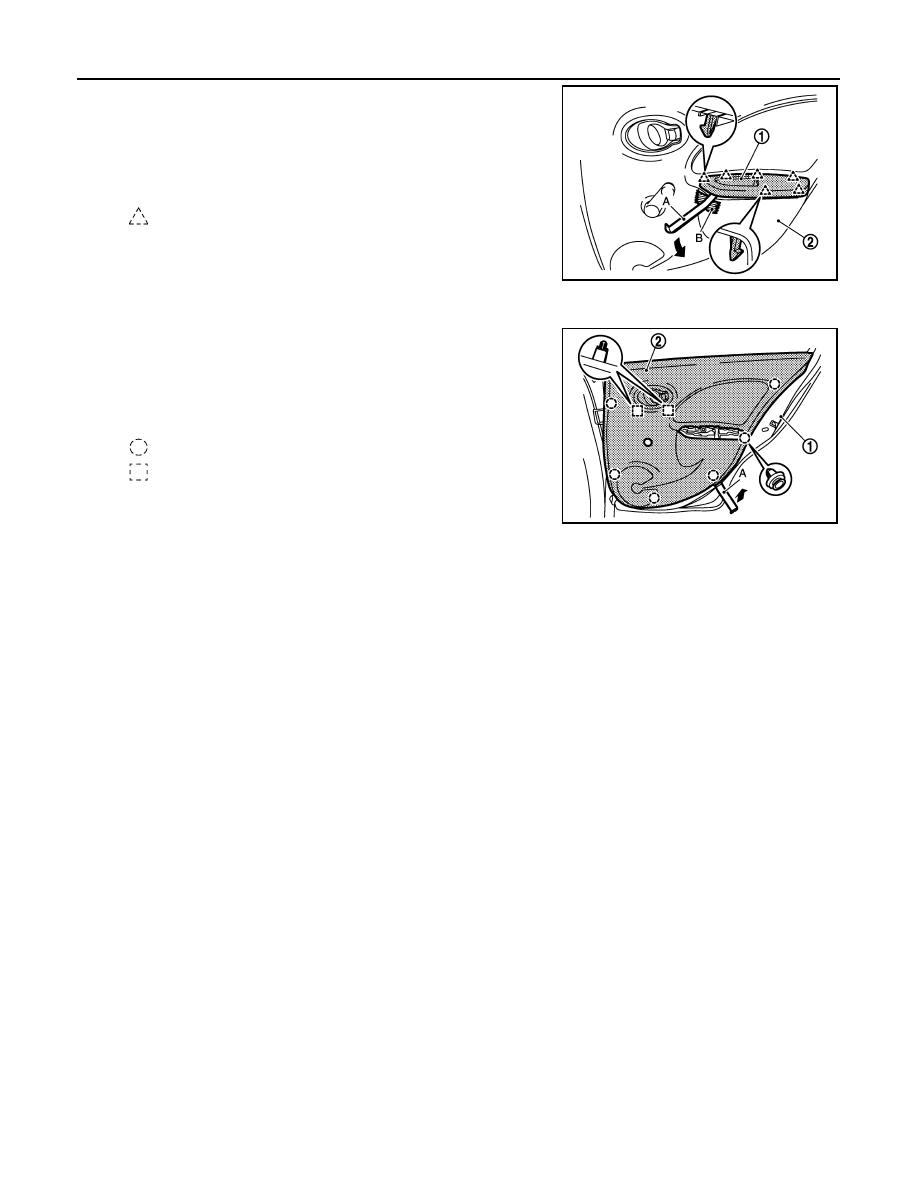

Insert a remover tool (A) between door pull handle (1) and rear
door finisher (2) to disengage fixing pawls and then remove door
pull handle.

CAUTION:

Apply protective tape (B) to the rear door finisher to protect
from damage.

5.

Remove rear door finisher fixing screw.

6.

Insert a remover tool (A) between rear door panel (1) and rear
door finisher (2) to disengage fixing clips and metal clips.

CAUTION:

Insert remover tool into part shown in the figure.
(Between clips and door panel).

7.

Remove rear door finisher from rear door panel.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing door finisher, check that all clips and metal clips are securely fitted in holes on body,
and then press them in.

: Pawl

JMJIA4092ZZ

: Clip

: Metal clip

JMJIA4093ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

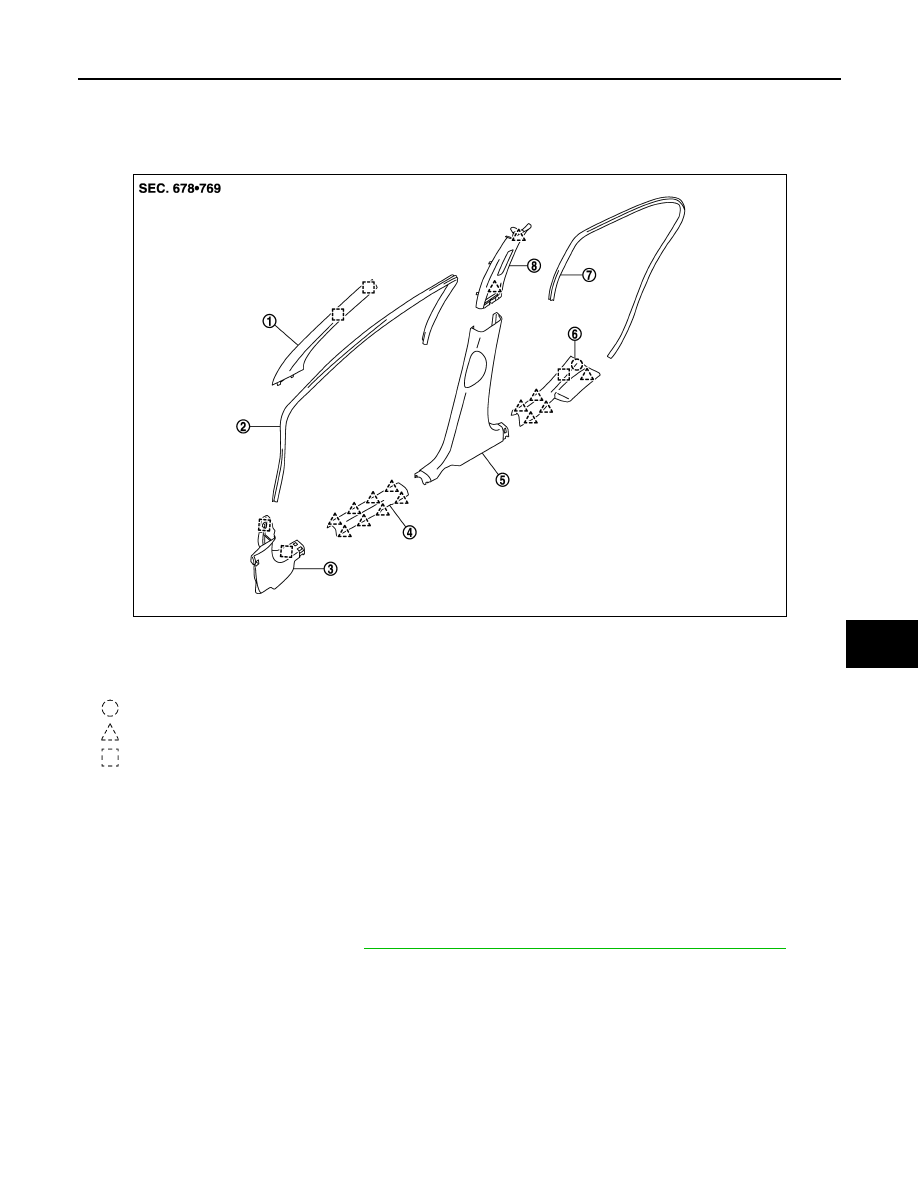

Exploded View

INFOID:0000000006046524

DASH SIDE FINISHER

DASH SIDE FINISHER : Removal and Installation

INFOID:0000000006046553

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

1.

Remove front kicking plate. Refer to

INT-22, "KICKING PLATE INNER : Removal and Installation"

.

1.

Front pillar garnish

2.

Front body side welt

3.

Dash side finisher

4.

Front kicking plate inner

5.

Center pillar lower garnish

6.

Rear kicking plate inner

7.

Rear body side welt

8.

Center pillar upper garnish

: Clip

: Pawl

: Metal clip

JMJIA4094ZZ

INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

2.

Disengage dash side finisher fixing metal clips, and then remove
dash side finisher.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check that all clips are securely fitted in panel holes on body, and then press them in.

FRONT PILLAR GARNISH

FRONT PILLAR GARNISH : Removal and Installation

INFOID:0000000006046552

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Never damage the body.

REMOVAL

1.

Release front pillar portion of front body side welt.

2.

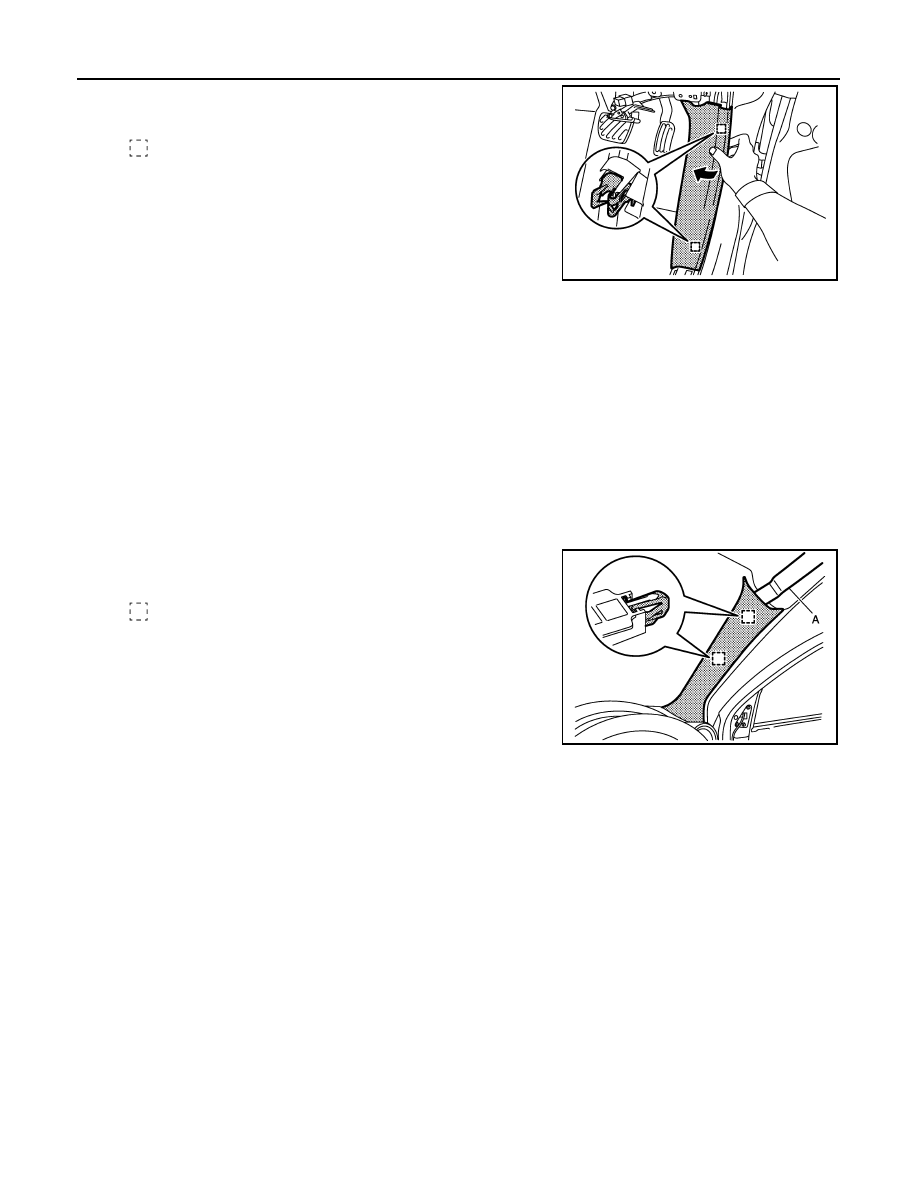

Disengage front pillar garnish fixing metal clips with remover tool
(A), and then remove front pillar garnish.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check that all metal clips are securely fitted in panel holes on body, and then press
them in.

KICKING PLATE INNER

KICKING PLATE INNER : Removal and Installation

INFOID:0000000006046554

CAUTION:

Never damage the body.

REMOVAL

FRONT KICKNG PLATE INNER

: Metal clip

JMJIA4081ZZ

: Metal clip

JMJIA4079ZZ
