FRONT DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

4.

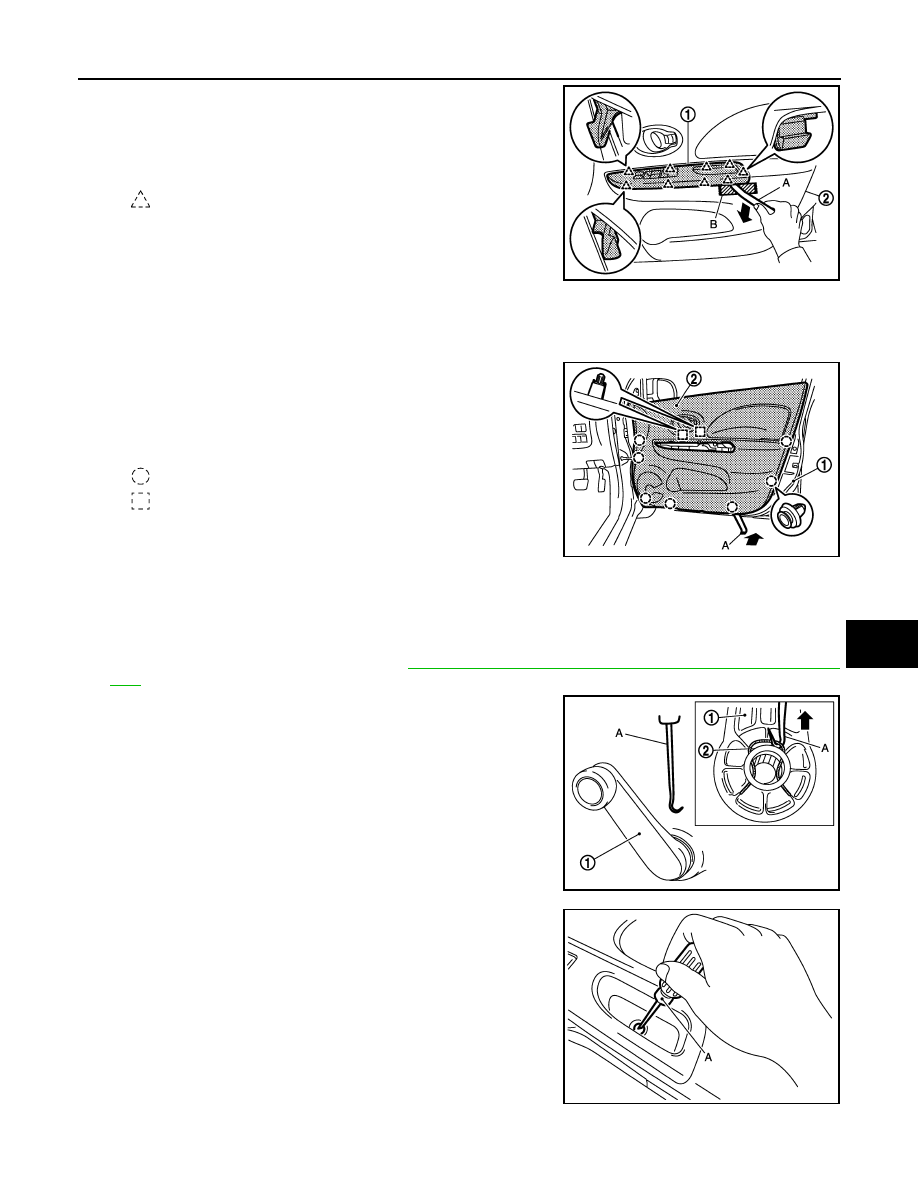

Insert a remover tool (A) between power window switch finisher
(1) and front door finisher (2) to disengage fixing pawls.

CAUTION:

Apply protective tape (B) to the front door finisher to pro-
tect from damage.

5.

Remove power window switch finisher, and then disconnect power window switch harness connector.

6.

Remove front door finisher fixing screw.

7.

Insert remover tool (A) between front door panel (1) and front
door finisher (2) to disengage the fixing clips and metal clips.

CAUTION:

Insert remover tool into part shown in the figure.
(Between clips and door panel).

8.

Remove front door finisher from front door panel.

Manual window models

1.

Fully open door window.

2.

Remove door mirror corner cover. Refer to

MIR-35, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

3.

Remove regulator handle.
NOTE:
Insert hook and pick tool (A) between regulator handle (1) and
regulator sealer to remove snap pin (2).

4.

Remove door pull handle fixing TORX screw with a screwdriver
(A).

 :Pawl

JMJIA4086ZZ

: Clip

: Metal clip

JMJIA4087ZZ

JMJIA0491ZZ

JMJIA4096ZZ

INT-16

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

5.

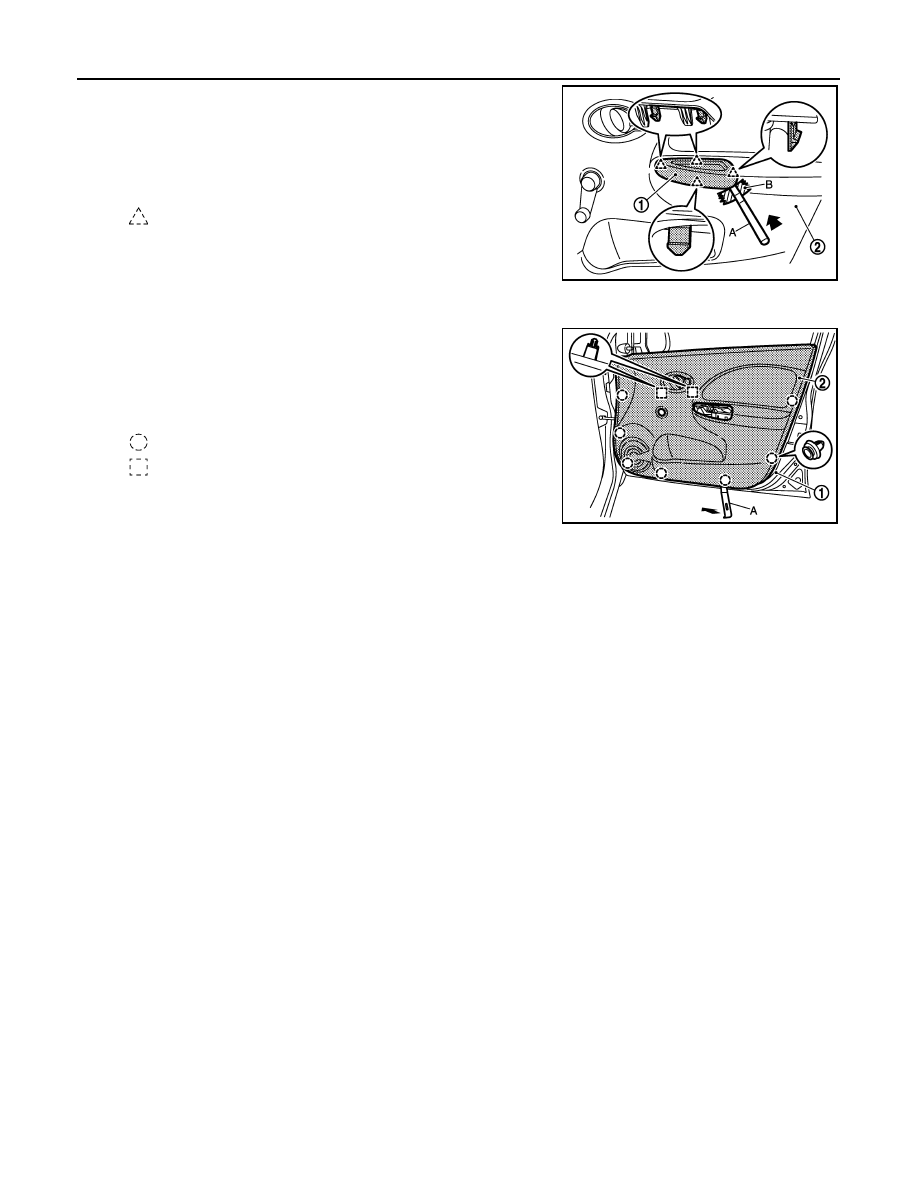

Insert a remover tool (A) between door pull handle (1) and front
door finisher (2) to disengage fixing pawls and then remove door
pull handle.

CAUTION:

Apply protective tape (B) to the front door finisher to pro-
tect from damage.

6.

Remove front door finisher fixing screw.

7.

Insert remover tool (A) between front door panel (1) and front
door finisher (2) to disengage the fixing clips and metal clips.

CAUTION:

Insert remover tool into part shown in the figure.
(Between clips and door panel).

8.

Remove front door finisher from front door panel.

INSTALLATION

Note the following item,and nstall in the reverse order of removal.

CAUTION:

When installing front door finisher, check that all clips and metal clips are securely fitted in door panel
hole on body, and then press them in.

 :Pawl

JMJIA4090ZZ

: Clip

: Metal clip

JMJIA4091ZZ

REAR DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR DOOR FINISHER

Exploded View

INFOID:0000000006046522

Power window models

JMJIA4123ZZ

1.

Rear door panel

2.

Rear door inside handle

3.

Power window switch finisher

4.

Hook cover

5.

Rear door finisher

6.

Power window switch finisher bracket

: Clip

: Pawl

: Metal clip

INT-18

< REMOVAL AND INSTALLATION >

REAR DOOR FINISHER

Manual window models

Removal and Installation

INFOID:0000000006046523

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

Power window models

1.

Fully open door window.

2.

Remove power window switch finisher fixing TORX screw with a
screwdriver.

JMJIA4125ZZ

1.

Rear door panel

2.

Rear door inside handle

3.

Power window switch finisher

4.

Hook cover

5.

Rear door finisher

6.

Power window switch finisher bracket

: Clip

: Pawl

: Metal clip

JMJIA4096ZZ
