Nissan March K13. Manual - part 405





HRN-4

< REMOVAL AND INSTALLATION >

HORN

REMOVAL AND INSTALLATION

HORN

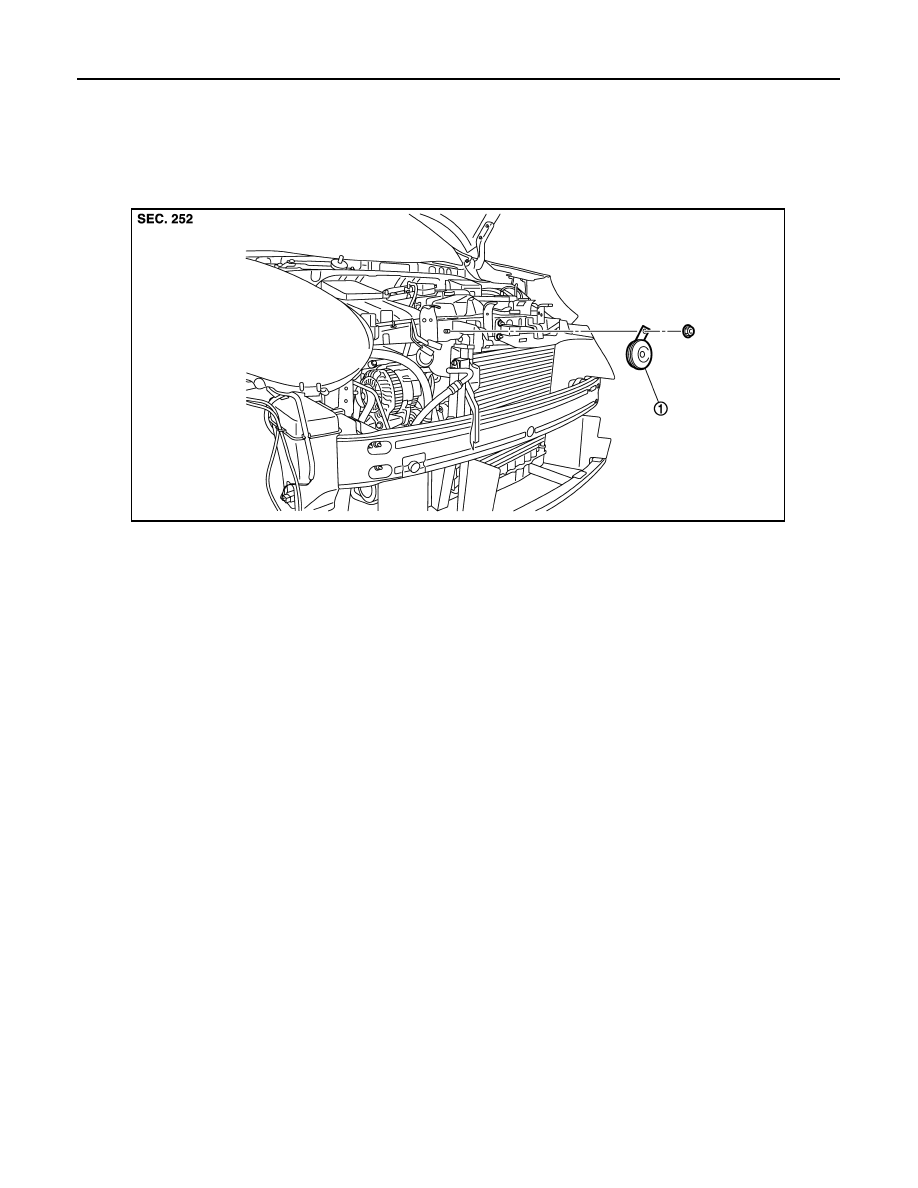

Exploded View

INFOID:0000000005984708

Removal and Installation

INFOID:0000000005984310

REMOVAL

1.

Disconnect the horn connector.

2.

Remove the horn mounting nut, and remove the horn from the vehicle.

INSTALLATION

Install in the reverse order of removal.

1.

Horn

JMLIA0957ZZ

INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

3

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Component Description ............................................

5

SYSTEM ..............................................................

7

INTERIOR ROOM LAMP CONTROL SYSTEM
(WITH INTELLIGENT KEY SYSTEM)  .......................
..

7

INTERIOR ROOM LAMP CONTROL SYSTEM
(WITH INTELLIGENT KEY SYSTEM) : System
Diagram ...................................................................
..

7

INTERIOR ROOM LAMP CONTROL SYSTEM
(WITH INTELLIGENT KEY SYSTEM) : System
Description ..............................................................
..

7

INTERIOR ROOM LAMP CONTROL SYSTEM
(WITHOUT INTELLIGENT KEY SYSTEM)  ...............
..

8

INTERIOR ROOM LAMP CONTROL SYSTEM
(WITHOUT INTELLIGENT KEY SYSTEM) : Sys-
tem Diagram ............................................................
..

8

INTERIOR ROOM LAMP CONTROL SYSTEM
(WITHOUT INTELLIGENT KEY SYSTEM) : Sys-
tem Description  .......................................................
..

9

INTERIOR ROOM LAMP BATTERY SAVER SYS-
TEM ............................................................................

10

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM : System Diagram  ....................................

10

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM : System Description  ...............................

10

ILLUMINATION CONTROL SYSTEM .......................

11

ILLUMINATION CONTROL SYSTEM : System
Diagram ...................................................................

11

ILLUMINATION CONTROL SYSTEM : System
Description ...............................................................

11

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .......................................

13

COMMON ITEM  .........................................................

13

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM)  .....................................................

13

INT LAMP ...................................................................

14

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................

15

BATTERY SAVER  .....................................................

16

BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER)  ...............................................

16

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  .............................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM)  .....................................................

18

INT LAMP ...................................................................

18

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................

19

BATTERY SAVER  .....................................................

20

BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER)  ...............................................

20

ECU DIAGNOSIS INFORMATION ..............

22

BCM ...................................................................

22

WITH INTELLIGENT KEY  .........................................

22

WITH INTELLIGENT KEY : List of ECU Reference

....

22

INL-2

WITHOUT INTELLIGENT KEY  .................................

22

WITHOUT INTELLIGENT KEY : List of ECU Ref-
erence ....................................................................
.

22

WIRING DIAGRAM  .....................................

23

INTERIOR ROOM LAMP CONTROL SYSTEM

...

23

Wiring Diagram  .......................................................

23

ILLUMINATION ..................................................

25

Wiring Diagram  .......................................................

25

BASIC INSPECTION ...................................

28

DIAGNOSIS AND REPAIR WORKFLOW  .........

28

Work Flow ...............................................................

28

DTC/CIRCUIT DIAGNOSIS .........................

30

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

30

Description ..............................................................

30

Component Function Check  ...................................

30

Diagnosis Procedure  ..............................................

30

PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT ..............................................

32

Component Function Check  ...................................

32

Diagnosis Procedure ...............................................

32

SYMPTOM DIAGNOSIS  ............................

34

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

34

Symptom Table .......................................................

34

REMOVAL AND INSTALLATION ..............

35

MAP LAMP  ........................................................

35

Exploded View  ........................................................

35

Removal and Installation .........................................

35

Replacement ...........................................................

35

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

37

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

37

Bulb Specifications ..................................................

37

PRECAUTIONS

INL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006030889

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000006030890

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.
