Nissan March K13. Manual - part 406





INL-4

< PRECAUTION >

PRECAUTIONS

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

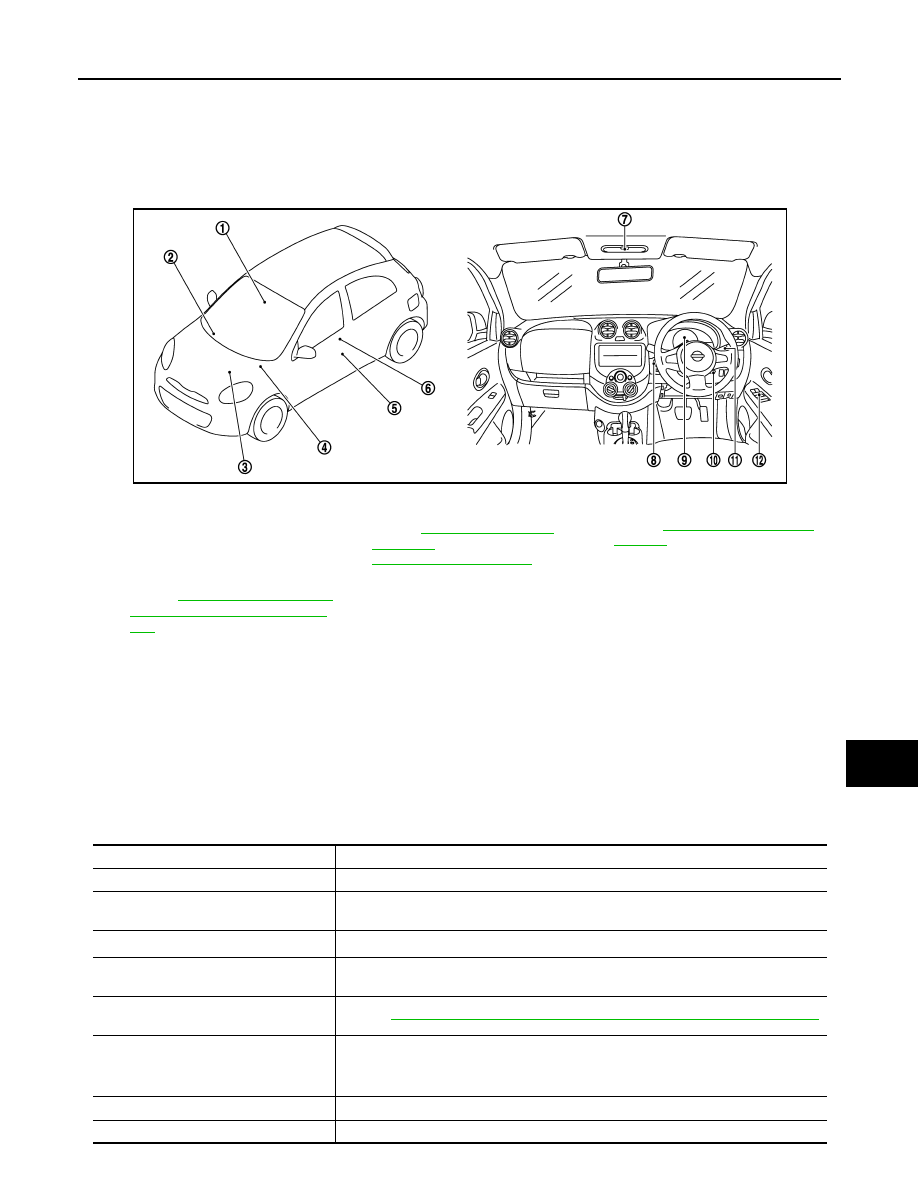

Component Parts Location

INFOID:0000000006030891

*

1

: For Thailand

*

2

: With remote keyless entry function

*

3

: With Intelligent Key

*

4

: Without Intelligent Key

Component Description

INFOID:0000000006030892

1.

Front door lock assembly (driver
side)
(Unlock sensor, door key cylinder

switch*

1

)

2.

Remote keyless entry receiver*

2

Refer to

DLK-11, "DOOR LOCK

SYSTEM :
Component Parts Location"

.

3.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

.

4.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

5.

Front door switch (passenger side)

6.

Door request switch*

3

7.

Map lamp/room lamp

8.

Push switch*

3

9.

Combination meter

10. Key switch*

4

11.

Combination switch

12. Door lock and unlock switch

JMLIA0970ZZ

Part

Description

BCM

Controls the interior lighting system.

IPDM E/R

Controls the integrated relay according to the request signal from BCM (via CAN com-
munication).

Remote keyless entry receiver*

1

Receives the lock/unlock signal from Keyfob.

Combination meter

Illuminates the meter illumination according to the request signal from BCM (via CAN
communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "COMBINATION SWITCH READING SYSTEM : System Description"

.

• Door lock and unlock switch

• Door request switch

*2

• Door key cylinder switch

*3

Inputs the lock/unlock signal to BCM.

Door switch

Inputs the door switch signal to BCM.

Unlock sensor

Detects door lock condition of driver side door.

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*1: With remote keyless entry function

*2: With Intelligent Key

*3:For Thailand

*4: Without Intelligent Key

Push-button ignition switch*

2

(Push switch)

Inputs the push switch signal to BCM.

Key switch

*4

Inputs the key switch signal to BCM.

Part

Description

SYSTEM

INL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM (WITH INTELLIGENT KEY SYS-
TEM)

INTERIOR ROOM LAMP CONTROL SYSTEM (WITH INTELLIGENT KEY SYSTEM)

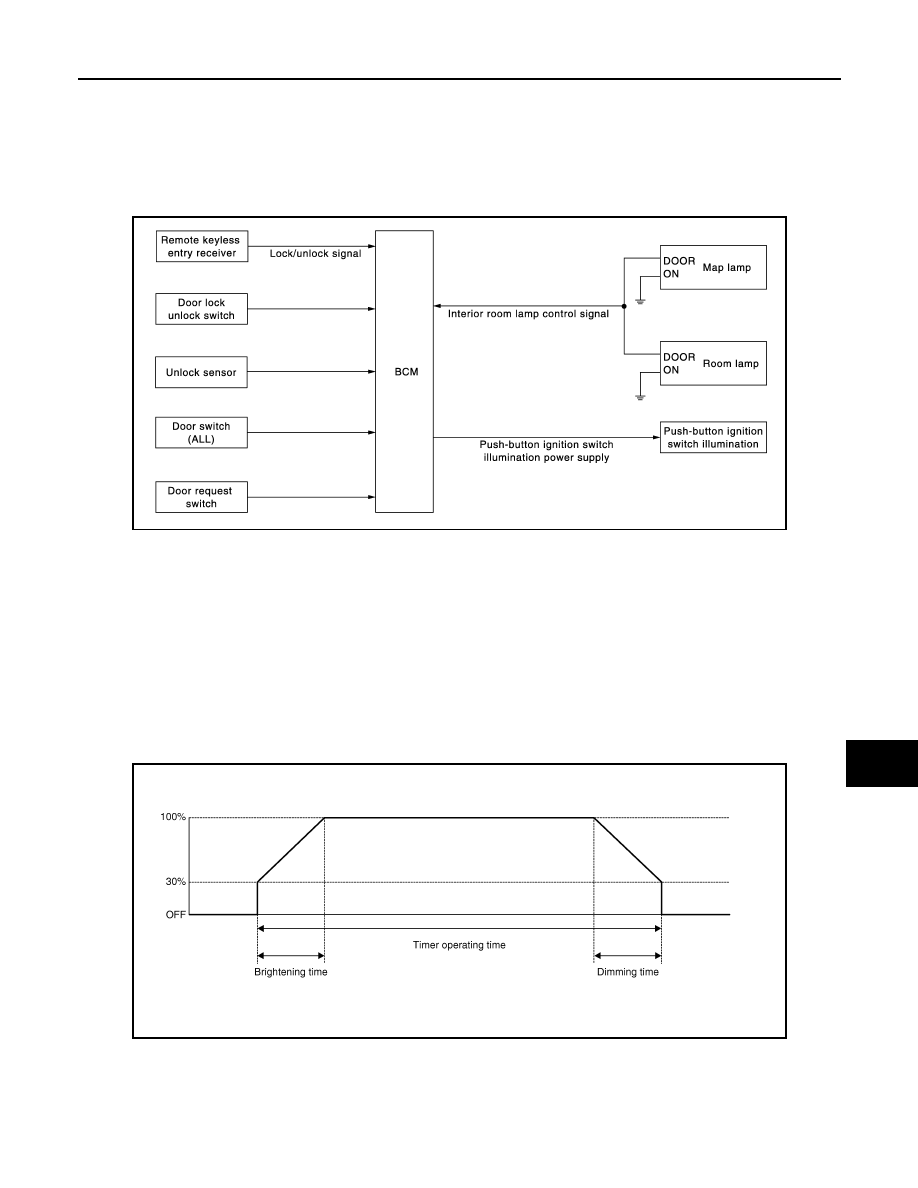

: System Diagram

INFOID:0000000006030897

INTERIOR ROOM LAMP CONTROL SYSTEM (WITH INTELLIGENT KEY SYSTEM)
: System Description

INFOID:0000000006030898

OUTLINE

• Interior room lamps* are controlled by interior room lamp timer control function of BCM.

*: Map lamp and room lamp (when applicable lamp switch is in DOOR position).

• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control

function of BCM.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

• The interior room lamp turns ON and OFF (gradual brightening and dimming) by the interior room lamp

timer.

• BCM judges the vehicle condition with the following items. It activates the interior room lamp timer.
- Push-button Ignition switch status
- Door switch signal (except back door)

JMLIA0982GB

JPLIA0093GB
