EM-30

< REMOVAL AND INSTALLATION >

[HR12DE]

INTAKE MANIFOLD

WITH EGR CONTROL VALVE : Removal and Installation

INFOID:0000000005988180

REMOVAL

1.

Remove air duct (inlet) and air cleaner assembly. Refer to

EM-24, "Exploded View"

.

2.

Drain engine coolant. Refer to

CO-9, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.
NOTE:
This step is not required when removing only intake manifold.

3.

Pull out oil level gauge.

CAUTION:

Cover the oil level gauge guide openings to avoid entry of foreign materials.

4.

Disconnect water hoses from electric throttle control actuator as follows:
• Attach plug to prevent engine coolant leakage when engine coolant is not drained. Refer to

CO-9,

"Draining"

.

CAUTION:

Perform this step when the engine is cold.
NOTE:
This step is not required when removing only intake manifold.

5.

Remove electric throttle control actuator.

CAUTION:

• Handle carefully to avoid any shock to electric throttle control actuator.
• Never disassemble electric throttle control actuator.

1.

Electric throttle control actuator

2.

Gasket

3.

EVAP canister purge volume
control solenoid valve

4.

Intake manifold

5.

Gasket

6.

Gasket

7.

Vacuum hose

8.

EGR guide tube

A.

To Water outlet

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA3411GB

INTAKE MANIFOLD

EM-31

< REMOVAL AND INSTALLATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

NOTE:
When removing only intake manifold, move the electric throttle actuator without disconnecting the water
hose.

6.

Disconnect the harness connector and EVAP hose from the EVAP canister purge volume control solenoid
valve.

CAUTION:

Handle it carefully and avoid impacts.

7.

Disconnect vacuum hose for brake booster from intake manifold.

8.

Remove EGR guide tube. Refer to

EM-26, "Removal and Installation"

.

9.

Remove intake manifold mounting bolts.

10. Loosen mounting bolts in reverse order as shown in the figure.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

11. Remove intake manifold.

INSTALLATION

Note the following, and install in the reverse order of removal.

Intake Manifold

1.

Install the gasket to the intake manifold.
NOTE:
Be sure the intake manifold gasket is seated correctly in groove of intake manifold.

2.

Place the intake manifold into the installation position.

3.

Tighten bolts in the numerical order as shown in the figure.

4.

Tighten intake manifold mounting bolts.

5.

Install EGR guide tube.

6.

Install electric throttle control actuator.

Electric Throttle Control Actuator

• Tighten bolts of electric throttle control actuator equally and diagonally in several steps.
• Perform “Throttle Valve Closed Position Learning” after repair when removing harness connector of the elec-

tric throttle control actuator. Refer to following;

- HR12DE (TYPE 1):

EC-105, "Work Procedure"

- HR12DE (TYPE 2):

EC-378, "Work Procedure"

• Perform “Throttle Valve Closed Position Learning” and “Idle Air Volume Learning” after repair when replacing

electric throttle control actuator. Refer to following;

- HR12DE (TYPE 1):

EC-105, "Work Procedure"

 and

EC-106, "Work Procedure"

- HR12DE (TYPE 2):

EC-378, "Work Procedure"

 and

EC-379, "Work Procedure"

: Engine front

JPBIA3380ZZ

: Engine front

JPBIA3380ZZ

EM-32

< REMOVAL AND INSTALLATION >

[HR12DE]

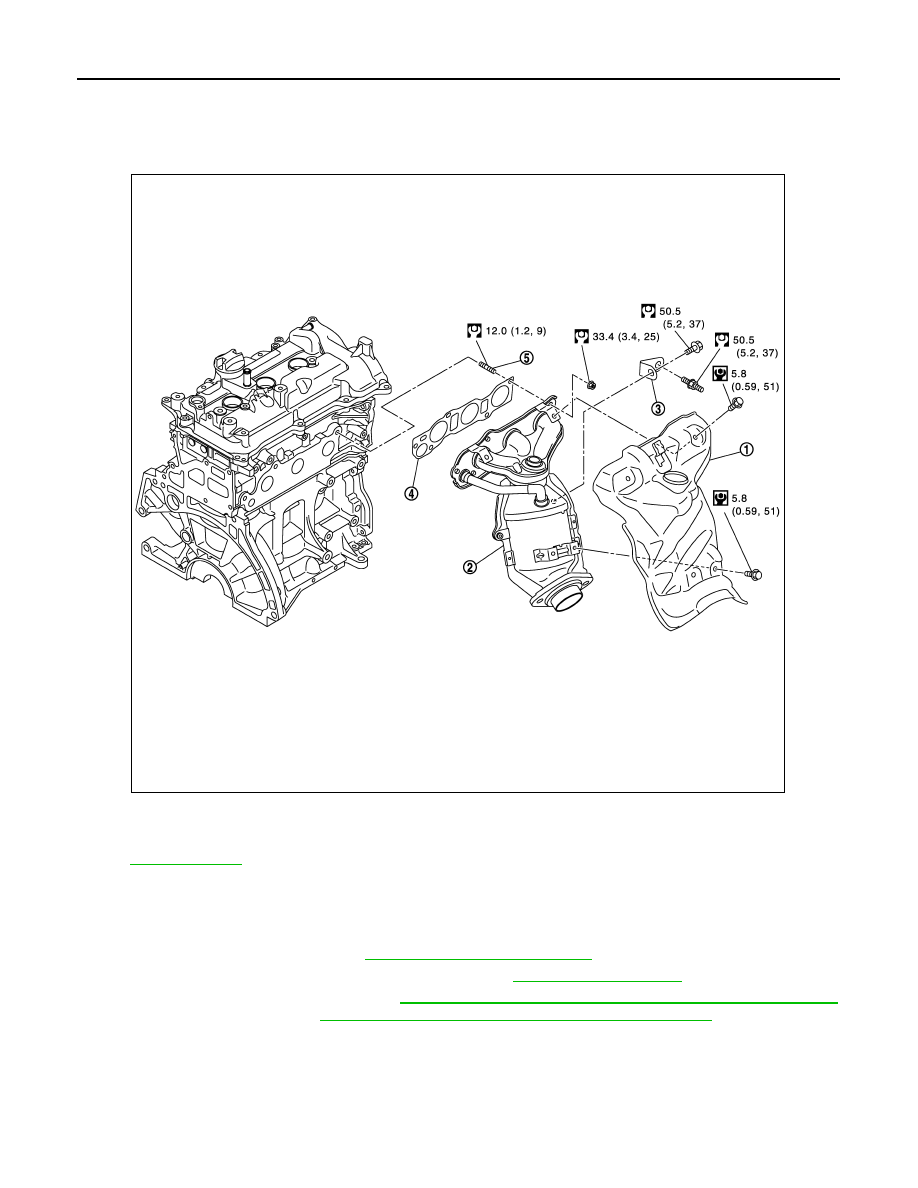

EXHAUST MANIFOLD

EXHAUST MANIFOLD

Exploded View

INFOID:0000000005988181

Removal and Installation

INFOID:0000000005988182

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-5, "Removal and Installation"

.

2.

Remove air duct (inlet) and air cleaner assembly. Refer to

EM-24, "Exploded View"

.

3.

Remove electric throttle control actuator.

EM-28, "WITHOUT EGR CONTROL VALVE : Exploded View"

(without EGR control valve) or

EM-29, "WITH EGR CONTROL VALVE : Exploded View"

 (with EGR control

valve) or.

4.

Disconnect air fuel ratio sensor 1 harness connector.

5.

Remove air fuel ratio sensor 1.
• Using heated oxygen sensor wrench [SST: KV10117100] (A), remove air fuel ratio sensor 1.

CAUTION:

Handle air fuel ratio sensor 1 carefully and avoid impacts.

JPBIA3391GB

1.

Exhaust manifold cover

2.

Exhaust manifold

3.

Exhaust manifold stay

4.

Gasket

5.

Stud bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

EXHAUST MANIFOLD

EM-33

< REMOVAL AND INSTALLATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

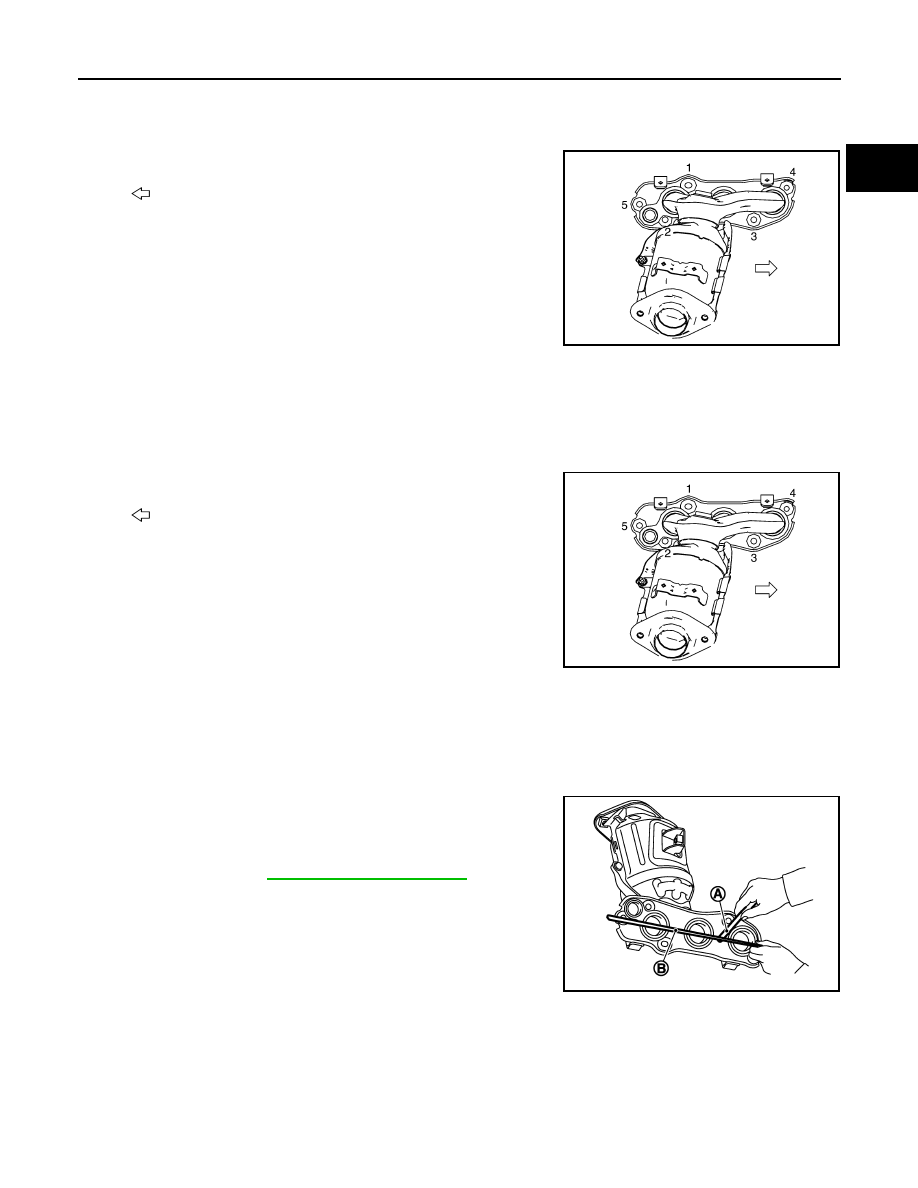

6.

Remove exhaust manifold cover.

7.

Remove exhaust manifold side mounting bolt of exhaust manifold stay.

8.

Remove exhaust manifold.
• Loosen nuts in reverse order as shown in the figure.

9.

Remove stud bolt from cylinder head.
• Using TORX socket.

INSTALLATION

Note the following, and install in the reverse order of removal.

Exhaust manifold

1.

Tighten nuts in numerical order as shown in the figure.

2.

Tighten to the specified torque again.

Inspection

INFOID:0000000005988183

INSPECTION AFTER REMOVAL

Surface Distortion

• Using feeler gauge (A) and straightedge (B), check the surface dis-

tortion of exhaust manifold mating surface in each exhaust port
and entire part.

• If it exceeds the limit, replace exhaust manifold.

: Engine front

JPBIA3385ZZ

: Engine front

JPBIA3385ZZ

Limit

: Refer to

EM-93, "Exhaust Manifold"

.

JPBIA3374ZZ
