Almera Tino V10 (2003 year). Manual - part 213

SFE639A

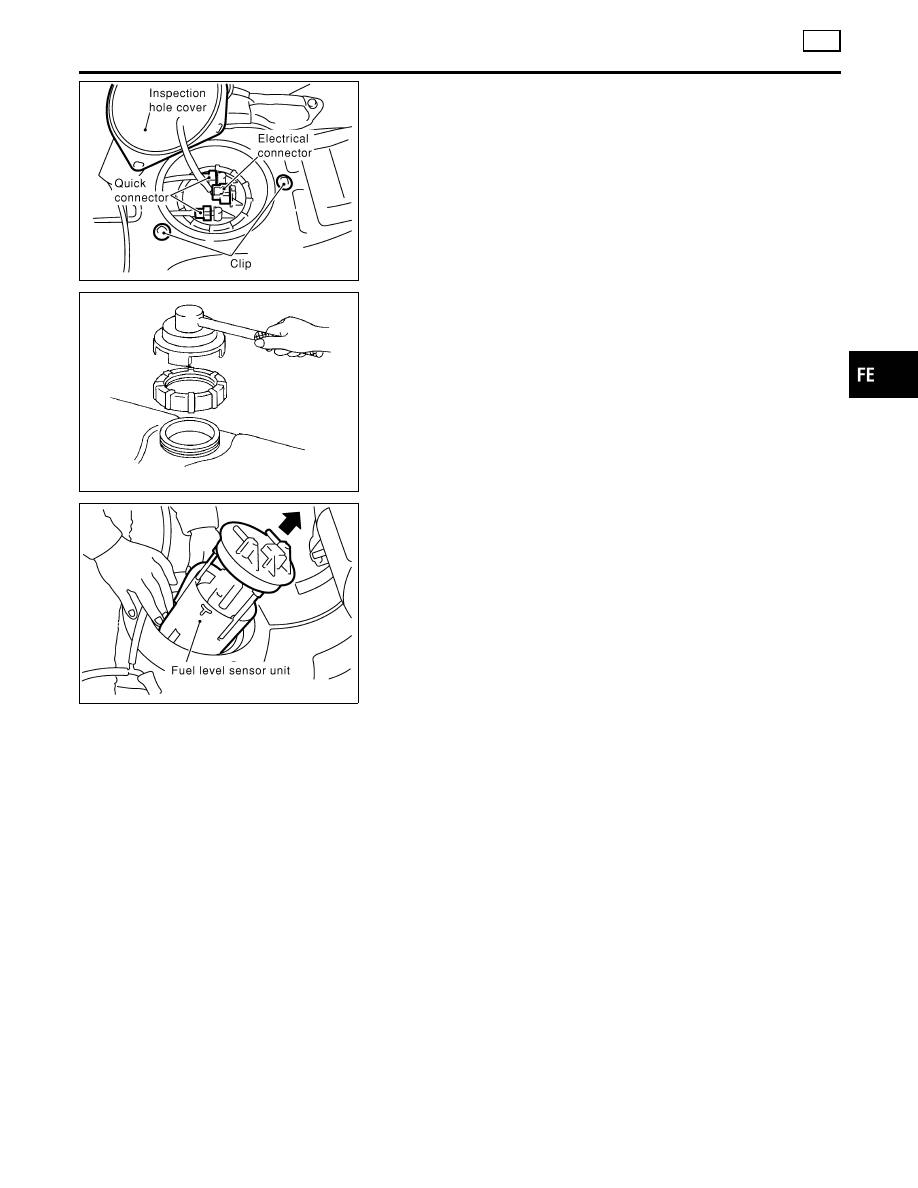

Disconnect electrical connector.

Disconnect the quick connectors.

For disconnect of quick connectors, refer to step 7. of “Fuel
Tank Removal”.

SFE376A

Remove lock ring using a lock ring socket (SST).

SFE648AA

Pull out the fuel level sensor unit and fuel pump.

Do not damage the arm of the fuel level sensor unit.

INSTALLATION

NLFE0032S02

Installation is in reverse order of removal.

IDX

FUEL SYSTEM

Fuel Level Sensor Unit (Cont’d)

FE-23

SMA211A

Checking Exhaust System

NLFE0022

Check

exhaust

pipes,

muffler

and

mounting

for

improper

attachment, leaks, cracks, damage, chafing or deterioration.

SEF180A

Removal and Installation

NLFE0018

CAUTION:

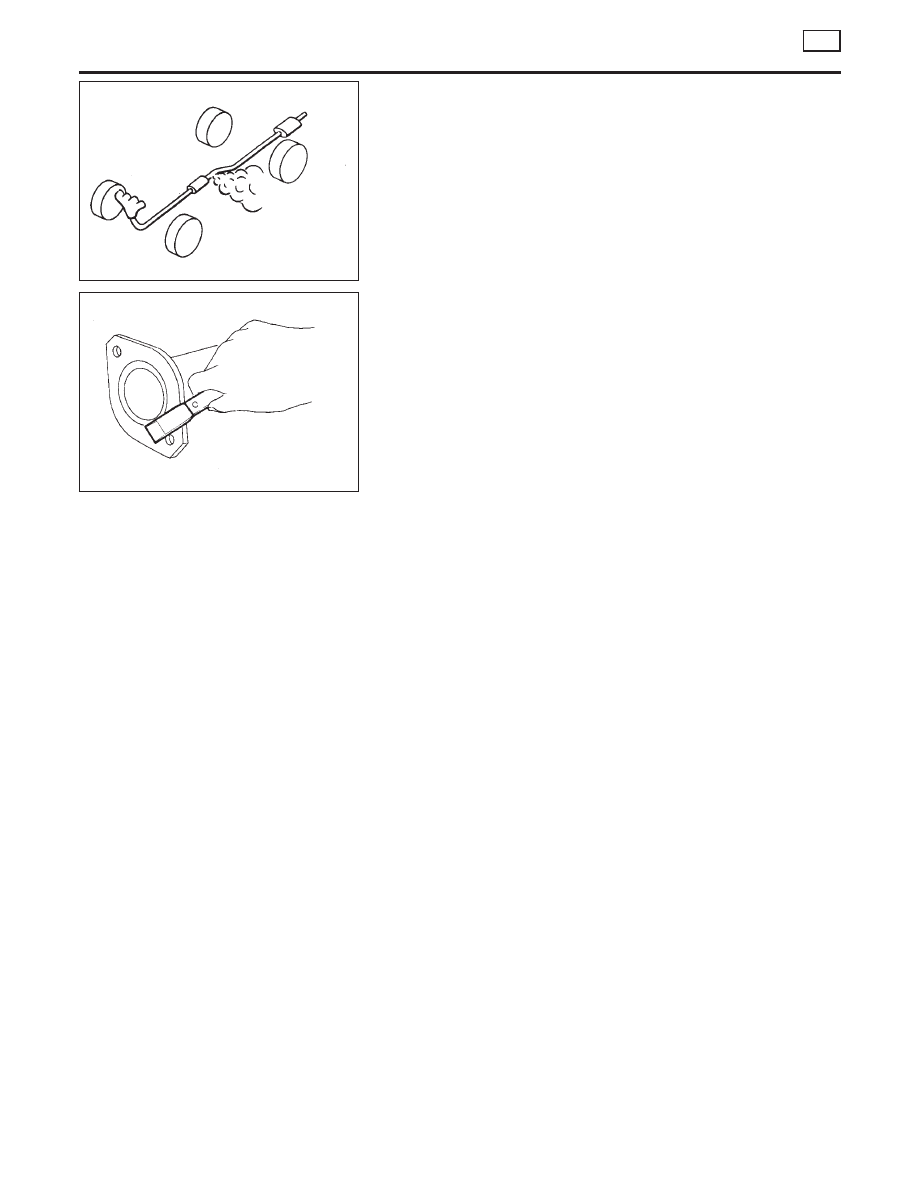

Always replace exhaust gaskets with new ones when
reassembling. If gasket remains on flange surface, scrape
off completely as shown at left.

With engine running, check all tube connections for
exhaust gas leaks, and entire system for unusual noises.

Check to ensure that mounting brackets and mounting
insulators are installed properly and free from undue
stress. Improper installation could result in excessive
noise or vibration.

Be sure to use genuine exhaust system parts which are
designed

especially

for

heat

resistance,

corrosion

resistance, and shape.

Perform the operation with the exhaust system fully
cooled down because the system will be heated just after
the engine stops.

Be careful not to cut your hand on the insulator edge.

EXHAUST SYSTEM

Checking Exhaust System

FE-24

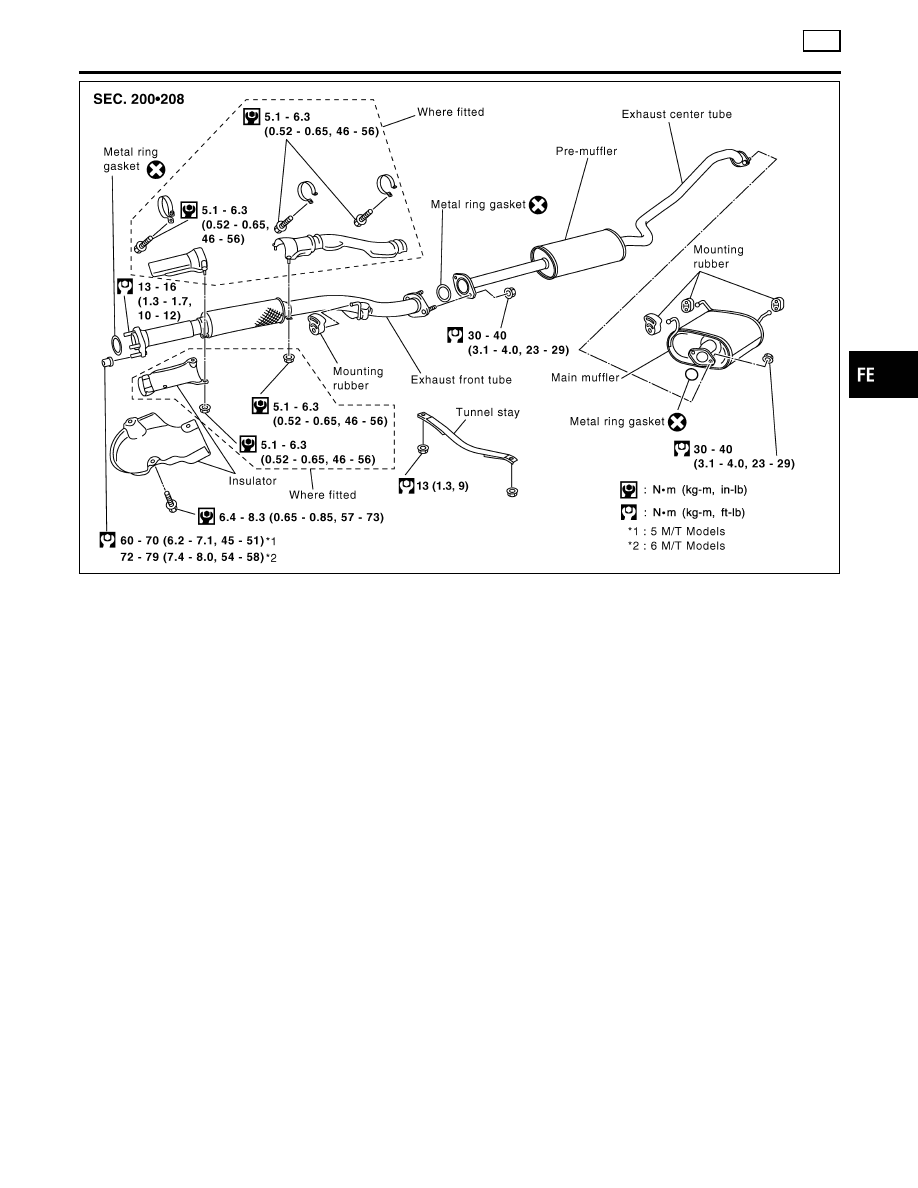

YFE046

IDX

EXHAUST SYSTEM

Removal and Installation (Cont’d)

FE-25

NOTES

PLEASE HELP US TO IMPROVE THIS
SERVICE MANUAL ON CD!

Your comments are important to NISSAN and will help us to improve our
Service Manuals on CD. Use this form to report any issues or comments you
may have regarding this Service Manual publication.

Please print this form and type or print your comments below. Mail or fax to:

NISSAN EUROPE S.A.S.
S320 Service Engineering
2, Avenue de Denis Papin
ZIPEC - F92350 Le Plessis Robinson
France
Fax: + 33 (0) 1 41 07 16 81

SERVICE MANUAL:

Model:

Language:

Publication Number:

Please describe any issues or problems in detail:

Page number(s):

Note: Please include a copy of each page, marked with your comments.

Is the organization of the manual clear and easy to follow? (circle your answer)

YES

Please comment:

What information should be included in NISSAN Service Manuals to better support you in

servicing or repairing customer vehicles?

Date

Your Name

Position :

Dealer

Dealer No. :

Address

City

Country :

Telephone

Fax

E-mail

Terminal Arrangement

NLEL0493

YEL316E

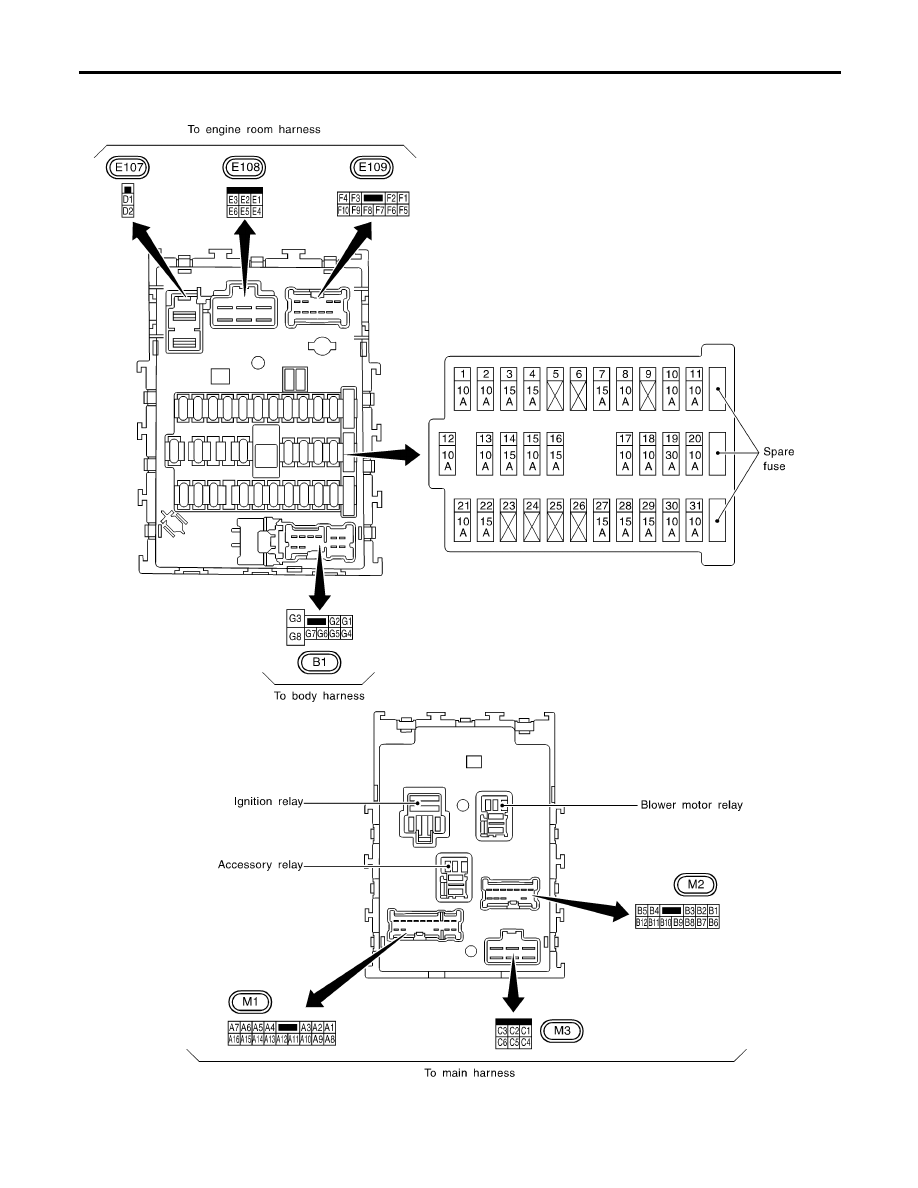

FUSE BLOCK — JUNCTION BOX (J/B)

Terminal Arrangement

Terminal Arrangement

NLEL0494

YEL087E

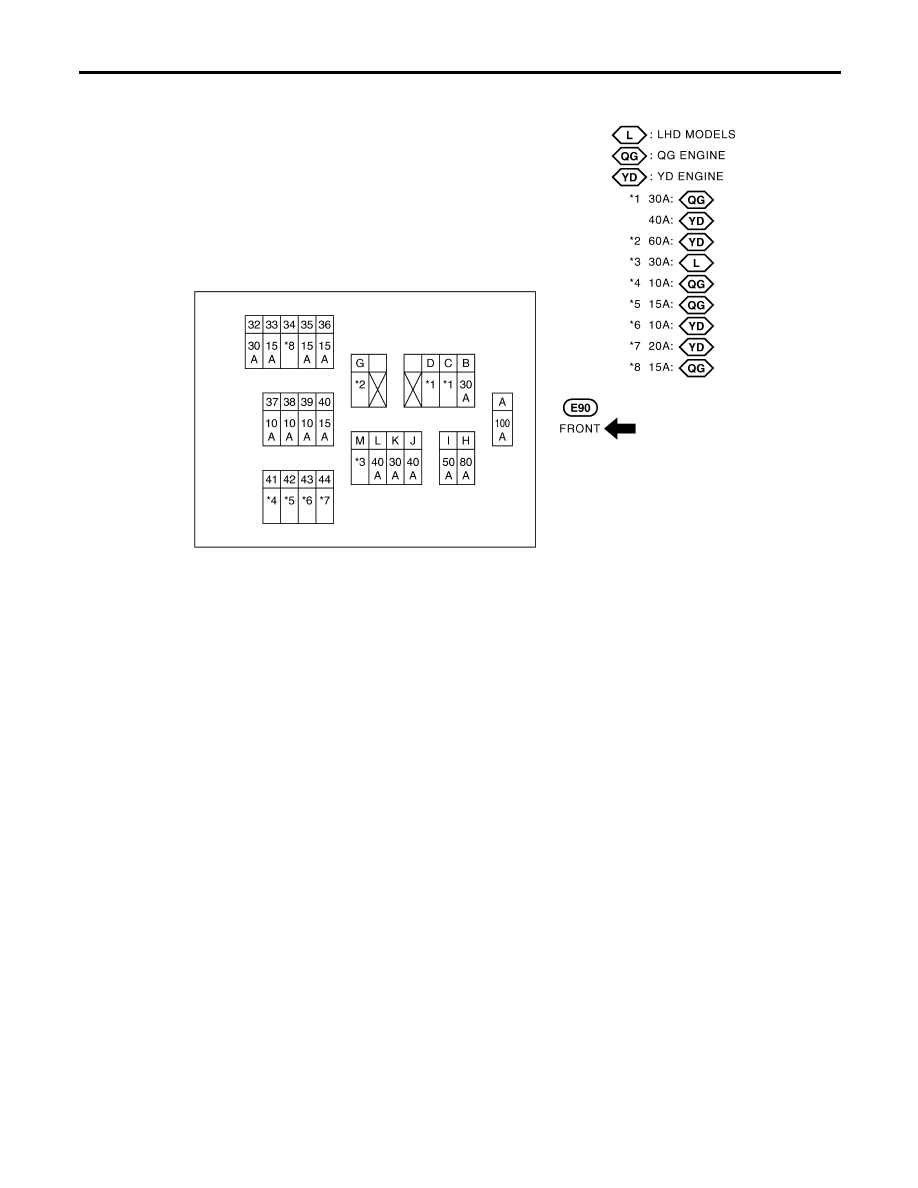

FUSE AND FUSIBLE LINK BOX

Terminal Arrangement

Terminal Arrangement

NLEL0495

YEL088E

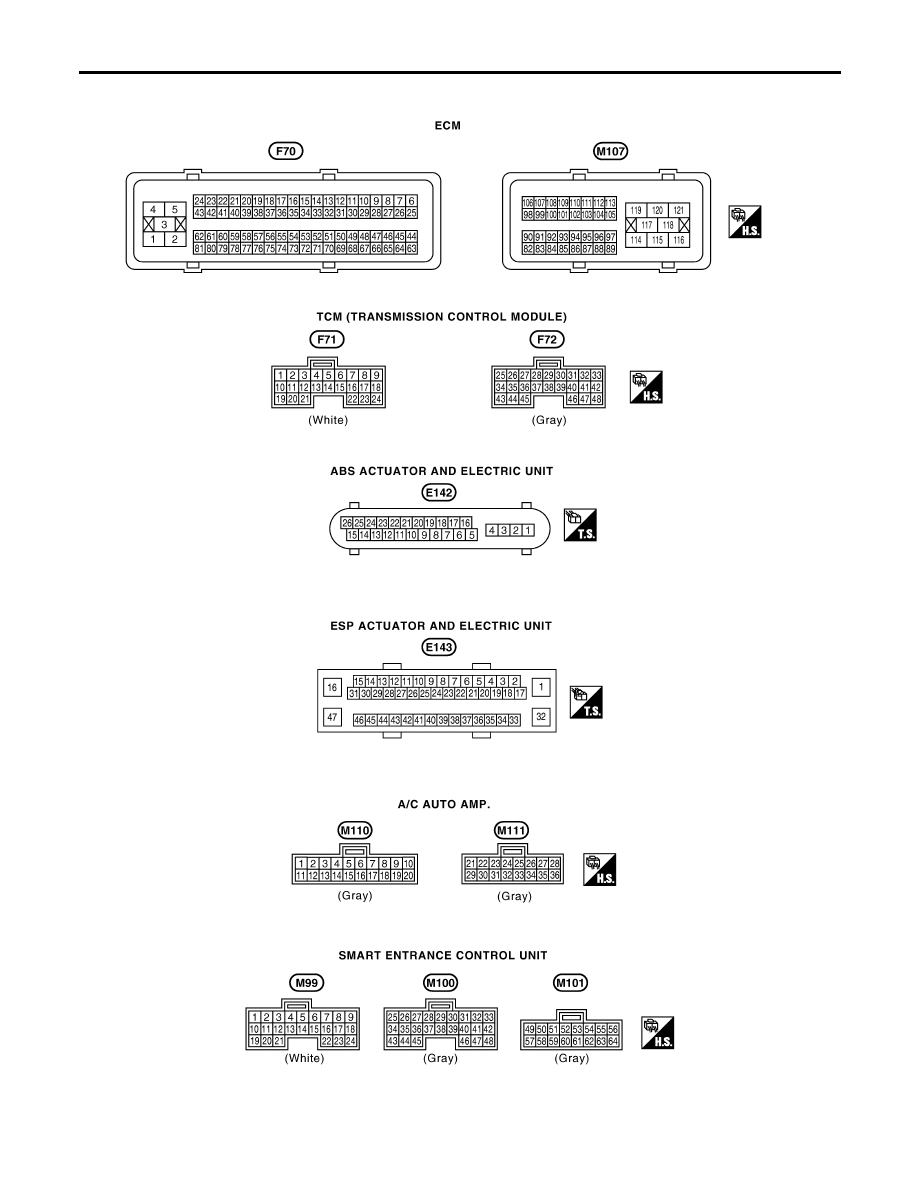

ELECTRICAL UNITS

Terminal Arrangement

NOTES

Edition:

September

2003

Release:

October

2003 (01)

Publication No.: SM3E00-1V10E

Reference No.: 771134

7026

GENERAL INFORMATION

MAINTENANCE

ENGINE MECHANICAL

ENGINE LUBRICATION &
COOLING SYSTEMS

ENGINE CONTROL SYSTEM

ACCELERATOR CONTROL,
FUEL & EXHAUST SYSTEMS

5MT – MANUAL TRANSAXLE

MT - 5MT

6MT – MANUAL TRANSAXLE

MT - 6MT

AUTOMATIC TRANSAXLE

FRONT & REAR AXLE

FRONT & REAR SUSPENSION

AUTOMATIC AIR CONDITIONER

ATC

STARTING & CHARGING SYSTEMS

ELECTRICAL SYSTEM

ALPHABETICAL INDEX

IDX

ALMERA TINO

MODEL V10 SERIES

NISSAN EUROPE S.A.S.

Produced in The Netherlands

Not to be reproduced in whole or in part
without the prior written permission of
Nissan Europe S.A.S., Paris, France.

QUICK REFERENCE INDEX

FOREWORD

This manual contains maintenance and repair procedures for NISSAN
ALMERA TINO, model V10 series.

In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.

All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in speci-
fications and methods at any time without notice.

IMPORTANT SAFETY NOTICE

The proper performance of service is essential for both the safety of the
technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a man-
ner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician and the
tools and parts available. Accordingly, anyone using service procedures,
tools or parts which are not specifically recommended by NISSAN must
first completely satisfy himself that neither his safety nor the vehicle’s
safety will be jeopardized by the service method selected.

NISSAN EUROPE S.A.S.

Service Engineering Section

Paris, France

GENERAL INFORMATION

SECTION

CONTENTS

PRECAUTIONS ...............................................................3

Precautions ..................................................................3

PRECAUTIONS FOR SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

SEAT BELT PRE-TENSIONER

″

.................................3

PRECAUTIONS FOR NATS (NISSAN ANTI-THEFT
SYSTEM)

..................................................................3

GENERAL PRECAUTIONS

.........................................4

PRECAUTIONS FOR MULTIPORT FUEL
INJECTION SYSTEM OR ENGINE CONTROL
SYSTEM

...................................................................6

PRECAUTIONS FOR THREE WAY CATALYST

...........6

PRECAUTIONS FOR HOSES

.....................................6

PRECAUTIONS FOR ENGINE OILS

...........................7

PRECAUTIONS FOR FUEL

........................................8

PRECAUTIONS FOR AIR CONDITIONING

..................8

HOW TO USE THIS MANUAL........................................9
HOW TO READ WIRING DIAGRAMS.......................... 11

Sample/Wiring Diagram - EXAMPL - ........................ 11

OPTIONAL SPLICE

..................................................12

Description .................................................................13

CONNECTOR SYMBOLS

.........................................15

HARNESS INDICATION

...........................................16

COMPONENT INDICATION

......................................16

SWITCH POSITIONS

...............................................16

DETECTABLE LINES AND NON-DETECTABLE
LINES

.....................................................................17

MULTIPLE SWITCH

.................................................18

REFERENCE AREA

.................................................19

HOW TO PERFORM EFFICIENT DIAGNOSES
FOR AN ELECTRICAL INCIDENT ...............................21

Work Flow..................................................................21
Incident Simulation Tests...........................................22

INTRODUCTION

......................................................22

VEHICLE VIBRATION

..............................................22

HEAT SENSITIVE

....................................................23

FREEZING

..............................................................23

WATER INTRUSION

................................................24

ELECTRICAL LOAD

.................................................24

COLD OR HOT START UP

.......................................24

Circuit Inspection .......................................................24

INTRODUCTION

......................................................24

................25

..............26

...........................................27

VOLTAGE DROP TESTS

..........................................27

CONTROL UNIT CIRCUIT TEST

...............................29

HOW TO FOLLOW TROUBLE DIAGNOSES...............31

How to Follow Test Groups in Trouble Diagnoses....32
Key to Symbols Signifying Measurements or
Procedures.................................................................33

CONSULT-II CHECKING SYSTEM ...............................35

Function and System Application ..............................35
Nickel Metal Hydride Battery Replacement...............36
Checking Equipment..................................................36
CONSULT-II Start Procedure ....................................37
CONSULT-II Data Link Connector (DLC) Circuit ......37

INSPECTION PROCEDURE

.....................................37

IDENTIFICATION INFORMATION ................................38

Model Variation ..........................................................38

PREFIX AND SUFFIX DESIGNATIONS

.....................38

Identification Number.................................................39

VEHICLE IDENTIFICATION NUMBER
ARRANGEMENT

.....................................................39

IDENTIFICATION PLATE

..........................................40

ENGINE SERIAL NUMBER

.......................................40

AUTOMATIC TRANSAXLE NUMBER

........................40

MANUAL TRANSAXLE NUMBER

..............................41

Dimensions ................................................................42
Wheels and Tires.......................................................42

LIFTING POINTS AND TOW TRUCK TOWING ...........43

Preparation ................................................................43

SPECIAL SERVICE TOOLS

......................................43

Board-on Lift ..............................................................43
Garage Jack and Safety Stand .................................44
2-pole Lift ...................................................................45
Tow Truck Towing ......................................................46

TOWING A H.CVT MODEL WITH FOUR WHEELS
ON GROUND

..........................................................46

TOWING A H.CVT MODEL WITH REAR WHEELS
RAISED (WITH FRONT WHEELS ON GROUND)

.......46

IDX

TOWING POINT

.......................................................47

TIGHTENING TORQUE OF STANDARD BOLTS ........48
ISO 15031–2 TERMINOLOGY LIST .............................49

ISO 15031–2 Terminology List ..................................49

CONTENTS

(Cont’d)

GI-2

Precautions

NLGI0001

Observe the following precautions to ensure safe and proper
servicing. These precautions are not described in each indi-
vidual section.

SGI646

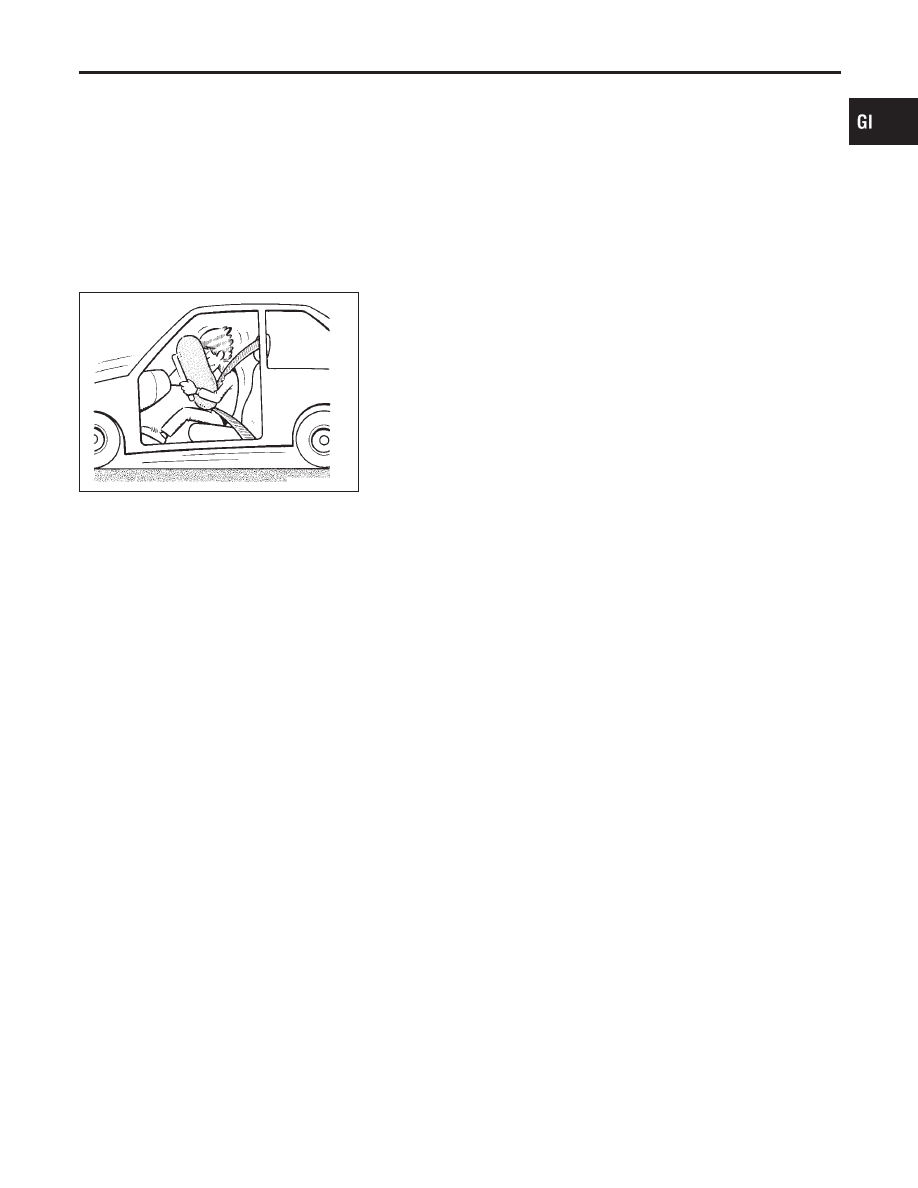

PRECAUTIONS FOR SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) “AIR BAG” AND “SEAT BELT
PRE-TENSIONER”

NLGI0001S01

The Supplemental Restraint System such as “AIR BAG” and “SEAT
BELT PRE-TENSIONER” used along with a seat belt, helps to
reduce the risk or severity of injury to the driver and front passen-
ger for certain types of collision. The SRS system composition
which is available to NISSAN MODEL V10 is as follows (The com-
position varies according to the destination and optional equip-
ment.):

For a frontal collision
The Supplemental Restraint System consists of driver air bag
module (located in the center of the steering wheel), front pas-
senger air bag module (located on the instrument panel on
passenger side), front seat belt pre-tensioners, a diagnoses
sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air
bag module (located in the outer side of front seat), side air bag
(satellite) sensor, diagnoses sensor unit (one of components of
air bags for a frontal collision), wiring harness, warning lamp
(one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in
the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could
increase the risk of personal injury or death in the event
of a collision which would result in air bag inflation, all
maintenance should be performed by an authorized
NISSAN dealer.

Improper maintenance, including incorrect removal and
installation of the SRS, can lead to personal injury caused
by unintentional activation of the system. For removal of
Spiral Cable and Air Bag Module, see the RS section.

Do not use electrical test equipment on any circuit related
to the SRS unless instructed to in this Service Manual.
Spiral cable and wiring harnesses covered with yellow
insulation tape either just before the harness connectors
or for the complete harness are related to the SRS.

PRECAUTIONS FOR NATS (NISSAN ANTI-THEFT
SYSTEM)

NLGI0001S02

NATS will immobilize the engine if someone tries to start it without
the registered key of NATS.
Both of the originally supplied ignition key IDs have been NATS
registered.

IDX

PRECAUTIONS

Precautions

GI-3

The security indicator is located on the instrument panel. The indi-
cator blinks when the ignition switch is in “OFF” or “ACC” position.
Therefore, NATS warns outsiders that the vehicle is equipped with
the anti-theft system.

When NATS detects trouble, the security indicator lamp lights
up while ignition switch is in “ON” position.
This lighting up indicates that the anti-theft is not functioning,
so prompt service is required.

When servicing NATS (trouble diagnoses, system initialization
and additional registration of other NATS ignition key IDs),
CONSULT-II hardware and CONSULT-II NATS software is
necessary.
Regarding the procedures of NATS initialization and NATS
ignition key ID registration, refer to CONSULT-II operation
manual, NATS.

Therefore, CONSULT-II NATS software (program card and
operation manual) must be kept strictly confidential to main-
tain the integrity of the anti-theft function.

When servicing NATS (trouble diagnoses, system initialization
and additional registration of other NATS ignition key IDs), it
may be necessary to re-register original key identification.
Therefore, be sure to receive all keys from vehicle owner. A
maximum of five key IDs can be registered into NATS.

When failing to start the engine first time using the key of
NATS, start as follows.

Leave the ignition key in “ON” position for approximately 5
seconds.

Turn ignition key to “OFF” or “LOCK” position and wait approxi-
mately 5 seconds.

Repeat step 1 and 2 again.

Restart the engine while keeping the key separate from any
others on key-chain.

SGI285

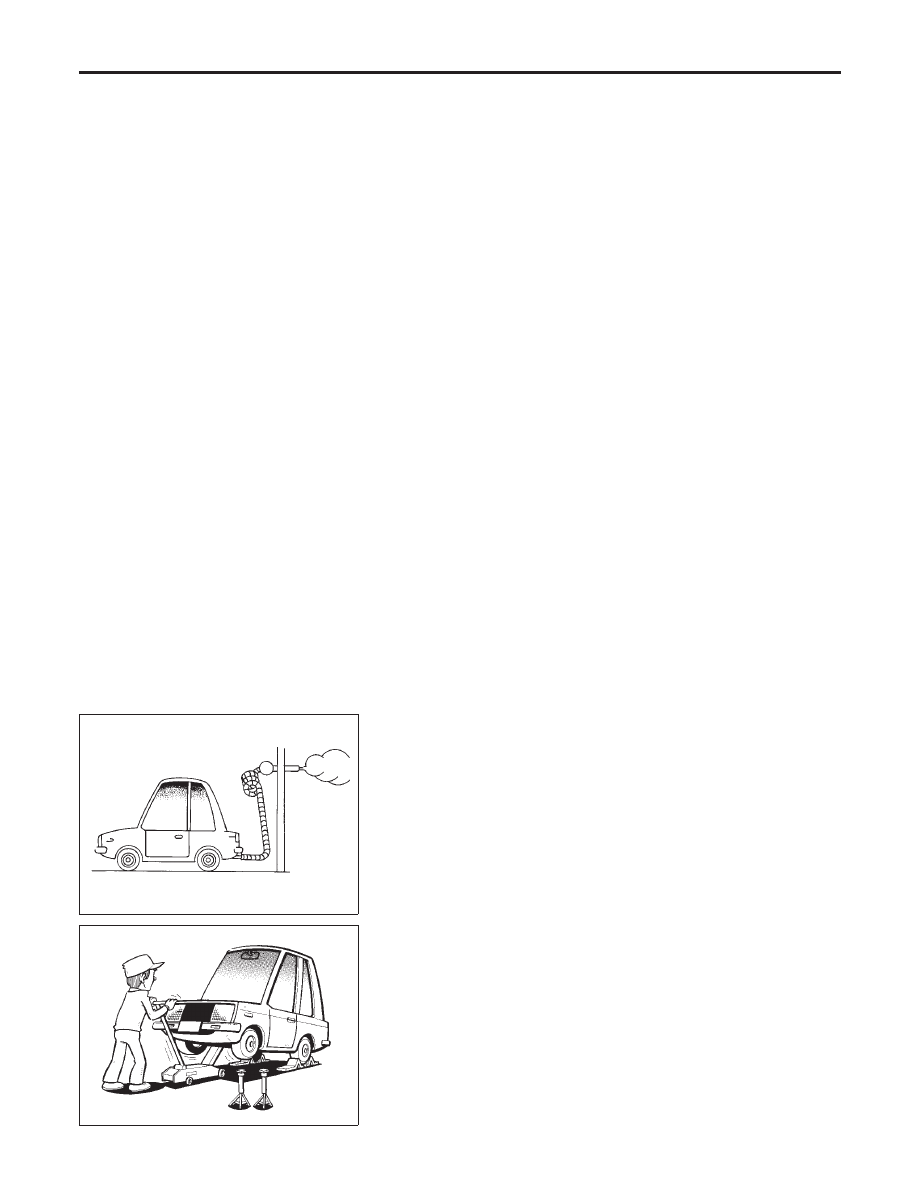

GENERAL PRECAUTIONS

NLGI0001S03

Do not operate the engine for an extended period of time
without proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any
inflammable or poisonous materials, such as gasoline, refrig-
erant gas, etc. When working in a pit or other enclosed area,
be sure to properly ventilate the area before working with haz-
ardous materials.
Do not smoke while working on the vehicle.

SGI231

Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before work-
ing on the vehicle.
These operations should be done on a level surface.

When removing a heavy component such as the engine or
transaxle, be careful not to lose your balance and drop them.
Also, do not allow them to strike adjacent parts, especially the
brake tubes and master cylinder.

PRECAUTIONS

Precautions (Cont’d)

GI-4

SEF289H

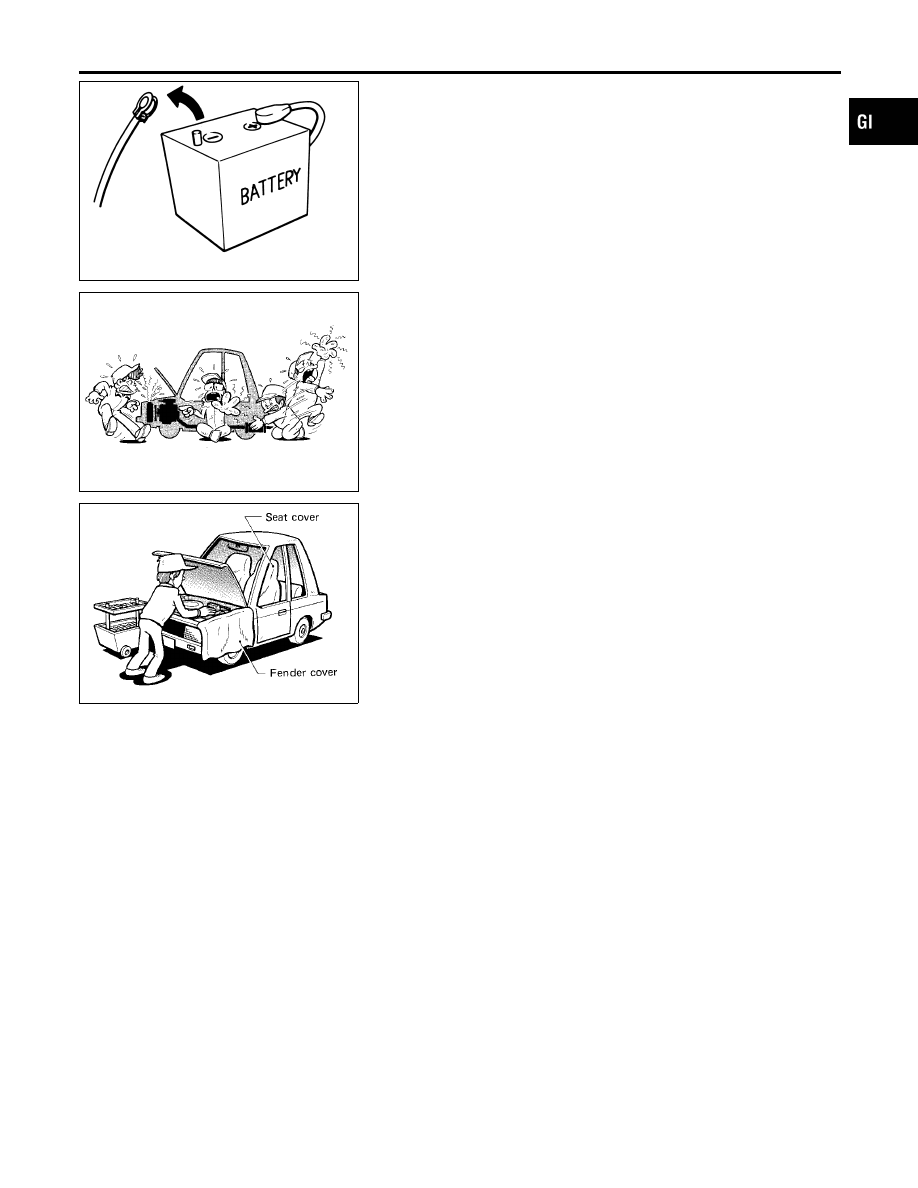

Before starting repairs which do not require battery power:
Turn off ignition switch.
Disconnect the negative battery cable.

SGI233

To prevent serious burns:
Avoid contact with hot metal parts.
Do not remove the radiator cap when the engine is hot.

SGI234

Before servicing the vehicle:
Protect fenders, upholstery and carpeting with appropriate cov-
ers.
Take caution that keys, buckles or buttons do not scratch paint.

Clean all disassembled parts in the designated liquid or solvent
prior to inspection or assembly.

Replace oil seals, gaskets, packings, O-rings, locking washers,
cotter pins, self-locking nuts, etc. with new ones.

Replace inner and outer races of tapered roller bearings and
needle bearings as a set.

Arrange the disassembled parts in accordance with their
assembled locations and sequence.

Do not touch the terminals of electrical components which use
microcomputers (such as ECMs).
Static electricity may damage internal electronic components.

After disconnecting vacuum or air hoses, attach a tag to indi-
cate the proper connection.

Use only the fluids and lubricants specified in this manual.

Use approved bonding agent, sealants or their equivalents
when required.

Use tools and recommended special tools where specified for
safe and efficient service repairs.

When repairing the fuel, oil, water, vacuum or exhaust
systems, check all affected lines for leaks.

Dispose of drained oil or the solvent used for cleaning parts in
an appropriate manner.

IDX

PRECAUTIONS

Precautions (Cont’d)

GI-5

Content .. 211 212 213 214 ..
