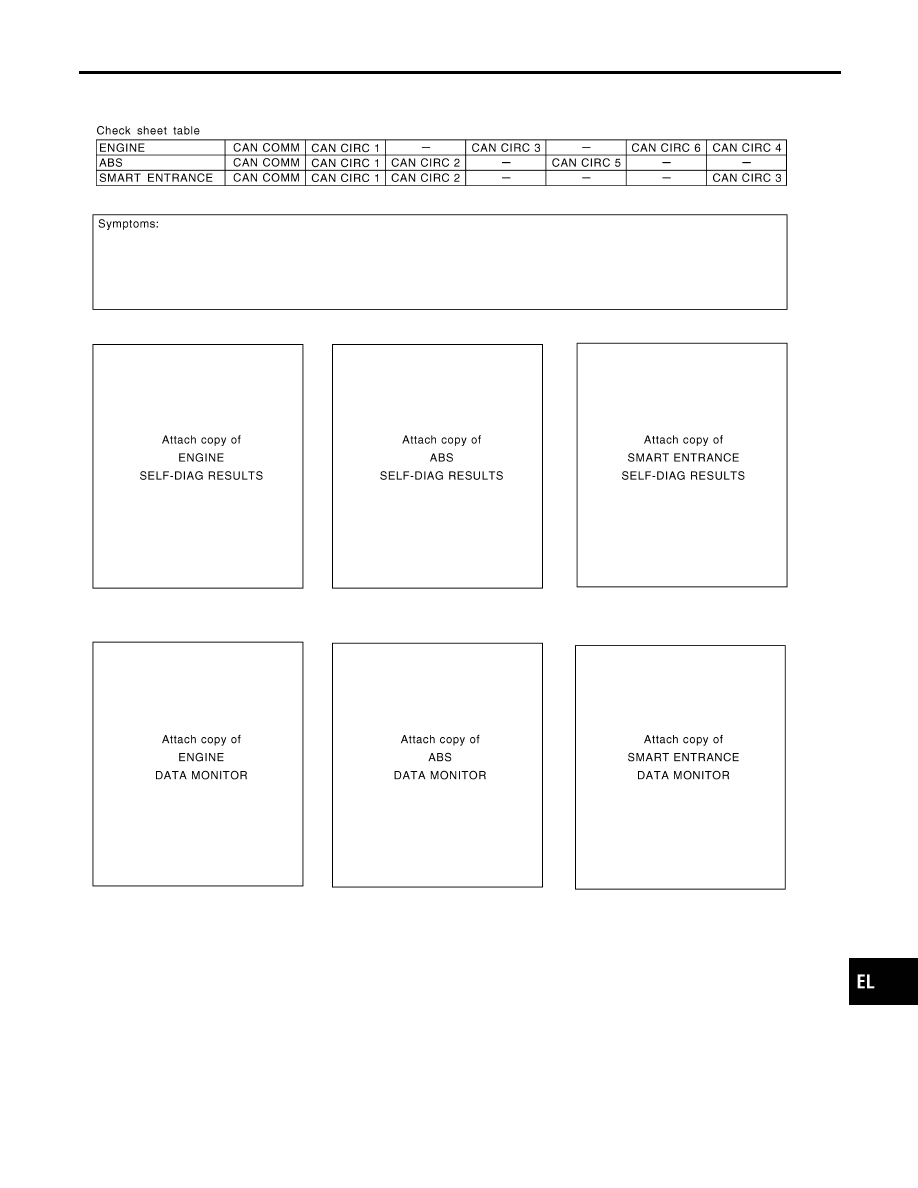

CHECK SHEET

NLEL0646S02

YEL431E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-497

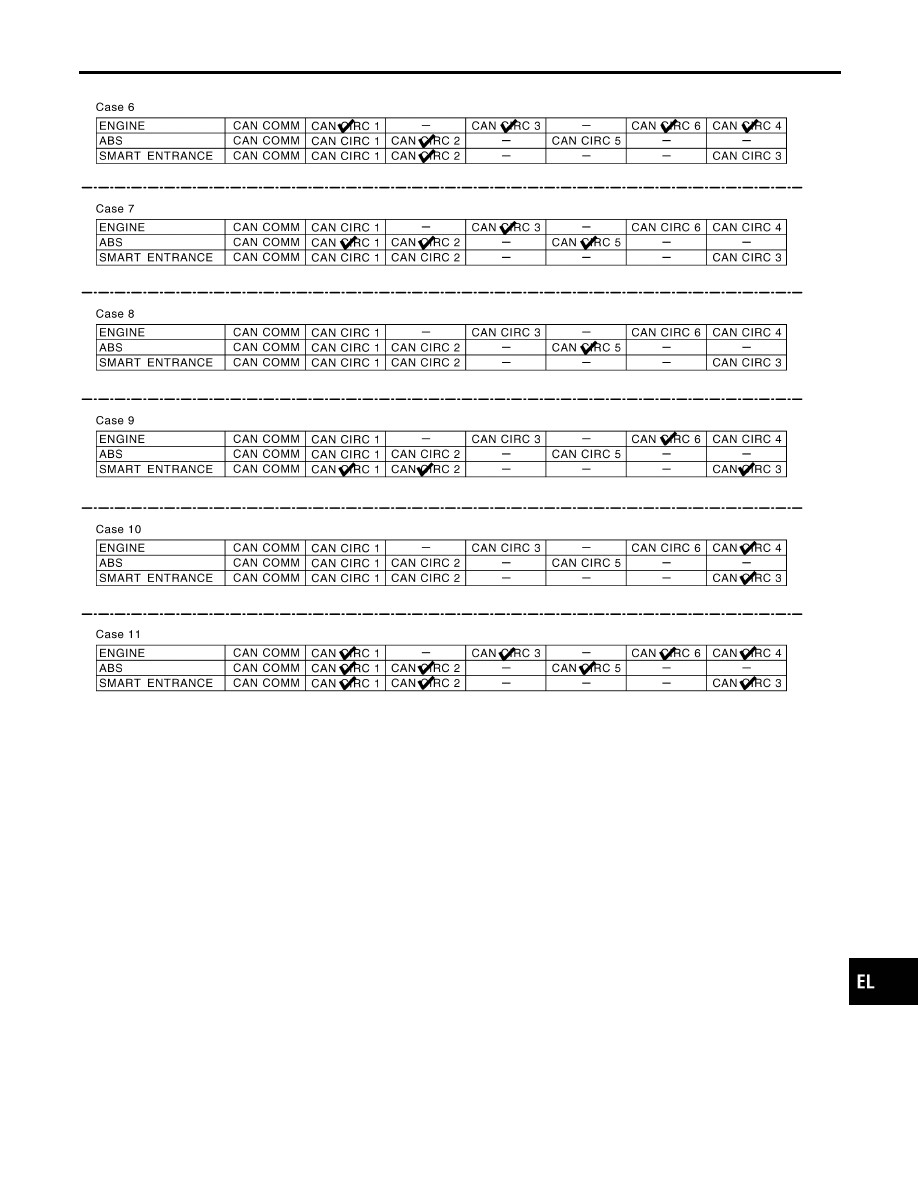

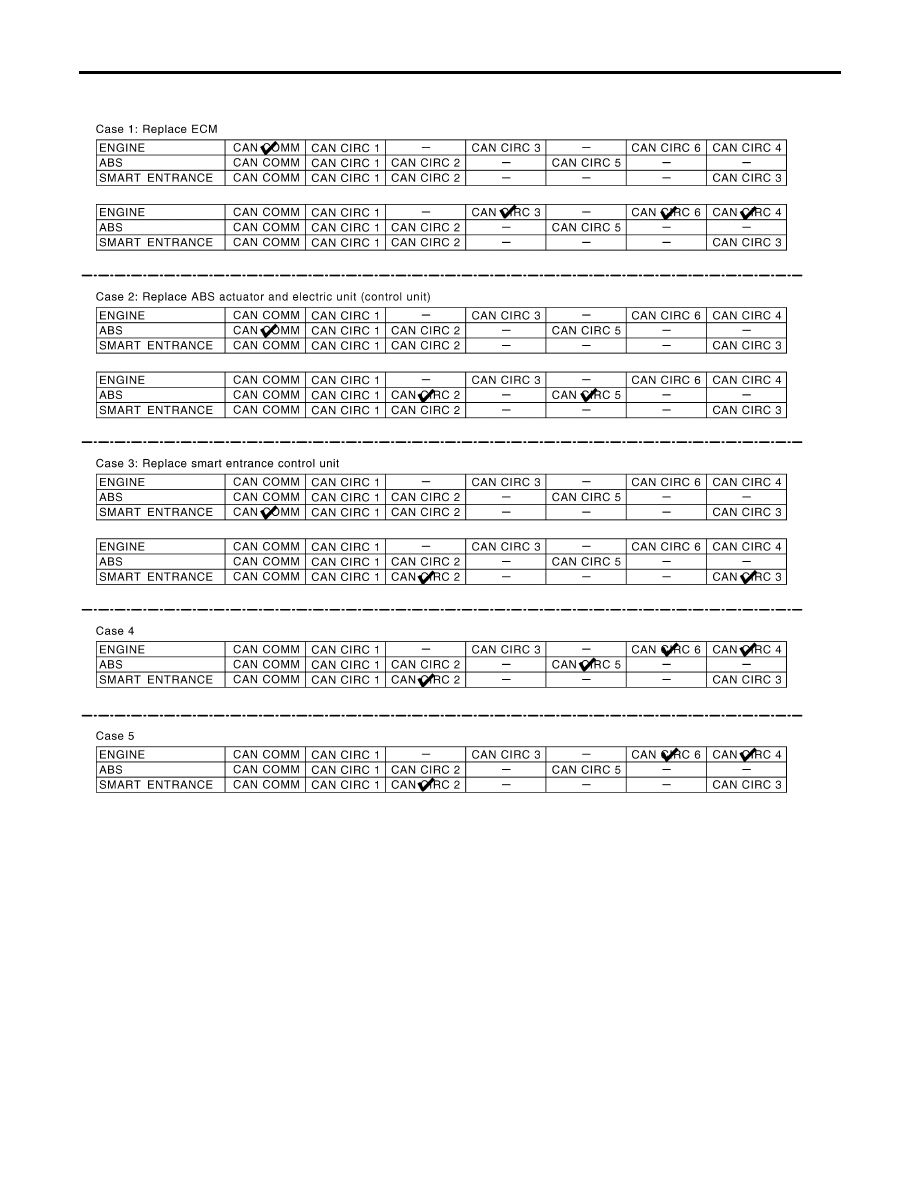

CHECK SHEET RESULTS (EXAMPLE)

NLEL0646S03

YEL432E

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-498

YEL433E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-499

INSPECTION

NLEL0646S04

Proceed trouble diagnosis according to the check sheet results (example).
Case 1: Replace ECM.
Case 2: Replace ABS actuator and electric unit (control unit).
Case 3: Replace smart entrance control unit.
Case 4: Check harness between ABS actuator and electric unit (control unit) and steering angle sensor. Refer
to “CIRCUIT CHECK BETWEEN ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) AND STEER-
ING ANGLE SENSOR” (EL-502).
Case 5: Check harness between steering angle sensor and smart entrance control unit. Refer to “CIRCUIT
CHECK BETWEEN STEERING ANGLE SENSOR AND SMART ENTRANCE CONTROL UNIT” (EL-502).
Case 6: Check ECM circuit. Refer to “ECM CIRCUIT CHECK” (EL-504).
Case 7: Check ABS actuator and electric unit (control unit) circuit. Refer to “ABS ACTUATOR AND ELECTRIC
UNIT (CONTROL UNIT) CIRCUIT CHECK” (EL-505).
Case 8: Check steering angle sensor circuit. Refer to “STEERING ANGLE SENSOR CIRCUIT CHECK” (EL-
506).
Case 9: Check smart entrance control unit circuit. Refer to “SMART ENTRANCE CONTROL UNIT CIRCUIT
CHECK” (EL-507).
Case 10: Check combination meter circuit. Refer to “COMBINATION METER CIRCUIT CHECK” (EL-508).
Case 11: Check CAN communication circuit. Refer to “CAN COMMUNICATION CIRCUIT CHECK” (EL-509).

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-500

CIRCUIT CHECK BETWEEN ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) AND
STEERING ANGLE SENSOR

=NLEL0646S06

1

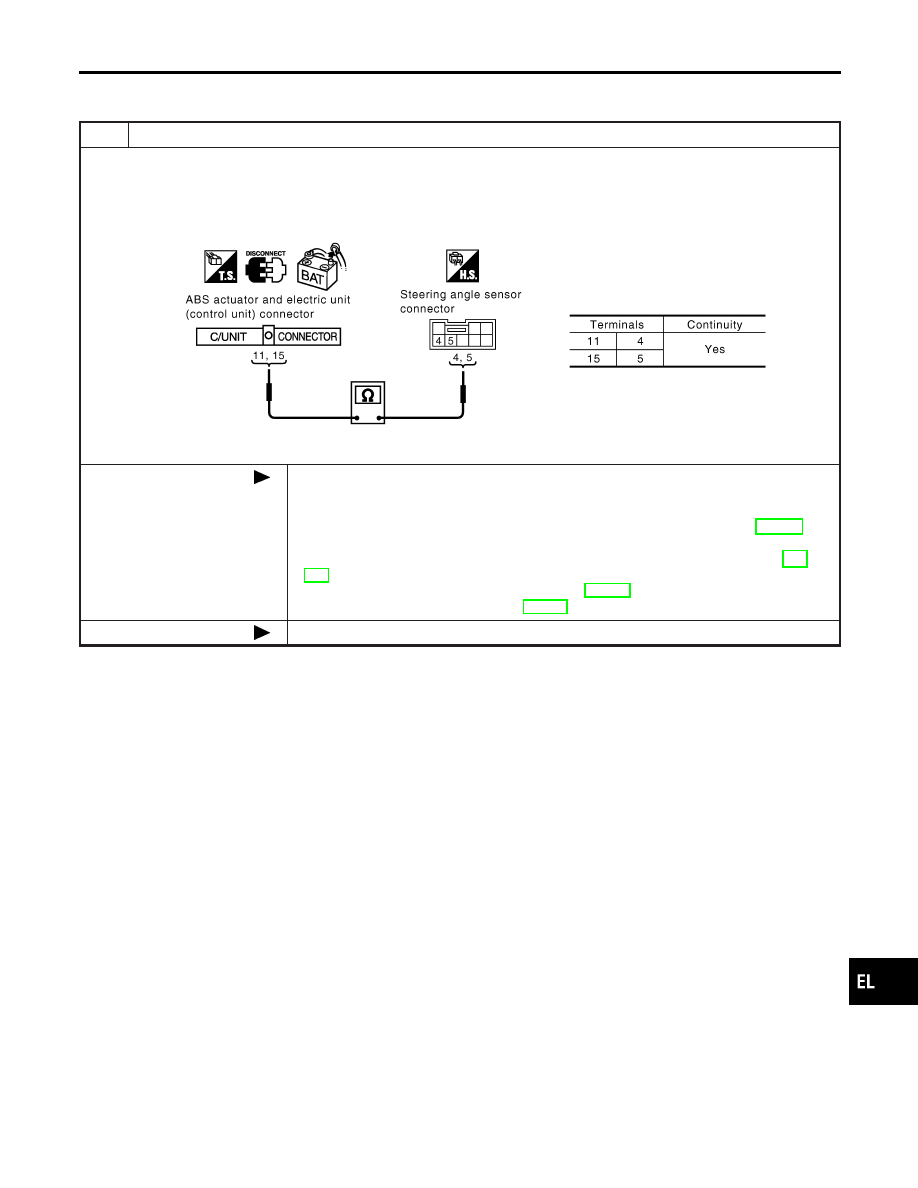

CHECK HARNESS FOR OPEN CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Disconnect ABS actuator and electric unit (control unit) connector and steering angle sensor connector.
4. Check continuity between ABS actuator and electric unit (control unit) harness connector E143 terminals 11 (L), 15 (R)

and steering angle sensor harness connector E129 terminals 4 (L), 5 (R).

YEL422E

OK or NG

OK

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to the fol-
lowing.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651)
for “ENGINE”

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

NG

Repair harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-501

CIRCUIT CHECK BETWEEN STEERING ANGLE SENSOR AND SMART ENTRANCE
CONTROL UNIT

=NLEL0646S05

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector for damage, bend and loose connection (connector side and harness side).
LHD models

I

Harness connector E125

I

Harness connector M82

RHD models

I

Harness connector E145

I

Harness connector M80

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

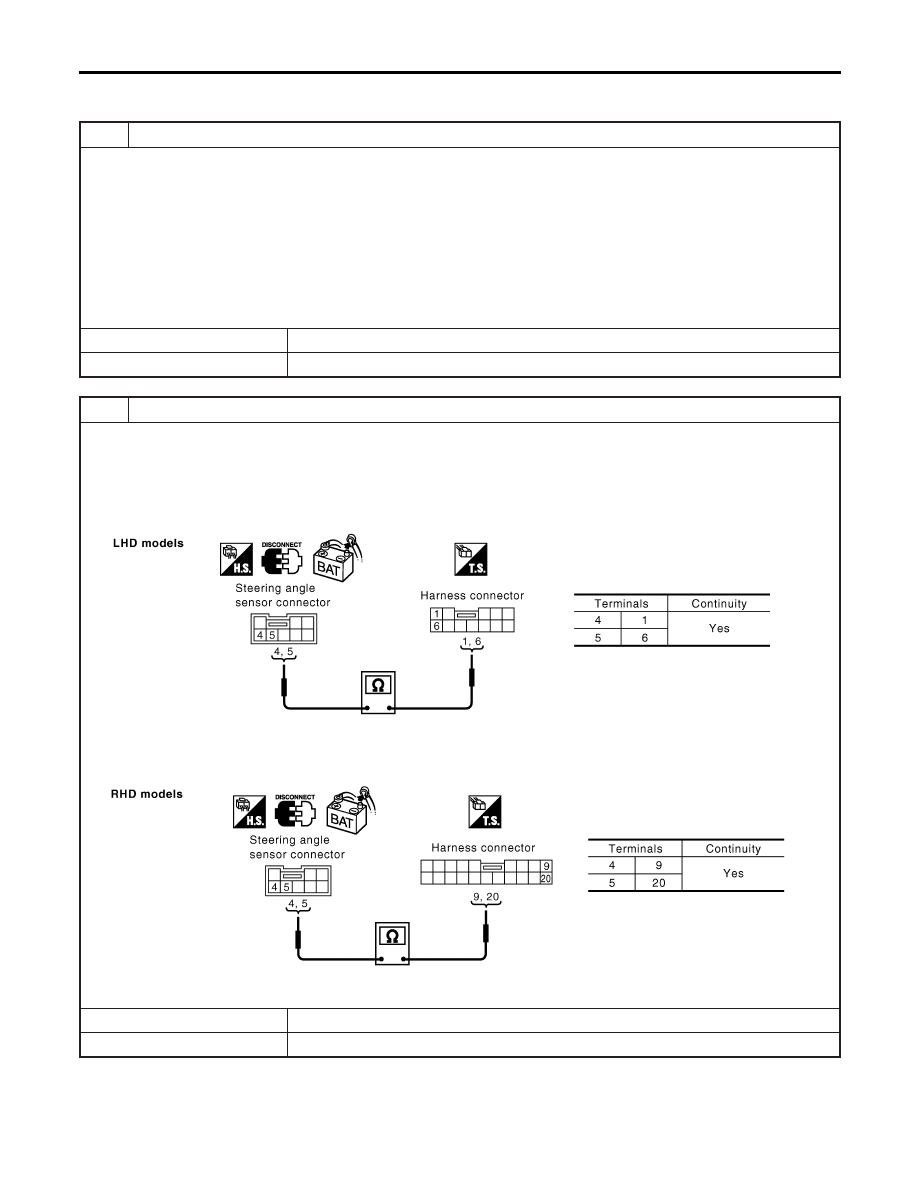

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect steering angle sensor connector and harness connector E125 (LHD models) or harness connector E145

(RHD models).

2. Check the following.
LHD models

I

Continuity between steering angle sensor harness connector E129 terminals 4 (L), 5 (R) and harness connector E125
terminals 1 (L), 6 (R)

YEL418E

RHD models

I

Continuity between steering angle sensor harness connector E129 terminals 4 (L), 5 (R) and harness connector E145
terminals 9 (L), 20 (R)

YEL419E

OK or NG

OK

©

GO TO 3.

NG

©

Repair harness.

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-502

3

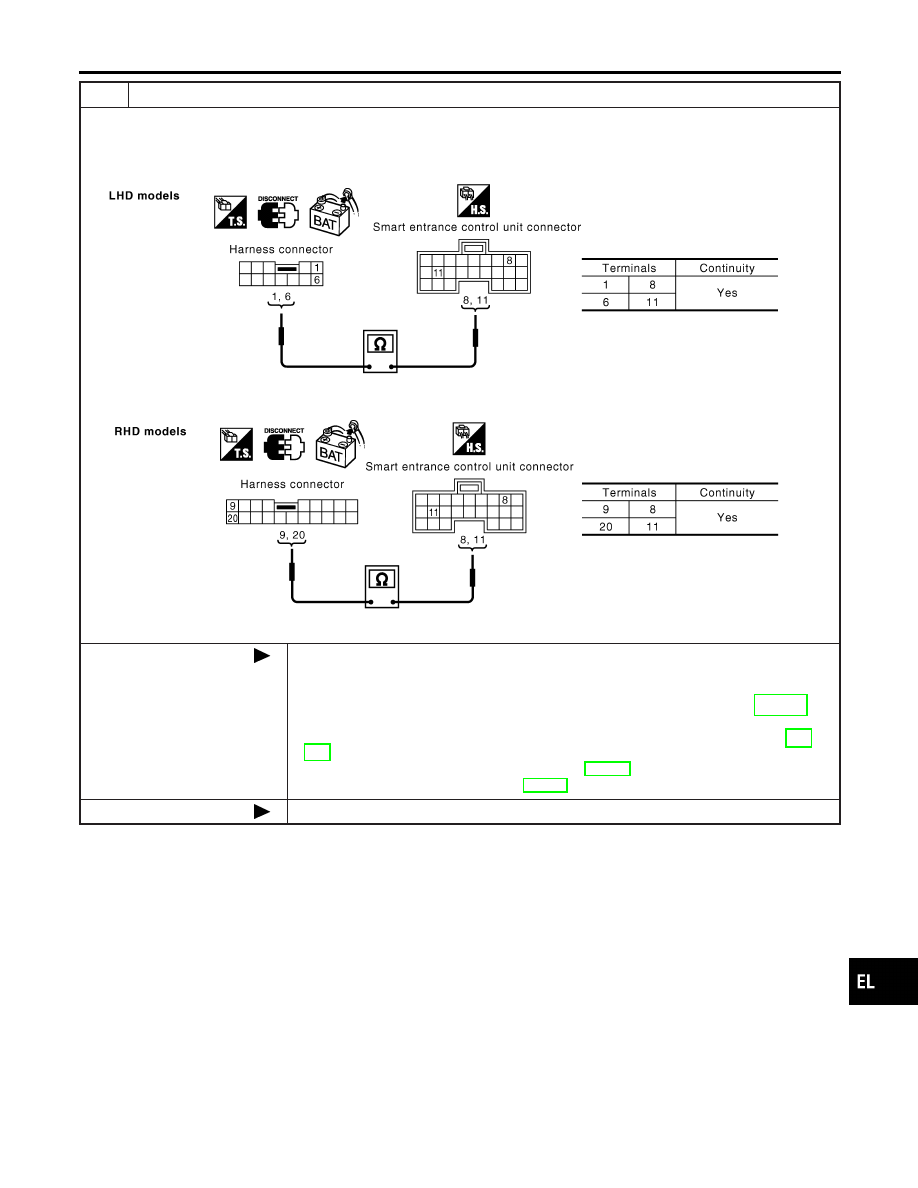

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Check the following.

Continuity between harness connector M82 terminals 1 (L), 6 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R) (LHD models)

YEL420E

Continuity between harness connector M80 terminals 9 (L), 20 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R) (RHD models)

YEL421E

OK or NG

OK

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to the fol-
lowing.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651)
for “ENGINE”

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

NG

Repair harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-503

ECM CIRCUIT CHECK

=NLEL0646S07

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of ECM for damage, bend and loose connection (control module side and harness

side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

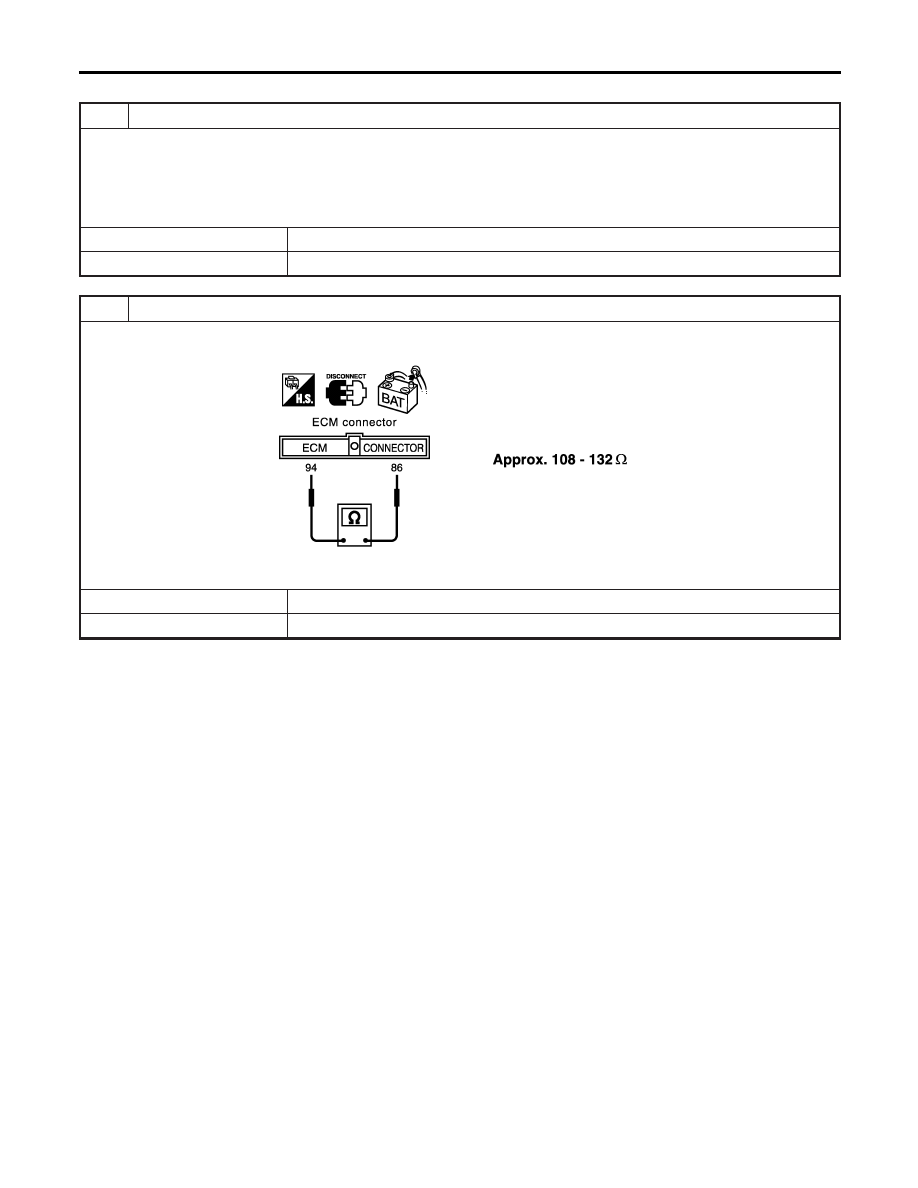

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M107 terminals 94 (L) and 86 (R).

SEL812Y

OK or NG

OK

©

Replace ECM.

NG

©

Repair harness between ECM and ABS actuator and electric unit (control unit).

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-504

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) CIRCUIT CHECK

=NLEL0646S08

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose connec-

tion (control unit side and harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

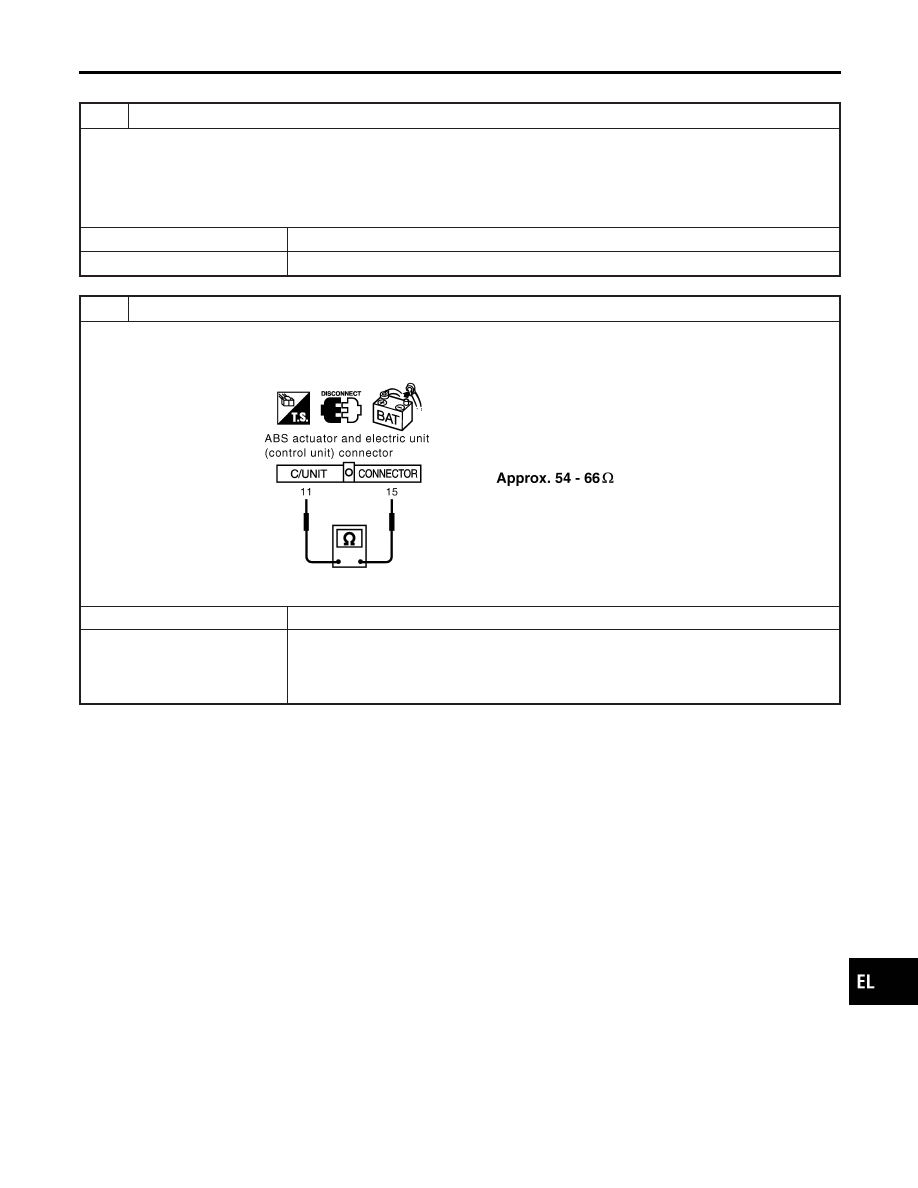

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (control unit) harness connector E143 terminals 11 (L) and 15

(R).

YEL423E

OK or NG

OK

©

Replace ABS actuator and electric unit (control unit).

NG

©

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E125 (LHD models).

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E145 (RHD models).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-505

STEERING ANGLE SENSOR CIRCUIT CHECK

=NLEL0646S10

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of steering angle sensor for damage, bend and loose connection (sensor side and

harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

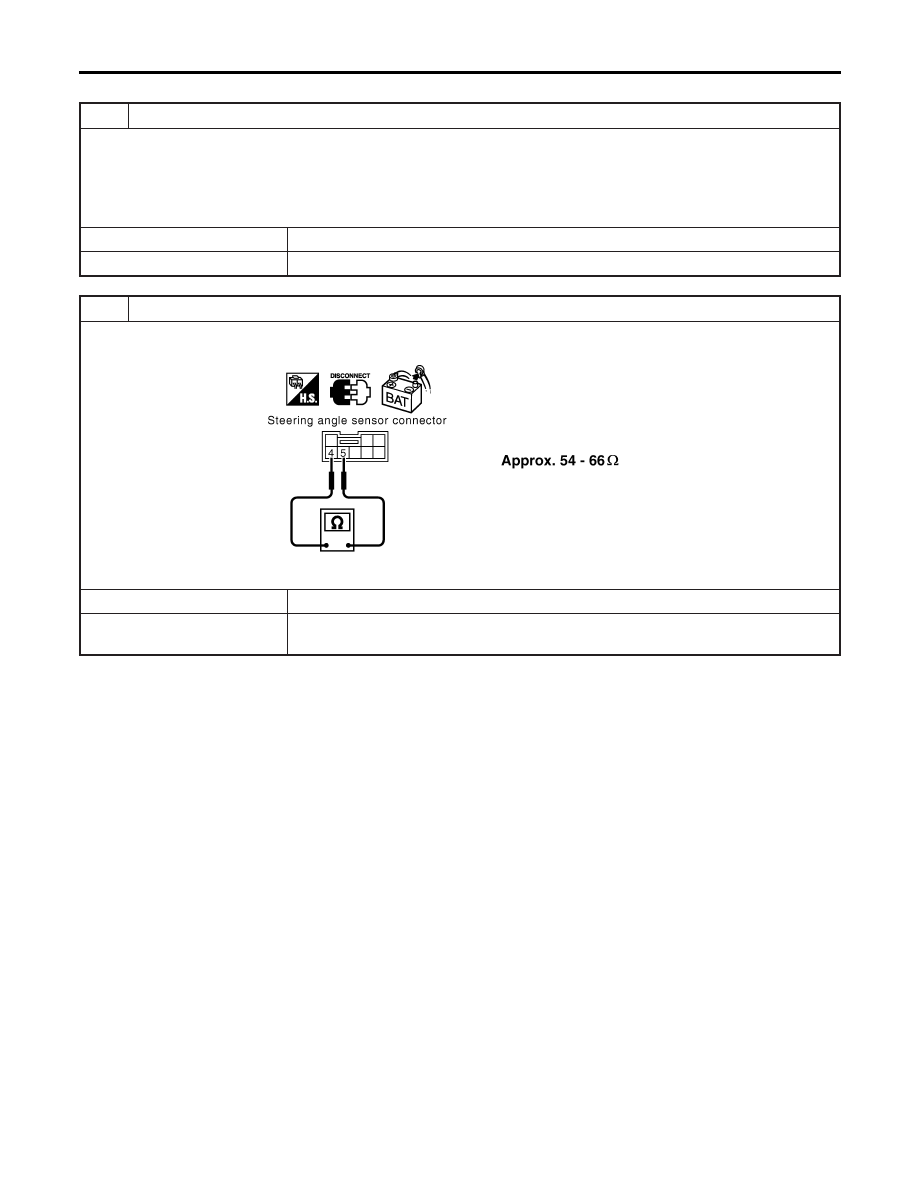

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness connector E129 terminals 4 (L) and 5 (R).

YEL424E

OK or NG

OK

©

Replace steering angle sensor.

NG

©

Repair harness between steering angle sensor and ABS actuator and electric unit (con-
trol unit).

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-506

SMART ENTRANCE CONTROL UNIT CIRCUIT CHECK

=NLEL0646S09

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check the terminals and connector of smart entrance control unit for damage, bend and loose connection (control unit

side and harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Check resistance between smart entrance control unit harness connector M99 terminals 8 (L) and 11 (R).

SEL814Y

OK or NG

OK

©

Replace smart entrance control unit.

NG

©

Repair harness between smart entrance control unit and data link connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-507

COMBINATION METER CIRCUIT CHECK

=NLEL0646S11

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector of combination meter for damage, bend and loose connection (meter side and

harness side).

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

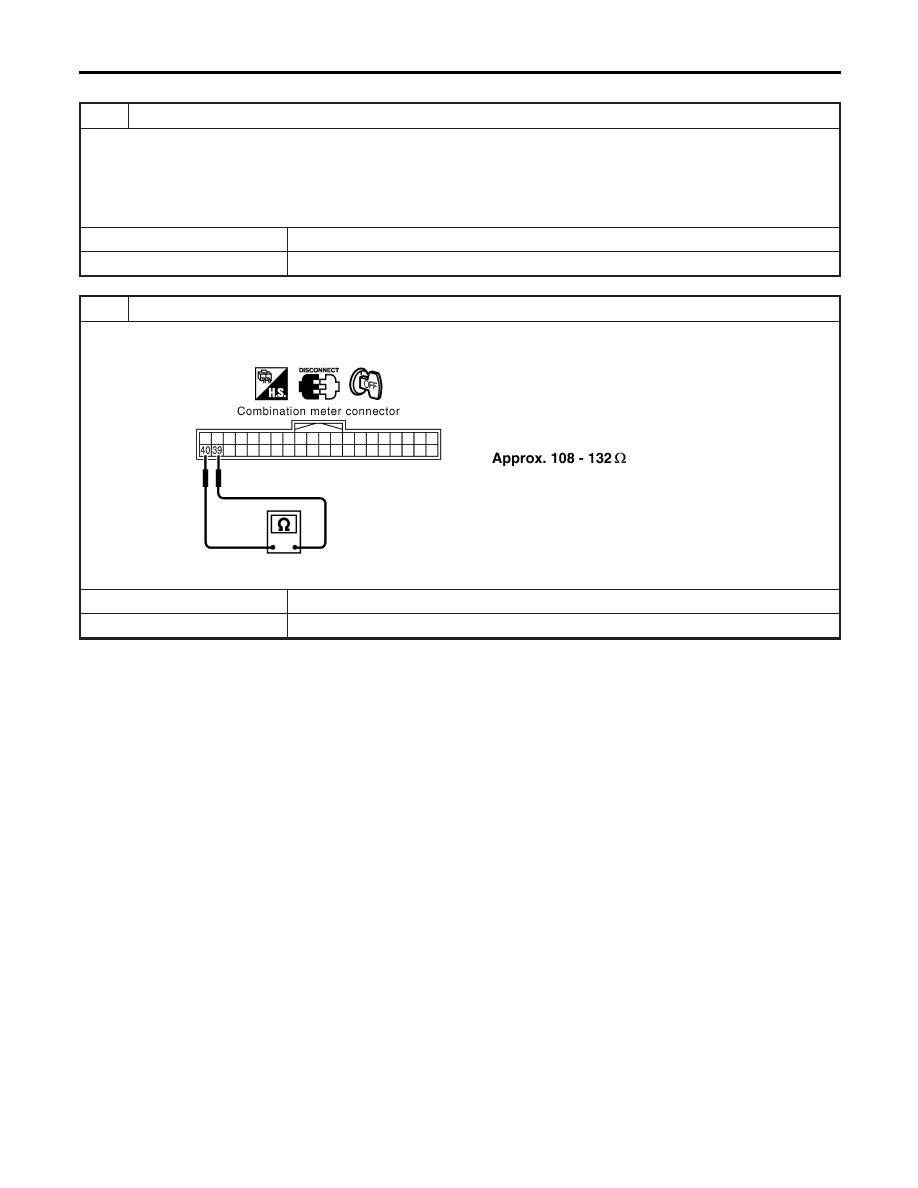

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect combination meter connector.
2. Check resistance between combination meter harness connector M84 terminals 39 (L) and 40 (R).

YEL425E

OK or NG

OK

©

Replace combination meter.

NG

©

Repair harness between combination meter and data link connector.

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-508

CAN COMMUNICATION CIRCUIT CHECK

=NLEL0646S12

1

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector of combination meter for damage, bend and loose connection (meter side,

control unit side, control module side and harness side).

I

Combination meter

I

Smart entrance control unit

I

ECM

I

ABS actuator and electric unit (control unit)

I

Steering angle sensor

I

Between ECM and data link connector

OK or NG

OK

©

GO TO 2.

NG

©

Repair terminal or connector.

2

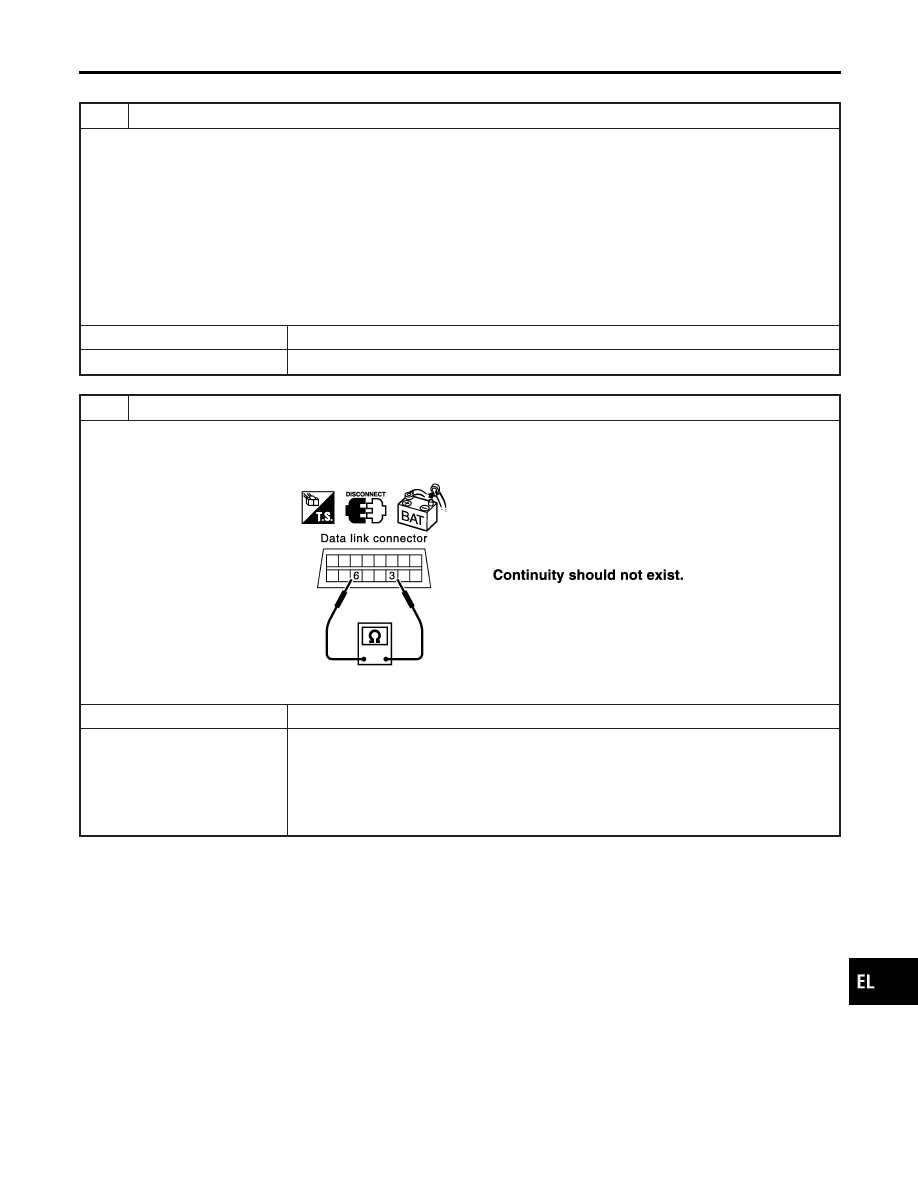

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect combination meter connector, smart entrance control unit connector, and harness connector M82 (LHD

models) or harness connector M80 (RHD models).

2. Check continuity between data link connector M6 terminals 6 (L) and 3 (R).

SEL816Y

OK or NG

OK

©

GO TO 3.

NG

©

I

Repair harness between data link connector and harness connector M82 (LHD mod-
els).

I

Repair harness between data link connector and harness connector M80 (RHD mod-
els).

I

Repair harness between data link connector and smart entrance control unit.

I

Repair harness between data link connector and combination meter.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-509

3

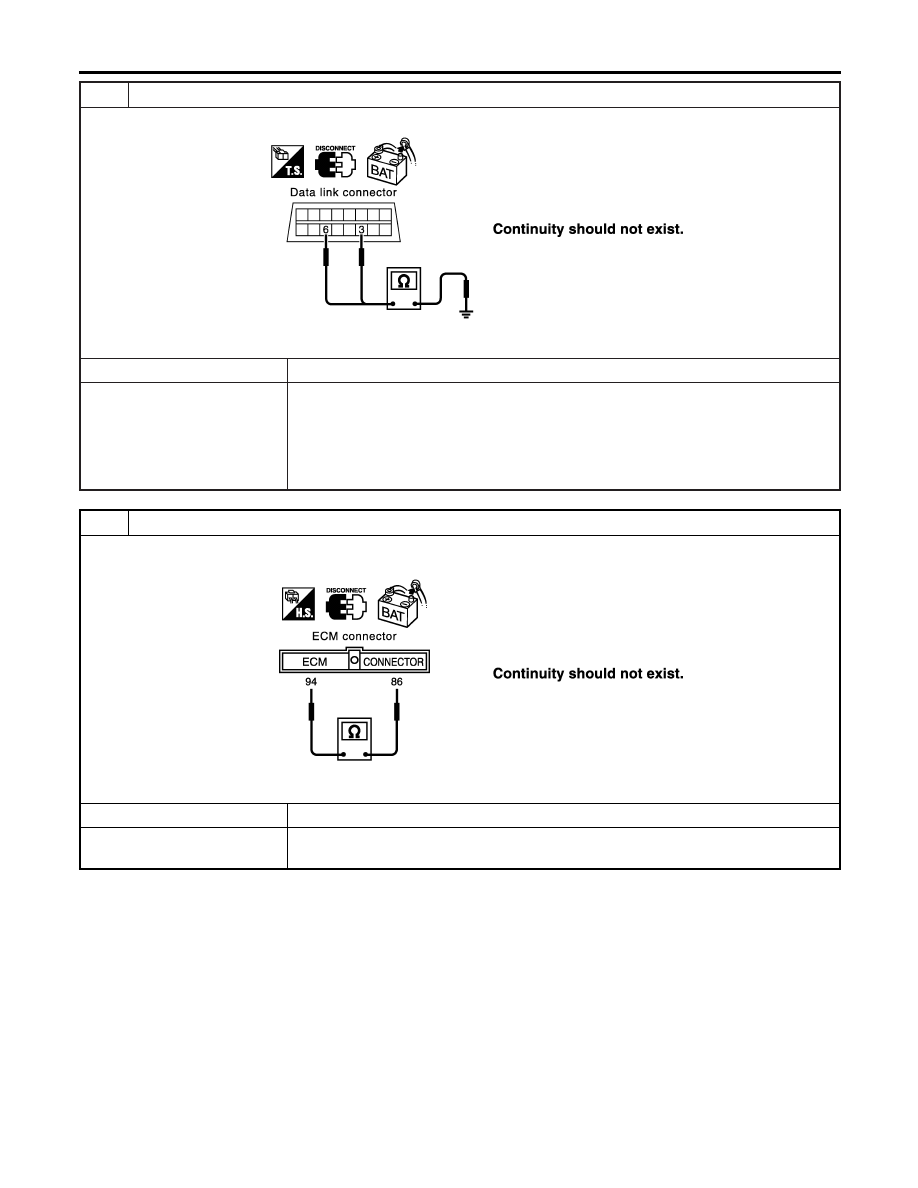

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between data link connector M6 terminals 6 (L), 3 (R) and ground.

SEL817Y

OK or NG

OK

©

GO TO 4.

NG

©

I

Repair harness between data link connector and harness connector M82 (LHD mod-
els).

I

Repair harness between data link connector and harness connector M80 (RHD mod-
els).

I

Repair harness between data link connector and smart entrance control unit.

I

Repair harness between data link connector and combination meter.

4

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect ECM connector and harness connector M11 (LHD models).
2. Check continuity between ECM harness connector M107 terminals 94 (L) and 86 (R).

SEL820Y

OK or NG

OK

©

GO TO 5.

NG

©

I

Repair harness between ECM and harness connector M11 (LHD models).

I

Repair harness between ECM and harness connector M80 (RHD models).

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-510

5

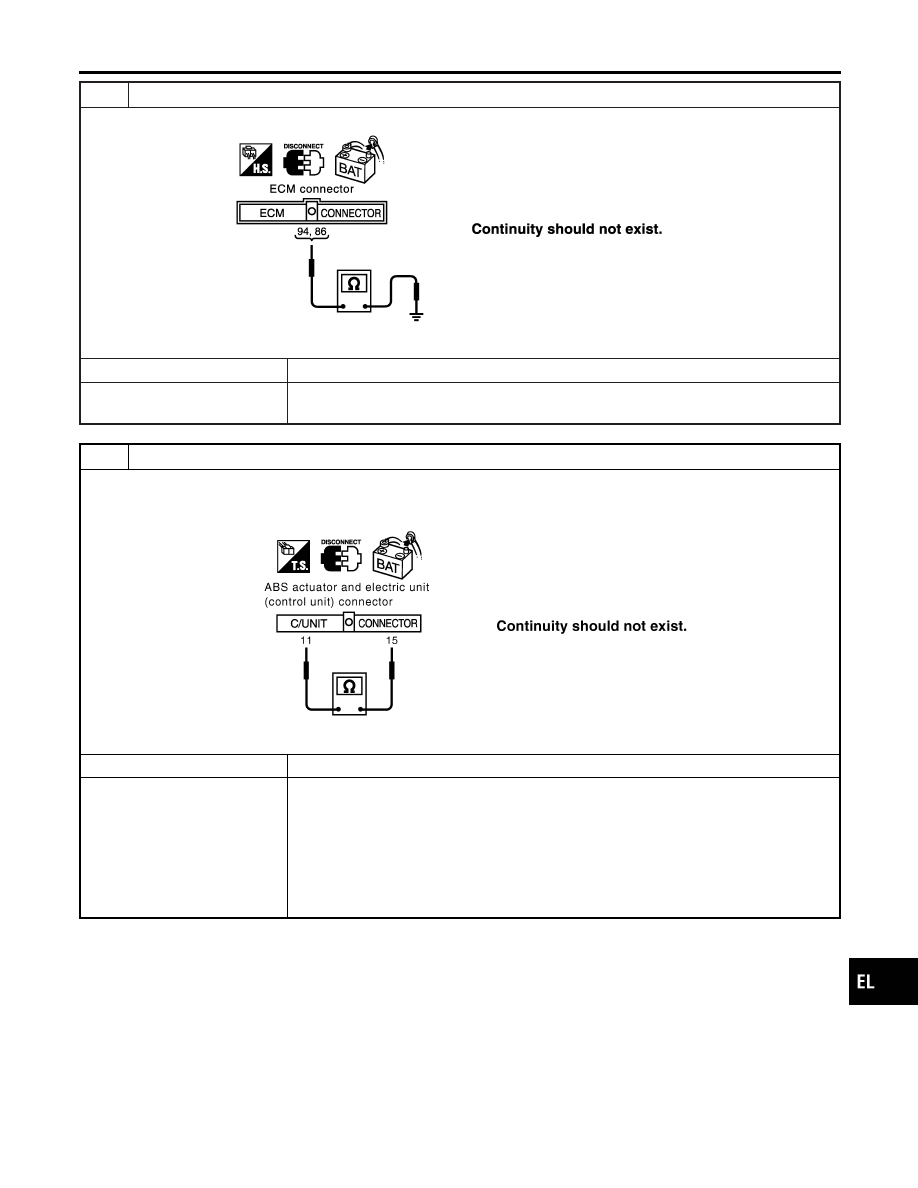

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between ECM harness connector M107 terminals 94 (L), 86 (R) and ground.

SEL821Y

OK or NG

OK

©

GO TO 6.

NG

©

I

Repair harness between ECM and harness connector M11 (LHD models).

I

Repair harness between ECM and harness connector M80 (RHD models).

6

CHECK HARNESS FOR SHORT CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connector and steering angle sensor connector.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector E143 terminals 11 (L) and 15

(R).

YEL426E

OK or NG

OK

©

GO TO 7.

NG

©

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E106 (LHD models).

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E125 (LHD models).

I

Repair harness between ABS actuator and electric unit (control unit) and steering
angle sensor.

I

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E145 (RHD models).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-511

7

CHECK HARNESS FOR SHORT CIRCUIT

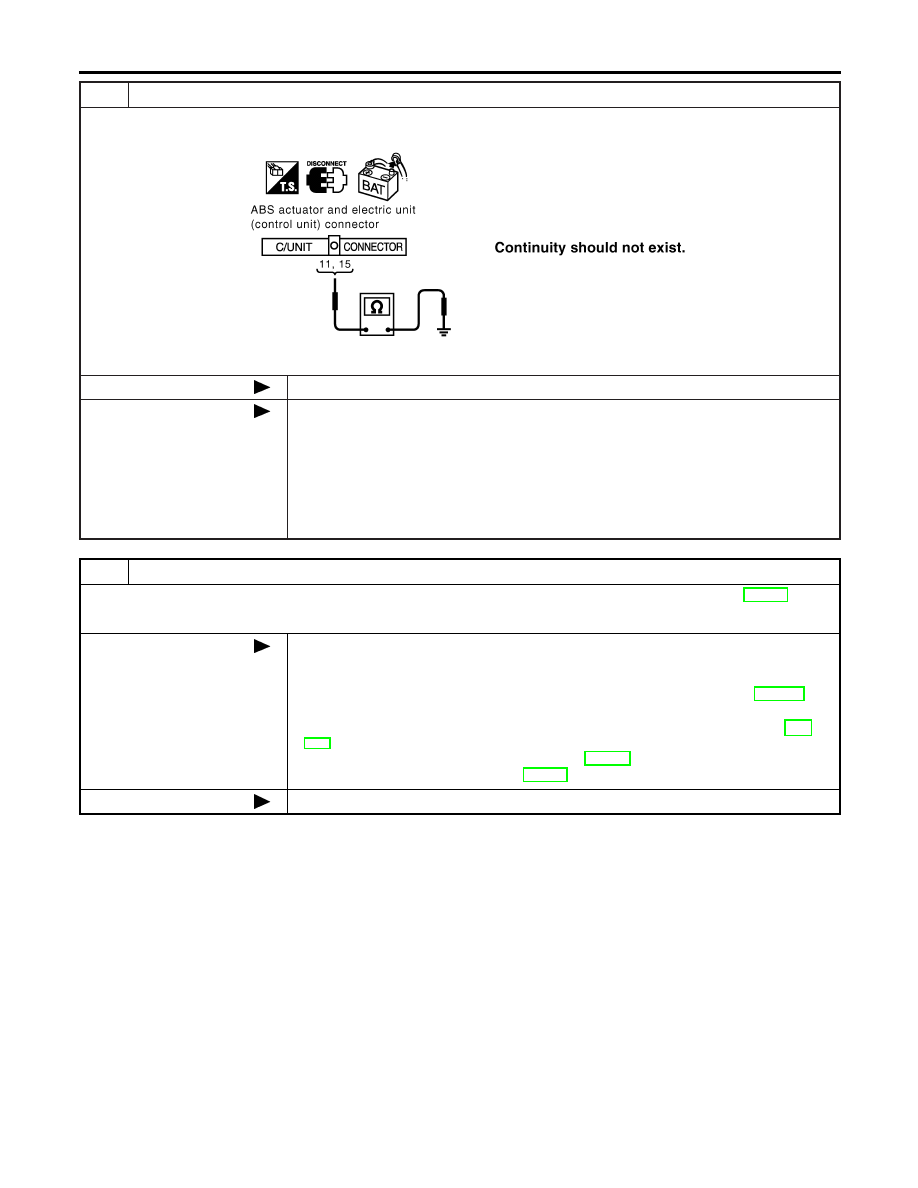

Check continuity between ABS actuator and electric unit (control unit) harness connector E143 terminals 11 (L) , 15 (R)
and ground.

YEL427E

OK or NG

OK

GO TO 8.

NG

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E145 (RHD models).

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E106 (LHD models).

Repair harness between ABS actuator and electric unit (control unit) and harness con-
nector E125 (LHD models).

Repair harness between ABS actuator and electric unit (control unit) and steering
angle sensor.

8

ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION

Check components inspection. Refer to “ECM/COMBINATION METER INTERNAL CIRCUIT INSPECTION” (EL-492).

OK or NG

OK

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to the fol-
lowing.

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651)
for “ENGINE”

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

NG

Replace ECM and/or combination meter.

CAN SYSTEM (TYPE 2)

Trouble Diagnoses (Cont’d)

EL-512















Content      ..     186      187      188      189     ..
