CAN COMMUNICATION

CAN Communication Unit (Cont’d)

EL-465

TYPE 5/TYPE 6

=NLEL0691S04

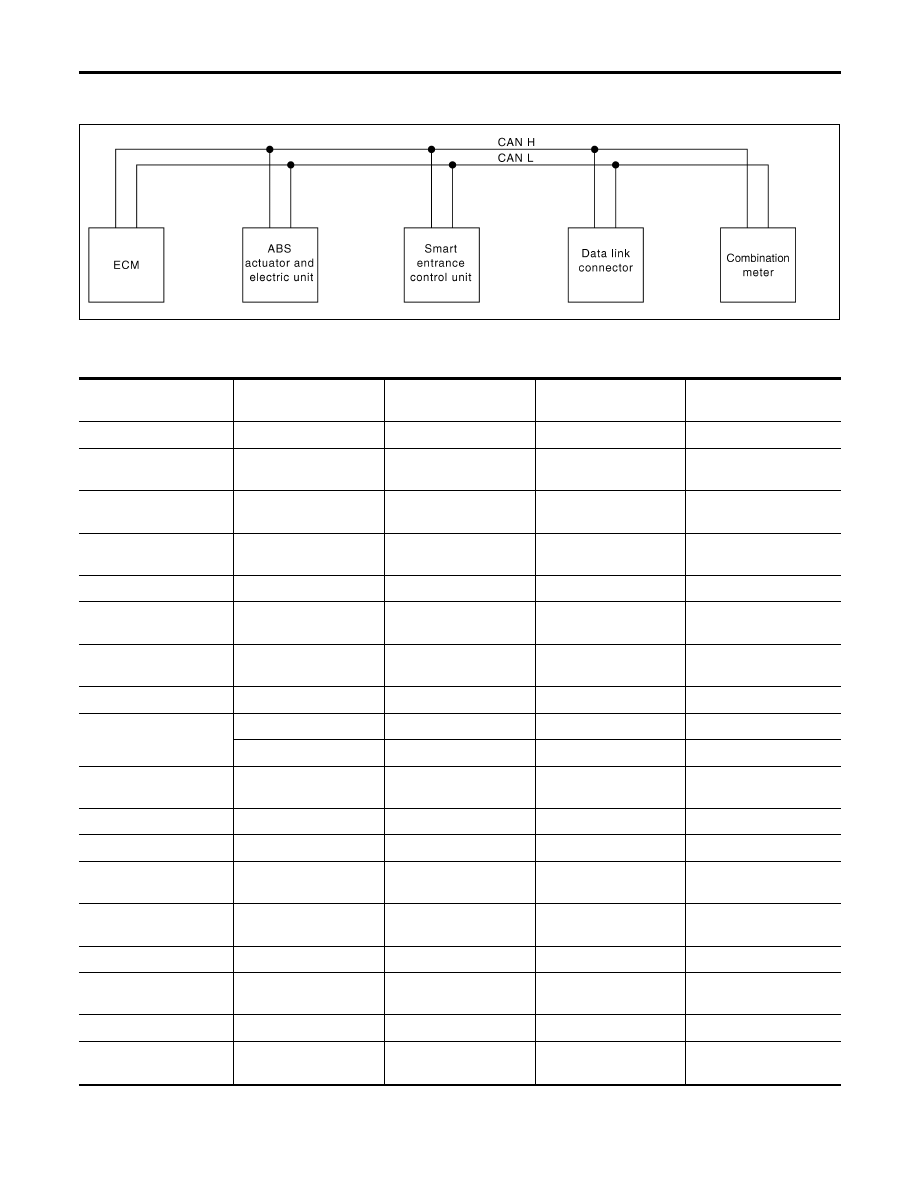

System Diagram

NLEL0691S0401

YEL469E

Input/Output Signal Chart

NLEL0691S0402

T: Transmit R: Receive

Signals

ECM

ABS actuator and elec-

tric unit (control unit)

Smart entrance control

unit

Combination meter

Engine speed signal

Rear window defogger
signal

Heater fan switch sig-
nal

Air conditioner switch
signal

MI signal

Glow indicator lamp sig-
nal

Engine coolant tempera-
ture signal

Fuel consumption signal

Vehicle speed signal

Seat belt reminder sig-
nal

Headlamp switch signal

Flashing indicator signal

Engine cooling fan
speed signal

Door switches state sig-
nal

A/C compressor signal

A/C compressor feed-
back signal

ABS operation signal

ABS warning lamp sig-
nal

*1: For QG engine models
*2: For YD engine models

CAN COMMUNICATION

CAN Communication Unit (Cont’d)

EL-466

Component Parts and Harness Connector
Location

NLEL0638

YEL408E

System Description

NLEL0639

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many
electonic control units are equipped onto a vehicle, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected with
2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wir-
ing. Each control unit transmits/receives data but selectively reads required data only.

IDX

CAN SYSTEM (TYPE 1)

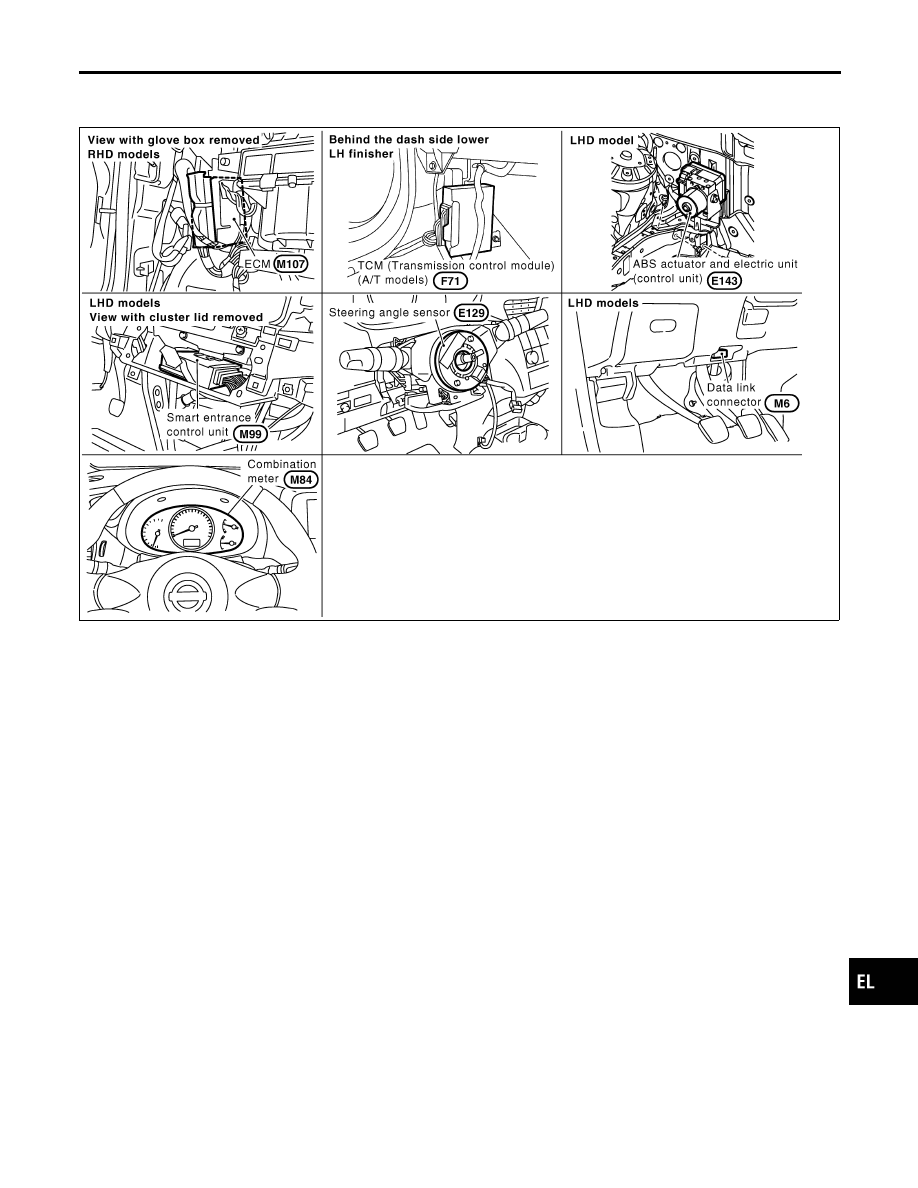

Component Parts and Harness Connector Location

EL-467

YEL048E

IDX

CAN SYSTEM (TYPE 1)

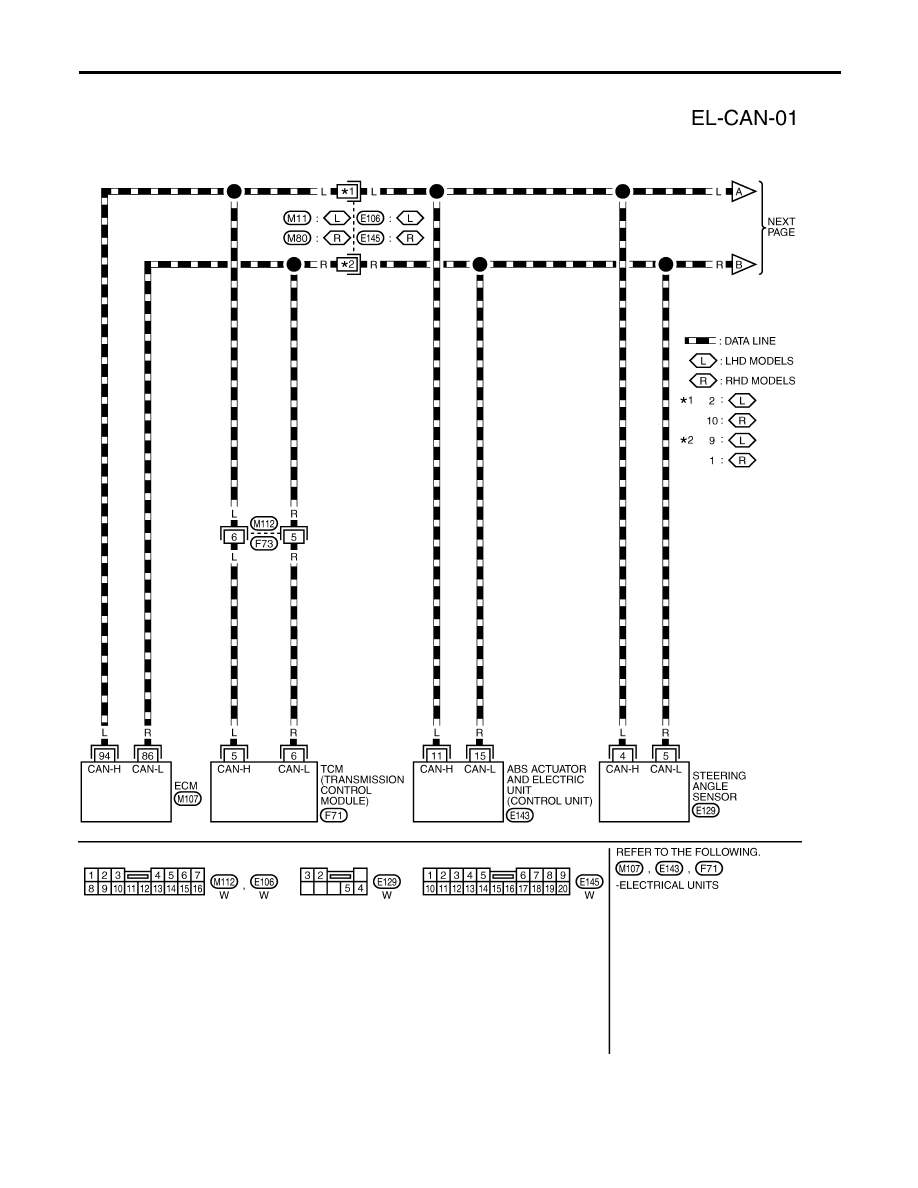

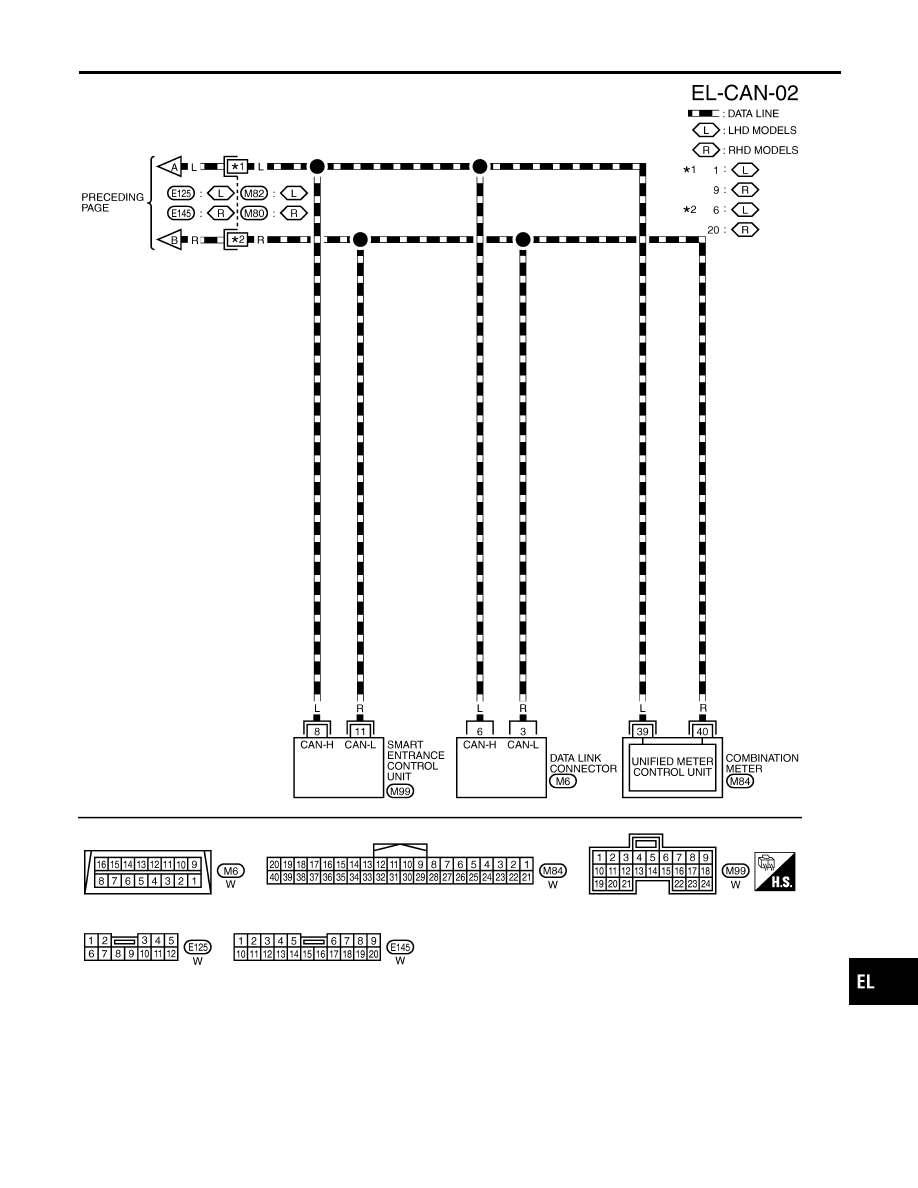

Wiring Diagram — CAN — (Cont’d)

EL-469

Trouble Diagnoses

NLEL0641

WORK FLOW

NLEL0641S01

1. Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “A/T” and “SMART

ENTRANCE” displayed on CONSULT-II. Refer to the following.

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for “ENGINE”

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-651) for “ENGINE”

‰

“DTC U1000 CAN COMMUNICATION LINE” (WITH EURO-OBD) (AT-194) for “A/T”

‰

“CAN COMMUNICATION LINE” (All) (AT-399) for “A/T”

‰

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

‰

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

2. Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer

to “CHECK SHEET” (EL-471).

3. Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet

table. Refer to “CHECK SHEET“ (EL-471).

NOTE:
If “NG” is displayed on “CAN COMM” for the diagnosed control unit, replace the control unit.
4. According to the check sheet results (example), start inspection. Refer to “CHECK SHEET RESULTS

(EXAMPLE)” (EL-472).

CAN SYSTEM (TYPE 1)

Trouble Diagnoses

EL-470

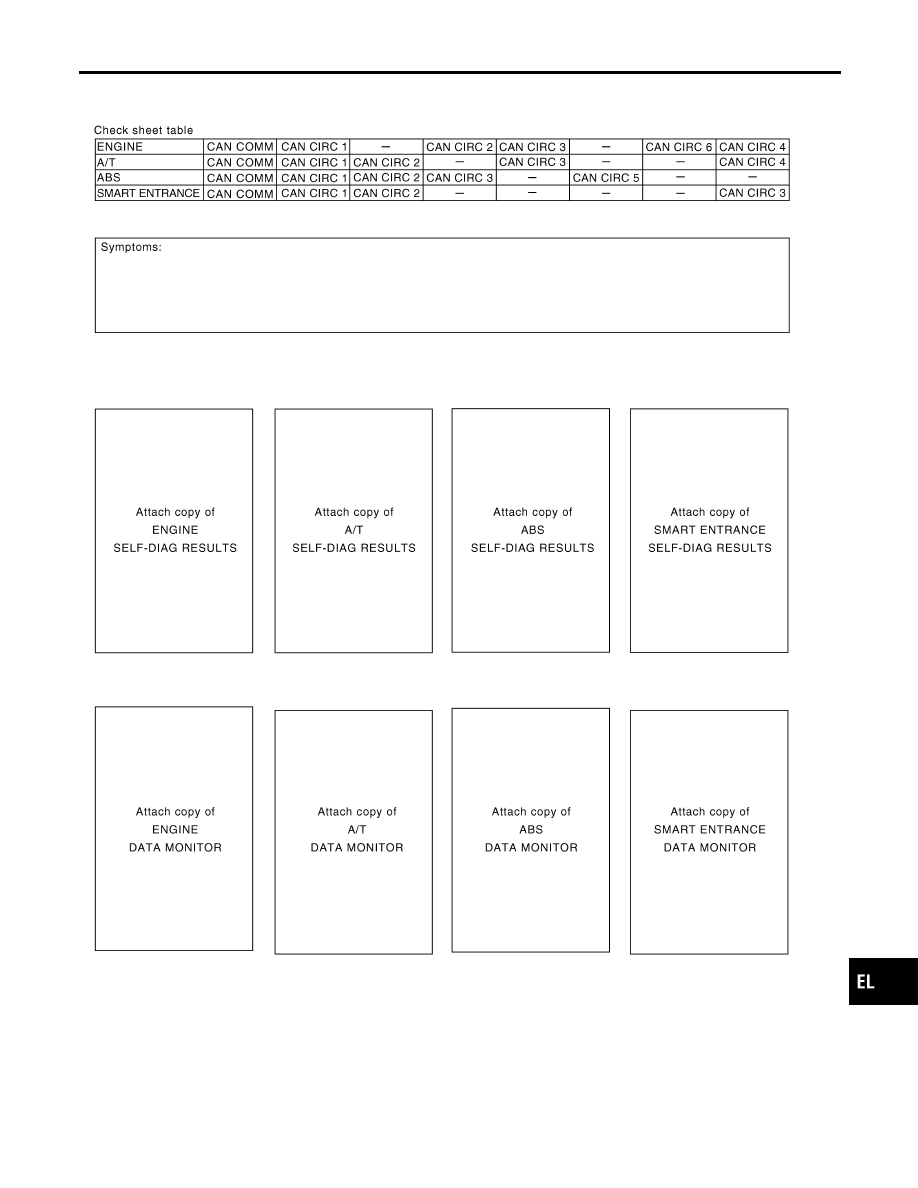

CHECK SHEET

NLEL0641S02

YEL409E

IDX

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-471

YEL411E

IDX

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-473

INSPECTION

NLEL0641S04

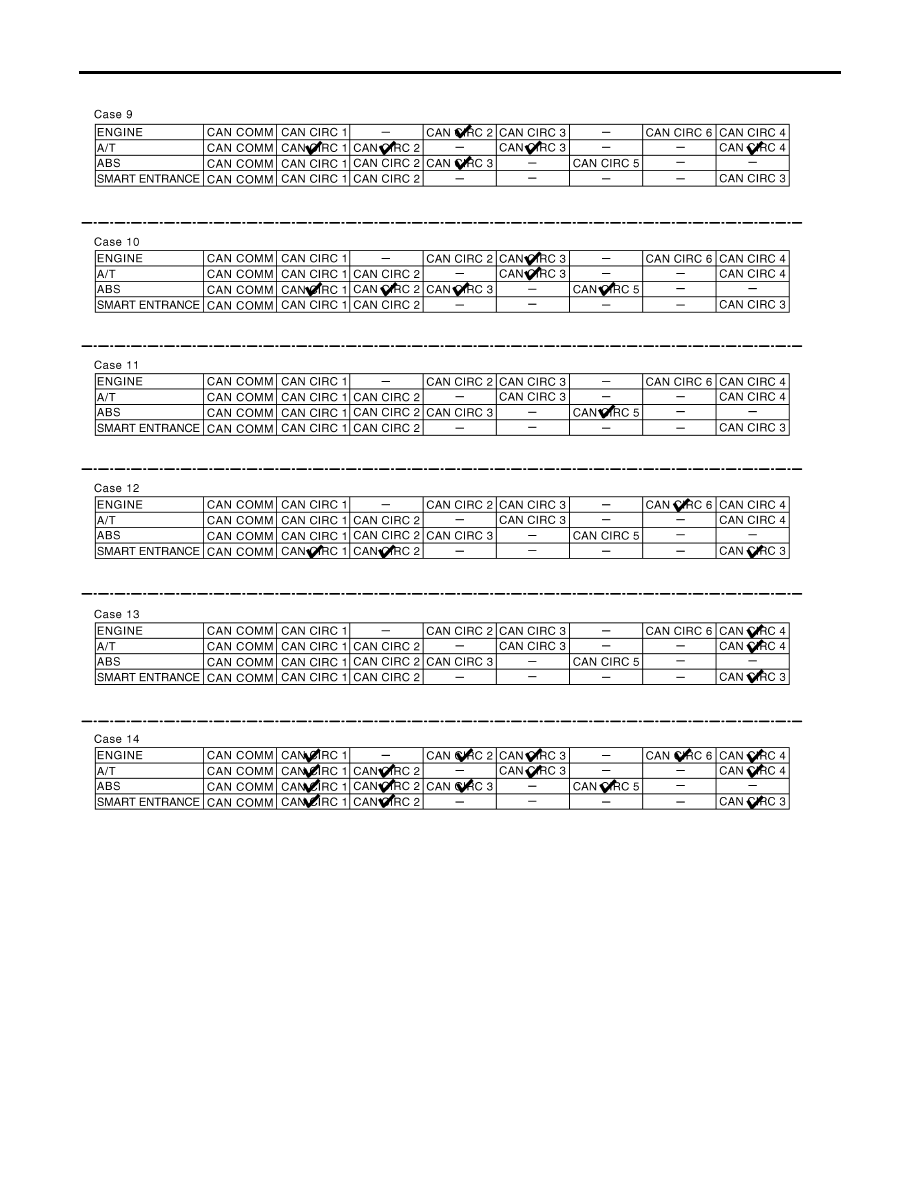

Proceed trouble diagnosis according to the check sheet results (example).

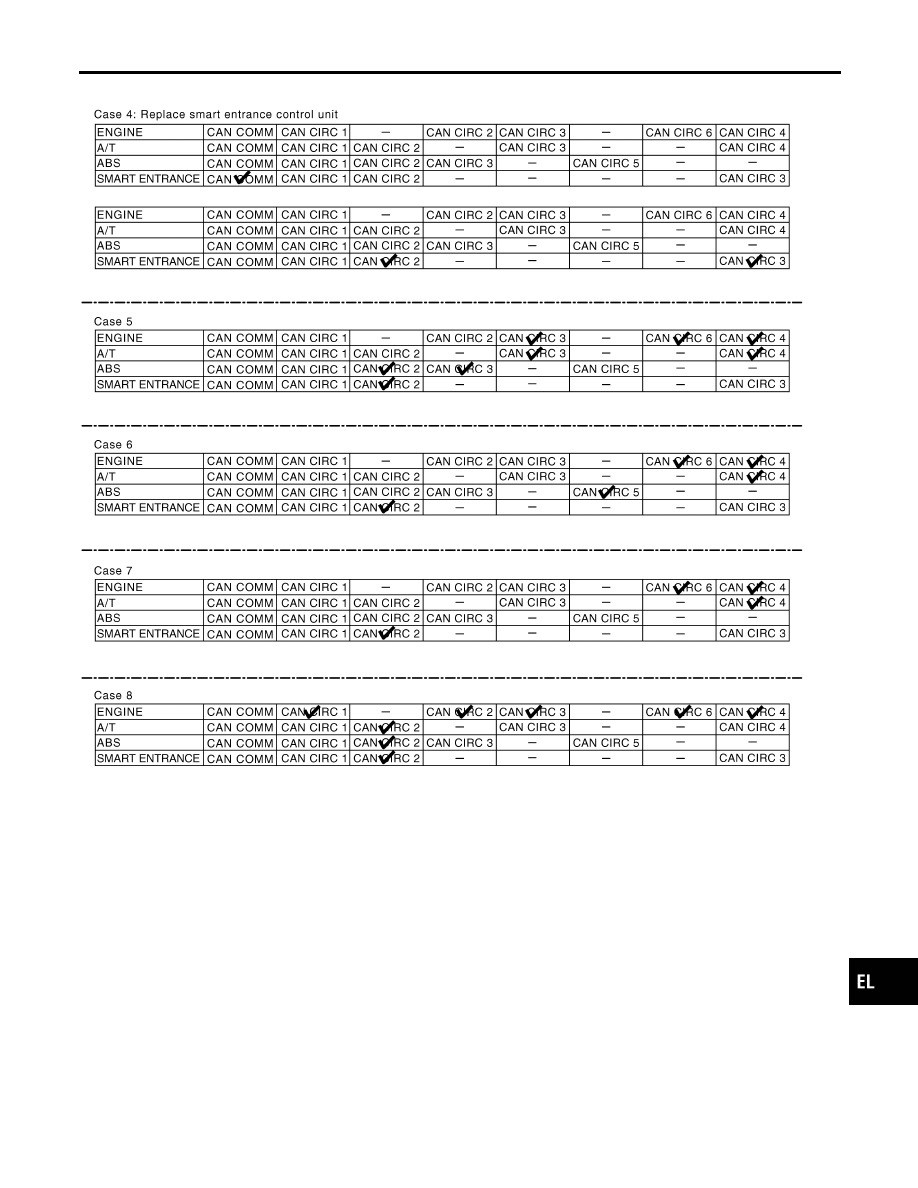

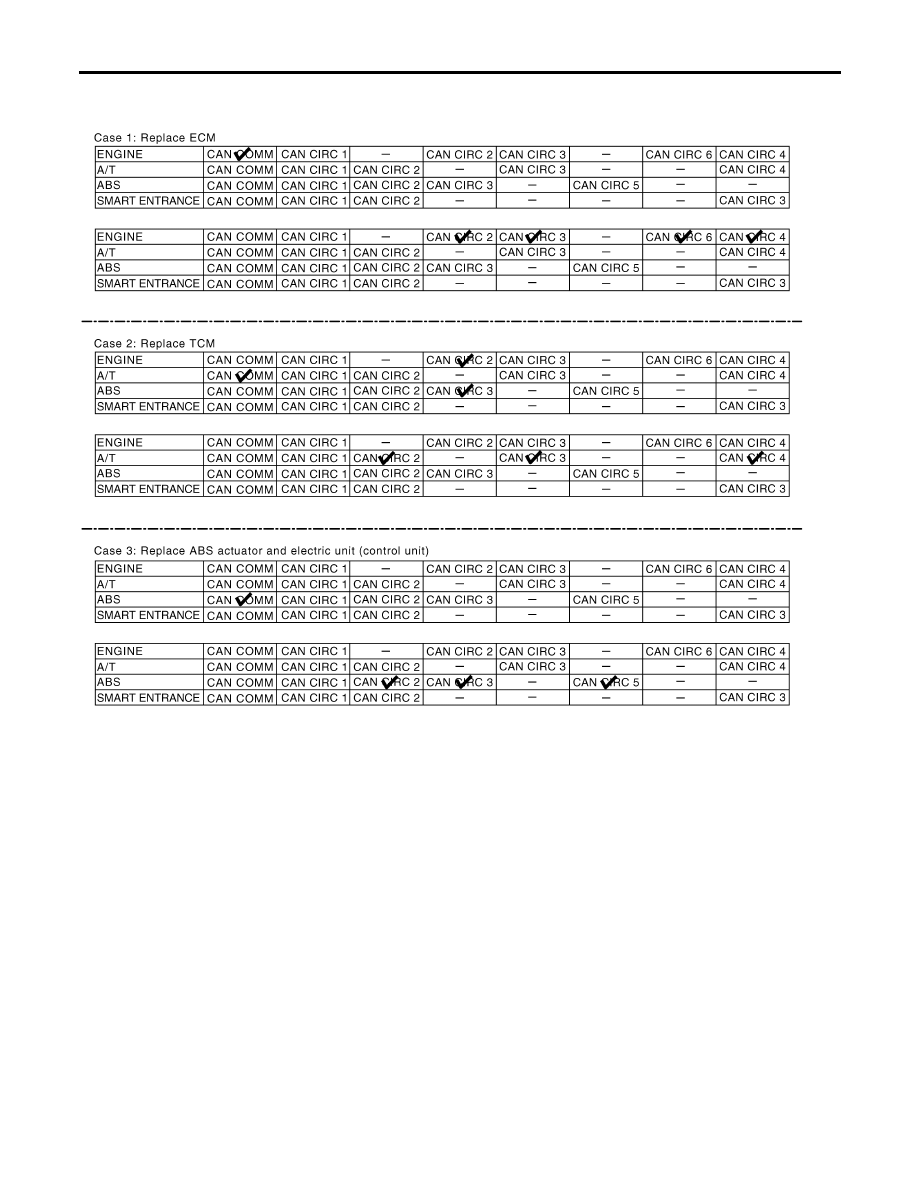

Case 1: Replace ECM.
Case 2: Replace TCM.
Case 3: Replace ABS actuator and electric unit (control unit)
Case 4: Replace smart entrance control unit.
Case 5: Check harness between TCM and ABS actuator and electric unit (control unit). Refer to “CIRCUIT
CHECK BETWEEN TCM AND ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)” (EL-476).
Case 6: Check harness between ABS actuator and electric unit (control unit) and steering angle sensor. Refer
to “CIRCUIT CHECK BETWEEN ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) AND STEER-
ING ANGLE SENSOR” (EL-478).
Case 7: Check harness between steering angle sensor and smart entrance control unit. Refer to “CIRCUIT
CHECK BETWEEN STEERING ANGLE SENSOR AND SMART ENTRANCE CONTROL UNIT” (EL-479).
Case 8: Check ECM circuit. Refer to “ECM CIRCUIT CHECK” (EL-481).
Case 9: Check TCM circuit. Refer to “TCM CIRCUIT CHECK” (EL-482).
Case 10: Check ABS actuator and electric unit (control unit) circuit. Refer to “ABS ACTUATOR AND ELEC-
TRIC UNIT (CONTROL UNIT) CIRCUIT CHECK” (EL-483).
Case 11: Check steering angle sensor circuit. Refer to “STEERING ANGLE SENSOR CIRCUIT CHECK” (EL-
484).
Case 12: Check smart entrance control unit circuit. Refer to “SMART ENTRANCE CONTROL UNIT CIRCUIT
CHECK” (EL-485).
Case 13: Check combination meter circuit. Refer to “COMBINATION METER CIRCUIT CHECK” (EL-486).
Case 14: Check CAN communication circuit. Refer to “CAN COMMUNICATION CIRCUIT CHECK” (EL-487).

IDX

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-475

CIRCUIT CHECK BETWEEN TCM AND ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)

=NLEL0641S05

CHECK CONNECTOR

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Check following terminals and connector for damage, bend and loose connection (connector side and harness side).
LHD models

Harness connector M11

Harness connector E106

RHD models

Harness connector M80

Harness connector E145

OK or NG

GO TO 2.

Repair terminal or connector.

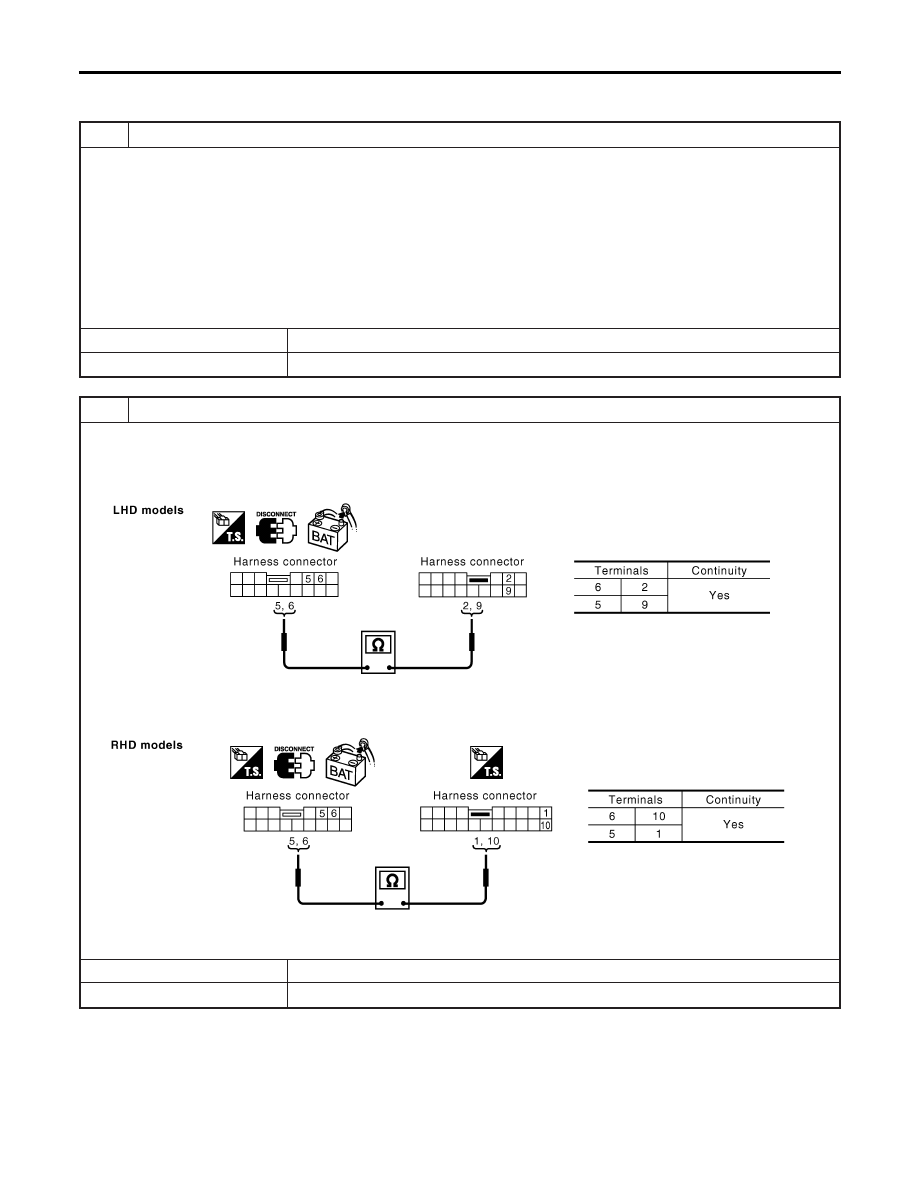

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect harness connector M11 (LHD models) or harness connector M80 (RHD models).
2. Check the following.
LHD models

Continuity between harness connector M112 terminals 6 (L), 5 (R) and harness connector M11 terminals 2 (L), 9 (R)

YEL413E

RHD models

Continuity between harness connector M112 terminals 6 (L), 5 (R) and harness connector M80 terminals 10 (L), 1 (R)

YEL414E

OK or NG

GO TO 3.

Repair harness.

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-476

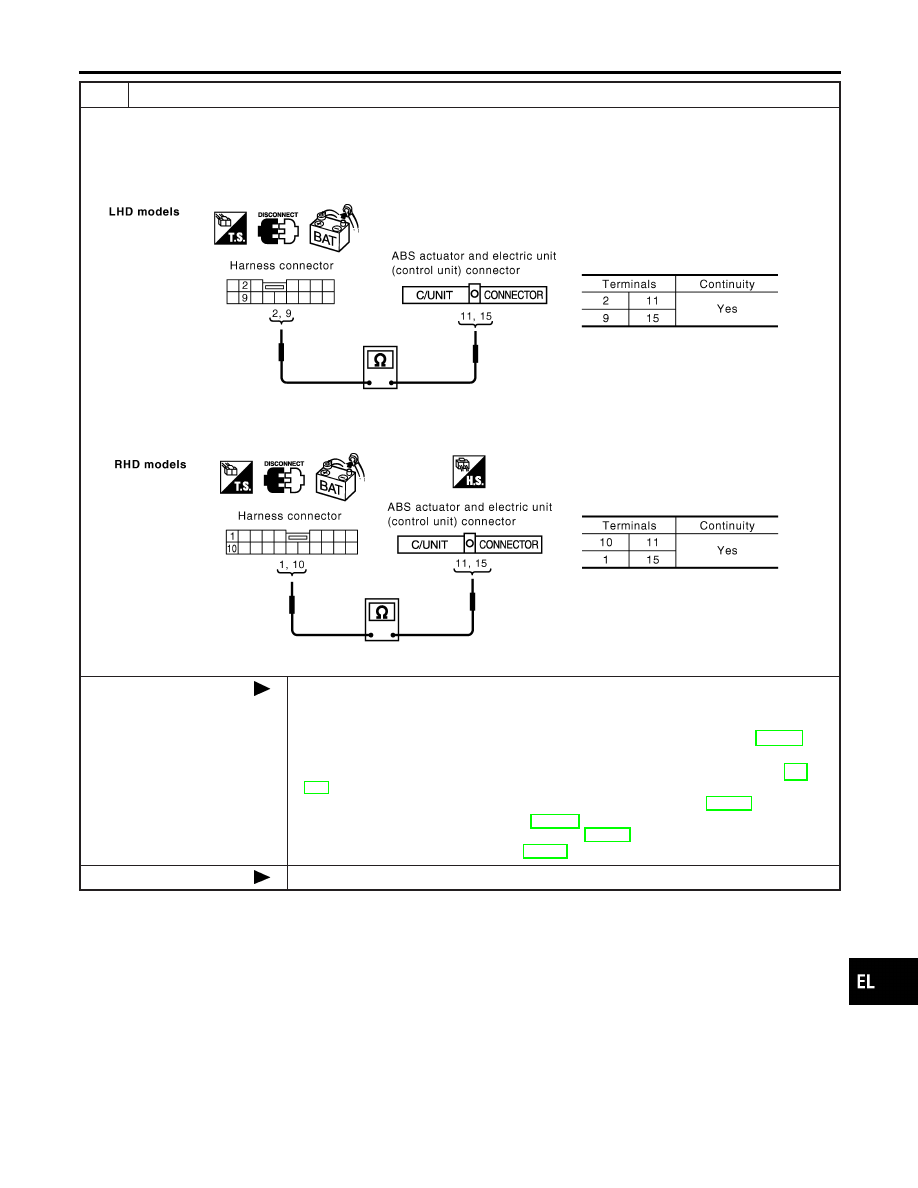

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Check the following.
LHD models

‰

Continuity between harness connector E106 terminals 2 (L), 9 (R) and ABS actuator and electric unit (control unit) con-
nector E143 terminals 11 (L), 15 (R)

YEL416E

RHD models

‰

Continuity between harness connector E145 terminals 10 (L), 1 (R) and ABS actuator and electric unit (control unit) con-
nector E143 terminals 11 (L), 15 (R)

YEL417E

OK or NG

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “A/T”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to
the following.

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651) for “ENGINE”

‰

“DTC U1000 CAN COMMUNICATION LINE” (WITH EURO-OBD) (AT-194) for “A/T”

‰

“CAN COMMUNICATION LINE” (All) (AT-399) for “A/T”

‰

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

‰

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

Repair harness.

IDX

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-477

CIRCUIT CHECK BETWEEN ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) AND
STEERING ANGLE SENSOR

=NLEL0641S07

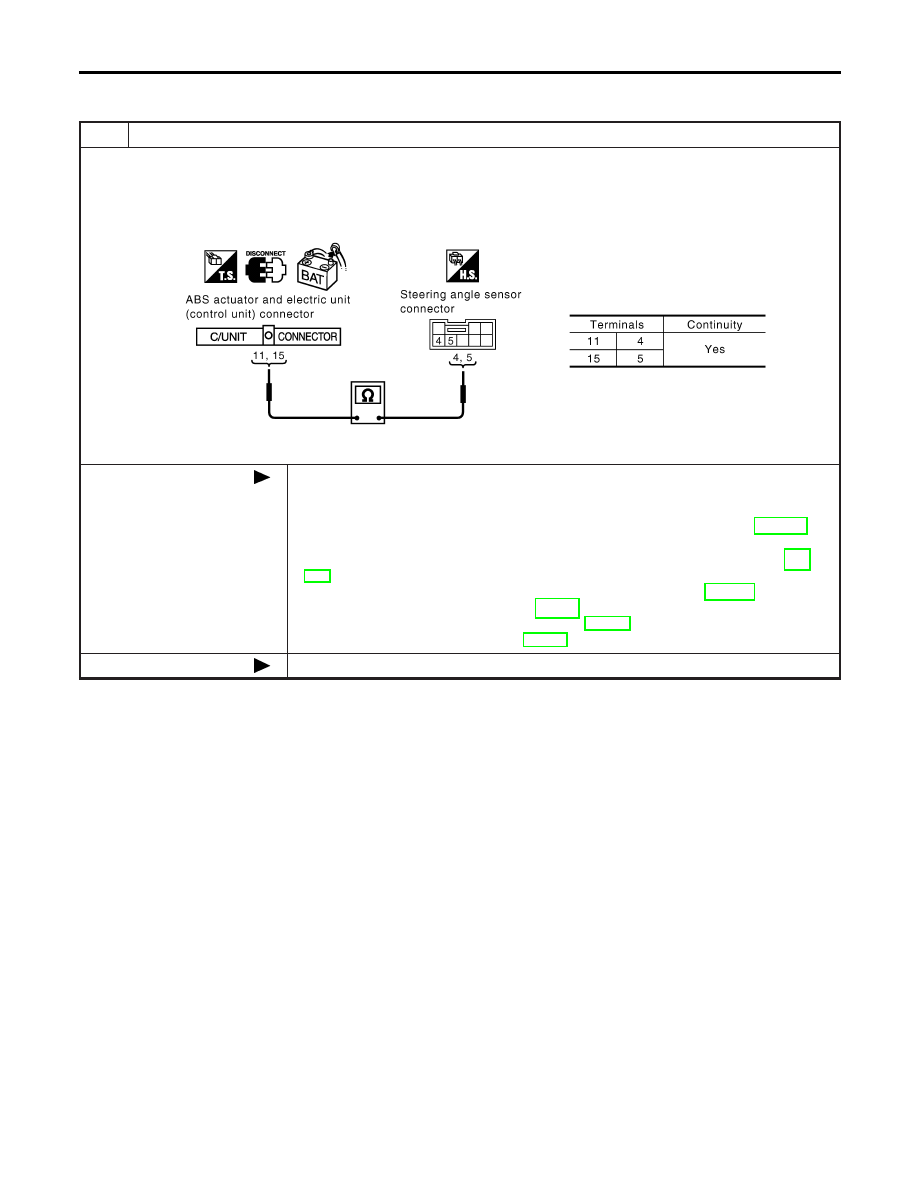

CHECK HARNESS FOR OPEN CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect the negative battery cable.
3. Disconnect ABS actuator and electric unit (control unit) connector and steering angle sensor connector.
4. Check continuity between ABS actuator and electric uit (control unit) harness connector E143 terminals 11 (L), 15 (R)

and steering angle sensor harness connector E129 terminals 4 (L), 5 (R).

YEL422E

OK or NG

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “A/T”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to
the following.

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651) for “ENGINE”

‰

“DTC U1000 CAN COMMUNICATION LINE” (WITH EURO-OBD) (AT-194) for “A/T”

‰

“CAN COMMUNICATION LINE” (All) (AT-399) for “A/T”

‰

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

‰

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

Repair harness.

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-478

CIRCUIT CHECK BETWEEN STEERING ANGLE SENSOR AND SMART ENTRANCE
CONTROL UNIT

=NLEL0641S06

CHECK CONNECTOR

Harness connector E125

Harness connector M82

RHD models

Harness connector E145

Harness connector M80

OK or NG

GO TO 2.

Repair terminal or connector.

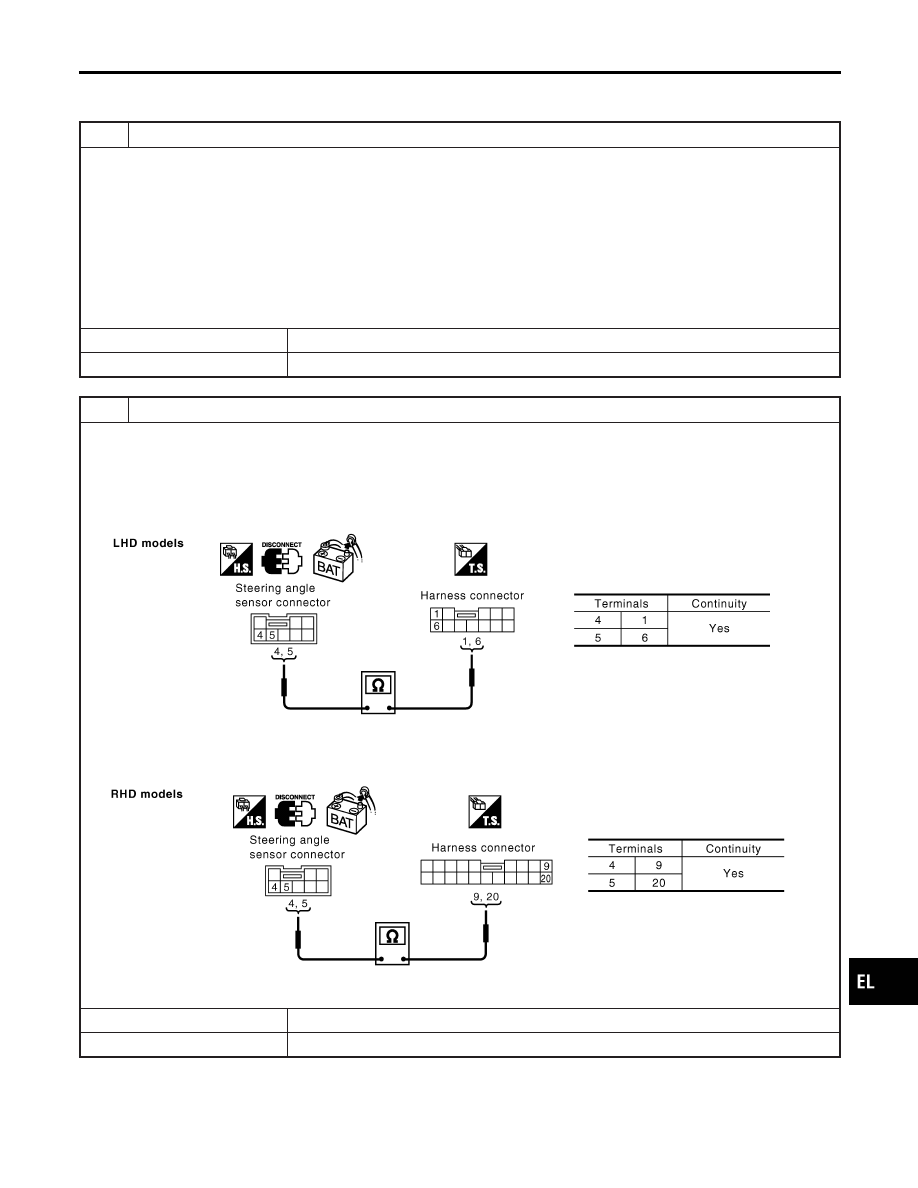

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect steering angle sensor connector and harness connector E125 (LHD models) or harness connector E145

(RHD models).

2. Check the following.
LHD models

Continuity between steering angle sensor harness connector E129 terminals 4 (L), 5 (R) and harness connector E125
terminals 1 (L), 6 (R)

YEL418E

RHD models

Continuity between steering angle sensor harness connector E129 terminals 4 (L), 5 (R) and harness connector E145
terminals 9 (L), 20 (R)

YEL419E

OK or NG

GO TO 3.

Repair harness.

IDX

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-479

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect smart entrance control unit connector.
2. Check the following.
LHD models

‰

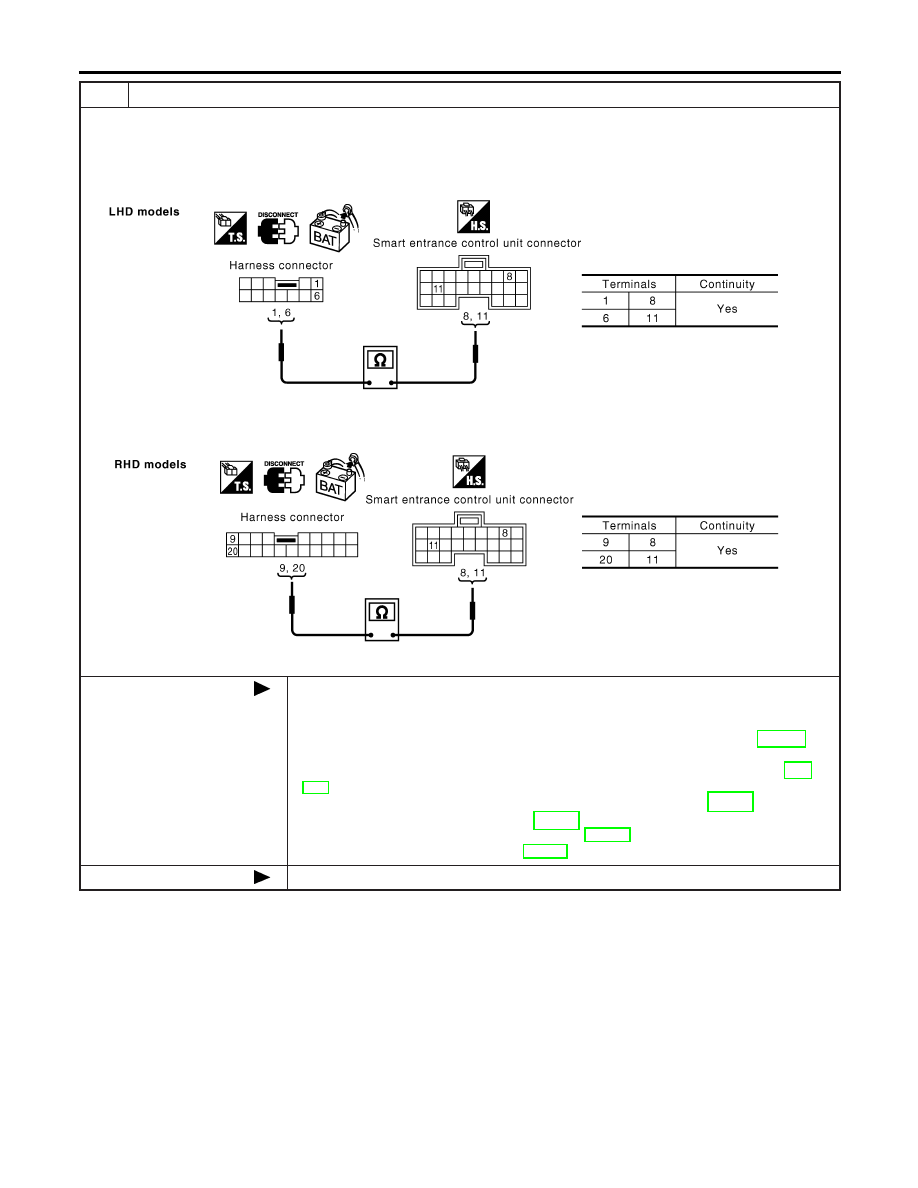

Continuity between harness connector M82 terminals 1 (L), 6 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R)

YEL420E

RHD models

‰

Continuity between harness connector M80 terminals 9 (L), 20 (R) and smart entrance control unit connector M99 termi-
nals 8 (L), 11 (R)

YEL421E

OK or NG

Reconnect all connectors to perform “SELF-DIAG RESULTS” and “DATA MONITOR” for
“ENGINE”, “A/T”, “ABS” and “SMART ENTRANCE” displayed on CONSULT-II. Refer to
the following.

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITH EURO-OBD) (EC-145) for
“ENGINE”

‰

“DTC U1000, U1001 CAN COMMUNICATION LINE” (WITHOUT EURO-OBD) (EC-
651) for “ENGINE”

‰

“DTC U1000 CAN COMMUNICATION LINE” (WITH EURO-OBD) (AT-194) for “A/T”

‰

“CAN COMMUNICATION LINE” (All) (AT-399) for “A/T”

‰

“Inspection 13 CAN Communication System” (BR-140) for “ABS”

‰

“CAN Communication Line Check” (EL-351) for “SMART ENTRANCE”

Repair harness.

CAN SYSTEM (TYPE 1)

Trouble Diagnoses (Cont’d)

EL-480
